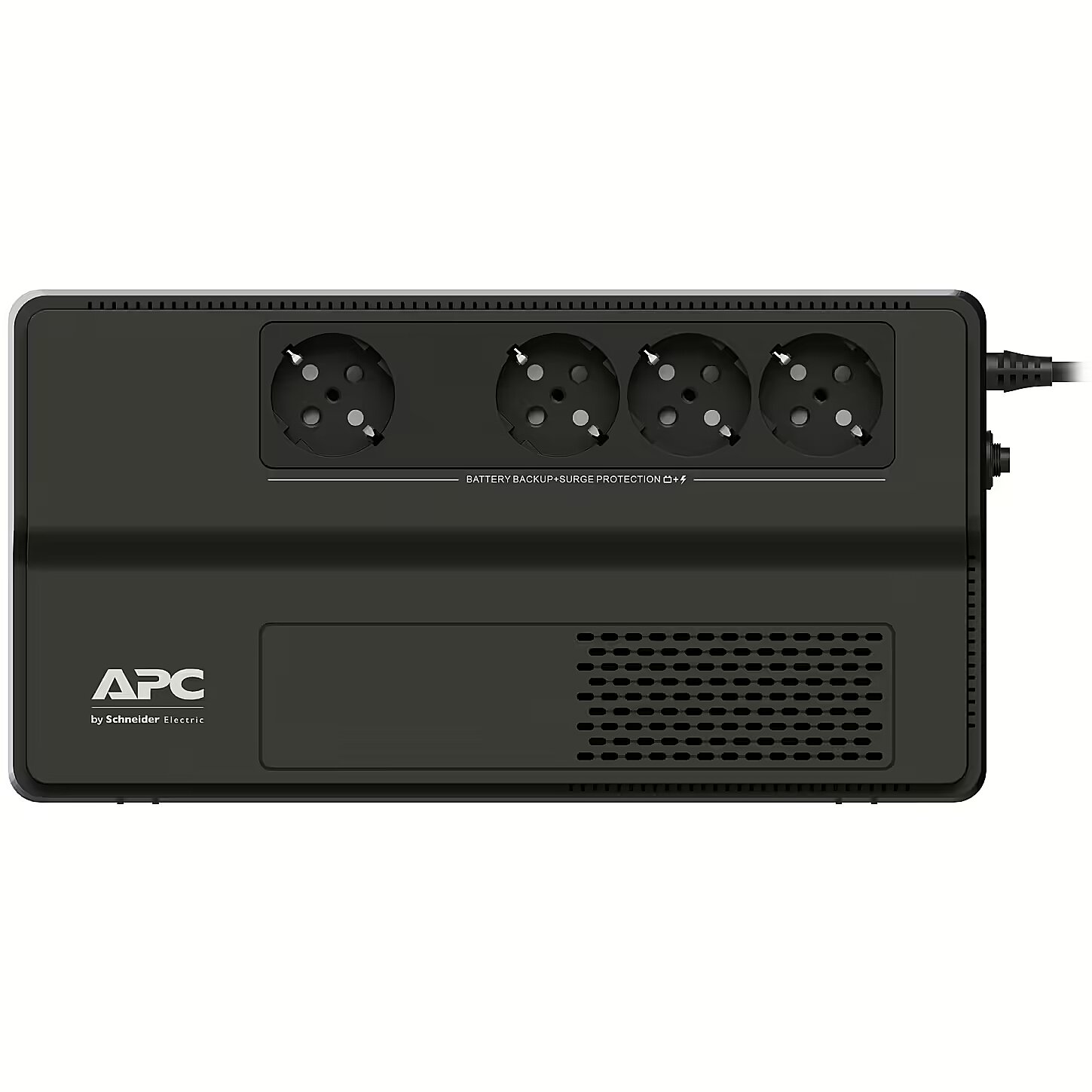

APC Easy UPS BV500I-GR 500VA, 300W

Accessories included - Podręcznik użytkownika
Active power - 300 W
Alarm -

Alarm when on battery

distinctive low battery alarm

overload continuous tone alarm

Apparent power - 500 VA
ARTIKEL1 - EASY UPS BV SERIES 500 VA
ARTIKEL2 - IN
Battery - Battery capacity - 4.5 Ah
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Cold start - Yes
Battery life (max), years - 3 - 5
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Brand - APC
BrandPartCode - BV500I-GR
Breite - 0.24
Cable length, m - 1.52
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certification - CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Chassis type - Desktop
Color - -
Color - Black
ControlPanel -

LED status display with On Line

On Battery

Depth - 305 mm
Depth, mm - 305
Description - APC EASY UPS BV 500VA, AVR, SCHUKO OUTLET, 230V
Description - BV500I-GR BackUPS BV 500VA/300W/AVR/4xSchuko without management
- Automatic voltage regulation (AVR) Automatically increases the low voltage and lowers the high voltage to levels appropriate for powered devices.
- Wall mounting holes. The strip is suitable for convenient installation in confined spaces, as well as on a wall or other surface.
Design - Cable length - 1.52 m
Design - Certification - CE
REACH
Design - Form factor - Compact
Design - LED indicators - Yes
Design - Product colour - Black
dimension depth - 145 mm
dimension height - 375 mm
Dimensions - 92mm x 160mm x 305mm
dimension weight - 4300 g
dimension width - 240 mm
ean - 731304338284
EAN - 0731304338284
EANCode - 0731304338284
Eans - 731304338284
EAN_code - 0731304338284
Environment requirements - - Operating temperature 0 - 40°C
- Relative humidity during operation 0 - 90%
- Height during operation 0-1968.3metres
- Noise heard at a distance of 1 m from the surface of the device 40.0dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Automatic Voltage Regulation (AVR) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 170 V
Features - Noise level - 40 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output power - 300 W
Features - Output power capacity - 0.5 kVA
Features - Surge energy rating - 156 J
Features - Surge protection - Yes
Features - Transfer time (Line Mode to Battery Mode) - 6 ms
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Surge
FormFactor - Other
Frequency range, Hz - 50, 60
Gewicht - 4.62
GrossWeight - 4.300 kg
Gross Weight Kg - 4,2
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304338284
GTIN - 0731304338284
guarantee - 24
guarantee_type - external
Height - 92 mm
Height - 235.000000
Height, mm - 92
HERSTELLER - APC
Hoehe - 0.14
Hold-up time (maks) - 10 ms
HSTNUMMER - BV500I-GR
I/O connectors - None
Input connection - Schuko CEE 7/7P
InputConnections - Schuko CEE 7/7P
InputFrequency - 50/60 Hz +/- 5 Hz (auto sensing)
Input frequency, Hz - 45 - 65
Input power ports - Type F Schuko
InputVoltage - 230 V
InterfacePorts - -
Laenge - 0.38
Length - 375.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Security through emergency powerAn APC Easy-UPS has a built-in battery that ensures that all connected devices, such as a NAS, router, modem and media box, continue to work if the power goes out. This prevents downtime, damage to equipment, and loss of data.Safety and convenienceIn addition, this safe APC UPS protects valuable equipment against peak voltage caused, for example, by lightning strikes. Because the APC Easy-UPS BV500I-GR can also be mounted on the wall and is equipped with 4 rotated sockets (45°), this APC emergency power supply is also a suitable UPS for the meter cupboard.Expected battery lifeLoad in Watts, battery life in Minutes:10W = 100 Min.40W = 40 Min.80W = 18 Min.120W = 5 Min.180W = 3 Min.240W = 0.5 Min.Extends battery lifeThe AVR function extends both the expected battery life and the expected runtime by correcting both low and high voltages without discharging the battery.Warranty extensionThe factory warranty of the BV500I-GR is 2 years and you can upgrade to 5 years with the APC service pack (WBEXTWAR3YR-SP-01A).
LongProductName - APC Easy-UPS BV500I-GR - 4x Schuko socket, 500VA
LongSummaryDescription - APC Easy-UPS BV500I-GR - 4x Schuko socket, 500VA. UPS topology: Line-Interactive, Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 4.5 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cable length: 1.52 m. Width: 160 mm, Depth: 305 mm, Height: 92 mm
Manufacturer - APC
Manufacturer Code - BV500I-GR
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BV500I-GR
Manufacturer_code - BV500I-GR
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-EASY-UPS-BV-500VA-AVR-Schuko-Outlet-230V/P-BV500I-GR
Maximum power, W - 300
MPN - BV500I-GR
Name - APC Back BV500I-GR
Name - APC Easy-UPS BV - BV500I-GR
Name - APC Easy-UPS BV 500i-GR 500VA 300W
name - BV500I-GR BackUPS BV 50 0VA/300W/AVR/4xSchuko
Noise level, dB - 40
Nominal input voltage, V - 400
Nominal output voltage, V - 400
Number of phases input - 1 (230V)
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
Operational conditions - Operating altitude - 0 - 1968.3 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Confirmation of CE conformity
Other features - Nominal output voltage - 230 V
OutputConnections - (4) Schuko CEE 7 (Battery Backup)
OutputFrequency - 50/60 Hz +/-1 Hz
Output power, W - 300
Output power capacity (VA) - 500
Output power ports - 4 x C/F type (Schuko)
OutputVoltage - 230 V
PackageContents - -
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - Type F
PowerVAW - 500 VA
PowerW - 300 W
ProdDesc - APC Easy UPS BV 500VA, AVR, Schuko Outlet, 230V
producer - APC
Producer - APC
ProducerCode - BV500I-GR
ProductName - APC Easy-UPS BV500I-GR - 4x Schuko socket, 500VA
ProductPicture - http://www.tdbaltic.ee/images/ds4/BV500I-GR-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - -
RJ45 - -
Runtime - -
ShortDescription -
Short description - APC EASY-UPS BV 500 VA BV500I-GR
ShortSummaryDescription - APC Easy-UPS BV500I-GR - 4x Schuko socket, 500VA, Line-Interactive, 0.5 kVA, 300 W, Sine, 170 V, 280 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 4
Stck_Pal - 36
Storno - Y
Technical details - Compliance certificates - RoHS
Title - APC Easy-UPS BV500I-GR - 4x Schuko socket, 500VA
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/sk/en/products/APC-EASY-UPS-BV-500VA-AVR-Schuko-Outlet-230V/P-BV500I-GR
USB - -
vendpn - BV500I-GR
Voltage - 12 V
Warranty - 2 years
WarrantyInfo - 2 years
WaveformType - Stepped approximation to a sinewave
Weight - 3.9 kg
Weight - 3.900 Kg
Weight - 4,30
Weight - 4.33
Weight - 4.340000
Weight & dimensions - Depth - 305 mm
Weight & dimensions - Height - 92 mm
Weight & dimensions - Package depth - 143 mm
Weight & dimensions - Package height - 237 mm
Weight & dimensions - Package weight - 4.2 kg
Weight & dimensions - Package width - 373 mm
Weight & dimensions - Weight - 3.9 kg
Weight & dimensions - Width - 160 mm
Weight, kg - 3.9
Width - 140.000000
Width - 160 mm
Width, mm - 160
