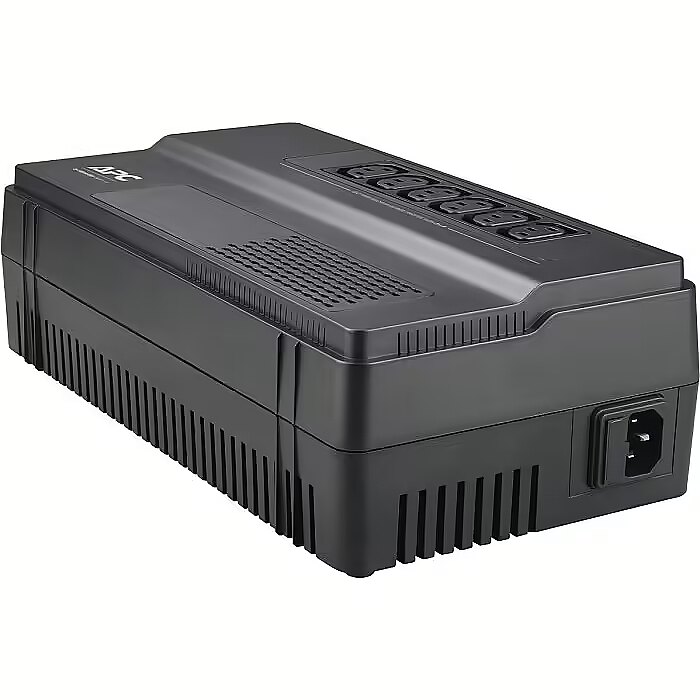

APC Easy UPS BV650I 650VA, 375W, IEC

Accessories included - User's guide
Active power - 375 W
Alarm -

Alarm when on battery

distinctive low battery alarm

overload continuous tone alarm

Apparent power - 650 VA
ARTIKEL1 - APC BACK-UPS BV 650VA AVR
ARTIKEL2 - IEC OUTLET 230V IN
Battery - Battery life (max) - 5 year(s)
Battery capacity - 7 Ah
Battery life (max), years - 3 - 5
BatteryType -

Maintenance-free sealed Lead-Acid battery with suspended electrolyte

leakproof

Battery type - Lead-Acid
Brand - APC
BrandPartCode - BV650I
Breite - 0.24
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category_1 - Power
Category_2 - UPS
Certification - CE
Charging time - 8 h
Chassis type - Desktop
Color - -
Color - Black
ControlPanel -

LED status display with On Line

On Battery

Depth - 305 mm
Depth, mm - 305
Description - APC EASY UPS BV 650VA, AVR, IEC OUTLET, 230V
Description - BV650I BackUPS BV 650VA/375W/AVR/6xC13 without management
- Automatic voltage regulation (AVR) Automatically increases the low voltage and lowers the high voltage to levels appropriate for powered devices.
- Wall mounting holes. The strip is suitable for convenient installation in confined spaces, as well as on a wall or other surface
Design - Cable length - 1.52 m
Design - Certification - CE
Design - Product colour - Black
dimension depth - 240 mm
dimension height - 370 mm
Dimensions - 305 x 170 x 90 mm
dimension weight - 5100 g
dimension width - 145 mm
ean - 731304338307
EAN - 0731304338307
EANCode - 0731304338307
Eans - 731304338307
EAN_code - 0731304338307
Environment requirements - - Operating temperature 0 - 40°C
- Relative humidity during operation 0 - 90%
- Height during operation 0-1968.3 metres
- Noise heard at a distance of 1 m from the surface of the device 40.0dBA
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Low battery alarm, Overload alarm
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 280 V
Features - Input operation voltage (min) - 170 V
Features - Noise level - 40 dB
Features - Output frequency regulation - 50/60 Hz
Features - Output power - 375 W
Features - Output power capacity - 0.65 kVA
Features - Surge energy rating - 156 J
Features - Surge protection - Yes
Features - Transfer time (Line Mode to Battery Mode) - 6 ms
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
FormFactor - Other
Frequency range, Hz - 50/60 Hz +/-1 Hz
Gewicht - 4.98
GrossWeight - 5.000 kg
Gross Weight Kg - 4,8
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304338307
GTIN - 0731304338307
guarantee - 24
guarantee_type - external
Height - 92 mm
Height - 235.000000
Height, mm - 92
HERSTELLER - APC
Hoehe - 0.15
Hold-up time (maks) - 10 ms
HSTNUMMER - BV650I
I/O connectors - None
Input connection - IEC-320 C14
InputConnections - IEC-320 C14
InputFrequency - 50/60 Hz +/- 5 Hz (auto sensing)
Input frequency, Hz - 50/60 Hz +/- 5 Hz
Input power ports - IEC-C14
InputVoltage - 230 V
InterfacePorts - -
Laenge - 0.38
Length - 375.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
LongDesc - Automatic Voltage Regulation (AVR)Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.Wall-mount holesAllow flexibility for setup in tight locations and mounting on wall or other surfaces.Battery and surge protected outletsBack up and protect your hardware and data during power outages, surges and spikes.Battery backup and surge protectionOutlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.Advanced Safety FeaturesSafeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.Intelligent battery managementMaximizes battery performance, life, and reliability through intelligent, precision charging.Battery failure notificationProvides early-warning fault analysis on batteries enabling timely preventive maintenance.Cold-start capableProvides temporary battery power when the utility power is out.Boost Automatic Voltage Regulation (AVR)Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.Sleek designSlim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.Transformer-block spaced outletsProtect equipment with input transformer blocks without blocking access to other receptacles.Audible alarmsProvides notification of changing utility power and UPS power conditions.LED IndicatorsProvide easy-to-read status of the unit and utility power conditions.Safety-agency approvedEnsures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
LongProductName - EASY UPS BV 650VA, AVR, IEC, 230V
LongSummaryDescription - APC BV650I. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 375 W. AC outlet types: C13 coupler, AC outlets quantity: 1 AC outlet(s). Battery life (max): 5 year(s). Product colour: Black, Cable length: 1.52 m, Certification: CE. Width: 160 mm, Depth: 305 mm, Height: 92 mm
Manufacturer - APC
Manufacturer Code - BV650I
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BV650I
Manufacturer_code - BV650I
MANUFDATASHEET - https://www.apc.com/shop/hr/en/products/APC-EASY-UPS-BV-650VA-AVR-IEC-Outlet-230V/P-BV650I?isCurrentSite=true
Maximum power, W - 375
Name - APC Back BV650I
Name - APC Easy-UPS BV - BV650I
name - BV650I BackUPS BV 650VA 375W/AVR/6xC13
No. of batteries - 1
Noise level, dB - 40
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Other features - Battery type - leakproof
Other features - Output voltage - 230 V
OutputConnections - (6) IEC 320 C13 (Battery Backup)
OutputFrequency - 50/60 Hz +/-1 Hz
Output interface - (6) IEC 320 C13
Output power, W - 375
Output power capacity (VA) - 650
Output power ports - 6 x IEC-C13
OutputVoltage - 230 V
PackageContents - -
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 1 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
PowerVAW - 650 VA
PowerW - 375 W
ProdDesc - APC Easy UPS BV 650VA, AVR, IEC Outlet, 230V
producer - APC
Producer - APC
ProducerCode - BV650I
ProductName - BV650I
ProductPicture - http://www.tdbaltic.ee/images/ds4/BV650I-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
RechargeTime - -
RJ45 - -
Runtime - -
ShortDescription -
Short description - APC EASY-UPS BV 650 VA BV650I
ShortSummaryDescription - APC BV650I, Line-Interactive, 0.65 kVA, 375 W, Sine, 170 V, 280 V
SmartSlot - -
Software -
Special functions -
Stck_Kart - 4
Stck_Pal - 9998
Storno - N
Technical details - Compliance certificates - RoHS
Title - APC BV650I uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 375 W 1 AC outlet(s)
Topology - Line interactive
UPS Architecture - line-interactive
UPS devices and accessories - Yes
URL - https://www.apc.com/shop/hr/en/products/APC-EASY-UPS-BV-650VA-AVR-IEC-Outlet-230V/P-BV650I?isCurrentSite=true
USB - -
vendpn - BV650I
Voltage - 12 V
Warranty - 2 years
WarrantyInfo - 2 years
WaveformType - Stepped approximation to a sinewave
Weight - 4.5 kg
Weight - 4.500 Kg
Weight - 5,00
Weight - 5.050000
Weight & dimensions - Depth - 305 mm
Weight & dimensions - Height - 92 mm
Weight & dimensions - Package depth - 373 mm
Weight & dimensions - Package height - 237 mm
Weight & dimensions - Package weight - 4.8 kg
Weight & dimensions - Package width - 143 mm
Weight & dimensions - Weight - 4.5 kg
Weight & dimensions - Width - 160 mm
Weight, kg - 4.5
Width - 140.000000
Width - 165 mm
Width, mm - 160
