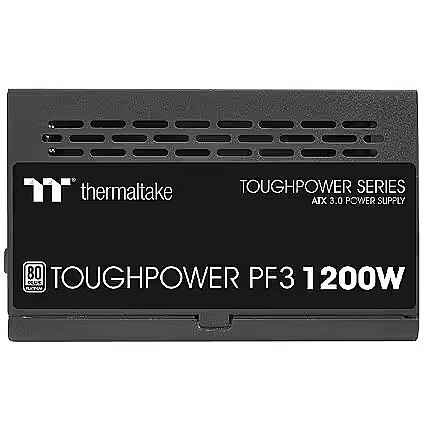

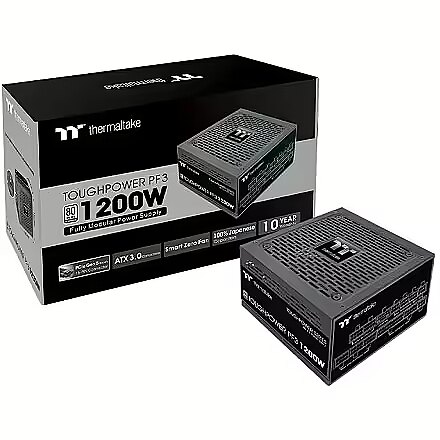

Thermaltake Toughpower PF3 1200W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1003171 Product code: PS-TPD-1200FNFAPE-3
Can be ordered 5 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
237.08 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 1200W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 5 x 6+2pin
Description

We offer to purchase a Thermaltake power supply unit with a power capacity of 1200W, which has received the 80 PLUS Platinum energy efficiency certification.

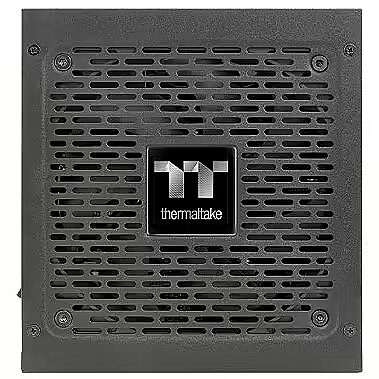

This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.

The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.

This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply has a Cybenetics Standard noise level certificate, which means that its noise level is 40-45 dB.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics Standard
Power supply type : ATX
Power output 1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 100A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular

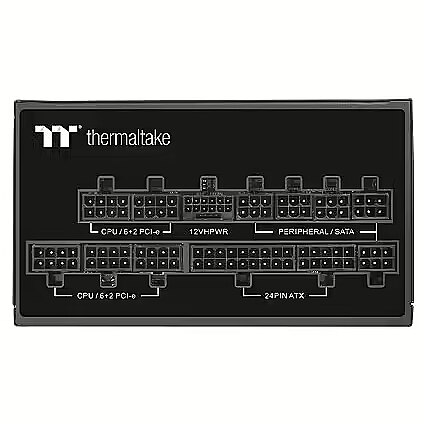

Ports and equipment
PCI-E 5.0 : 1 x 600W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 5 x 6+2pin
SATA cconnectors : 12
4pin Molex : Eight Core
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
Description - Toughpower PF3 1200W Platinum - TT premium edition The Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with the Intel ATX 3.0 specification. Designed with a native PCIe Gen 5 connector, it can power next-generation technology over a single new 12VHPWR cable. Power next-generation equipment To fully support next-generation hardware, the Toughpower PF3 Platinum Series (750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The PF3 Platinum series provides performance at the 80 PLUS Platinum level and also offers the highest stability, durability and reliability. Compatible with Intel ATX 3.0 standards The Toughpower PF3 Platinum Series is fully compatible with the Intel ATX 3.0 specification, which supports power surges of up to 200%, achieves 70% efficiency at low load, and complies with required power response time standards. PCIe Gen 5.0 ready The Toughpower PF3 series is equipped with a 16-pin connector that ensures high and stable performance, allowing the power supply to natively support next-generation graphics cards. The power specified on the 12VHPWR connector is the recommended power. (See Intel design guidelines) The native 16-pin (12VHPWR) PCIe connector on the PF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards. Created to be compatible with the latest graphics cards As the energy demand of graphics cards increases, their need for power supplies also increases. The PF3 Platinum series is designed to support NVIDIA and AMD graphics cards and is ready to power graphics cards according to their different connection methods. 80 PLUS Platinum certificate 80 Plus Platinum certification means Toughpower PF3 converts energy efficiently, resulting in lower power loss and heat build-up inside the power supply. Smart and quiet Equipped with a 120mm fluid bearing fan that strikes the perfect balance between silence and excellent cooling. In addition, the Smart Zero Fan function will adjust the fan speed and minimize unwanted noise.
dimension depth - 140 mm
dimension height - 320 mm
Dimensions - 86 x 140 x 150 mm
dimension weight - 3200 g
dimension width - 220 mm
ean - 4713227536783
EAN_code - 4713227536783
Fan - 14 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPD-1200FNFAPE-3
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 8
Name - Thermaltake Toughpower PF3 1200W, PC power supply (black, 6x PCIe, cable management, 1200 watts)
name - Toughpower Grand PF3 1200W Pla Gen5
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 5
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Yes
Power supply - 1200 W
producer - Thermaltake
SATA power connectors - 12
vendpn - PS-TPD-1200FNFAPE-3
Weight - 2,50
