ID: 1190863
Product code: BP006EU
In stock 6 units / In office 3 units
Warranty: 2 years

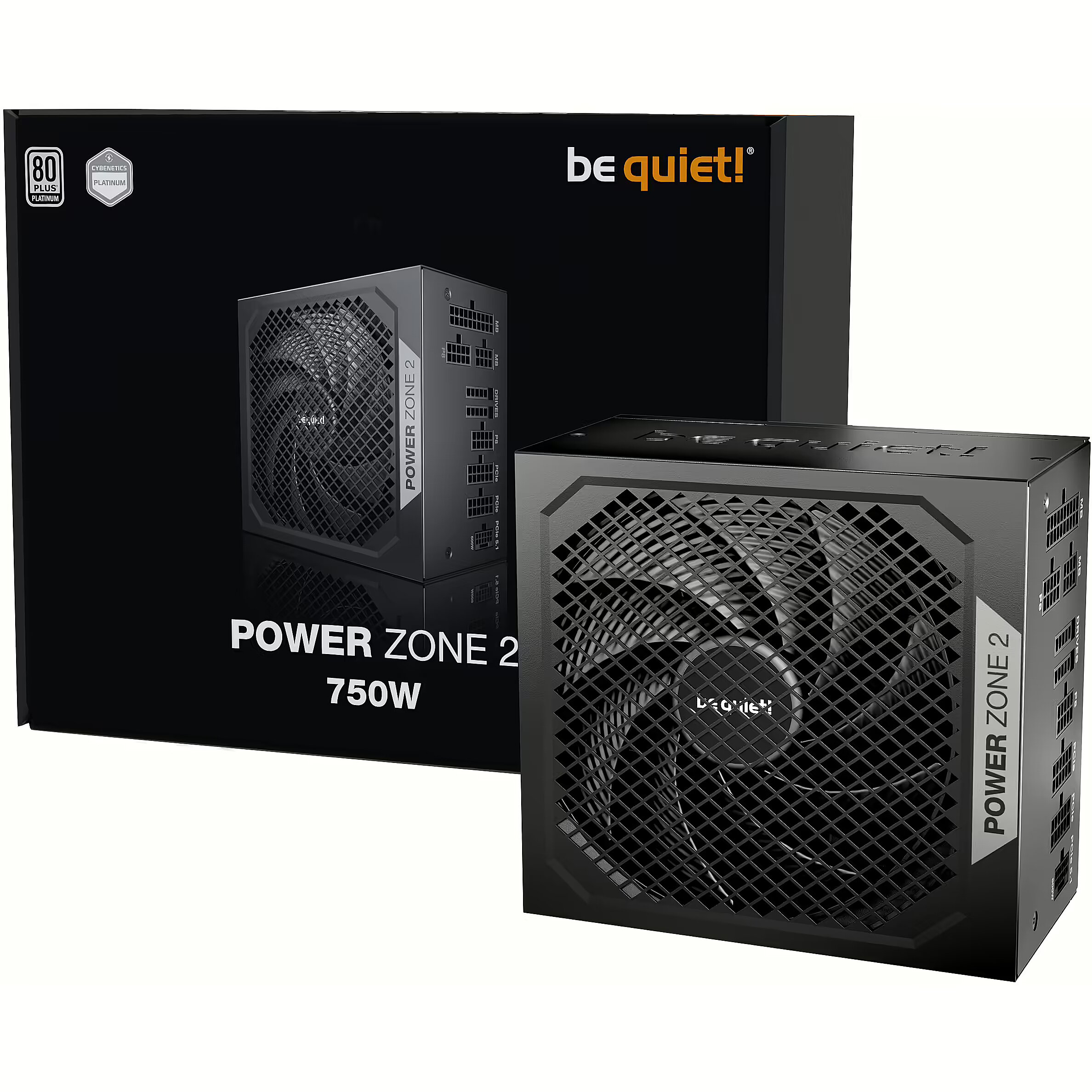

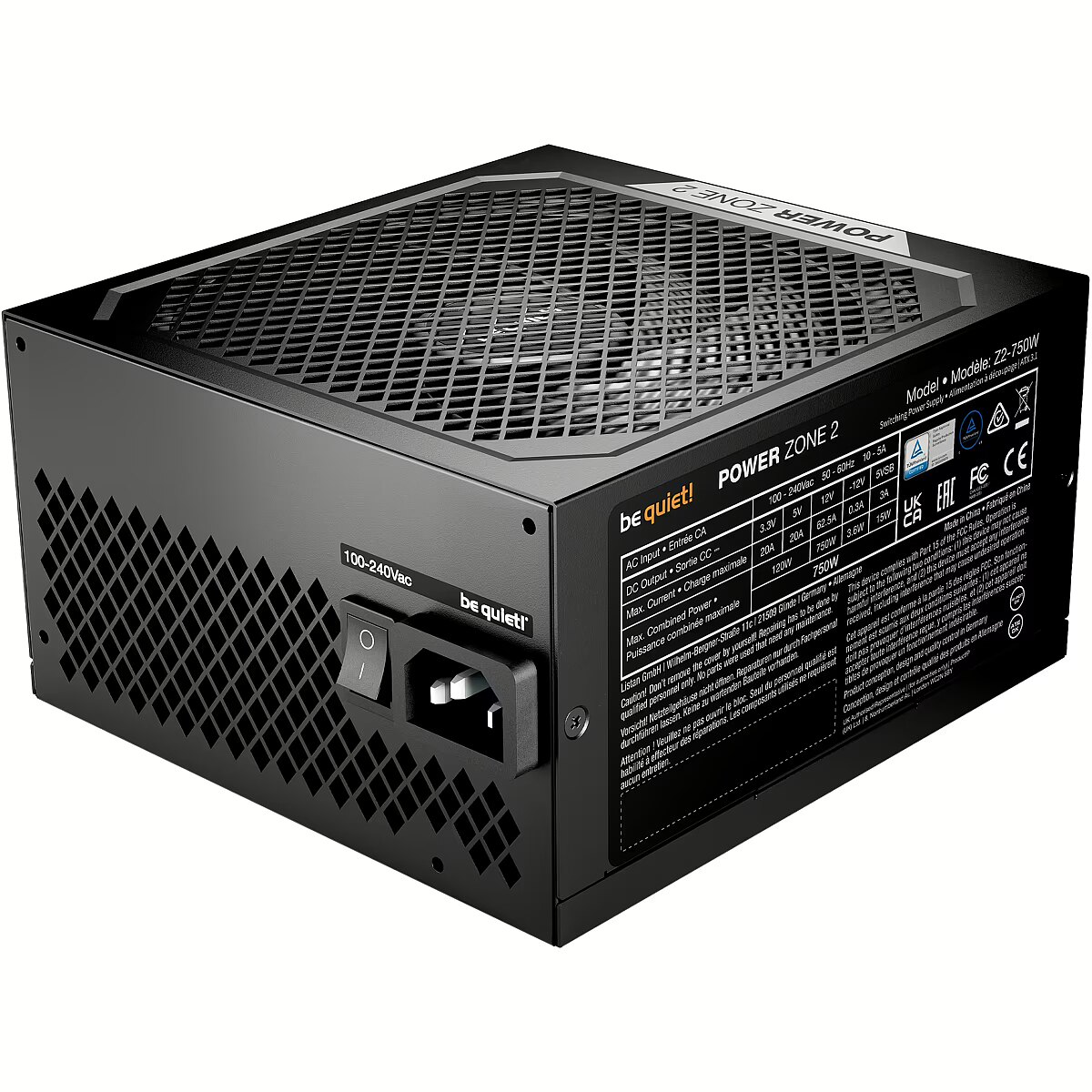

Be Quiet Power Zone 2, 750W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: on Monday, 31.03.2025
- Delivery to Omniva parcel locker 1.99 €: on Monday, 31.03.2025
- Courier delivery 3.99 €: on Monday, 31.03.2025
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 750W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 140 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
Available for purchase is a power supply produced by Be Quiet with a power output of 750W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.
For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.
This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.
80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
The power supply has received the Cybenetics A ++ noise level certification – the noise generated by the unit will be less than 15 decibels.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
This power supply has been manufactured by Be Quiet. You can view all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics A ++
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 62.5A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12V-2X6
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 6
4pin Molex
: 1
More detailed specification
Brand - be quiet!
BrandPartCode - BP006EU
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Certificates - Compliance certificates - BSMI
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RCM
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
CnCode CnCode - 85044095
code - BP006EU
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1732
ean - 4260052191361
EAN - 4260052191361
Eans - 4260052191361
GTIN - 4260052191361
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 19.3 kg
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - Exceptional efficiency for GamersPower Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
LongProductName - 80 PLUS Platinum, 750W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
LongSummaryDescription - be quiet! POWER ZONE 2 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Manufacturer - Be Quiet!
MPN - BP006EU
Name - 750W be quiet! Power Zone 2
name - be quiet! Power Zone 2 80 PLUS Platinum Netzteil, vollmodular, ATX 3.1, PCIe 5.1 - 750 Watt, schwarz
Name - be quiet! Power Zone 2 750W
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Spanish
Packaging data - Manual languages - Ukrainian
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.21 kg
Packaging data - Package width - 248 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 15.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.5%
Power - Hold time - 24.5 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 820 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush
Power - Power protection features - Under voltage
Power - Total power - 750 W
Producer - be quiet!
producerCode - BP006EU
ProducerCode - BP006EU
productName - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
ProductName - POWER ZONE 2 750W
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 10 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Platinum
ShortSummaryDescription - be quiet! POWER ZONE 2 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A
sizeX - 330
sizeY - 105
sizeZ - 250
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Title - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
Unit Box Height - 0.25
Unit Box Length - 0.1
Unit Box Width - 0.33
Unit Brutto Volume - 0.00825 cubm
Unit Gross Weight - 3.3 kg
URL - https://www.bequiet.com/en/powersupply/5585
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3.3
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
BrandPartCode - BP006EU
category - PC Components|Power Supplies|PSUs up to 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Certificates - Compliance certificates - BSMI
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RCM
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
CnCode CnCode - 85044095
code - BP006EU
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1732
ean - 4260052191361
EAN - 4260052191361
Eans - 4260052191361
GTIN - 4260052191361
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 19.3 kg
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - Exceptional efficiency for GamersPower Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
LongProductName - 80 PLUS Platinum, 750W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
LongSummaryDescription - be quiet! POWER ZONE 2 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Manufacturer - Be Quiet!
MPN - BP006EU
Name - 750W be quiet! Power Zone 2
name - be quiet! Power Zone 2 80 PLUS Platinum Netzteil, vollmodular, ATX 3.1, PCIe 5.1 - 750 Watt, schwarz
Name - be quiet! Power Zone 2 750W
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Spanish
Packaging data - Manual languages - Ukrainian
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.21 kg
Packaging data - Package width - 248 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 15.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.5%
Power - Hold time - 24.5 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 820 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush
Power - Power protection features - Under voltage
Power - Total power - 750 W
Producer - be quiet!
producerCode - BP006EU
ProducerCode - BP006EU
productName - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
ProductName - POWER ZONE 2 750W
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 10 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.3 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Platinum
ShortSummaryDescription - be quiet! POWER ZONE 2 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A
sizeX - 330
sizeY - 105
sizeZ - 250
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Title - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
Unit Box Height - 0.25
Unit Box Length - 0.1
Unit Box Width - 0.33
Unit Brutto Volume - 0.00825 cubm
Unit Gross Weight - 3.3 kg
URL - https://www.bequiet.com/en/powersupply/5585
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3.3
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
