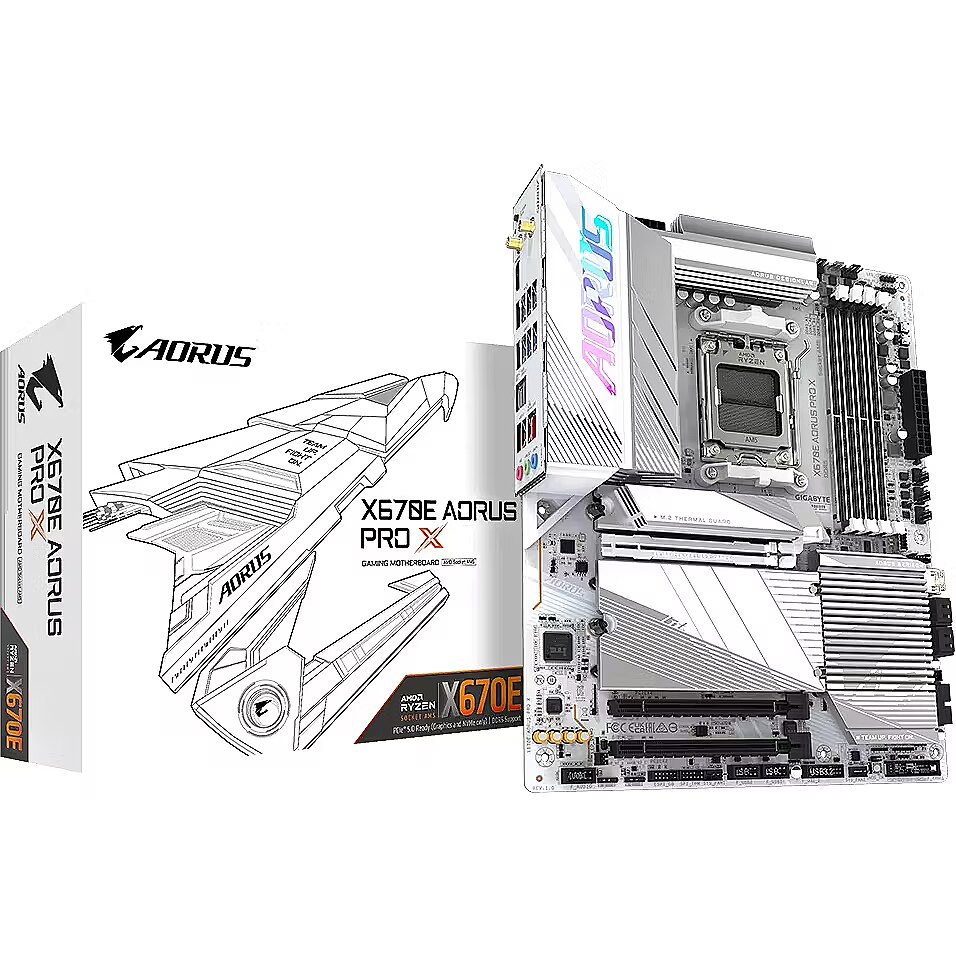

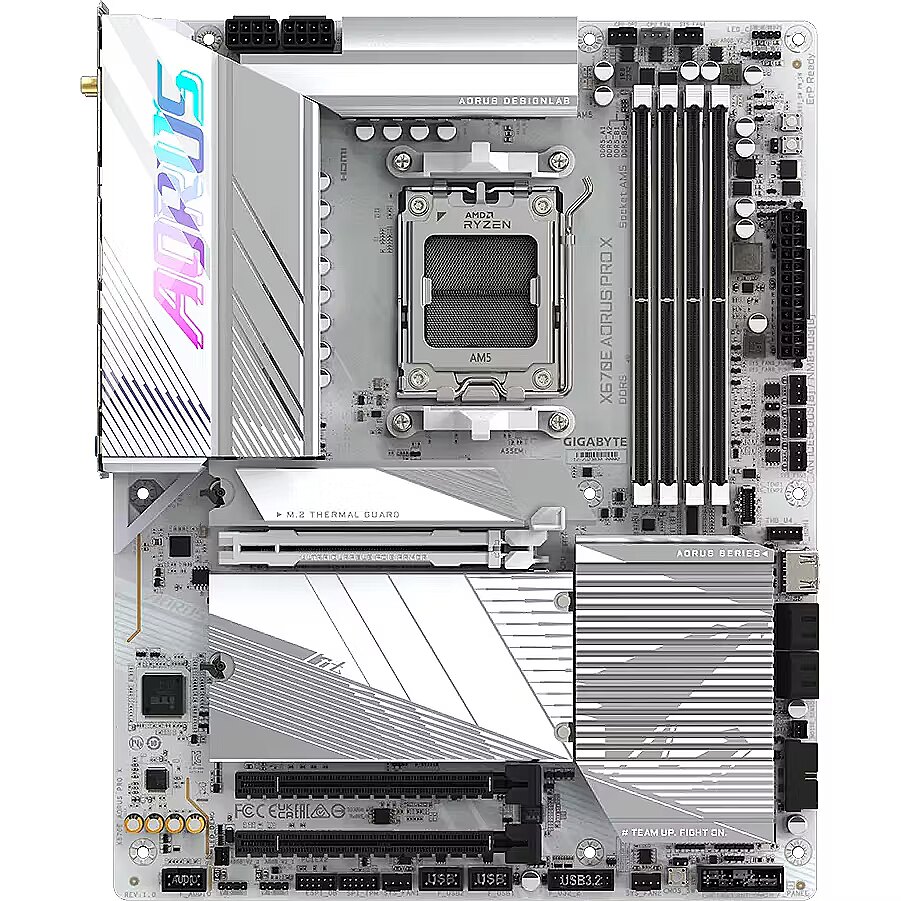

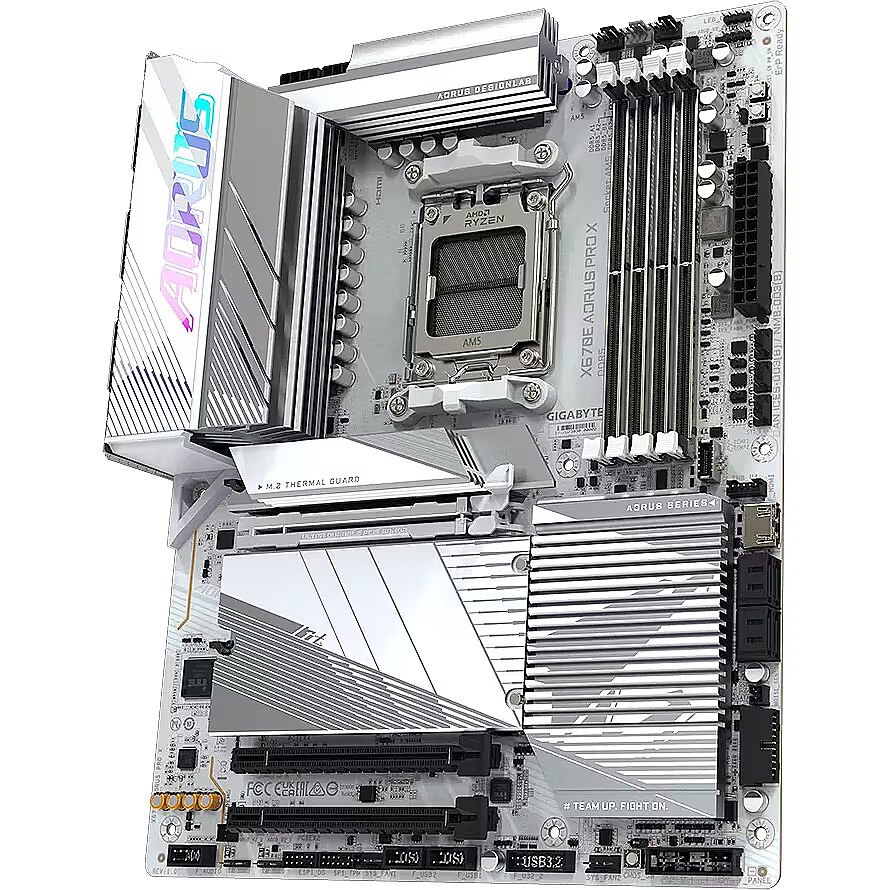

Gigabyte X670E AORUS PRO X

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1036018 Product code: X670E AORUS PRO X
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Series: Gigabyte AORUS
  • Plate size: ATX
  • Chipset: AMD X670E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 4
Similar Products
This product Gigabyte X670E AORUS PRO X
Recommended Asus TUF GAMING X670E-PLUS WIFI
Recommended Gigabyte X670 GAMING X AX V2
Recommended Gigabyte B550 GAMING X V2
Recommended Asus PRIME X870-P WIFI
Show similar specs. Hide similar specs.
298.93 €
272.99 €
224.94 €
103.90 €
295.13 €
Basic information
Series Gigabyte AORUS ASUS TUF Gaming Gigabyte Gaming Gigabyte Gaming ASUS Prime
Plate size ATX ATX ATX ATX ATX
Chipset AMD X670E AMD X670E AMD X670 AMD B550 AMD X870
Socket AM5 AM5 AM5 AM4 AM5
Random-access memory (RAM)
Type DDR5 DDR5 DDR5 DDR4 DDR5
RAM Slots 4 4 4 4 4
Memory support DDR5 5200MHz (8000MHz OC) DDR5 5200MHz (6400MHz OC) DDR5 5200MHz (6400MHz OC) DDR4 3200MHz (4400MHz OC) DDR5 5600MT/s (8000MT/s OC)
Graphics card
VGA Port PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS PCI-EXPRESS
Integrated graphics Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU Only with iGPU-ready APU
Ports and equipment
D-Sub 0 0 0 0 0
DisplayPort 1 1 0 0 0
DVI 0 0 0 1 0
HDMI 1 1 1 1 1
Integrated sound card Nav norādīts Realtek ALC1220 Nav norādīts Nav norādīts Realtek 7.1 Audio CODEC
PCI Ports 0 0 0 0 0
Wireless connections
Built-in Bluetooth Ir Ir Ir Nav Ir
Built-in Wi-Fi Ir Ir Ir Nav Ir
External ports
External USB 2.0 4 Nav 4 2 4
External USB Type-C (USB 3.2 Gen2) 1 2 1 0 0
External USB Type-C (USB 4.0) 0 0 0 0 2
External USB 3.0 (USB 3.2 Gen1) 4 5 6 3 3
External USB 3.1 (USB 3.2 Gen2) 3 3 2 1 1
Internal ports
Internal A-RGB 5V (3-pin) 3 3 3 2 3
Internal RGB 12V (4-pin) 1 1 1 2 0
Internal USB 2.0 2 3 2 2 2
Internal USB 3.0 2 1 2 1 1
Internal USB Type-C 1 1 1 1 1
M.2 ports 4 4 4 2 4
SATA3 ports 4 4 4 4 2
Basic information
Series : Gigabyte AORUS
Plate size ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X670E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5200MHz (8000MHz OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 1
DVI : 0
HDMI : 1
Integrated sound card : Nav norādīts
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : 4
External USB Type-C (USB 3.2 Gen2) : 1
External USB Type-C (USB 4.0) : 0
External USB 3.0 (USB 3.2 Gen1) : 4
External USB 3.1 (USB 3.2 Gen2) : 3
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 1
M.2 ports : 4
SATA3 ports : 4
More detailed specification
Additional information in manufacturers website Gigabyte X670E AORUS PRO X
Audio port Input/Output connectors - 3
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - X670E AORUS PRO X
Category - Motherboards
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM5
Chipset - AMD X670
Code - XB70E AORUS PRO X
Description - - AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors - Digital twin 16+2+2 phases VRM solution - Dual Channel DDR5:4*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support - PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card - EZ-Latch Click:M.2 heatsinks with screwless design - EZ-Latch Plus:M.2 slots with Quick Release & Screwless Design - Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup - UC BIOS:User-Centred intuitive UX with Quick Access function - Ultra-Fast Storage:4*M.2 slots, including 2* PCIe 5.0 x4 - Efficient Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard XL - Fast Networking:2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna - Extended Connectivity:HDMI, Rear & Front USB-C® 20Gb/s - Reliable Audio:8-Ch HD Audio & Audiophile Grade Capacitors
EAN - 4719331859343
EAN_code - 4719331859343
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 slots - 3
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X670
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Product colour - White
Features - Windows operating systems supported - Windows 11 x64
Form Factor - ATX
Frequency speed - 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 MHz
Full Description Line - AMD X670|SAM5|ATX|DDR5|8000/7800/7600/7200/7000/6800/6666/6600/6400/6200/6000/5600/5200/4800/4400 MHz|Memory slots 4|2xPCI-Express 3.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|7xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|SATA|USB 2.0|USB 3.2|Bluetooth|WiFi|Video Depending on CPU|Audio|LAN 2.5 Gigabit|RAID SATA 0, 1, 10; NVMe 0, 1, 10|TPM Header
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
GTIN - 4719331859343
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 1
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
LongProductName - ATX, Socket AM5, AMD X670 chipset, 4x DDR5 DIMM, 7.1-channel audio, LAN 2.5 Gb, Wi-Fi 7, Bluetooth 5.3, AMI UEFI BIOS
LongSummaryDescription - GIGABYTE X670E AORUS PRO X Motherboard - Supports AMD Ryzen 7000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
M.2 Expansion slots - 4
Manufacturer - GigaByte
Manufacturer_code - X670E AORUS PRO X
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory clock speeds - 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz
Memory - Supported memory module capacities - 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 4
Memory type - DDR5
Model - X670E AORUS PRO X
Name - GIGABYTE X670E AORUS PRO X - Socket AM5 - motherboard (white)
Name - GIGABYTE XB70E AORUS PRO X 1.1 M/B | Gigabyte
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 335.00 mm
Package features > Gross height (mm) - 80.00 mm
Package features > Gross width (mm) - 270.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 119 pc(s)
Package features > Paper/Pasteboard - 100.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.18 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton Internet Security
Packaging content - Cables included - SATA
Packaging data - Package depth - 270 mm
Packaging data - Package height - 80 mm
Packaging data - Package weight - 2.4 kg
Packaging data - Package width - 335 mm
PCI-Express 3.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Processor - Maximum internal memory supported by processor - 192 GB
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
ProductName - X670E AORUS PRO X Motherboard - Supports AMD Ryzen 7000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2
RAID - SATA 0, 1, 10; NVMe 0, 1, 10

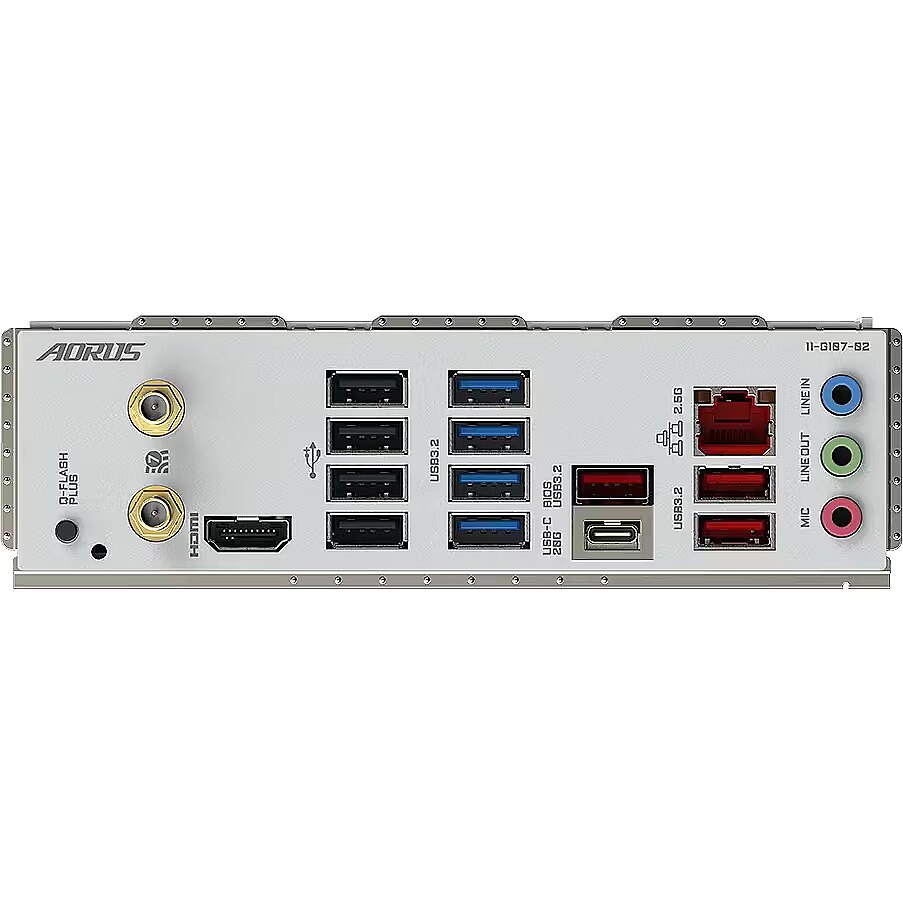

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 3
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
Rear panel I/O ports - USB connector type - USB Type-A, USB Type-C
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 45 cm
Shipping Box Height Shipping/Package Box Dimensions - 38 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 13.83 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortSummaryDescription - GIGABYTE X670E AORUS PRO X Motherboard - Supports AMD Ryzen 7000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2, AMD, Socket AM5, AMD Ryzen 5 7th Gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen, Socket AM5, 192 GB, DDR5-SDRAM
Socket - SAM5
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 8
Storage controllers - RAID levels - 0, 1, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, PCI Express 5.0, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Warranty period - 3 year(s)
Technical details > Gross weight - 1.13 kg
Technical details > Net weight - 0.95 kg
Technical details > Producer - Gigabyte
Title - GIGABYTE X670E AORUS PRO X Motherboard - Supports AMD Ryzen 7000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 7, 2.5GbE LAN, USB 3.2 Gen 2
TPM - Header
Unit Box Height - 0.08
Unit Box Length - 0.34
Unit Box Width - 0.28
Unit Brutto Volume - 0.01094 cubm
Unit Gross Weight - 2.77 kg
Unit Net Weight - 1.2 kg
URL - https://www.gigabyte.com/Motherboard/X670E-AORUS-PRO-X
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 7
USB 3.2 Interface - Yes
Vendor Homepage - www.gigabyte.com/Motherboard/X670E-AORUS-PRO-X#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 2,42
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
298.93 €
Gigabyte X670E AORUS PRO X
Intel technology provider Platinum 2020
All categories
