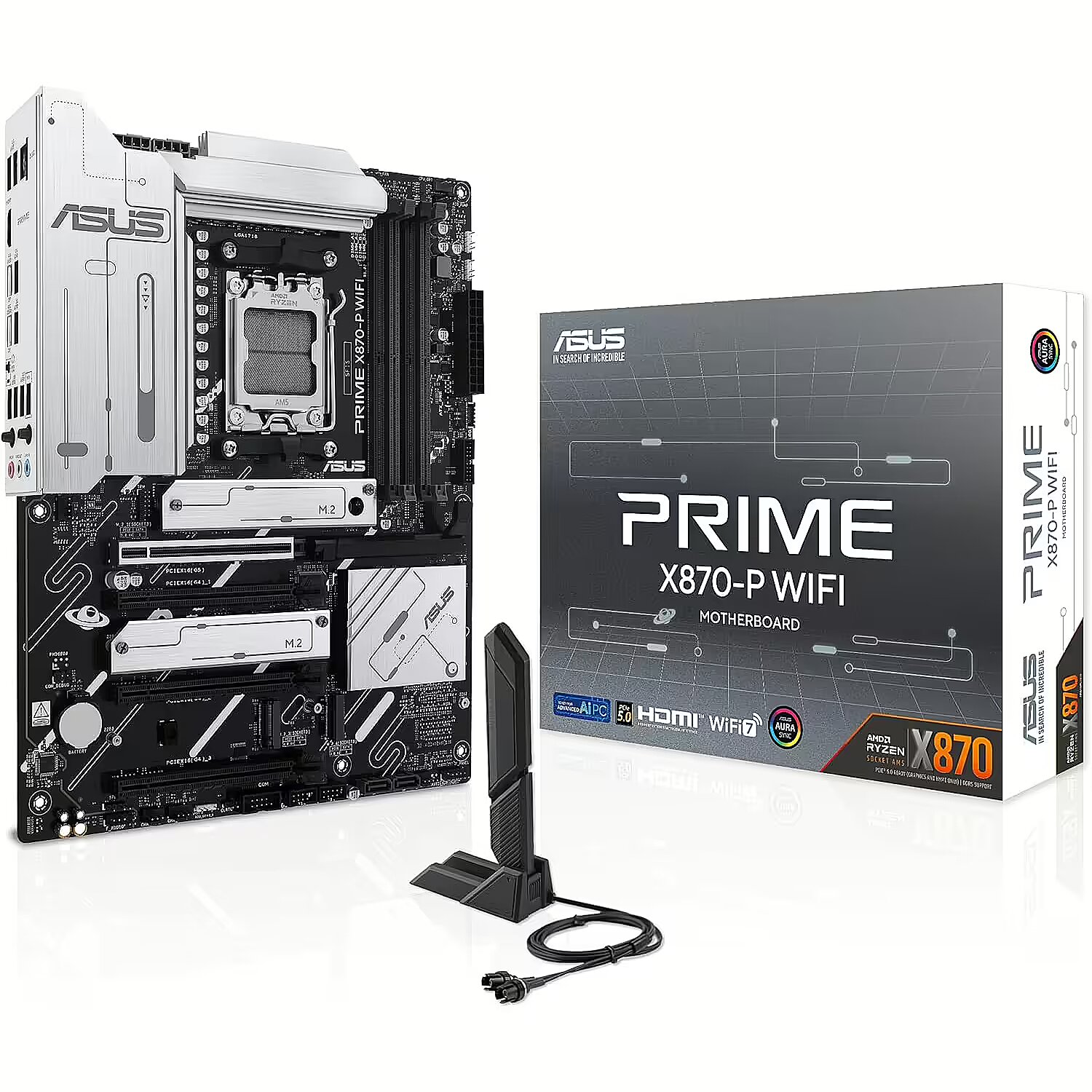

Asus PRIME X870-P WIFI

Name: Asus PRIME X870-P WIFI
Brand: Asus
SKU: 1146968
Price: 295.13 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1146968 Product code: PRIME-X870-P-WIFI

In office 4 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
Courier delivery 3.99 €: on Wednesday, 27.11.2024

Main product parameters All parameters

Series: ASUS Prime
Plate size: ATX
Chipset: AMD X870
Socket: AM5
Type: DDR5
RAM Slots: 4
Built-in Wi-Fi: Ir
M.2 ports: 4

Basic information

Series : ASUS Prime

Plate size ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Socket AM5

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Random-access memory (RAM)

Type : DDR5

RAM Slots 4

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR5 5600MT/s (8000MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

VGA Port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

D-Sub : 0

DisplayPort : 0

DVI : 0

HDMI : 1

Integrated sound card : Realtek 7.1 Audio CODEC

PCI Ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

Wireless connections

Built-in Bluetooth : Ir

Built-in Wi-Fi : Ir

External ports

External USB 2.0 : 4

External USB Type-C (USB 3.2 Gen2) : 0

External USB Type-C (USB 4.0) : 2

External USB 3.0 (USB 3.2 Gen1) : 3

External USB 3.1 (USB 3.2 Gen2) : 1

Internal ports

Internal A-RGB 5V (3-pin) : 3

Internal RGB 12V (4-pin) : 0

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 ports : 4

SATA3 ports : 2

Power supply units (PSU)

Without
750W (+84.47 €)
Gigabyte P750GM, 750W, 80PLUS Gold
Alternatives
700W (+63.54 €)
Chieftec Smart Series, 700W
Alternatives
650W (+49.79 €)
Chieftec iArena GPA Series, 650W
Alternatives
600W (+49.87 €)
Cougar Atlas, 600W, 80PLUS Bronze
Alternatives

More detailed specification

Additional information in manufacturers website Asus PRIME X870-P WIFI

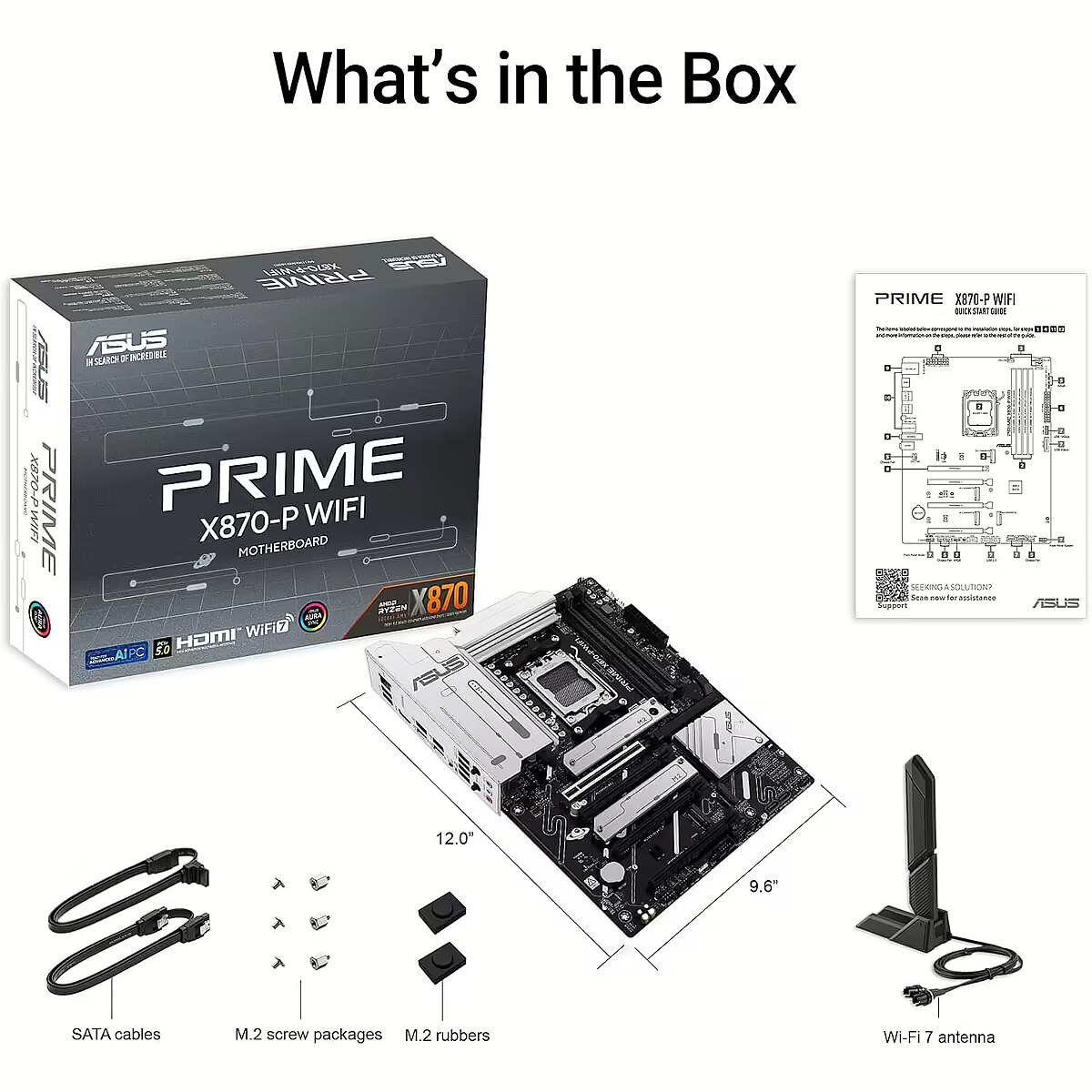

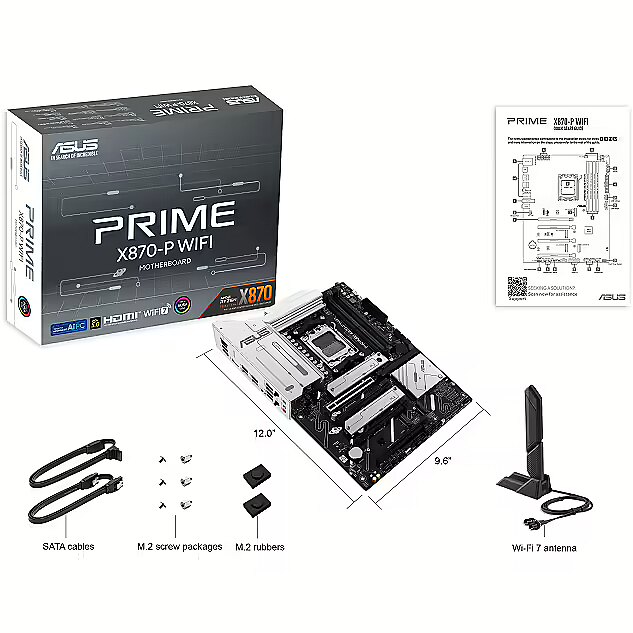

Accessories included - 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x M.2 rubber package 2 x Screw packages for M.2 SSD 1 x Quick start guide
Audio port Input/Output connectors - 3
BIOS - 256 Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
Bluetooth Interface - Yes
Brand - ASUS
BrandPartCode - 90MB1IS0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD X870
Chipset manufacturer - AMD
Chipset type - AMD X870 Chipset
code - 90MB1IS0-M0EAY0
Code - 90MB1IS0-M0EAY0
COM connector / port - Yes
CPU socket - Socket AM5
Description - PRIME X870-P WIFI ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Description - Prime X870-P WIFI
Płyty główne z serii ASUS Prime zostały zaprojektowane przez ekspertów, aby uwolnić pełen potencjał procesorów AMD Ryzen serii 9000. Płyta główna PRIME X870-P WIFI, wyposażona w solidną konstrukcję zasilania, kompleksowe rozwiązania chłodzenia i inteligentne opcje dostrajania, zapewnia użytkownikom i majsterkowiczom szereg optymalizacji wydajności za pomocą intuicyjnego oprogramowania i funkcji oprogramowania układowego. Została zaprojektowana tak, aby była gotowa na komputery Advanced AI, oferując moc i łączność potrzebną do wymagających aplikacji AI.
Solidna konstrukcja
Stabilne zasilanie ma kluczowe znaczenie dla maksymalizacji wydajności procesorów AMD. Płyta PRIME X870-P WIFI została zaprojektowana tak, aby spełniać potrzeby procesorów o dużej liczbie rdzeni. Posiada 14 (80 A) + 2 (80 A) + 1 (80 A) stopni mocy, które integrują tranzystory MOSFET i sterowniki high-side i low-side w pakietach o mocy znamionowej do 80 amperów każdy. Taka konfiguracja zapewnia optymalne dostarczanie mocy, wydajność, stabilność i wydajność zarówno dla obecnych, jak i przyszłych procesorów AMD.
Chłodzenie
Płyta główna PRIME X870-P WIFI została zaprojektowana z wieloma wbudowanymi radiatorami i szeregiem hybrydowych gniazd wentylatorów, aby zapewnić, że Twój sprzęt pozostanie chłodny i stabilny nawet przy intensywnych obciążeniach.
Detailed data on disk/drive interfaces - Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports* AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD X870 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*** M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**** 2 x SATA 6Gb/s ports**** * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU. ** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs. *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs. **** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
dimensionalWeight - 1366
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 2030 g
dimension width - 360 mm
EAN - 4711387718148
ean - 4711387718148
Eans - 4711387718148
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x PCIe 4.0 x 16
Expansion slots - 4 x M.2
Expansion slots - Number of M.2 (M) slots - 4
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

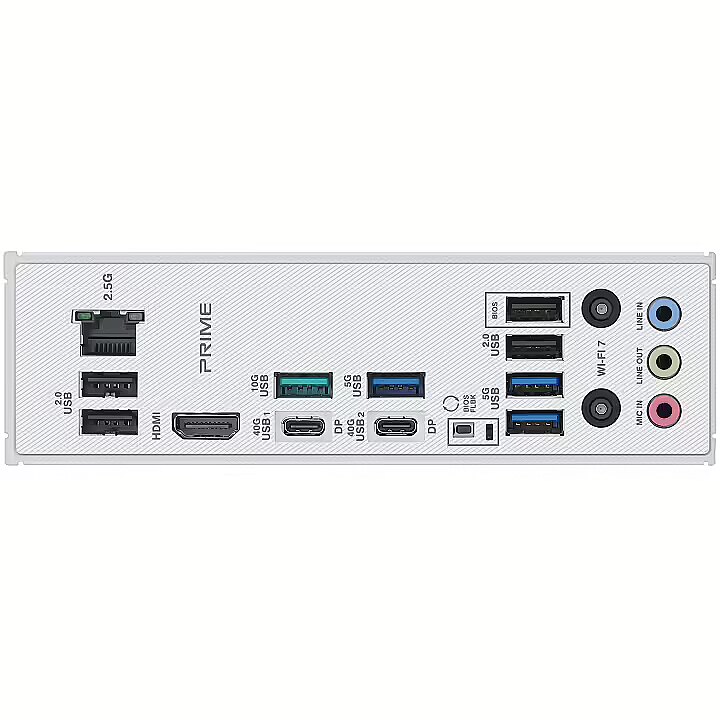

External connectors - 1 x 6,3 mm jack
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x USB 3.1 Type-C
External connectors - 3 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - AMD X870
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Product colour - Black
Features - Windows operating systems supported - Windows 10
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8000 MHz
Full Description Line - AMD X870|SAM5|ATX|DDR5|8000 MHz|Memory slots 4|4xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|4xM.2|1xHDMI|4xUSB 2.0|4xUSB 3.2|2xUSB-C|1xRJ45|3xAudio port|SATA|USB-C|USB 2.0|USB 3.2|Bluetooth|WiFi|Serial|Video Depending on CPU|LAN 2.5 Gigabit|RAID SATA 0, 1; PCIe 0, 1, 5, 10|TPM Header
Graphics - 1 x HDMI port** 2 x USB4 (40Gbps) ports support USB Type-C display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a. **** VGA resolution support depends on processors' or graphic cards' resolution.
Graphics - On-board graphics card - No
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 1,5
GTIN - 4711387718148
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 2
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p-wifi/
LongDesc - ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.PerformanceAI SolutionsASUS AI Solutions, including AI Networking II for real-time bandwidth optimization and AI Cooling II for thermal control, offer new levels of ultrafast connectivity, performance and efficient cooling.PerformanceRobust power designStable power is crucial for maximizing the performance of AMD processors. The PRIME X870-P WIFI is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.Enhanced Memory & Storage PerformanceEnhanced DDR5 performanceComprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P WIFI maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits.3For entry-level modules without EXPO™ support, ASUS Enhanced Memory Profile (AEMP) automatically detects memory chips and provides optimized profiles for enhanced performance.For those looking to surpass stock DDR5 speeds, the PRIME X870-P WIFI offers extensive AMD Extended Profiles for Overclocking (EXPO™) support and a wide array of UEFI settings for further performance tweaks4.Four M.2 slots (up to 128 Gbps)PRIME X870-P WIFI offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives5.CoolingCooler by designThe PRIME X870-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.Smart Cooling precisionASUS Fan Xpert 4ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.Cooler compatibilityASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.FlexibilityEmpowering connectionsThe PRIME X870-P WIFI motherboard offers a versatile range of connectivity, including support for WiFi 7, PCIe 5.0, Realtek 2.5Gb Ethernet, and an array of USB ports.WiFi 7The next-gen WiFi 76 supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM. Multi-Link Operation (MLO) ensures stable connections and low latency, supporting 2.4, 5, and 6 GHz bands for enhanced coverage and throughput.USB 40Gbps Type-C® portsEach port delivers up to 40Gbps of bi-directional bandwidth for the latest super-speed devices and drives. Both ports can be employed for up to two external 4K displays.PCIe 5.0 slotThe latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.CustomizationPersonalizationThe PRIME X870-P WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.UEFI BIOSThe UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.ASUS GlideXEnable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.ASUS DriverHubSimplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.Armoury CrateCustomize Aura Sync RGB and control ASUS devices. Includes product registration and updates.Aura SyncComplete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.Addressable Gen 2 RGB headersThree addressable Gen 2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.CustomizationDIY friendlyThe PRIME X870-P WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.Q-AntennaWith Q-Antenna, attaching a WiFi antenna to your PC is now easy and fast. Instead of slowly rotating two fasteners until they finally lock in, they just snap into place. Less hassle, and more consistent performance.PCIe Slot Q-ReleaseA physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.M.2 Q-LatchThe innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.Q-LED CoreThe Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.Pre-Mounted I/O ShieldOur pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.BIOS FlashBack™BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button—no CPU or memory needed.SafeSlotPCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.Build for the most advanced pc for gaming and creatingWhen only the fastest will do, ASUS X870E/X870 motherboards deliver. With USB 4.0 onboard along with robust overclocking7 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an ASUS X870E/X870 motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
LongProductName - PRIME X870-P WIFI Mainboard Sockel AM5 (AMD, ATX, PCIe 5.0, DDR5, 14+2+1 Power Stages, 4x M.2, WiFi 7, 2,5Gb Ethernet, USB-C 40Gbps)
LongSummaryDescription - ASUS Prime X870-P WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. DisplayPort version: 1.4a. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E...
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - ASUS
Manufacturer Code - 90MB1IS0-M0EAY0
Manufacturer Name - Asustek
Max. number of SATA devices - 2
Max memory size - 192 GB
Memory - ECC - Yes
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 8000 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 8000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - SODIMM DDR5
Model - PRIME X870-P WIFI
MPN - 90MB1IS0-M0EAY0
Name - AM5 ASUS PRIME X870-P WIFI ATX
Name - ASUS PRIME X870-P WIFI
name - ASUS Prime X870-P WiFi Mainboard, AMD X870, Sockel AM5, DDR5
Name - Asus | PRIME X870-P WIFI | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 2
name - Motherboard PRIME X870-P WIFI AM5 4 DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network - Wi-Fi standards - 802.11b
Network - Wi-Fi standards - 802.11g
Network - Wi-Fi standards - Wi-Fi 4 (802.11n)
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Network - Wi-Fi standards - Wi-Fi 6E (802.11ax)
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Obsługuje pasmo częstotliwości 2,4/5/6 GHz** Obsługuje pasmo Wi-Fi 7 160 MHz, do 2,9 Gb/s szybkości transferu. Bluetooth v5.4*** *Funkcje Wi-Fi mogą się różnić w zależności od systemu operacyjnego W przypadku systemu Windows 11 Wi-Fi 7 będzie wymagać wersji 24H2 lub nowszej do pełnej funkcjonalności, Windows 11 21H2/22H2/23H2 obsługuje tylko Wi-Fi 6E. W przypadku systemu Windows 10 należy pamiętać, że nie ma dostępnego sterownika, zapoznaj się ze stroną internetową dostawcy chipsetu Wi-Fi, aby uzyskać szczegółowe informacje. ** Pasmo częstotliwości Wi-Fi 6 GHz i przepisy dotyczące przepustowości mogą się różnić w zależności od kraju. *** Wersja Bluetooth może się różnić, zapoznaj się ze stroną internetową producenta modułu Wi-Fi, aby uzyskać najnowsze specyfikacje.
Network interface - Bluetooth
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 4
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.0 header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x SATA III 6Gb/s
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x M.2
Other features - Back-to-BIOS button - Yes
Other features - Weight - 1.56 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.56 kg
Packaging data - Package width - 353 mm
PCI-Express 4.0 16x Expansion slots - 4
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - AMD Ryzen 9 7th Gen
Processor - Compatible processor series - AMD Ryzen 9 8th Gen
Processor - Compatible processor series - AMD Ryzen 9 9th Gen
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD Ryzen 9 9th Gen
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
producer - Asus
Producer - Asus
producerCode - 90MB1IS0-M0EAY0
ProducerCode - PRIME X870-P WIFI

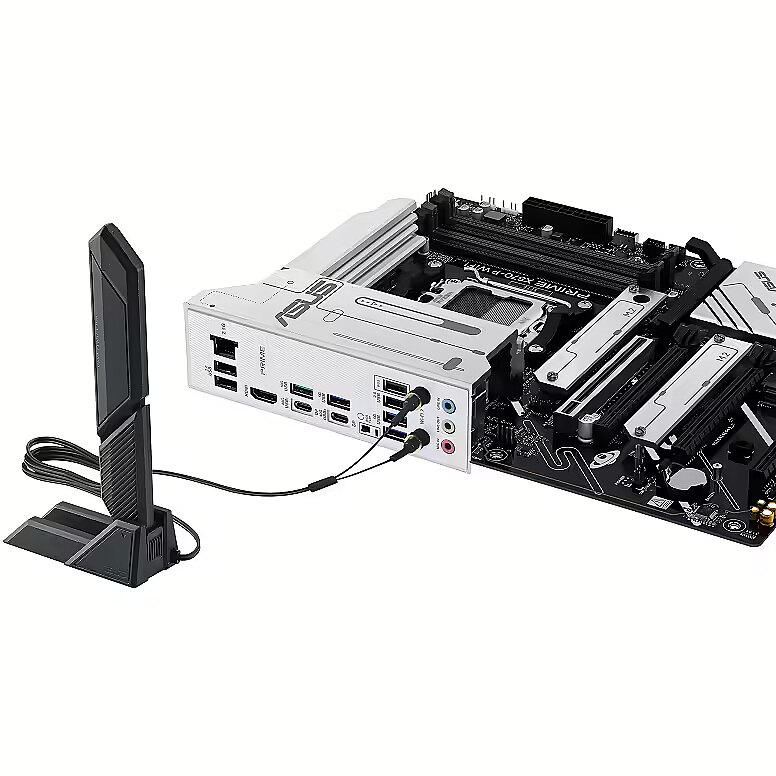

productName - ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX
ProductName - Prime X870-P WIFI
productSize - Normal
RAID - SATA 0, 1; PCIe 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPort version - 1.4a
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Serial Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 29.5 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 8.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 30 cm
Short description - ASUS PRIME X870-P WIFI X870/AM5/ATX
ShortDescription - Socket AM5 | Chipset AMD X870 | DDR5
ShortSummaryDescription - ASUS Prime X870-P WIFI, AMD, Socket AM5, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD..., Socket AM5, DDR5-SDRAM, 192 GB
sizeX - 355
sizeY - 70
sizeZ - 275
Socket - SAM5
Software - ASUS Exclusive Software Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving ASUS DriverHub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC* Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking Supports up to 24-Bit/192 kHz playback Audio Features Audio Shielding Premium audio capacitors Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Special functions -
Storage controllers - Number of HDDs supported - 2
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - PRIME X870-P WIFI
Title - ASUS Prime X870-P WIFI AMD X870 Socket AM5 ATX
TPM - Header
Unit Box Height - 0.07
Unit Box Length - 0.355
Unit Box Width - 0.275
Unit Brutto Volume - 0.008186 cubm
Unit Gross Weight - 2.19 kg
Unit Net Weight - 2 kg
URL - https://www.asus.com/motherboards-components/motherboards/prime/prime-x870-p-wifi/
USB-C Input/Output connectors - 2
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 4
USB 3.2 Interface - Yes
USB ports at back panel - 10
USB ports on motherboard - 7
Vendor Homepage - www.asus.com/eg/motherboards-components/motherboards/all-series/prime-x870-p-wifi/
vendpn - PRIME X870-P WIFI
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.02
weight - 2025
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 48 mm
Weight & dimensions - Width - 305 mm
WiFi Interface - Yes
