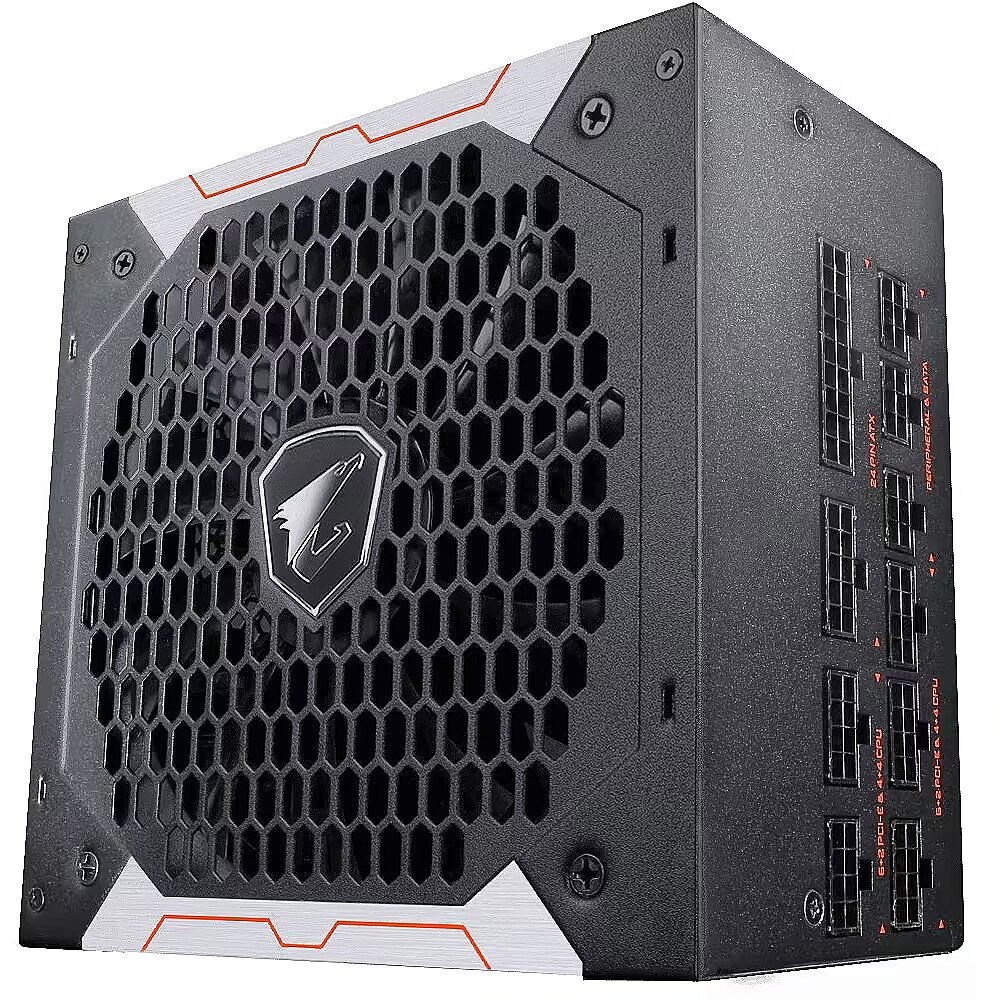

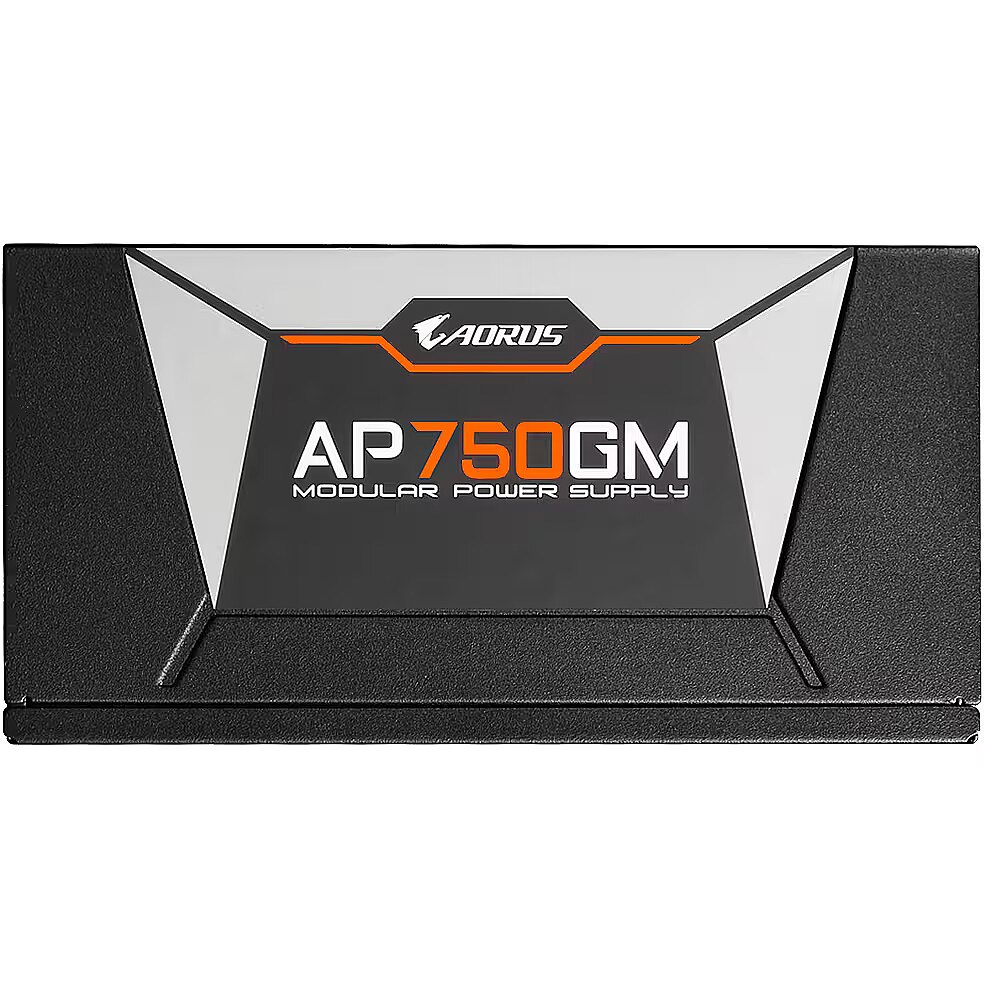

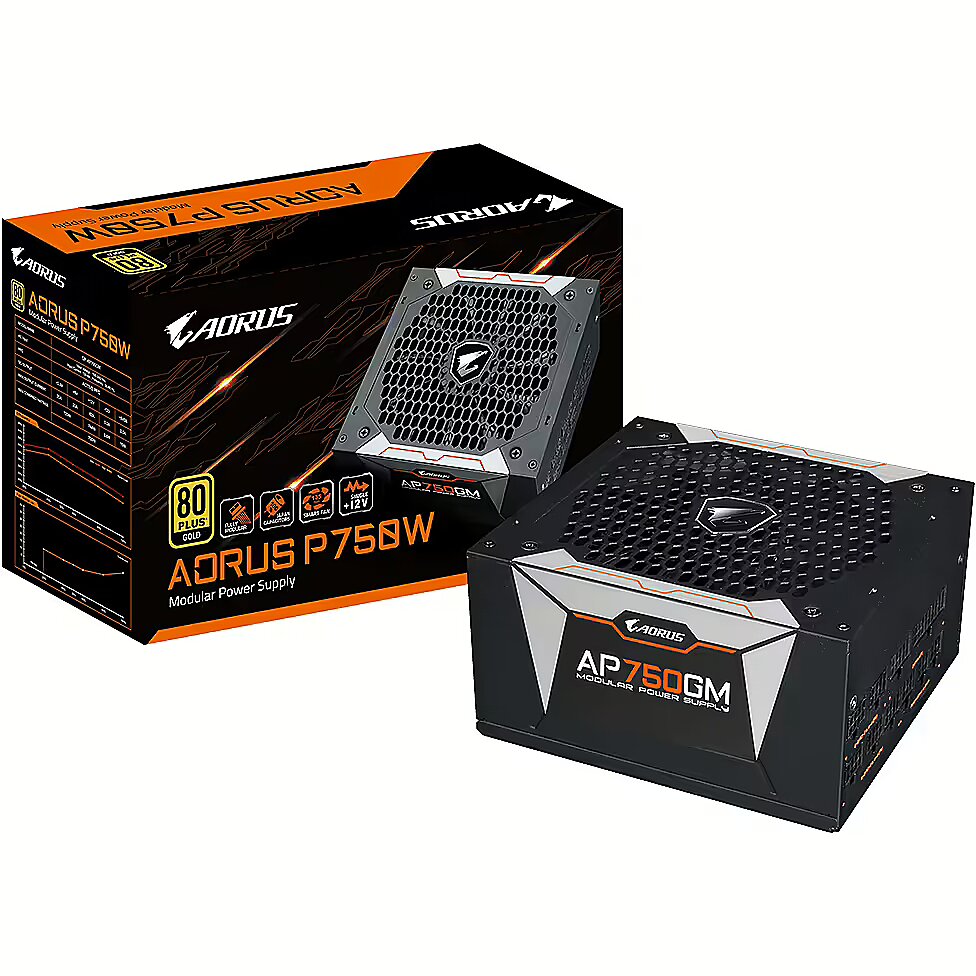

Gigabyte AORUS P750W, 750W, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
Brand - GIGABYTE
BrandPartCode - 28200-AP75GM-1EUR
BrandPartCode - GP-AP750GM
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description - Power Supply AP750GM-EU 750W PFC 135mm ATX
Design - Cooling type - Active

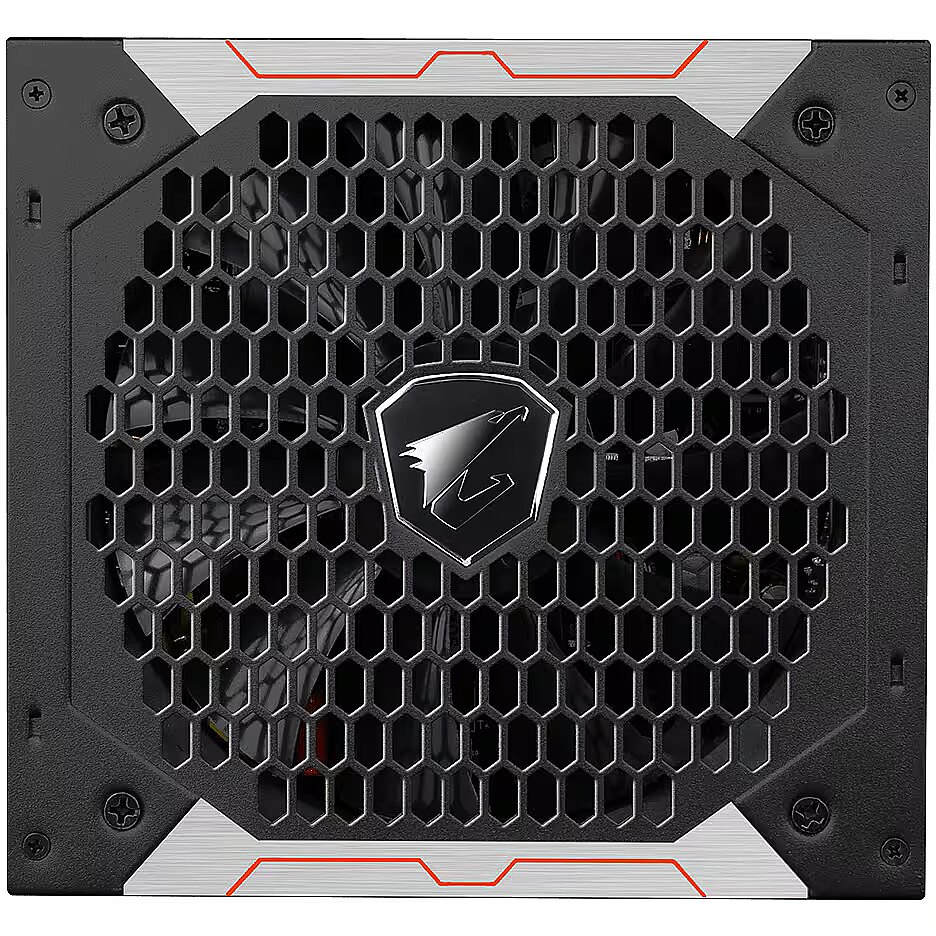

Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)

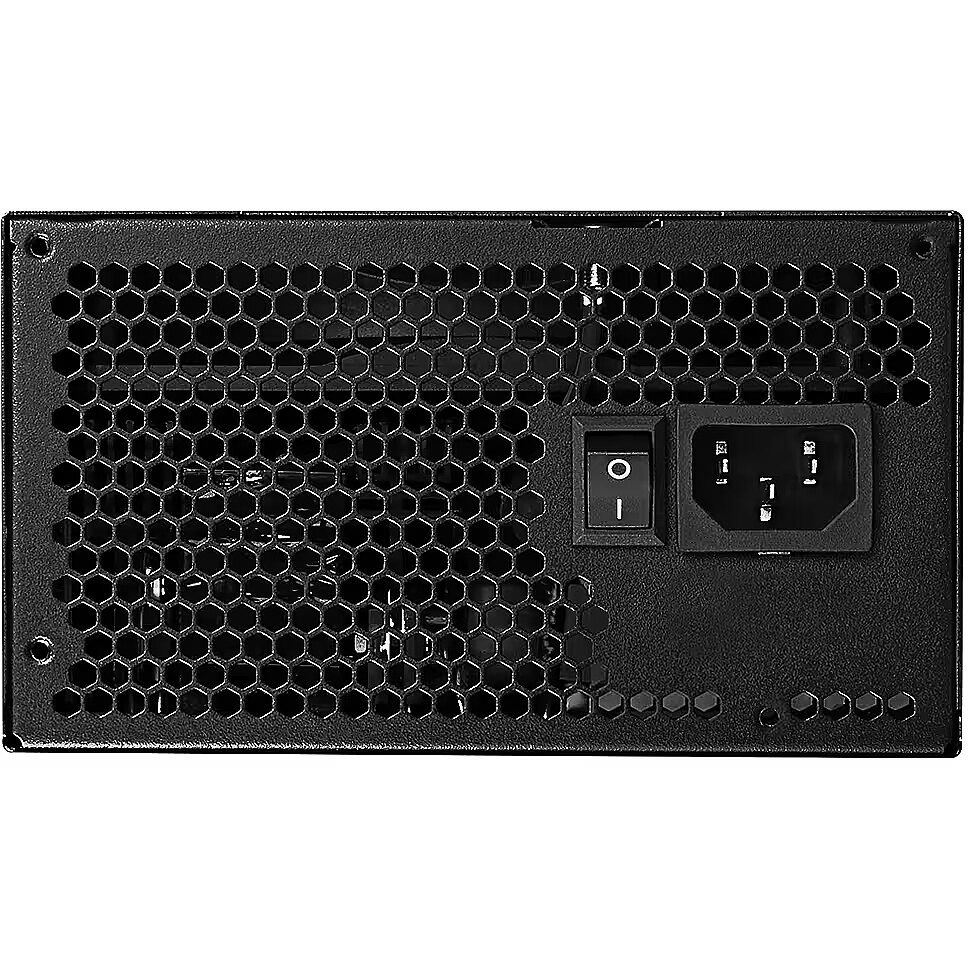

Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2181
dimension depth - 150 mm
dimension height - 350 mm
Dimensions - 150 x 160 x 86 mm
dimension weight - 3100 g
dimension width - 225 mm
ean - 813567026174
Eans - 813567026174
EAN_code - 4719331551025
Fan - 13.5 cm
Floppy power connectors - 1
GTIN - 4719331551025
guarantee - 120
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.HIGH QUALITY 100% JAPANESE CAPACITORSAll capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.135MM SMART FANFan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
LongDesc - High Quality 100% Japanese CapacitorsAll capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.135mm Smart FanFan speed will be adjusted according to the system load. And the fan will stop when the system is idle or under low load (less than 20% load). The 2 ball bearing structure provides longer life time.2 ball bearing is the most durable fan construction with a durability of over 50,000 hours. The life of the 2 ball bearing is more than 5 years.80 Plus Gold Certified80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.Single +12V RailSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.ProtectionIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
LongProductName - 750W, 80+ GOLD, ATX 12V v2.31, 1x 135mm
LongProductName - Fully Modular, 750 W, ATX 12V v2.31, Active PFC, 100 - 240 V, 47 - 63 Hz, 10 A, 150 x 160 x 86 mm
LongSummaryDescription - GIGABYTE AP750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 550,650,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 160 mm, Height: 86 mm
LongSummaryDescription - GIGABYTE GP-AP750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 450,550,650,750 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 160 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-AP750GM
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
Name - GiBy GA-AP750GM 750W ATX23
Name - Gigabyte GP-AP750GM
name - Power Supply AP750GM-EU 750W PFC 135mm ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active

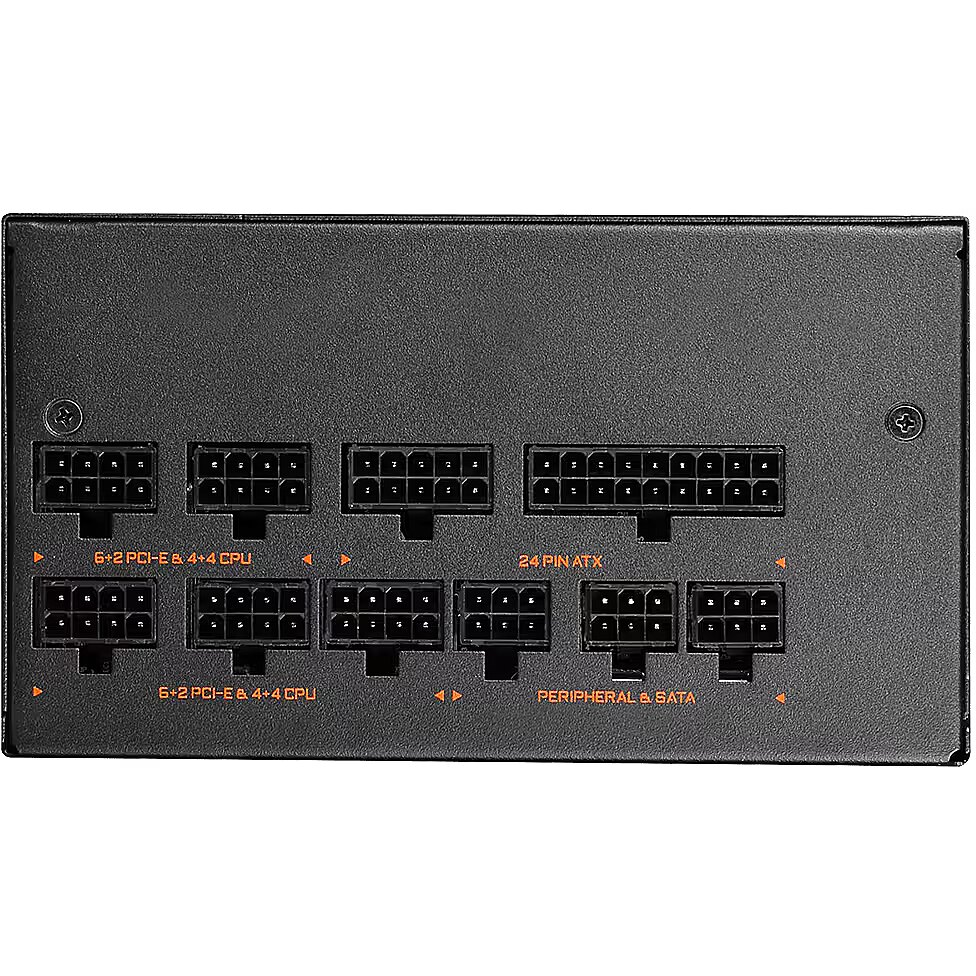

Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 80 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 75 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 80 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - Peripheral (Molex) power cable length - 450,550,650,850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 5
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces - SATA power cable length - 450,550,650,750 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 550,650,750 mm
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 750 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-AP750GM
ProducerCode - GP-AP750GM
ProductName - AP750GM
productName - Gigabyte GP-AP750GM power supply unit 750 W 20+4 pin ATX ATX Black
ProductName - GP-AP750GM
productSize - Normal
SATA power connectors - 6
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 140mm | 80 Plus Gold |
ShortSummaryDescription - GIGABYTE AP750GM, 750 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 120 W
ShortSummaryDescription - GIGABYTE GP-AP750GM, 750 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 120 W
sizeX - 342
sizeY - 220
sizeZ - 145
Title - GIGABYTE AP750GM power supply unit 750 W 20+4 pin ATX ATX Black
Title - GIGABYTE GP-AP750GM power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://www.gigabyte.com/Power-Supply/GP-AP750GM#kf
vendpn - GP-AP750GM-EU
WarrantyInfo -
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 3,03
weight - 3060
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
