Gigabyte UD750GM, 750W, 80PLUS Gold

8-pin 12V power connectors - 0
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-UD750GM
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description -
Design - Cooling type - Active

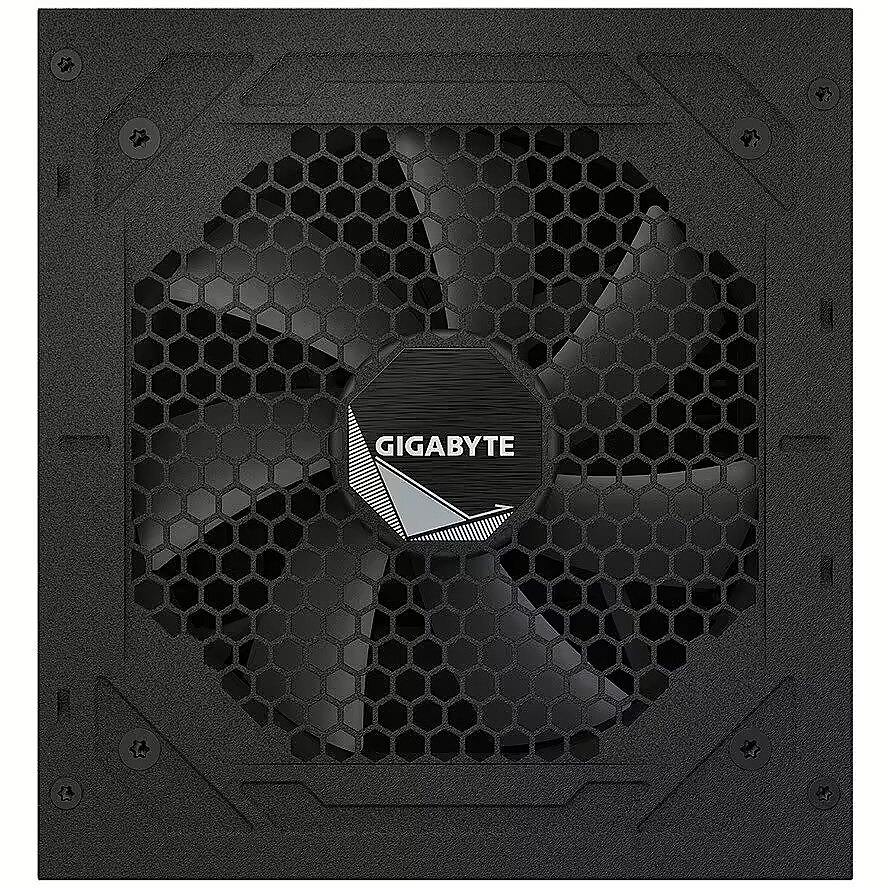

Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimension depth - 120 mm
dimension height - 255 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2543 g
dimension width - 205 mm
ean - 4719331552671
Eans - 4719331552671
EAN_code - 4719331552671
Fan - 12 cm
Floppy power connectors - 1
GTIN - 4719331552671
guarantee - 60
guarantee_type - normal
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.ENHANCED THERMALSOLUTIONCompared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.120MM SMART HYDRAULICBEARING (HYB) FANThe fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.FULLY MODULAR DESIGNAll the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.80 PLUS GOLD CERTIFIED80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.COMPACT DESIGNWith the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
LongProductName - Active PFC, 100-240 Vac, 12-6A, 60-50 Hz, 750W, 120mm Hydraulic Bearing(HYB)fan, 80 PLUS Gold, OVP/OPP/SCP/UVP/OCP/OTP
LongSummaryDescription - GIGABYTE GP-UD750GM. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - GigaByte
Manufacturer_code - GP-UD750GM GEU
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 3
Name - Gigabyte GP-UD750GM
Name - GIGABYTE GP-UD750GM 750W, PC power supply (black, 4x PCIe, cable management, 750 watts)
name - Modular power supply UD750GM 750W 80PLUS GOLD ATX
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes

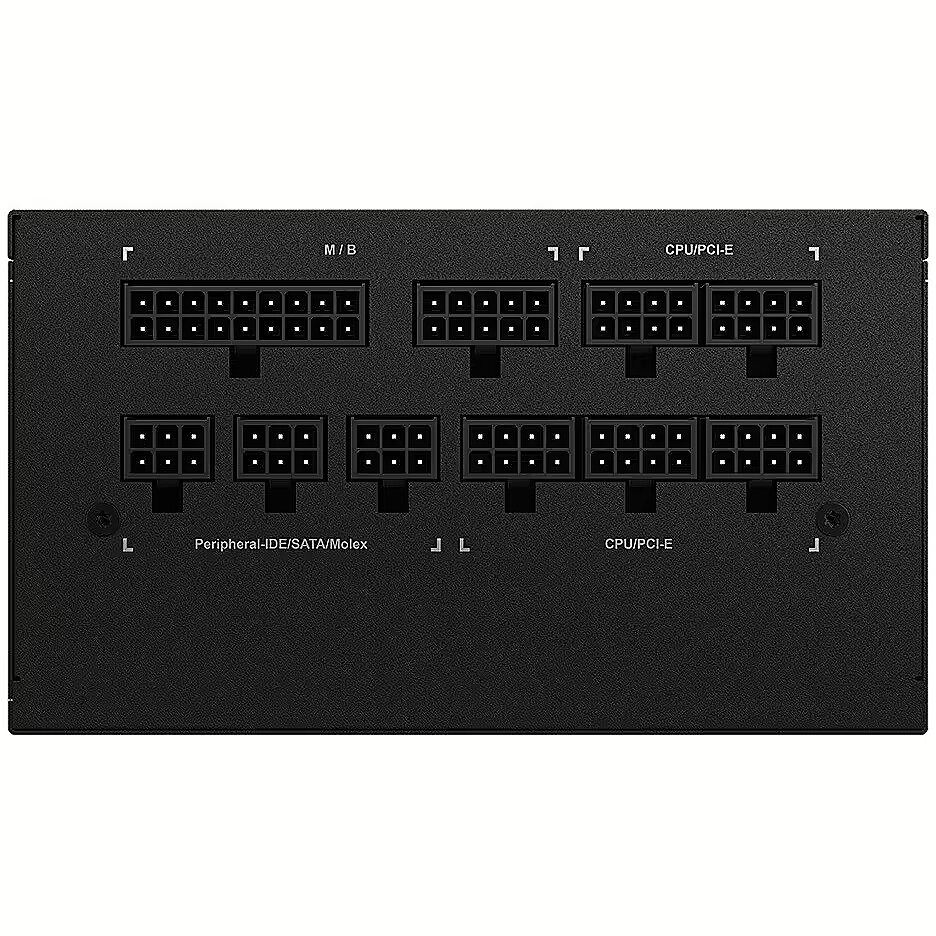

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive cable length - 15 cm
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 120,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,300,450,600 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V

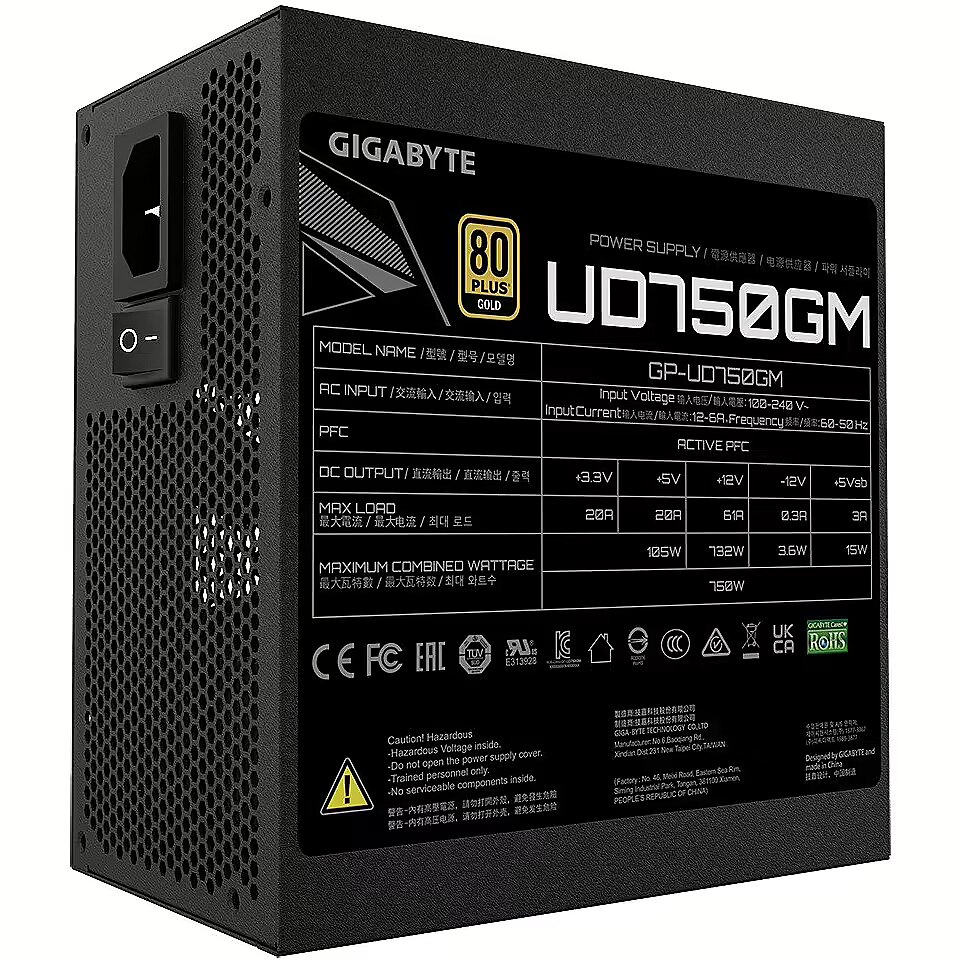

Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 732 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 61 A
Power - Max output current (-12V) - 2.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Gigabyte
Producer - Gigabyte
ProducerCode - GP-UD750GM
ProductName - GP-UD750GM
SATA power connectors - 8
ShortDescription - 750 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | modularny | 80 PLUS Gold
ShortSummaryDescription - GIGABYTE GP-UD750GM, 750 W, 100 - 240 V, 50 - 60 Hz, 12 A, Active, 105 W
Technical_details - GP-UD750GM 750W, PC power supply The GIGABYTE GP-UD750GM 750W PC power supply with fully modular cables is 80 PLUS Gold certified for better energy efficiency. Lower power consumption reduces heat generation and fan noise. The power supply can reach up to 90% efficiency, providing the best solution for system builds. The modular cables reduce clutter and improve airflow within the case. The single +12V rail offers the best output power, stability and compatibility for the hardware. The 120mm silent fan optimizes noise reduction and thermal performance. The fan speed is adjusted according to the automatic power detection. The fan offers a longer and more stable service life thanks to hydraulic bearings. Type: PC power supply Color: Black EAN: 4719331552671 Manufacturer No.: GP-UD750GM GEU Performance: Total | 750W Power: +12V total | 732 W Power: +3.3V/+5V total | 105W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 6 A at 230 volts / 50 Hz, 12 A at 110 volts / 60 Hz Default: ATX12V 2.3 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 61 a Amperages: +12 V1 | 61 a Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 1x 4-pin 3.5", 4x 4-pin 5.25", 4x 6+2-pin graphics , 8x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Title - GIGABYTE GP-UD750GM power supply unit 750 W 20+4 pin ATX ATX Black
URL - https://www.gigabyte.com/Power-Supply/GP-UD750GM#kf
vendpn - GP-UD750GM
WarrantyInfo - 5 years
Weight - 2,54
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
