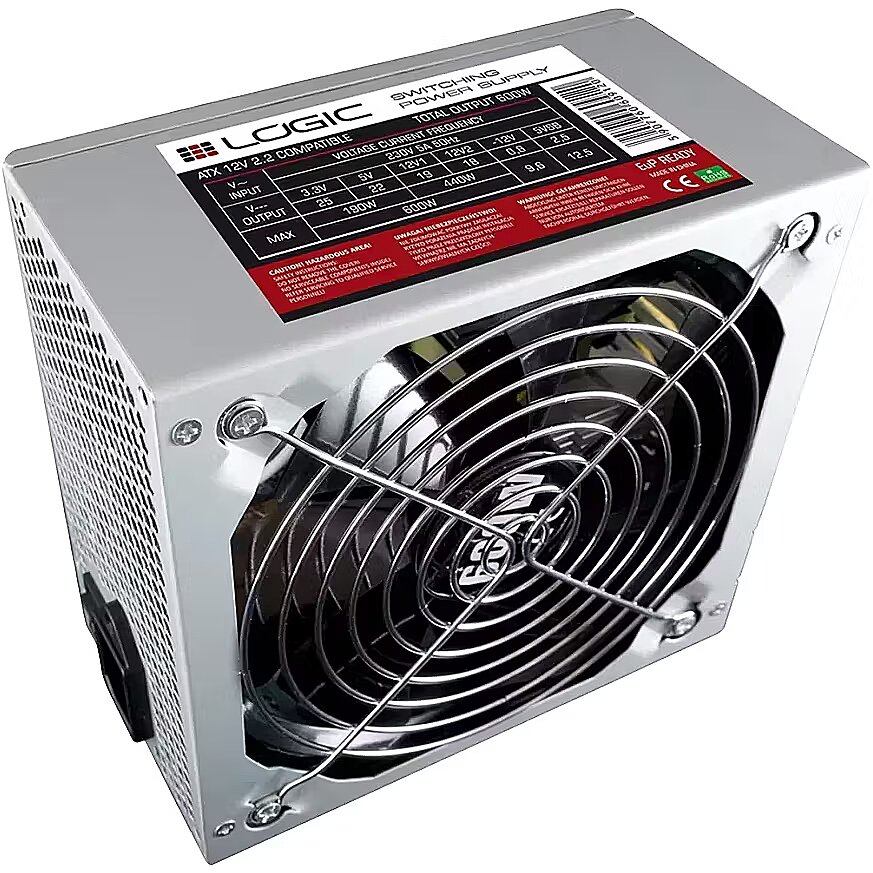

Logic Concept LOGIC, 600W, ATX 2.2

8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - None
Description - PC Power Supply 600W
A state-of-the-art, technologically advanced power supply with standard 3 x Serial-ATA (for hard drives), PCI Express (6-pin for graphics cards) and a 20 / 24pin universal motherboard. An excellent feature is the excellent cooling of the power supply that guarantees a 12cm fan with chromed grille and stable operation thanks to the passive PFC (power factor correction) function. The power supply also has short-circuit, over-voltage and anti-interference suppressors to prevent damage, among others. Motherboard and processor.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Stainless steel
dimensionalWeight - 604
dimension depth - 90 mm
dimension height - 150 mm
Dimensions -
dimension weight - 1910 g
dimension width - 140 mm
ean - 5907760605696
Eans - 5907760605696
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - statutory
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 2
name - 600W 120mm FAN COMPUTER POWER
Name - Logic 600
Number of power supply connector 4+4-pin 12V - 0
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 0
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other features - - Thermal control of the fan speed
- Adjustable fan speed dependent on the heat output of the power supply (AFC)
- Output filters to protect against surges and short circuits
- Quiet work
- Very low distortion
- Operating temperature range: 0 OC to 50 OC
- Storage temperature: -20 OC to 70 OC
- MTBF:> 100000 hours at 80% load and 25 OC ambient temperature
- Safety certificate: CE
- RoHS
- Hold time:> 16ms at full load and nominal voltage
- Lifting time:
Other features - Rise time - 20 ms
PCI-E 6-pin power connectors - 1
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.2
Performance - Certification - CE
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Passive
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - Hold time - 16 ms
Power - Power Factor Correction (PFC) type - Passive
Power - Power protection features - Over current
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 600 W
Power supply - 600 W
Producer - Logic
producer - Logic Concept
producerCode - ZAS-LOGI-LC-600-ATX-PFC
ProducerCode - ZAS-LOGI-LC-600-ATX-PFC
productName - Logic 600 power supply unit 600 W 20+4 pin ATX ATX Stainless steel
productSize - Normal
SATA power connectors - 4
ShortDescription - 600 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | standard |||
sizeX - 160
sizeY - 90
sizeZ - 210
Technical details - Sustainability certificates - RoHS
vendpn - ZAS-LOGI-LC-600-ATX-PFC
warrantyLength - 12
warrantyType - G
weight - 1400
