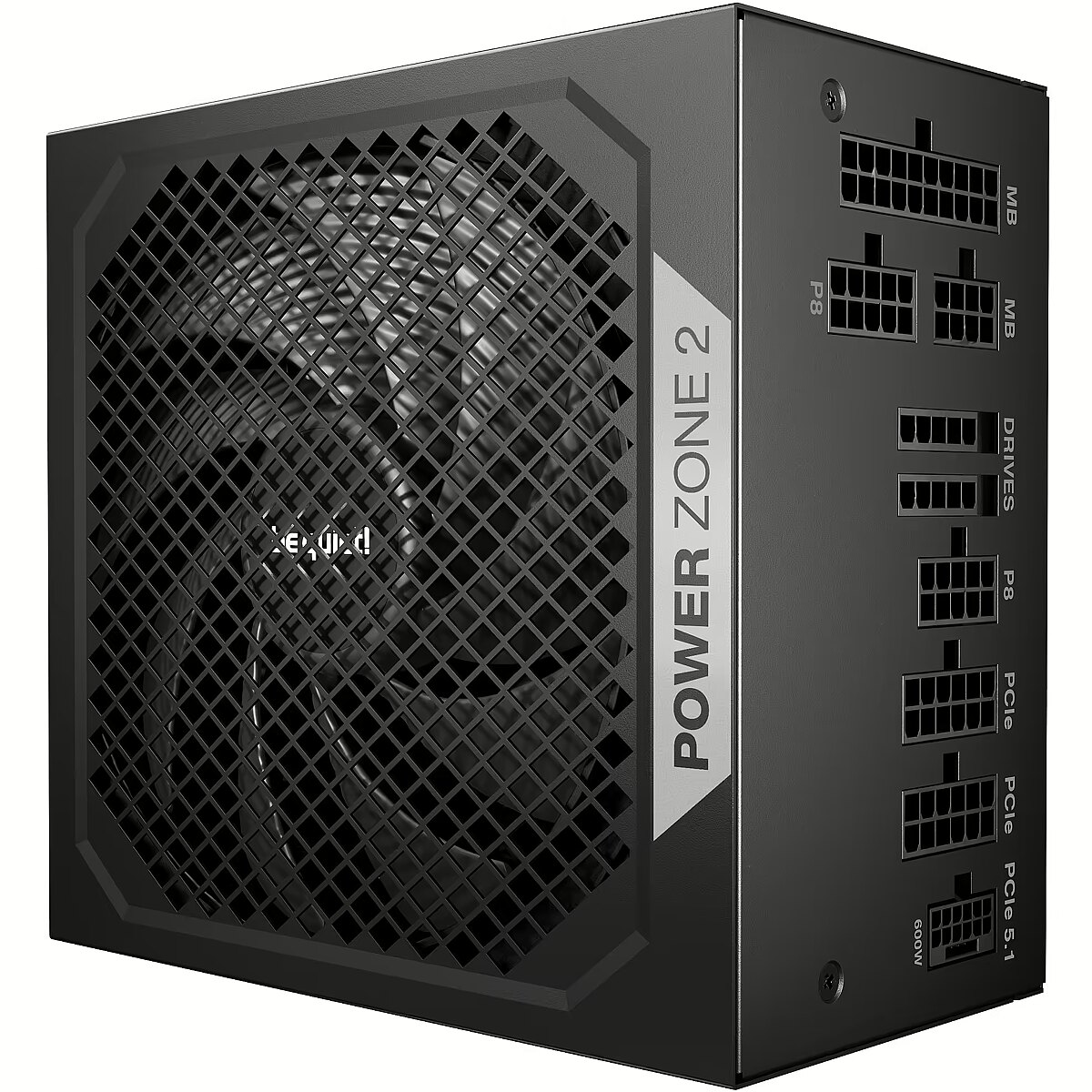

Be Quiet Power Zone 2, 750W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

8-pin 12V power connectors - 1
Accessories included -
Brand - be quiet!
BrandPartCode - BP006EU
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Certificates 80+ - 80 PLUS Platinum
Description - Zasilacz Power Zone 2 750W 80PLUS PLATINUM ATX 3.1 Power Zone 2 750W to zasilacz z certyfikatem 80 PLUS Platinum i półpasywnym chłodzeniem zero-RPM, zapewniający wydajne i ciche sesje gamingowe. Sprawność 80 PLUS Platinum i Cybenetics Platinum (do 94,2%) Półpasywne chłodzenie zero-RPM Wentylator pracuje przez 2-5 minut, aby uniknąć częstego odgłosu uruchamiania Wentylator Pure Wings 3 140 mm zapewnia ciche i wydajne chłodzenie Kątowe złącze 12V-2x6 90° i kompatybilność z PCIe 5.1/ATX 3.1 Zaawansowana regulacja napięcia i stabilność dzięki technologii LLC Unikalny wygląd z niepowtarzalnym wzorem siatki Jedna masywna, wysokowydajna linia 12 V
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1732
dimension depth - 105 mm
dimension height - 330 mm
Dimensions - 86 x 150 x 160 mm
dimension weight - 3300 g
dimension width - 250 mm
ean - 4260052191361
EAN - 4260052191361
Eans - 4260052191361
Fan - 14 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4260052191361
guarantee - 120
guarantee_type - normal
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 19.3 kg
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - Exceptional efficiency for GamersPower Zone 2 750W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 750W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.2%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 750W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 750W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 750W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 750W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 750W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 750W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
LongProductName - 80 PLUS Platinum, 750W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
LongSummaryDescription - be quiet! POWER ZONE 2 750W. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 820 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Manufacturer - Be Quiet!
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 0
MPN - BP006EU
Name - 750W be quiet! Power Zone 2
Name - be quiet! Power Zone 2 750W
name - Power supply Power Zone 2 750W 80PLUS PLATINUM ATX 3.1
Number of connectors PATA - 1
Number of power connectors 12VHPWR - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -

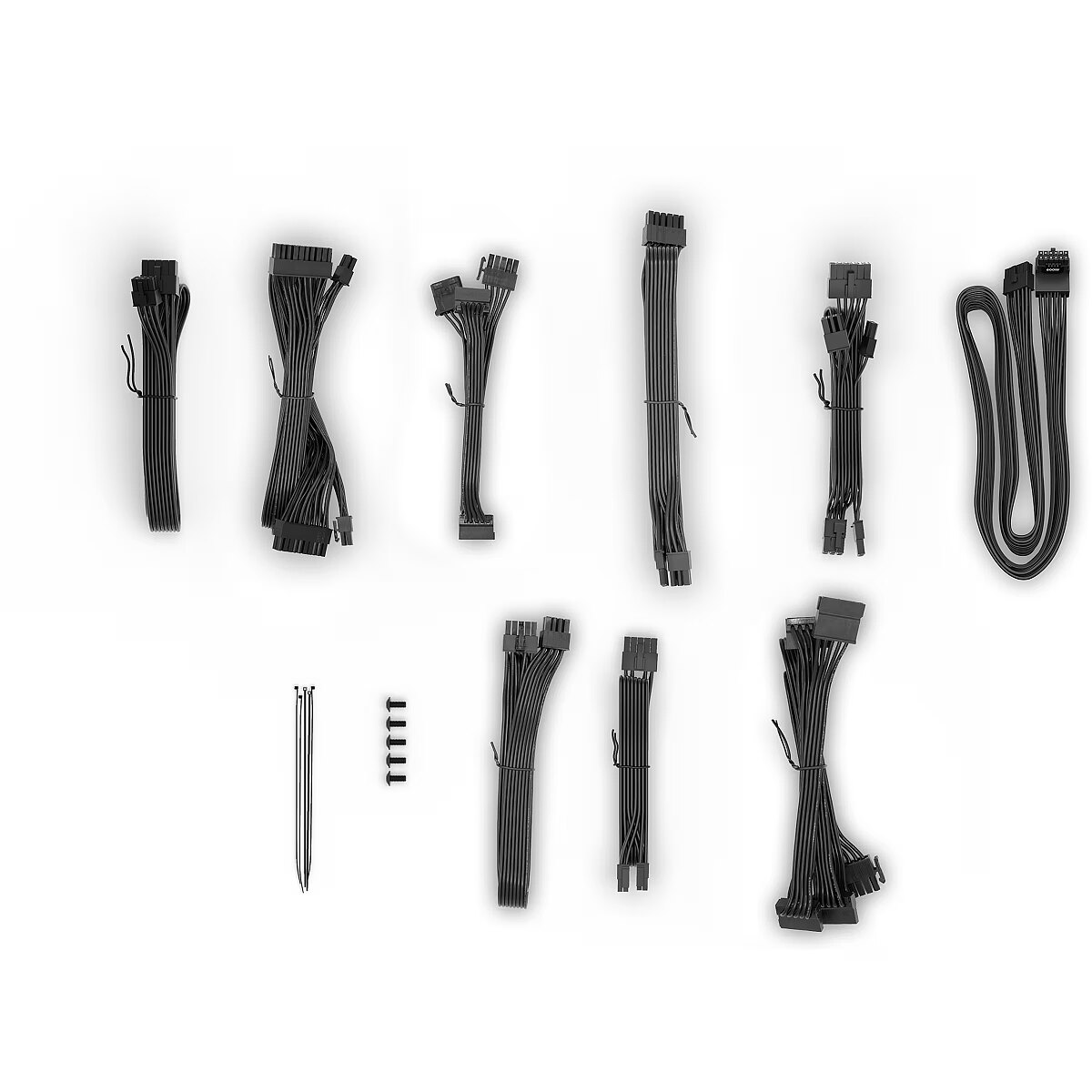

Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.21 kg
Packaging data - Package width - 248 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h

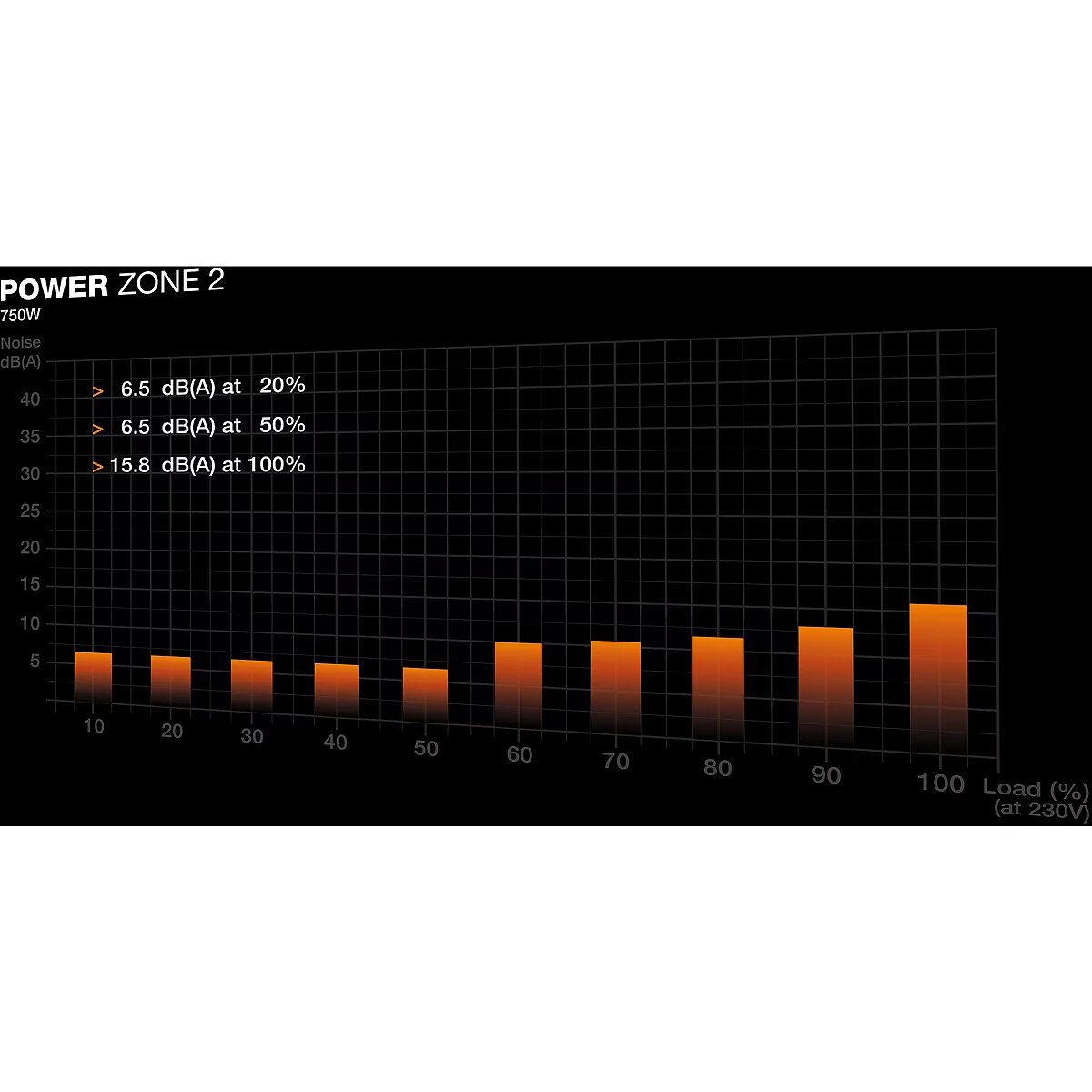

Performance - Noise level - 15.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1

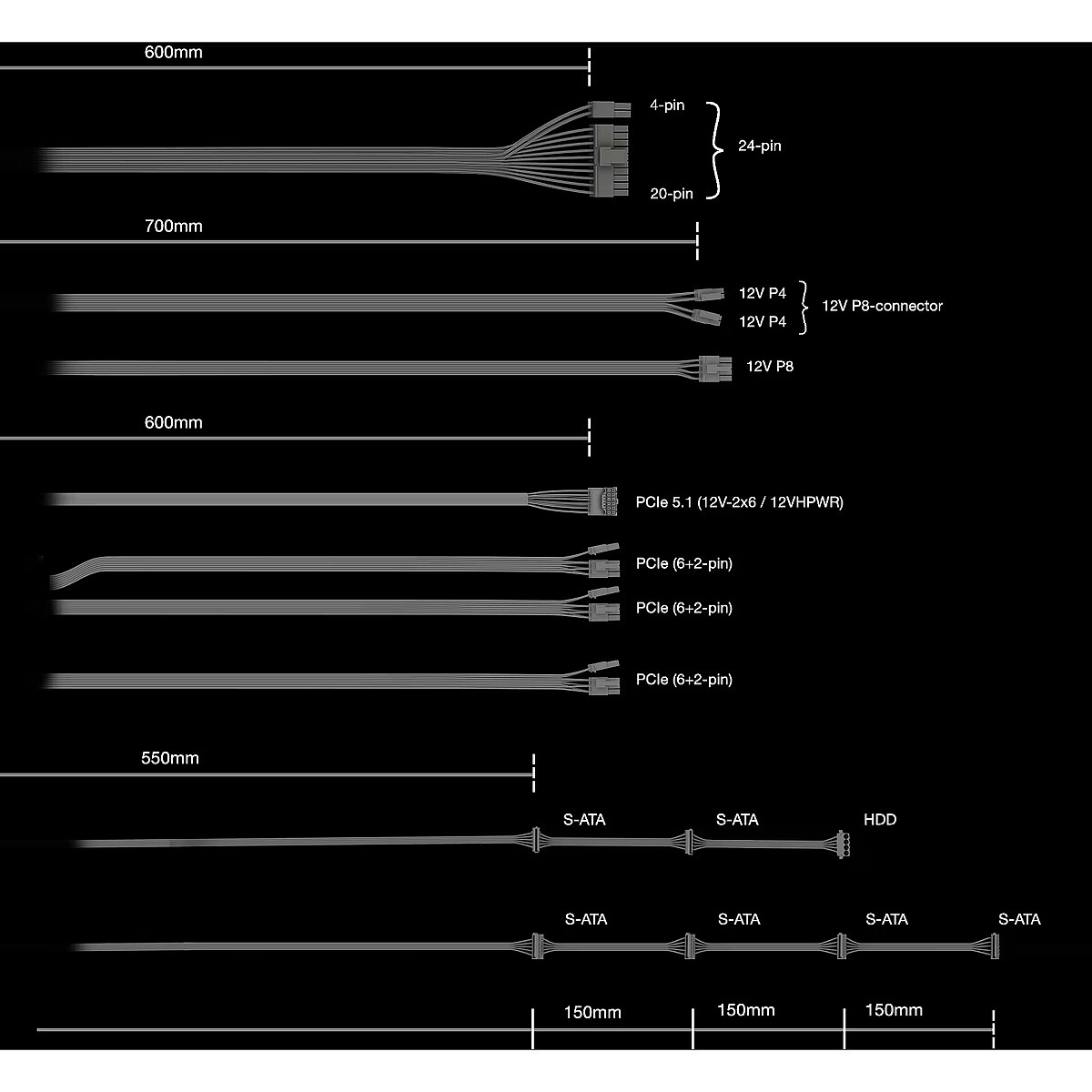

Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92.5%
Power - Hold time - 24.5 ms
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 820 W
Power - Power factor - 0.98
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Be quiet!
Producer - be quiet!
producerCode - BP006EU
ProducerCode - BP006EU
ProductName - POWER ZONE 2 750W
productName - Zasilacz be quiet! POWER ZONE 2 750W
productSize - Normal
SATA power connectors - 6
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Platinum
ShortSummaryDescription - be quiet! POWER ZONE 2 750W, 750 W, 100 - 240 V, 820 W, 50/60 Hz, 10 A, 5 A
sizeX - 330
sizeY - 105
sizeZ - 250
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Title - be quiet! POWER ZONE 2 750W power supply unit 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/powersupply/5585
vendpn - BP006EU
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3.3
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
