BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90SW00U0-M0EAY0
category - Mainboards Intel Mainboards
Category - Motherboards
code - 90SW00U0-M0EAY0
dimensionalWeight - 1581
ean - 4718017322362
EAN - 4718017322362
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 7
Features - Audio output channels - 7.1 channels
Features - Compatible operating systems - Windows 10 64-bit
Features - Component for - Workstation
Features - Harmonized System (HS) code - 84733020
Features - Motherboard chipset - Intel® X299
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - CEB
Graphics - Parallel processing technology support - 4-Way CrossFireX
Graphics - Parallel processing technology support - 4-Way CrossFireX, 4-Way SLI
Graphics - Parallel processing technology support - 4-Way SLI
Gross Weight Kg - 2
GTIN - 4718017322362
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 8
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - WORKSTATION MOTHERBOARDASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software with support for out-of-band management, so they're also an efficient and cost-effective option for IT administrators.Breakthrough PerformanceIntel®'s high-end desktop platform raises the stakes with updated Intel Core™ X-Series Processors that boast cores, cache, and bandwidth. The Pro WS X299 Sage II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.Four Dual-slot GPUs supportPro WS X299 Sage II fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFire™ 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA® Quadro®. NVIDIA® Quadro® is the perfect complement to Pro WS X299 Sage II, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.Make your memory go fasterWith optimized trace paths for time-aligned signaling and minimal crosstalk, Third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4266 MHz and beyond.Intel Dual 2.5G Internet2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Thunderbolt 3 cardPro WS X299 Sage II provides full support for a ThunderboltEX 3 card. An Intel®-certified Thunderbolt™ 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable — up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt™ 3 supports daisy-chaining up to six devices, utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB power delivery specifications for fast, high-power charging.USB 3.2 Gen 2 portsThe back panel of the Pro WS X299 Sage II features two USB 3.2 Gen 2 ports, including one reversible Type-C™ and one backward-compatible Type-A to deliver ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps.USB 3.2 Gen 2 front-panel headerPro WS X299 Sage II's front panel USB 3.2 header is ready for next-gen PC cases and devices.M.2 & U.2Achieve speed with onboard M.2 & U.2Professional applications require fast solid-state storage, which is why the Pro WS X299 Sage II is equipped with dual M.2 slots and triple U.2 slots that are compatible with the latest NVMe SSDs. M.2 slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.VROCVirtual RAID on CPU (VROC) is an all-new feature of Pro WS X299 Sage that enables use of an Intel VROC hardware key. With VROC, you can easily configure RAID arrays and eliminate traditional bottlenecks, so your storage is not held back by other traffic — perfect for busy scratch drives and content libraries.Tune it your wayComprehensive controls form the foundation of the ASUS X299 motherboards. The Pro WS X299 Sage II packs flexible tools to tune every aspect of your system to deliver the performance that you desire.AI OverclockingASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.5-Way OptimizationOne click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.Fans stay quiet as a whisper for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.Cool to the coreEffective cooling is extremely important, even at stock speeds. That is why the Pro WS X299 Sage II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, options for water pump and AIO headers.Multiple Ultra-efficient heatsinksPro WS X299 Sage II features a thoughtful thermal design to ensure maximum performance with no CPU throttling. Its ultra-efficient VRM heatsink with a metal fin array maximizes surface area for heat dissipation, and its heatsinks and a connecting heat-pipe that's situated in the direct path of airflow combine to ensure optimal cooling performance — even under the most demanding workloads.M.2 heatsinkPro WS X299 Sage II features an ultra-efficient heatsink to reduce M.2 SSD temperatures for optimal storage performance and improved SSD longevity.Cooler by designFan Xpert 4ASUS Pro X299 Sage II features the most comprehensive fan controls ever, configurable via Fan Xpert 4 and the UEFI BIOS.Audio & PersonalityWe pay careful attention to all the little details that improve your overall experience, from integrating a flashing utility directly into the UEFI to simplifying firmware updates or displaying your system vital signs. Pro WS X299 Sage II provides the tools you need to personalize your build and stay on top of things.Exclusive CodecRealtek codec and unique design features for pristine, powerful audioPro WS X299 Sage II utilizes a unique audio codec designed in close collaboration with Realtek — the Realtek S1220A. It also features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and a 113dB SNR for the line-in, providing pristine audio quality. Additionally, a new impedance-sensing circuit automatically adjusts the gain to ensure optimal volume range for your headphones.DTS:X® Ultra adds a spatial audio feature to boost headphones and speakers for an enhanced gaming, VR, and extended reality experience. DTS:X Ultra supports sound based on channels, scenes, and objects to allow for deeper sonic immersion in enabled content. It also provides post-processing enhancements and device-level tuning for DTS® codecs.Crystal Sound 3Flawless audio that immerses you in the gamePower pre-regulatorReduces power-input noise to ensure consistent performance.Audio shieldingSeparates analog/digital signal domains, significantly reducing multi-lateral interference.Separate layer for left and right tracksEnsures minimal crosstalk between audio paths.Integrated amplifierCapable of driving high-impedance headphones, without rolling-off high or low frequencies.De-pop circuitReduces start-up popping noise to all audio outputs.Premium Japanese audioPremium parts provide an immersive sound signature, with exceptional fidelity.Aura SyncOutshine your competitionA well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB headers. And it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.ASUS Control CenterPro WS X299 Sage II features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
LongProductName - CEB, Intel X299 chipset, Intel Socket 2066, 8xDDR4 DIMM slots, 7.1ch audio, 2x2.5-Gigabit LAN
LongSummaryDescription - ASUS Pro WS X299 SAGE II. Processor manufacturer: Intel, Processor socket: LGA 2066 (Socket R4), Compatible processor series: Intel® Core™ X-series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 256 GB, Supported memory clock speeds: 2400,2666,2933,3600,4000,4133,4200,4266 MHz. Supported storage drive interfaces: SATA, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 4-Way CrossFireX, 4-Way SLI. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Intel I225-LM
Manufacturer Code - 90SW00U0-M0EAY0
Manufacturer Name - Asustek
Memory - Maximum internal memory - 256 GB
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2400,2666,2933,3600,4000,4133,4200,4266 MHz
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4200
Memory - Supported memory clock speeds - 4266
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes

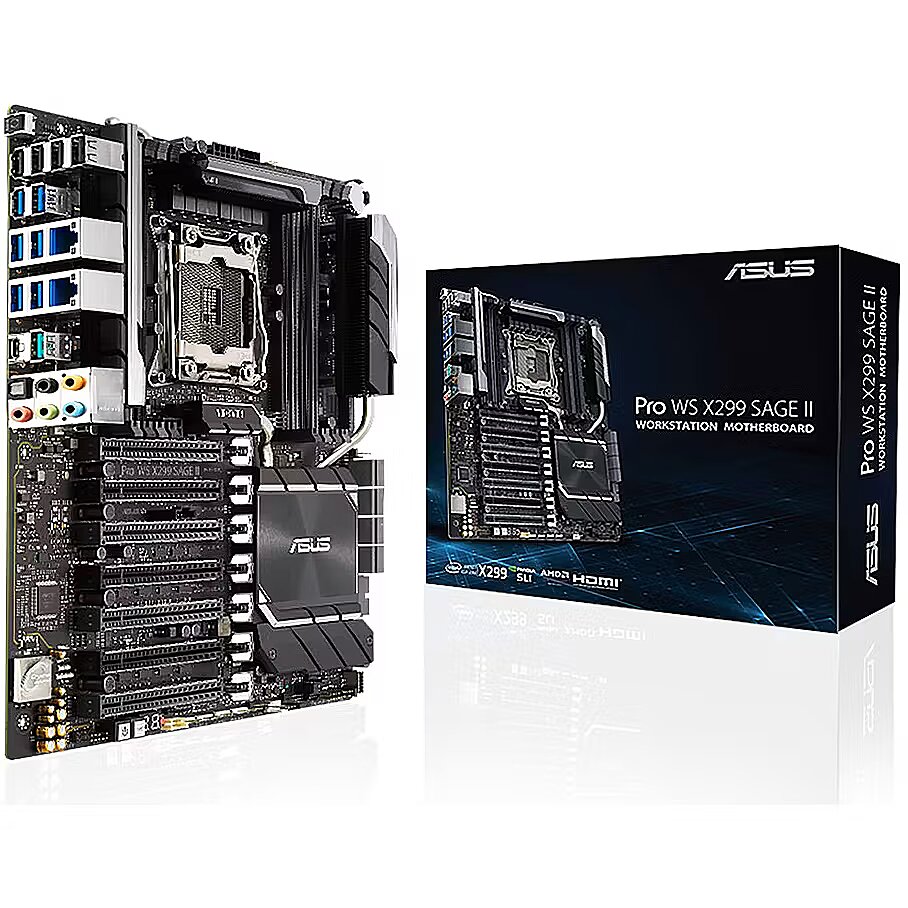

name - ASUS Pro WS X299 Sage II - Motherboard - SSI CEB - Sockel LGA2066
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel I225-LM
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Number of DIMM slots - 8
Other features - Number of processors supported - 1
Other features - Weight - 2.3 kg
Packaging content - Cables included - SATA
Processor - Compatible processor series - Intel® Core™ X-series
Processor - Processor manufacturer - Intel
Processor - Processor number of cores supported - 6
Processor - Processor number of cores supported - 6, 8, 10, 12, 14, 16, 18
Processor - Processor number of cores supported - 8
Processor - Processor number of cores supported - 10
Processor - Processor number of cores supported - 12
Processor - Processor number of cores supported - 14
Processor - Processor number of cores supported - 16
Processor - Processor number of cores supported - 18
Processor - Processor socket - LGA 2066 (Socket R4)
Processor special features - Trusted Platform Module (TPM) - Yes
producerCode - 90SW00U0-M0EAY0
productName - ASUS Pro WS X299 SAGE II Intel® X299 LGA 2066 (Socket R4) CEB
ProductName - Pro WS X299 SAGE II
productSize - Normal
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Short description - ASUS PRO WS X299 SAGE II S2066 X299/DDR4
ShortSummaryDescription - ASUS Pro WS X299 SAGE II, Intel, LGA 2066 (Socket R4), Intel® Core™ X-series, 6, 8, 10, 12, 14, 16, 18, DDR4-SDRAM, 256 GB
sizeX - 335
sizeY - 80
sizeZ - 295
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - SATA
Title - ASUS Pro WS X299 SAGE II Intel® X299 LGA 2066 (Socket R4) CEB
URL - https://www.asus.com/Commercial-Servers-Workstations/Pro-WS-X299-SAGE-II/
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2320
Weight & dimensions - Depth - 267 mm
Weight & dimensions - Height - 287 mm
Weight & dimensions - Width - 305 mm
