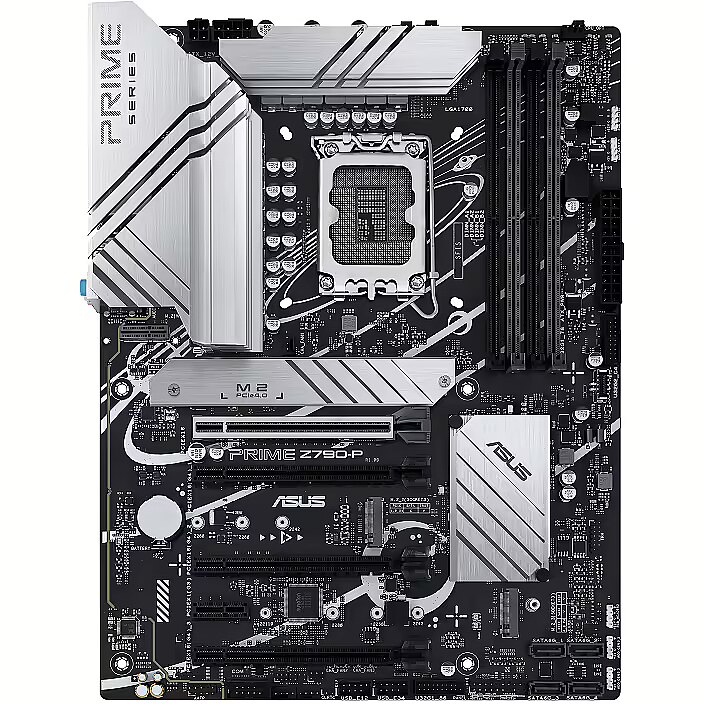

Asus PRIME Z790-P

Accessories included -
Audio port Input/Output connectors - 3
BIOS - 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 192 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1CK0-M0EAY0
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards|Sockel 1700
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
Category Code - MBI
Category_1 - Motherboards
Category_2 - Motherboards - Intel 1700
Chipset - Intel Z790
Chipset manufacturer - Intel
Chipset type - Intel Z790 Chipset
CnCode CnCode - 84733020
code - 90MB1CK0-M1EAY0
Code - 90MB1CK0-M1EAY0
COM connector / port - Yes
CPU socket - LGA1700
Description - ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Description - Intel LGA 1700 socket: Ready for Intel 12th and 13th generation processors. Next-generation connectivity: DDR5 memory, PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C, USB 3.2 Gen 2 Type-C front panel, Thunderbolt header (USB4) support, 3 PCIe 4.0 M .2 connectors Exclusive memory technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II Complex cooling: large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan slots and Fan Xpert 4 with AI Cooling II
Detailed data on disk/drive interfaces - It supports a total of 3 x M. 2 slots and 4 x SATA 6Gb/s ports*. 13th and 12th generation Intel processors M. 2_1 (Key M) slot, type 2242/2260/2280/22.110 (supports PCIe 4. 0 x4 mode) Intel Z790 chipset Slot M. 2_2 (Key M), type 2242/2260/2280 (supports PCIe 4. 0 x4 mode) Slot M. 2_3 (Key M), type 2242/2260/2280/22,110 (supports PCIe 4. 0 x4 and SATA modes) 4 SATA 6Gb/s ports * Intel Rapid Storage Technology supports PCIe RAID 0/1. 5. 10 and SATA RAID 0/1. 5. 10.
dimensionalWeight - 1309
dimension depth - 70 mm
dimension height - 275 mm
Dimensions - 30.5 x 23.4 cm
dimension weight - 1580 g
dimension width - 340 mm
DisplayPort Input/Output connectors - 1
EAN - 4711081937449
ean - 4711081937449
Eans - 4711081937449
EAN_code - 4711081937449
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 3 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 4.x) slots - 3
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.1
External connectors - 1 x USB 3.1 Type-C
External connectors - 2 x USB 3.0
External connectors - 4 x USB 2.0
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - Intel Z790
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Features - Windows operating systems supported - Windows 10 x64, Windows 11
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Full Description Line - Intel Z790|LGA1700|ATX|DDR5|7200/7000/6800/6600/6400/6200/6000/5800/5600/5400/5200/5000/4800 MHz|Memory slots 4|1xPCI-Express 3.0 1x|3xPCI-Express 4.0 16x|1xPCI-Express 5.0 16x|3xM.2|1xHDMI|1xDisplayPort|4xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|USB 2.0|USB 3.2|SATA 3.0|Video Depending on CPU|LAN 2.5 Gigabit|Audio|RAID SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
Graphics - 1 x DisplayPort** 1 x HDMI*** connector **Supports up to 4K@60Hz as defined by DisplayPort 1. 4. ***Supports 4K@60Hz as defined in HDMI 2. 1.
Graphics - Parallel processing technology support - Not supported
Gross weight - 0.85 kg
Gross Weight Kg - 1,3
GTIN - 4711081937449
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Included Accessories - Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw packages for M.2 SSD
Documentation
1 x User guide
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Depending on CPU
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Peripheral (Molex) power connectors (4-pin) - 1
Internal I/O - RGB LED pin header - Yes
Internal I/O - S/PDIF out connector - Yes
Internal I/O - Thunderbolt headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Link - https://www.asus.com/motherboards-components/motherboards/prime/prime-z790-p/
LongDesc - PRIME Z790-PASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.FLEXIBILITYComprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.Intelligent ControlASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.All-Around Energy EfficiencyThe Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.COOLINGPRIME Z790-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.M.2 HeatsinkAn M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.VRM Heatsinks and Thermal PadsThe extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.Cooler by DesignPRIME Z790-P features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.Multiple Temperature SourcesEach header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.AIO Pump HeaderA dedicated PWM/DC header for self-contained water-cooling setups.PERFORMANCEThe PRIME Z790-P motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.Robust Power DesignStable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P is geared to cater to the demands of these high-core-count CPUs.ProCool ConnectorsProprietary connectors augment the motherboard's link to the PSU with 4 + 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.Outstanding AudioCombined onboard features deliver elevated audioIntelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.
LongProductName - 14 + 1 Teamed Power Stages (50A) with Enlarged Heatsinks, Gen 5 Slot for Graphics Card, AEMP II for Ultimate DDR5 Performance, USB 3.2 Gen 2x2 Type-C® & Thunderbolt (USB4®) Support , 2.5 Gb Ethernet, WiFi 6, Intelligent Control, Al Cooling II
LongSummaryDescription - ASUS PRIME Z790-P. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
LPT connector / port - No
M.2 Expansion slots - 3
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90MB1CK0-M1EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB1CK0-M1EAY0
Max. number of ATA devices - 0
Max. number of SATA devices - 4
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 7200 MHz
Memory - Supported memory clock speeds - 4800
Memory - Supported memory clock speeds - 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Memory - Supported memory clock speeds - 5000
Memory - Supported memory clock speeds - 5200
Memory - Supported memory clock speeds - 5400
Memory - Supported memory clock speeds - 5600
Memory - Supported memory clock speeds - 5800
Memory - Supported memory clock speeds - 6000
Memory - Supported memory clock speeds - 6200
Memory - Supported memory clock speeds - 6400
Memory - Supported memory clock speeds - 6600
Memory - Supported memory clock speeds - 6800
Memory - Supported memory clock speeds - 7000
Memory - Supported memory clock speeds - 7200
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5 DIMM
Memory bus frequency - 4800 MHz
Memory bus frequency - 5000 MHz
Memory bus frequency - 5200 MHz
Memory bus frequency - 5400 MHz
Memory bus frequency - 5600 MHz
Memory bus frequency - 5800 MHz
Memory bus frequency - 6000 MHz
Memory bus frequency - 6200 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - PRIME Z790-P
MPN - 90MB1CK0-M1EAY0
Name - 1700 ASUS PRIME Z790-P
Name - ASUS PRIME Z790-P
name - ASUS Prime Z790-P, Intel Z790 Mainboard - Sockel 1700, DDR5
Name - Asus PRIME Z790-P, Motherboard - 1700
Name - Asus | PRIME Z790-P | Processor family Intel | Processor socket LGA1700 | DDR5 DIMM | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
name - Motherboard PRIME Z790-P s1700 4DDR5 HDMI/DP ATX
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Wi-Fi module sold separately
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 3
Onboard connectors - 1 x 4pin 12V power
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x Clear CMOS button
Onboard connectors - 1 x S/PDIF Out header
Onboard connectors - 1 x Serial port header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x Thunderbolt header
Onboard connectors - 1 x USB C
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 3 x 4pin Chassis fan
Onboard connectors - 3 x M.2
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Number of M.2 (E) slots - 1
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270.00 mm
Package features > Gross height (mm) - 50.00 mm
Package features > Gross width (mm) - 265.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 200 pc(s)
Package features > Paper/Pasteboard - 60.00 g
Package features > Plastic (No PET) - 15.00 g
Package features > Tare weight (kg) - 0.08 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 273 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.58 kg
Packaging data - Package width - 338 mm
PCI-Express 3.0 1x Expansion slots - 1
PCI-Express 4.0 16x Expansion slots - 3
PCI-Express 5.0 16x Expansion slots - 1
Processor - Compatible processor series - Intel® Celeron®
Processor - Compatible processor series - Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor - Compatible processor series - Intel® Core™ i3
Processor - Compatible processor series - Intel® Core™ i5
Processor - Compatible processor series - Intel® Core™ i7
Processor - Compatible processor series - Intel® Core™ i9
Processor - Compatible processor series - Intel® Pentium® Gold
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1700
Processor - Supported processor sockets - LGA 1700
Processor > Processor family - Intel
Processor > Processor socket - LGA1700
Processor family - Intel Celeron
Processor family - Intel Core
Processor family - Intel Pentium
producer - Asus
Producer - Asus
producerCode - 90MB1CK0-M1EAY0
ProducerCode - PRIME Z790-P
Producer product name - PRIME Z790-P
productName - ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
ProductName - PRIME Z790-P
productSize - Normal
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
RAID - Yes

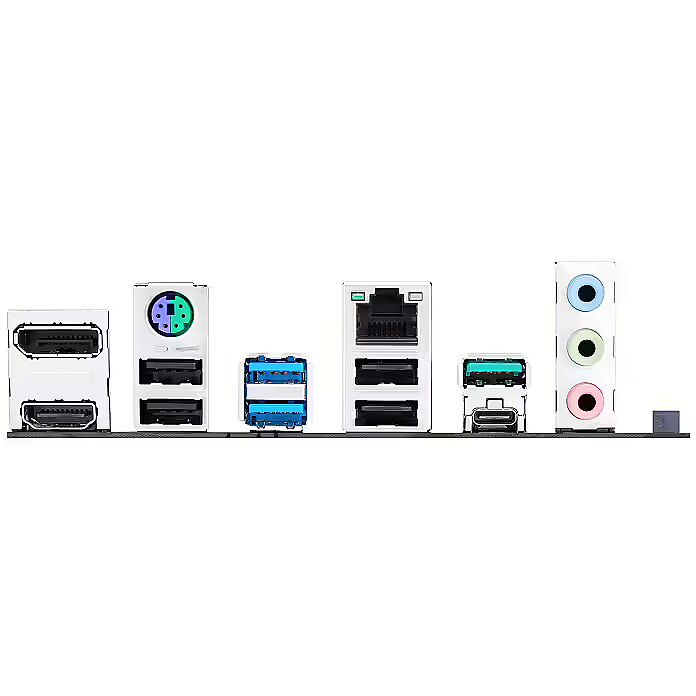

Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - USB 3.2 Gen 2x2 Type-C ports quantity - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 36 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 8.8 kg
Shipping Box Width Shipping/Package Box Dimensions - 30.5 cm
Short description - ASUS PRIME Z790-P S1700/DDR5/ATX
ShortDescription - Socket 1700| Chipset Intel Z790 | DDR5 |
ShortSummaryDescription - ASUS PRIME Z790-P, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,..., LGA 1700, DDR5-SDRAM, 128 GB
sizeX - 275
sizeY - 70
sizeZ - 340
Socket - LGA1700
Software -
Sound card - Realtek 7.1 Surround Sound High Definition Audio CODEC
Special functions -
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Title - ASUS PRIME Z790-P Intel Z790 LGA 1700 ATX
Unit Box Height - 0.275
Unit Box Length - 0.34
Unit Box Width - 0.07
Unit Brutto Volume - 0.008125 cubm
Unit Gross Weight - 1.76 kg
Unit Net Weight - 0.9 kg
URL - https://www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P/
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 4
USB 2.0 Interface - Yes
USB 3.2 Input/Output connectors - 3
USB 3.2 Interface - Yes
USB ports at back panel - 8
USB ports on motherboard - 9
Vendor Homepage - www.asus.com/Motherboards-Components/Motherboards/PRIME/PRIME-Z790-P/
vendpn - PRIME Z790-P
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,57
Weight - 1.6
weight - 1577
Weight & dimensions - Depth - 234 mm
Weight & dimensions - Width - 305 mm
