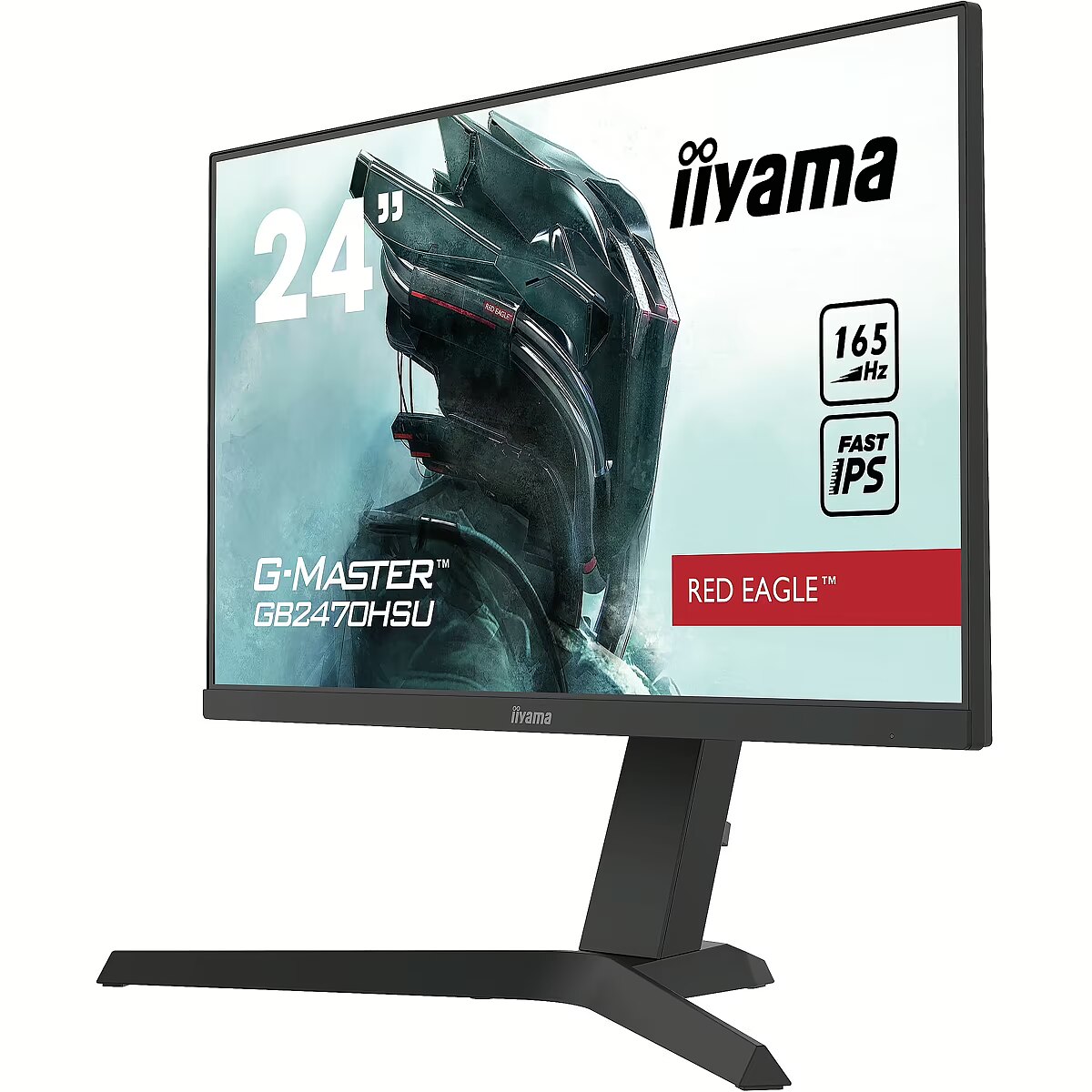

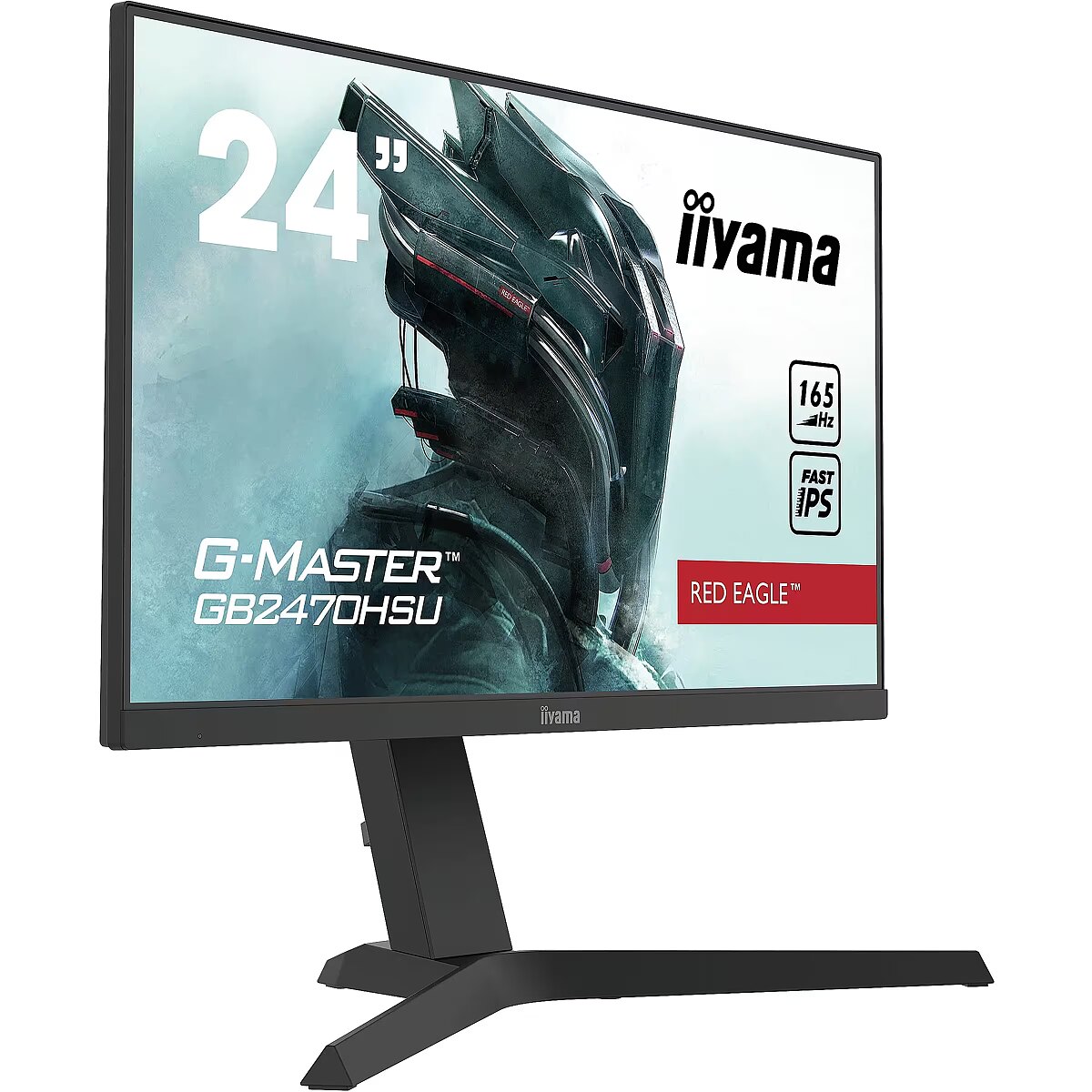

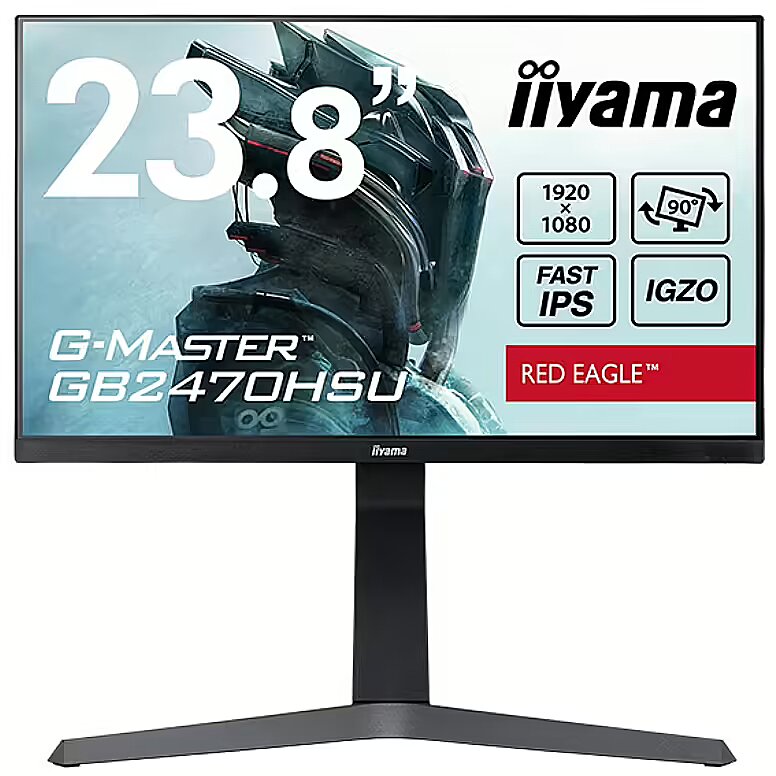

Iiyama GB2470HSU-B5, 23.8"

Name: Iiyama GB2470HSU-B5, 23.8"
Brand: Iiyama
SKU: 951914
Price: 160.86 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 951914 Product code: GB2470HSU-B5

In stock 5 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: 11.12.2024
Courier delivery 3.99 €: 11.12.2024

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 165 Hz
Response time: 0.8ms
Contrast ratio: 1100:1
Brightness: 250cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Description

We offer to buy Iiyama 23.8" a monitor with FHD 1920x1080 resolution.

Thanks to FullHD (1920px X 1080px) resolution this monitor will be perfectly suitable for enjoying BlueRay quality films in the full screen mode.
IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
The port DVI ensures the compatibility with the classic video cards equipped with this port.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.

Display characteristics

AMD FreeSync : Ir

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 165 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 0.8ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1100:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Gaming

Aspect ratio : 16:9

Color : Black

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Ir

Swivel : None

Tilt : YES

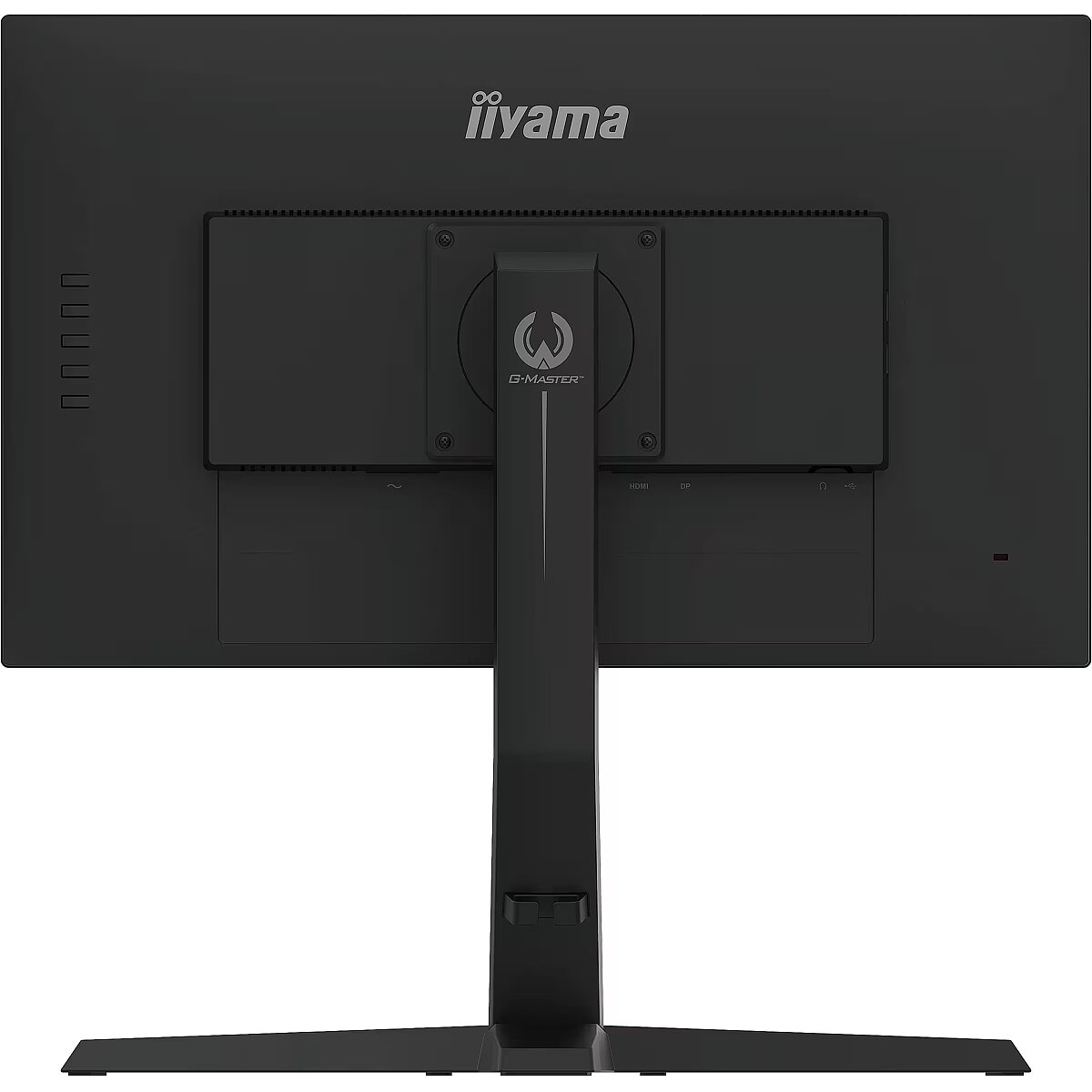

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

100 mm x 100 mm VESA mounting interface - Yes
Audio - Yes
AudioFeatures - 2 x 2W
Brand - iiyama
BrandPartCode - GB2470HSU-B5
Brightness - 250
Brightness - 250 cd/m2
Camera - No
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category Code - LC3
Category_1 - Monitors and TV
Category_2 - LCD Monitors up to 24 inches
CnCode CnCode - 85285291
Colour - Black
Contrast - 1100:1
ContrastRatio - 1100:1
ContrastRatioDynamic - 80,000,000:1
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/1340634/fiches?language=EN
Depth - 210 mm
Depth Unit Dimensions - 210 mm
Description - G-MASTER GB2470HSU-B5 Unleash your full gaming potential with the Fast IPS GB2470HSU Red Eagle Get the competitive edge you need to unleash your full gaming potential with the 24’’ GB2470HSU offering 0.8ms MPRT and 165Hz refresh rate. Armed with FreeSync Premium you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Thanks to the height adjustable stand you can easily adjust the screen position to your preferences to ensure comfort during marathon gaming sessions.
Design - Certification - CE, TÜV-Bauart, EAC, ErP, WEEE, VCCI, REACH
Design - Feet colour - Black
Design - Market positioning - Gaming
Design - Product colour - Black
dimensionalWeight - 7861
Display - Aspect ratio - 16:9
Display - Contrast ratio (dynamic) - 80000000:1
Display - Contrast ratio (typical) - 1100:1
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal - 61 cm (24")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display technology - LED
Display - HD type - Full HD
Display - High Dynamic Range (HDR) supported - Yes
Display - Horizontal scan range - 15 - 195 kHz
Display - Horizontal scan range - 15 - 225 kHz
Display - Maximum refresh rate - 165 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel pitch - 0.275 x 0.275 mm
Display - Response time - 0.8 ms
Display - Screen shape - Flat
Display - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Display - Touchscreen - No
Display - Vertical scan range - 48 - 165 Hz
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewable size diagonal - 61 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displayable colours - 16.7 million
DisplayCaseColour - Black
DisplayFeatures -

16.7 M 8-bit colors

Blue light reducer

Flicker-free

FreeSync

DisplayFormat - 16:9
DisplayNativeResolution - 1920 x 1080
DisplayPort - Yes
DisplayPort Input/Output connectors - 1
DisplaySizecm - 60.5 cm
Display surface - Matte
DisplayType - LED IPS
DisplayViewingArea - 527 x 296.5 mm
Eans - 4948570121397
EAN_code - 4948570121397
EmissionStandard - Energy class: E
Energy efficiency class - E
EPEAT - -
EPREL Registration Number - 1.34063e+006
EPREL Version Number - 1.001
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - 13 cm
Ergonomics - Height adjustment - 15 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Number of OSD languages - 11
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Czech
Ergonomics - On Screen Display (OSD) languages - Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian
Ergonomics - On Screen Display (OSD) languages - Dutch
Ergonomics - On Screen Display (OSD) languages - English
Ergonomics - On Screen Display (OSD) languages - French
Ergonomics - On Screen Display (OSD) languages - German
Ergonomics - On Screen Display (OSD) languages - Italian
Ergonomics - On Screen Display (OSD) languages - Japanese
Ergonomics - On Screen Display (OSD) languages - Polish
Ergonomics - On Screen Display (OSD) languages - Portuguese
Ergonomics - On Screen Display (OSD) languages - Russian
Ergonomics - On Screen Display (OSD) languages - Spanish
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - 0 - 90°
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -3 - 18°
Ergonomics - Tilt angle range - -5 - 23°
Ergonomics - VESA mounting - Yes
Ethernet - No
Frequency - 15-195 kHz
FrequencyV - 165 Hz
Full Description Line - Model GB2470HSU-B5|24"|Panel IPS|Resolution 1920x1080|Form factor 16:9|Refresh rate 165Hz|Brightness 250|Contrast 1100:1|Display Matte|Response time 0.8 ms|Horizontal 178 degrees|Vertical 178 degrees|Displayable colours 16.7 million|1xMini-DVI|1xDisplayPort|2xUSB 2.0|1xHeadphones jack|Speakers|Pivot|Height adjustable|Tilt|100 mm x 100 mm|Kensington lock|Included Accessories Cables: power, USB, HDMI, DP ; quick start guide, safety guide|Colour Black
GrossWeight - 6.000 kg
GTIN - 4948570121397
HDMI - 1
Headphones jack Input/Output connectors - 1
Height - 385 mm
Height adjustable Stand - Yes
HeightAdjustment - Yes
Height Unit Dimensions - 385 mm
Included Accessories - Cables: power, USB, HDMI, DP ; quick start guide, safety guide
InputSignal -

HDMI

DisplayPort

2x USB 2.0

Audio out

KensingtonLock - Yes
Kensington lock support - Yes
Logistics data - Harmonized System (HS) code - 85285210
LongDesc -
LongDesc - Unleash your full gaming potential with the Fast IPS GB2470HSU Red EagleGet the competitive edge you need to unleash your full gaming potential with the 24’’ GB2470HSU offering 0.8ms MPRT and 165Hz refresh rate. Armed with FreeSync Premium you can make split second decisions and forget about ghosting effects or smearing issues. The ability to adjust brightness and the dark shades with the Black Tuner delivers greater viewing performance in shadowed areas and the IPS panel technology guarantees superb image quality. Thanks to the height adjustable stand you can easily adjust the screen position to your preferences to ensure comfort during marathon gaming sessions.FAST IPSThe Fast IPS panel technology guarantees not only high-fidelity, vivid battleground scenes displayed with outstanding colour accuracy but provides also an outstanding 0.8ms Moving Picture Response Time (MPRT).FREESYNC™ PREMIUM TECHNOLOGYThis monitor guarantees low input latency and low framerate compensation putting an end to any tearing or stuttering issues at virtually any framerate.PREDEFINED AND CUSTOM GAMING MODESHave it your way! Choose one of the predefined gaming modes (including FPS and strategy) or set and memorize your own settings.BLACK TUNERThe users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
LongProductName - 23.8", IPS, 1920 x 1080, 250 cd/m², HDMI, DisplayPort, 2x USB, RMS 2 x 2W, 100 - 240V
LongSummaryDescription - iiyama G-MASTER GB2470HSU-B5. Display diagonal: 61 cm (24"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 0.8 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting, Height adjustment. Product colour: Black
Manufacturer - Iiyama
Manufacturer_code - GB2470HSU-B5
MANUFDATASHEET - https://iiyama.com/gl_en/products/g-master-gb2470hsu-b5/
Mini-DVI Input/Output connectors - 1
Model name - GB2470HSU-B5
MonitorControls -

Signal select/ Exit

+/ Volume

-/ i-Style Colour

Power

MonitorSize - 23.8"
MonitorType - Gaming
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Name - iiyama G-Master GB2470HSU-B5 Red Eagle - 23,8'' | Fast IPS | Full HD | 0,8ms | 165Hz
Name - iiyama G-Master GB2470HSU-B5, gaming monitor (60.5 cm (23.8 inches), black, FullHD, AMD Free-Sync technology, 165Hz panel)
Native resolution - 1920x1080
Operational conditions - Operating relative humidity (H-H) - 10 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 85%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Certification - CE, TÜV-Bauart, EAC, PSE, RoHS support, ErP, WEEE, VCCI, REACH
Other features - Compatible operating systems - Mac
PackageContents -

Cables: power, USB, HDMI, DP

Quick start guide

Safety guide

Packaging content - Cables included - AC
Packaging content - Cables included - AC, DisplayPort, HDMI, USB
Packaging content - Cables included - DisplayPort
Packaging content - Cables included - HDMI
Packaging content - Cables included - USB
Packaging content - Quick start guide - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 157 mm
Packaging data - Package height - 398 mm
Packaging data - Package type - Box
Packaging data - Package weight - 6 kg
Packaging data - Package weight - 6.4 kg
Packaging data - Package width - 610 mm
Panel type - IPS
Performance - AMD FreeSync - Yes
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Pivot - Yes
Pivot Stand - Yes
Pixelpitch - 0.275 mm
Pixel size - 0.275 mm
Ports & interfaces - Audio input - No
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB hub version - 2.0
Ports & interfaces - USB Type-A downstream ports quantity - 2
Ports & interfaces - USB upstream port type - USB Type-B
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 19 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1340634
Power - Input current - 1.5 A
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 20 W
Power - Power supply type - Internal
ProdDesc - 24" ETE Fast IPS Gaming, G-Master Red Eagle, FreeSync Premium, 1920x1080@165Hz, 250cd/m², 1100:1, HDMI, DisplayPort, 0,8ms (MPRT), Speakers, USB-HUB (2x2.0), Black Tuner, 15cm Height Adj. Stand
Producer - iiyama
producerCode - GB2470HSU-B5
ProducerCode - GB2470HSU-B5
ProductName - GB2470HSU-B5
productName - iiyama G-MASTER GB2470HSU-B5 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Black
ProductPicture - http://www.tdbaltic.ee/images/ds4/GB2470HSU-B5-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/GB2470HSU-B5-02.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/GB2470HSU-B5-03.jpg
ProductPicture4 -
productSize - Normal
Refresh rate - 165Hz
Response time - 0.8 ms
ResponseTime - 0.8 ms
Rotate - No
Screen form factor - 16:9
Screen size - 24"
Shipping Box Depth Shipping/Package Box Dimensions - 61 cm
Shipping Box Height Shipping/Package Box Dimensions - 40 cm
Shipping Box Weight Shipping/Package Box Dimensions - 6.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 15.5 cm
ShortDescription - 23,8'' | Fast IPS | Full HD | 0,8ms | 165Hz
ShortSummaryDescription - iiyama G-MASTER GB2470HSU-B5, 61 cm (24"), 1920 x 1080 pixels, Full HD, LED, 0.8 ms, Black
sizeX - 397
sizeY - 615
sizeZ - 161
Speakers - Yes
Standby consumption - 0.4 Watts
Sustainability - Sustainability certificates - RoHS
Tilt - Yes
Tilt Stand - Yes
Title - iiyama G-MASTER GB2470HSU-B5 LED display 61 cm (24") 1920 x 1080 pixels Full HD Black
Unit Box Height - 0.4
Unit Box Length - 0.61
Unit Box Width - 0.155
Unit Brutto Volume - 0.03782 cubm
Unit Gross Weight - 6.5 kg
Unit Net Weight - 4.5 kg
URL - https://iiyama.com/gb_en/products/g-master-gb2470hsu-b5/
USB - 2
USB 2.0 Input/Output connectors - 2
USBTypeC - No
Vendor Homepage - iiyama.com/gl_en/products/g-master-gb2470hsu-b5/
VESACompatible - Yes
VESAStandard - 100 x 100
ViewingAngle - 178
Viewing angle horizontal - 178 degrees
ViewingAngleV - 178
Viewing angle vertical - 178 degrees
Warranty - 3 years
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - F
Weight - 4.500 kg
Weight - 5,00
weight - 6230
Weight & dimensions - Depth (without stand) - 45.5 mm
Weight & dimensions - Depth (with stand) - 210 mm
Weight & dimensions - Depth (with stand) - 256 mm
Weight & dimensions - Height (without stand) - 323 mm
Weight & dimensions - Height (with stand) - 395 mm
Weight & dimensions - Height (with stand) - 535 mm
Weight & dimensions - Weight (with stand) - 4.4 kg
Weight & dimensions - Weight (with stand) - 4.5 kg
Weight & dimensions - Width (without stand) - 539.5 mm
Weight & dimensions - Width (with stand) - 539.5 mm
Width - 539.5 mm
Width Unit Dimensions - 539.5 mm
Wireless - No
WirelessFeatures - -
