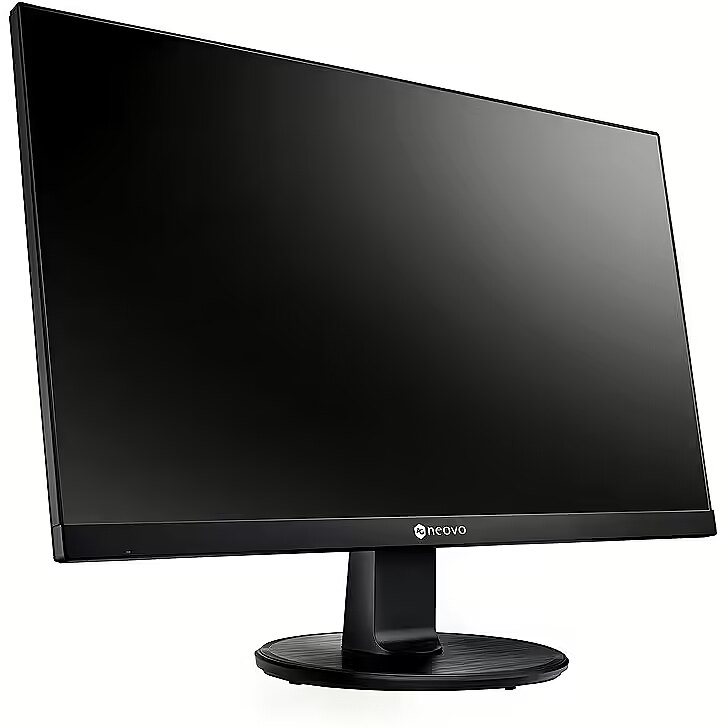

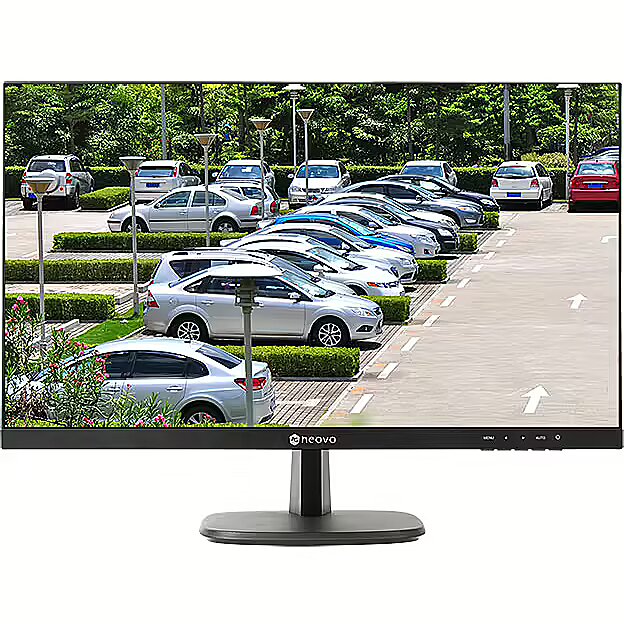

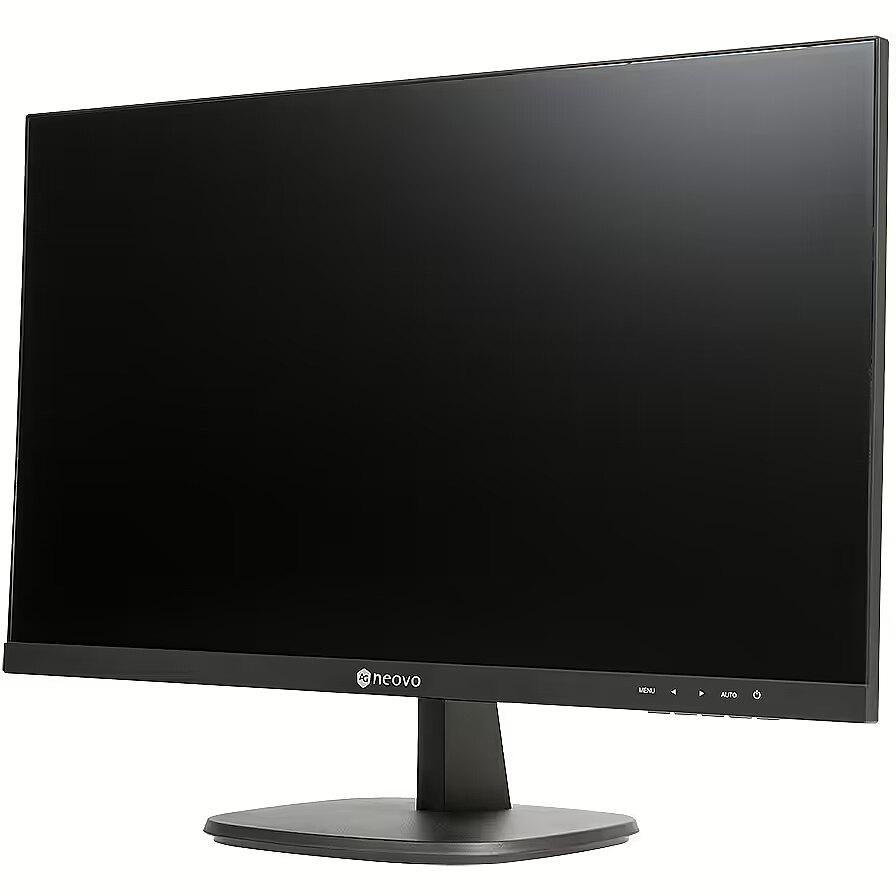

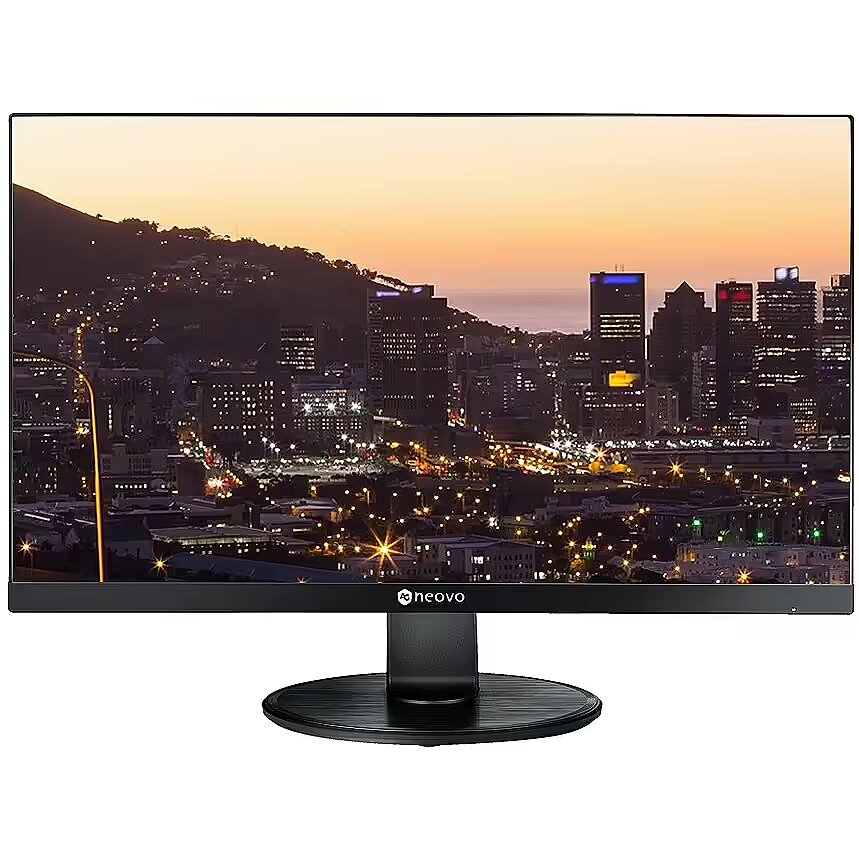

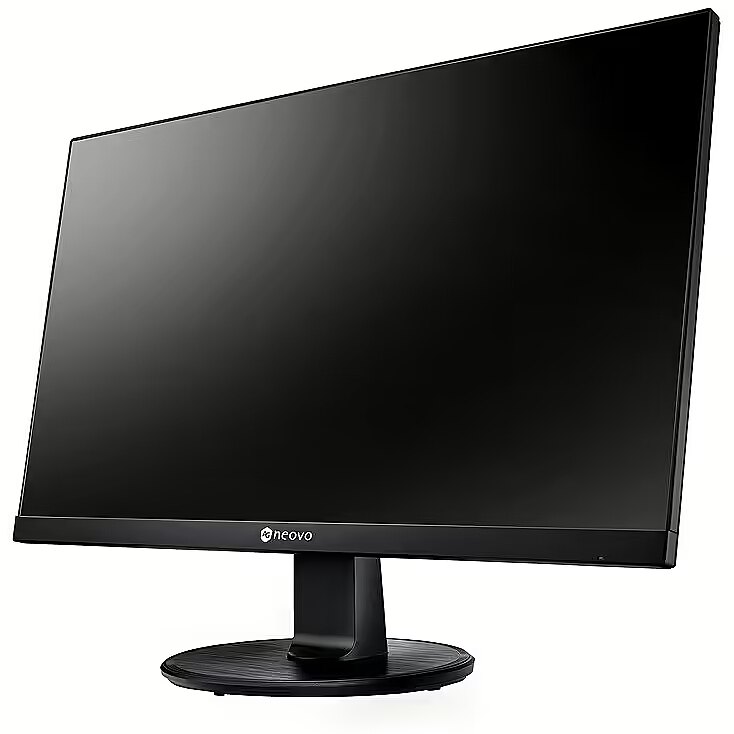

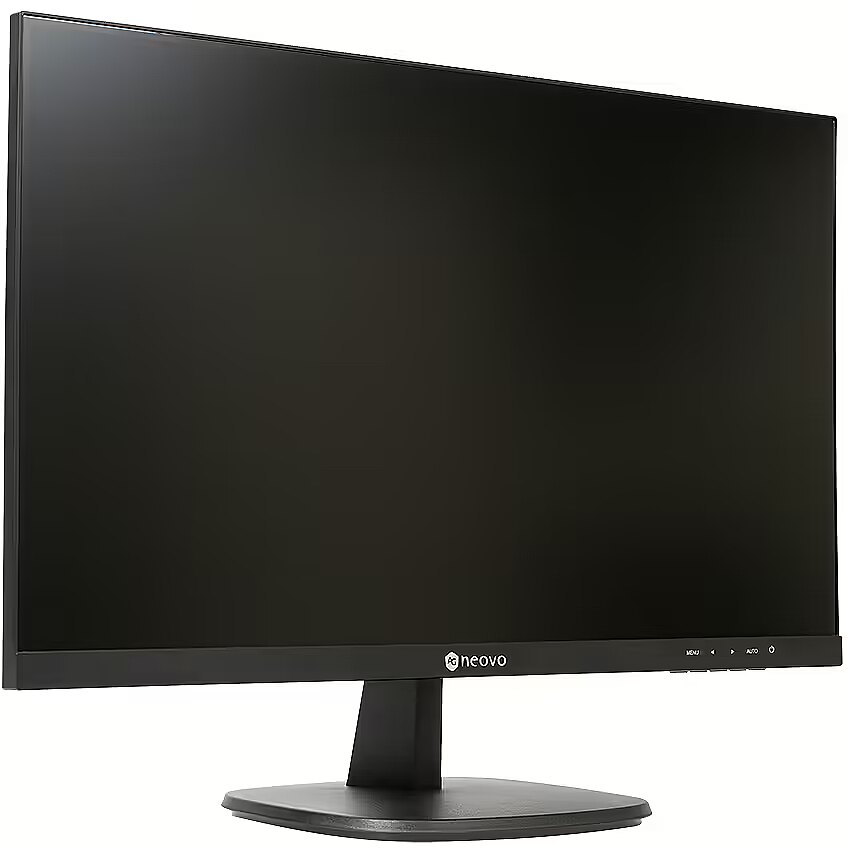

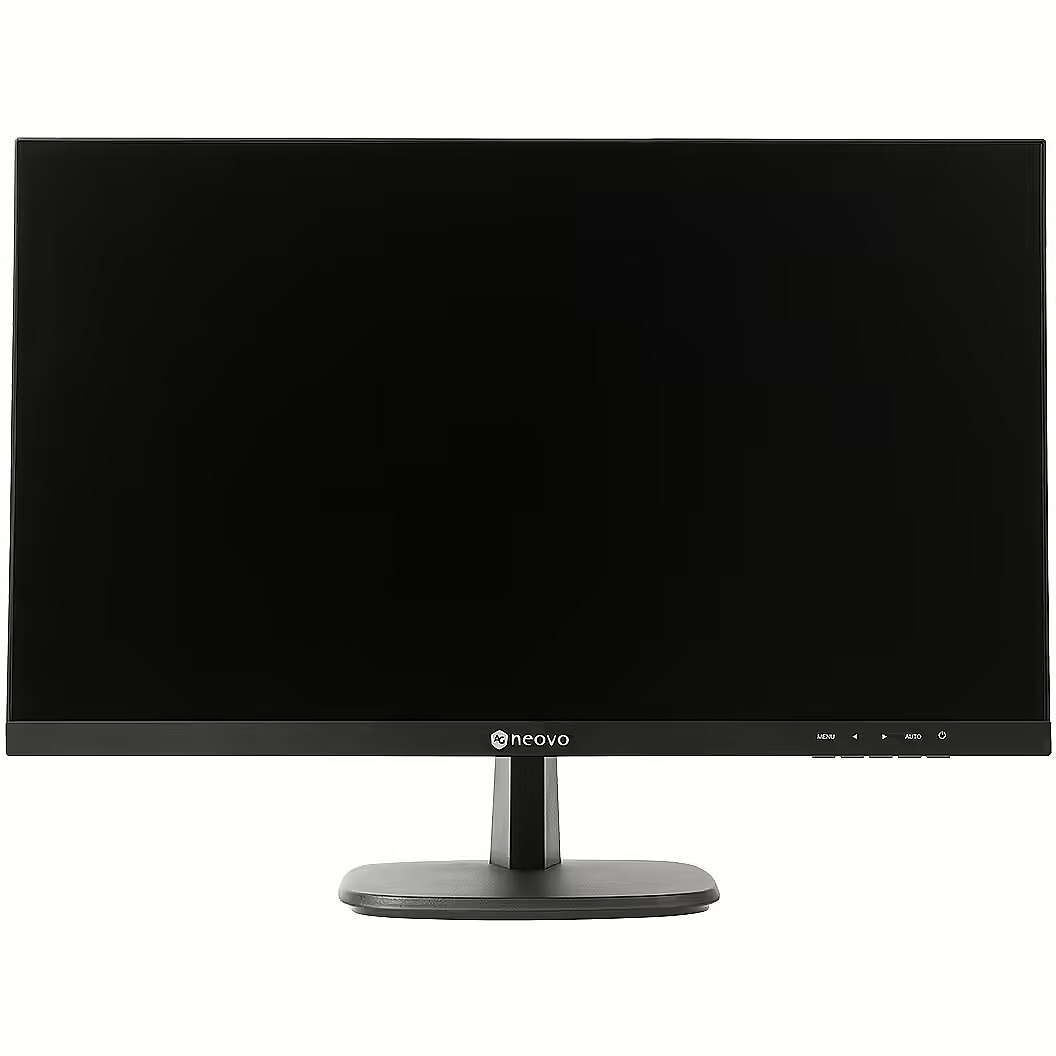

AG NEOVO SC-2702, 27"

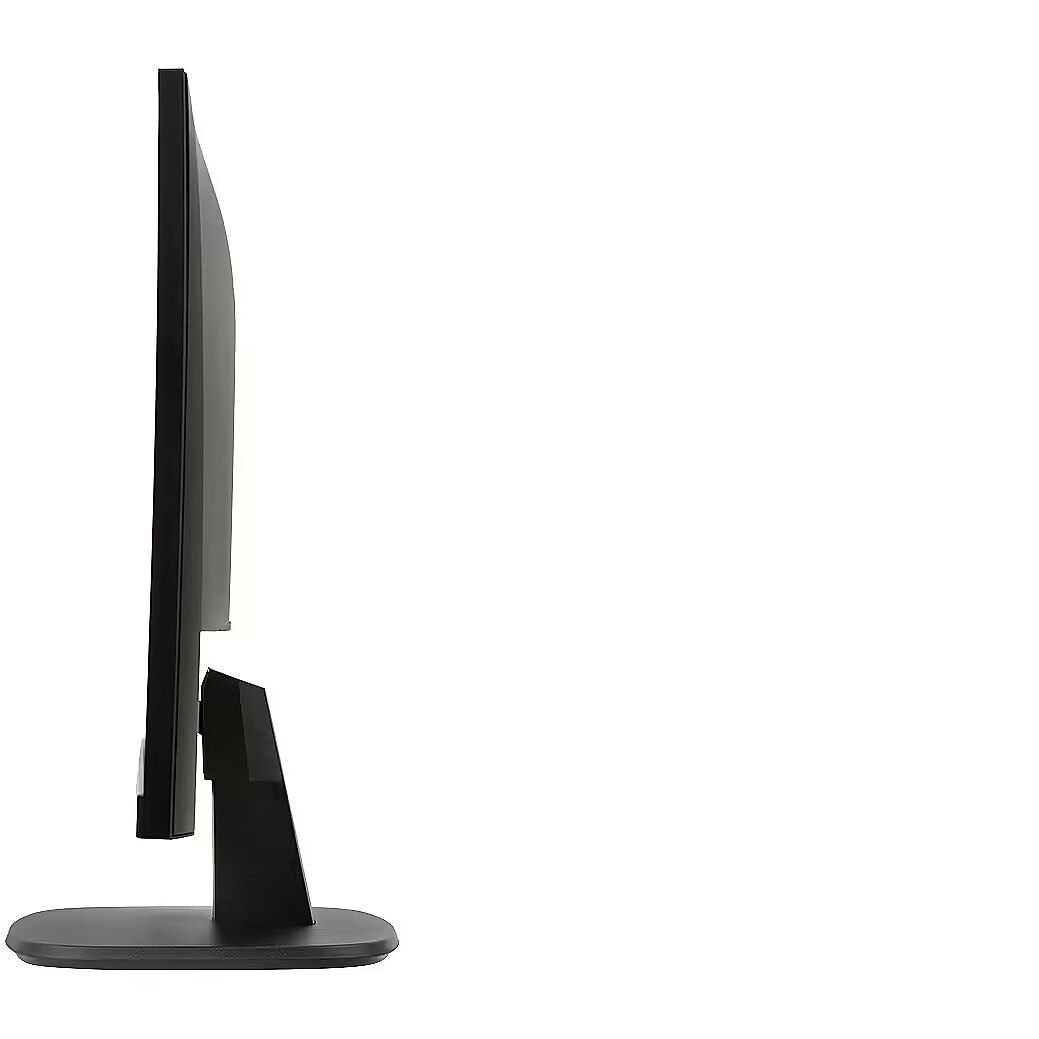

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 950214 Product code: SC-2702
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years
245.35 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: VA
  • Refresh rate: 75 Hz
  • Response time: 5ms
  • Contrast ratio: 20000000:1
  • Brightness: 300cd/m2
  • Size: 27"
  • Resolution: FHD 1920x1080
Description
We offer to buy AG NEOVO 27" a monitor with FHD 1920x1080 resolution.
  • Thanks to FullHD (1920px X 1080px) resolution this monitor will be perfectly suitable for enjoying BlueRay quality films in the full screen mode.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
  • The port DVI ensures the compatibility with the classic video cards equipped with this port.
  • The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
  • VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.
  • The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
  • 5ms the response time is suitable for games and dynamic films.
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.
Contrast ratio 20000000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 27"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav
Height adjustment : Nav
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : 100x100 mm
Ports and equipment
D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website AG NEOVO SC-2702, 27"
Accessories included - Charger VGA cable audio cable User manual Warranty Card
Aspect ratio - 16:9
Auto Pivot - No
Bluetooth - No
Brand - AG Neovo
BrandPartCode - SC-2702
Brightness - 300 cd/m²
Category - Computer Monitors
Certificates - CB
Certificates - CE
Certificates - EAC
Certificates - RoHS
Color - Black
Depth - 51.9 mm
Depth with stand - 238.7 mm
Description -
Design - Certification - CE
LVD
WEEE
RoHS
REACH
UKCA
EAC
Design - Market positioning - Industrial
Design - Product colour - Black
dimensionalWeight - 9914
dimension depth - 680 mm
dimension height - 540 mm
dimension weight - 6200 g
dimension width - 130 mm
Display - Anti-glare screen - Yes
Display - Contrast ratio (typical) - 20000000:1
Display - Digital vertical frequency - 48 - 75 Hz
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 68.6 cm (27")
Display - Display diagonal (metric) - 69 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 85 kHz
Display - Maximum refresh rate - 75 Hz
Display - Panel type - VA
Display - Pixel pitch - 0.311 x 0.311 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Dot pitch - 0.311 mm
Dynamic contrast - 20 000 000:1
ean - 4710739597325
Energy class - E
Energy label - Pobierz
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 20°
Ergonomics - VESA mounting - Yes
Frequency, horizontal max. - 83 kHz
Frequency, horizontal min. - 24 kHz
Frequency, vertical max. - 75 Hz
Frequency, vertical min. - 50 Hz
GTIN - 4710739597325
guarantee - 36
guarantee_type - normal
Height - 366.6 mm
Height with stand - 454.7 mm

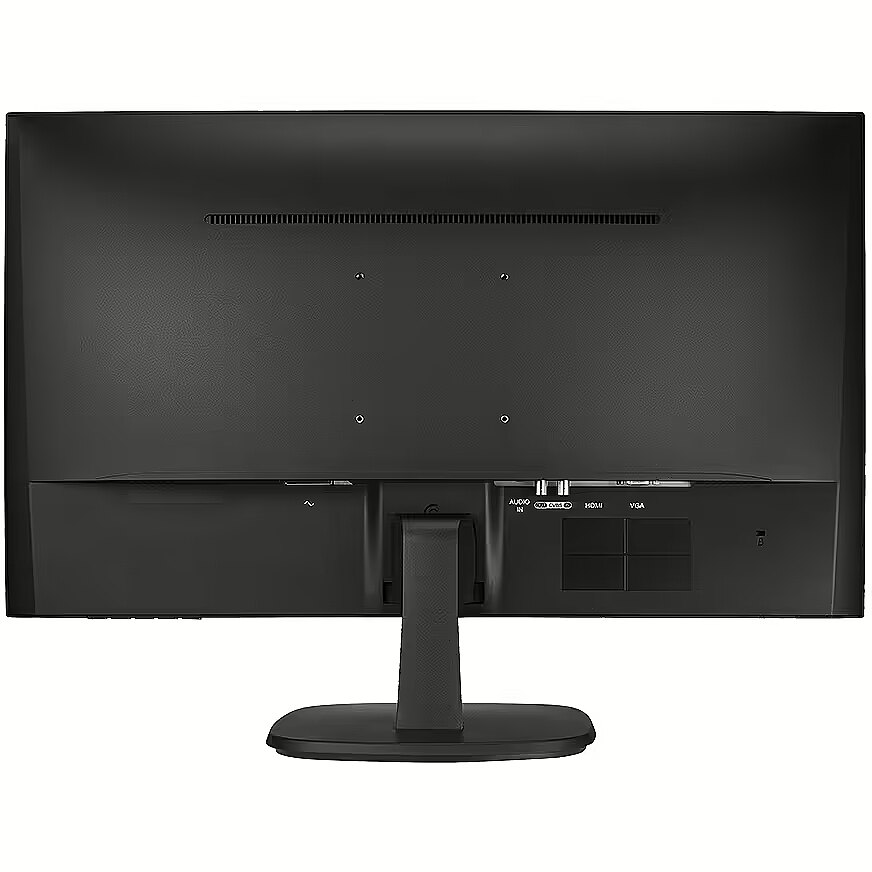

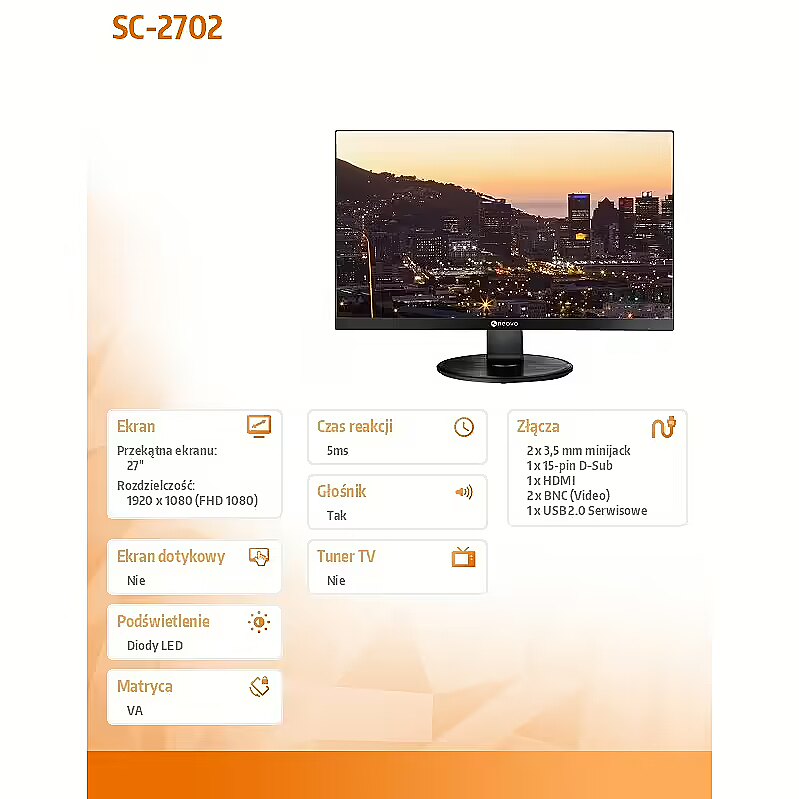

I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x HDMI
I/O connectors - 1 x USB 2.0 Service
I/O connectors - 2 x 3,5 mm minijack
I/O connectors - 2 x BNC (Video)
LongDesc - The SC-2702 27-inch surveillance monitor with BNC connector features 3-sided bezel-less specifically designed for security operators – especially those with a 24/7 operating multi-screen setup who are looking for efficient video monitoring. The SC-2702 provides value-added video enhancement controls that help create detailed images for low-light footage. Its optional monitor mounting solutions support single or multiple monitor setups. In terms of cost-to-performance, this model is the solution for productivity in modern operator workstations.3-SIDED BEZEL LESS MONITOR INCREASE PRODUCTIVITYThe SC-2702 adopts a seamless 3-sided bezel-less design to create a productive work environment and reduce gaps between monitors. Perform rapid analysis, manage, and control video sources from all locations. Evolving situations require quick decisions, which seamless monitors can help with.MULTIPLE MONITOR SETUPS MADE EASYWith VESA 100 x 100mm, the SC-2702 is compatible with AG Neovo’s mounting portfolio of desk and wall mounts. Whether you’re looking for a dual, quad, or more monitor set-up, AG Neovo is a one-stop-shop for creating ergonomic workstations in a control room.HIGHER COST PERFORMANCEDesigned with long-hour monitoring in mind, you can expect a reduction in system maintenance efforts and consequentially higher cost performance. The SC-2702 is commercial grade and meant to work 24/7, 365 days a year. Static images that would otherwise cause screen burn-in are gone with AG Neovo’s patented Anti-Burn-in technology. Expect prolonged life for LCD screens.PERFECT MATCH TO CCTV IMAGESThere is a special pre-configured CCTV Mode that maximises image clarity in low-light footage. Quickly fine-tune your video footage with adjustments for sharpness, saturation, contrast, brightness, and more. Don’t waste time testing and re-adjusting constantly, this product already has it all figured out!ENHANCED GAMMA SELECTIONOffering an enhanced gamma selection makes for amazing visual optimization. Improve the light, shadow, and colour balance quality of your videos with ease.MISSING DETAILS IN DARK SCENES IS A THING OF THE PASTMore detail from black-level adjustment means improved visibility of dark images.CONTRAST ENHANCERBy coming with a contrast enhancer, the surveillance monitor enables low-contrast images to become more clear and defined.ADAPTABLE TO SURVEILLANCE ENVIRONMENT NEEDSTailor the display to your needs with on/off toggles for the blue screen. When there is no signal available, a blue screen will show that is ideally designed for dark and low-light environments.VERSATILE CONNECTIVITY WITH BNC AND HDMI INPUTSThis 27-inch surveillance monitor with BNC Connector supports both analogue and digital video inputs. Easily connect to various video surveillance equipment with HDMI, VGA and BNC in/out ports. BNC port allows connecting CCTV cameras directly to the monitor. With this bezel less security monitor, there is no need for a DVR/converter to get straight to instant monitoring.
LongProductName - VA, 27", FHD, 1920 x 1080, 0.311 mm, 300 cd/m², 178°/178°, 16.7M, 5 ms
LongSummaryDescription - AG Neovo SC-2702. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Response time: 5 ms, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: Black
Matrix type - VA
Model - SC-2702
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
name - Monitor 27 inches SC-2702 LED VA FHD HDMI VGA BNC 24/7
Number of colors - 16,7 mln
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Optional accessory -
Other features - Tilt: -5° to 23°
Other features - Certification - CE
LVD
WEEE
RoHS
REACH
UKCA
EAC
Packaging content - Cables included - AC
Packaging content - Cables included - AC, Audio
Packaging content - Cables included - Audio
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 134 mm
Packaging data - Package height - 545 mm
Packaging data - Package weight - 6.1 kg
Packaging data - Package width - 6780 mm
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Headphone out - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 20 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 920671
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 20 W
Power consumption - 20 W
producer - AG NEOVO
producerCode - SC-2702
productName - AG Neovo SC-2702 computer monitor 68.6 cm (27") 1920 x 1080 pixels Full HD Black
ProductName - SC-2702
productSize - Normal
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Screen size (diag.) - 27"
ShortSummaryDescription - AG Neovo SC-2702, 68.6 cm (27"), 1920 x 1080 pixels, Full HD, 5 ms, Black
sizeX - 680
sizeY - 135
sizeZ - 540
Speakers built-in - Yes
Sustainability - European Product Registry for Energy Labelling (EPREL) code - 920671
Title - AG Neovo SC-2702 computer monitor 68.6 cm (27") 1920 x 1080 pixels Full HD Black
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.agneovo.com/uk/monitors/security-surveillance/sc-series/sc-2702
vendpn - SC-2702
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
warrantyLength - 36
warrantyType - F
Web camera - None
Weight - 4.6 kg
weight - 6180
Weight & dimensions - Depth (without stand) - 47.4 mm
Weight & dimensions - Depth (with stand) - 226.5 mm
Weight & dimensions - Height (without stand) - 366.6 mm
Weight & dimensions - Height (with stand) - 453.8 mm
Weight & dimensions - Weight (without stand) - 4.1 kg
Weight & dimensions - Weight (with stand) - 4.5 kg
Weight & dimensions - Width (without stand) - 613.8 mm
Weight & dimensions - Width (with stand) - 613.8 mm
Weight with stand - 5.3 kg
Width - 611.9 mm
WiFi - No
