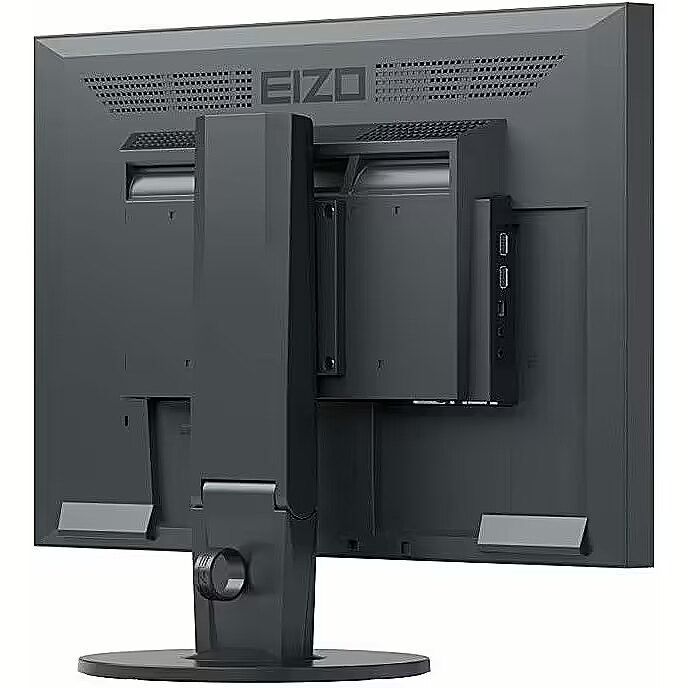

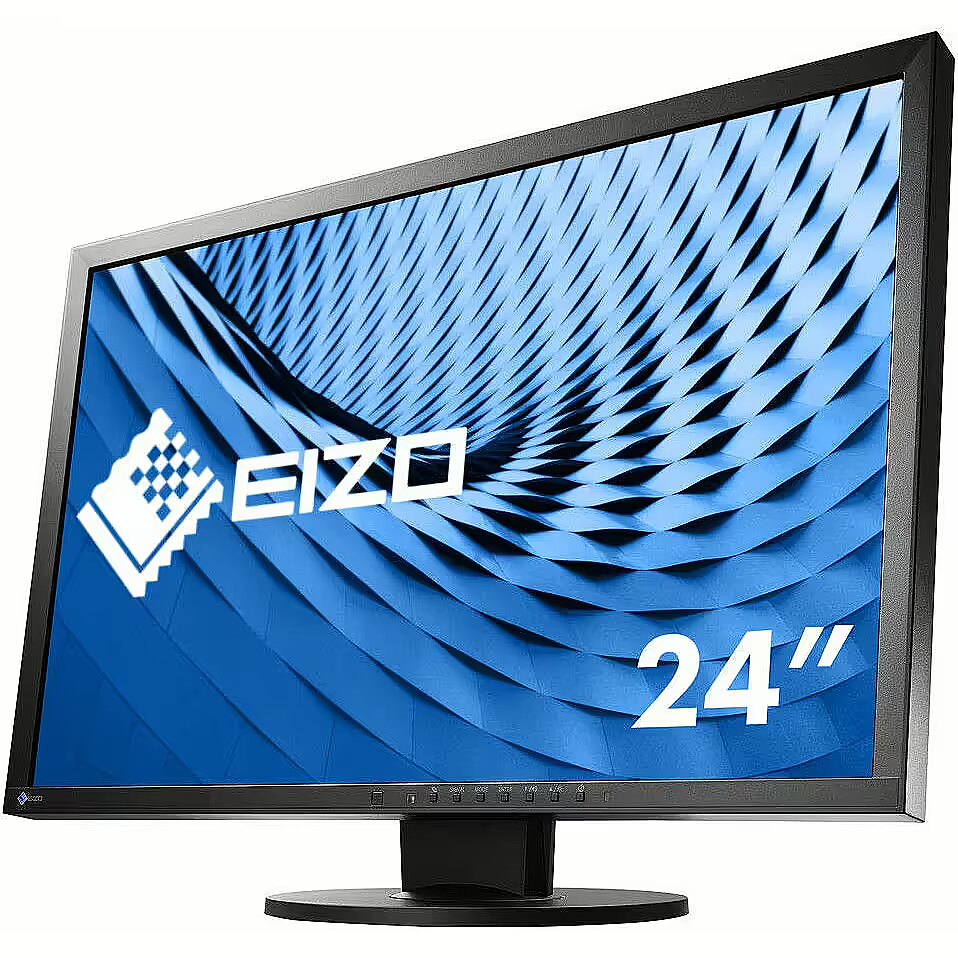

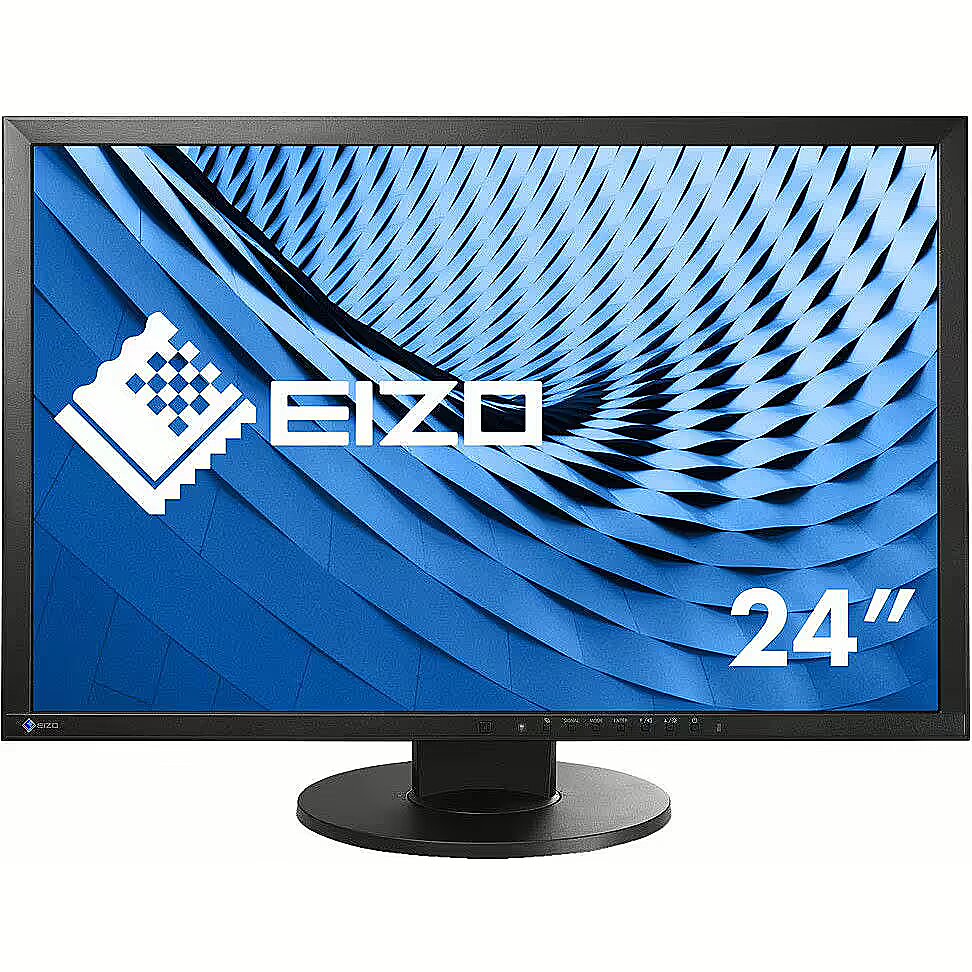

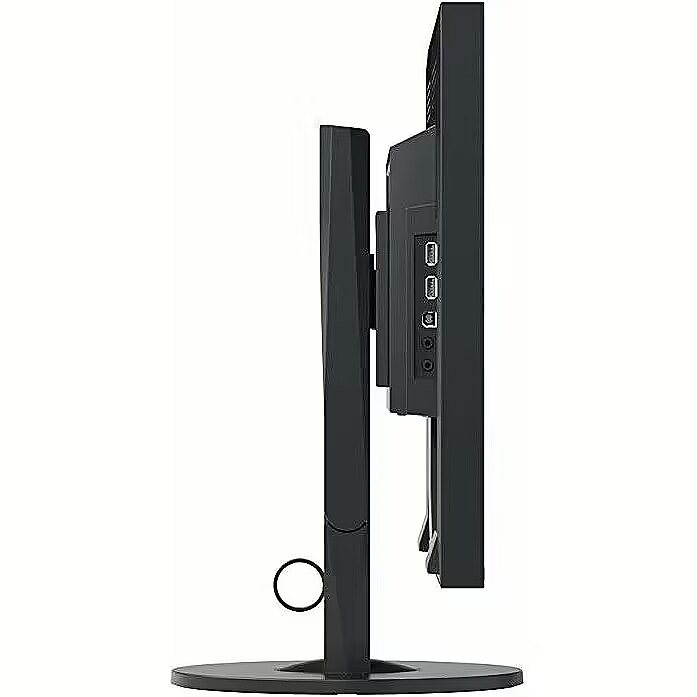

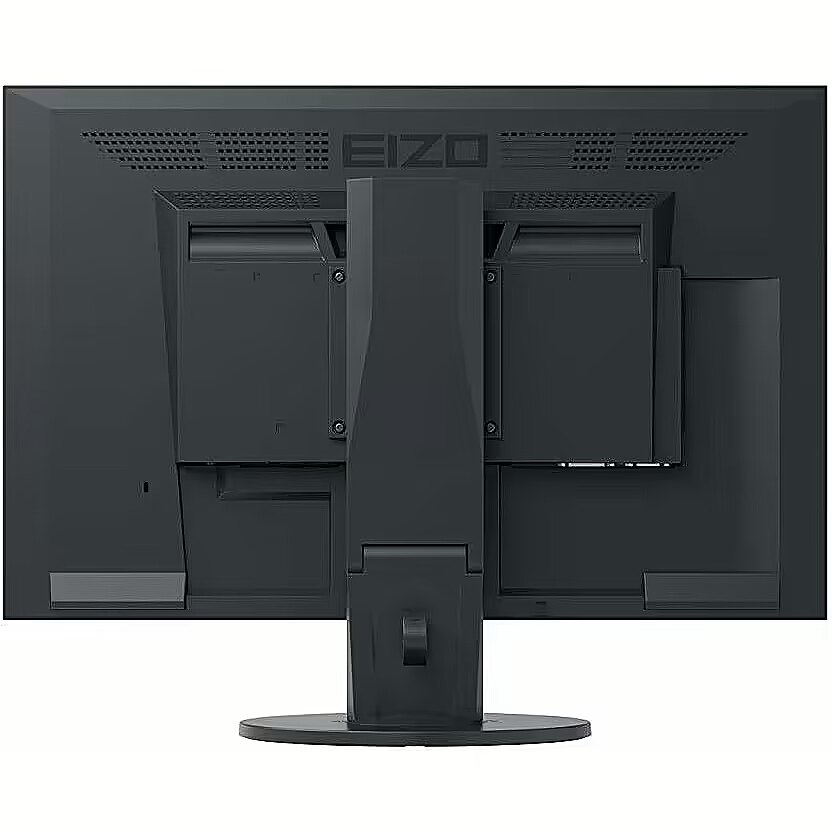

EIZO FlexScan EV2430, 24,1"

Name: EIZO FlexScan EV2430, 24,1"
Brand: EIZO
SKU: 323139
Price: 367.3 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 323139 Product code: EV2430-BK

Can be ordered 5 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Courier delivery 3.99 €: 11.12.2024

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 60 Hz
Response time: 14ms
Contrast ratio: 1000:1
Brightness: 300cd/m2
Size: 24.1"
Resolution: WUXGA 1920x1200

Description

We offer to buy EIZO 24.1" a monitor with WUXGA 1920x1200 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
The port DVI ensures the compatibility with the classic video cards equipped with this port.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
The especially high WUXGA 1920x1200 resolution due to the increased desktop size makes this monitor a great choice for graphics professionals and video editing experts.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 14ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 300cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:10

Color : Black

Size 24.1"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution WUXGA 1920x1200

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Ir

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 1

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port Nav

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

ARTIKEL1 - EV2430 24 IN IPS BLACK
ARTIKEL2 - 1920X1200 300CD/SQM 16:10
Brand - EIZO
BrandPartCode - EV2430-BK
Breite - 0.46
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category_1 - Monitors and TV
Category_2 - LED Monitors up to 27 inches
Design - Feet colour - Black
Design - Product colour - Black
Display - 3D - No
Display - Aspect ratio - 16:10
Display - Colour gamut standard - sRGB
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness (typical) - 300 cd/m²
Display - Display diagonal - 61.2 cm (24.1")
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1200 pixels
Display - Display technology - LED
Display - HD type - WUXGA
Display - Native aspect ratio - 16:10
Display - Panel type - IPS
Display - Pixel pitch - 0.27 x 0.27 mm
Display - Response time - 14 ms
Display - Screen shape - Flat
Display - Supported graphics resolutions - 1920 x 1200 (WUXGA)
Display - Touchscreen - No
Display - Viewable size, horizontal - 51.8 cm
Display - Viewable size, vertical - 32.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4995047052999
Eans - 4995047052999
EAN_code - 4995047052999
Ergonomics - Cable lock slot - Yes
Ergonomics - Height adjustment - 14 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - -90 - 90°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 35°
Ergonomics - VESA mounting - Yes
Gewicht - 8.32
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4995047052999
HERSTELLER - EIZO
Hoehe - 0.18
HSTNUMMER - EV2430-BK
Laenge - 0.63
Logistics data - Harmonized System (HS) code - 85285210
LongSummaryDescription - EIZO FlexScan EV2430-BK. Display diagonal: 61.2 cm (24.1"), Display resolution: 1920 x 1200 pixels, HD type: WUXGA, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:10, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting, Height adjustment. Product colour: Black
Manufacturer - Eizo
Manufacturer_code - EV2430-BK
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Name - EIZO EV2430-BK - 24.1 - LED - black - Ergonomic Stand - DVI - DisplayPort
Name - Eizo FlexScan EV2430 [czarny]
Other features - Certification - CE, UKCA, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), TCO Certified Generation 8, EPEAT 2018 (US), TÜV/Blue Low Light Content, TÜV/Flicker Free, RCM, cTÜVus, FCC-B, CAN ICES-3 (B), TÜV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC
Other features - Compliance certificates - CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE
Other features - On/off switch - Yes
Other features - TV tuner integrated - No
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI-D ports quantity - 1
Ports & interfaces - DVI port - Yes
Ports & interfaces - HDCP - Yes
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB hub version - 2.0
Ports & interfaces - USB Type-A downstream ports quantity - 2
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 15 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 346712
Power - Power consumption (max) - 36 W
Power - Power consumption (standby) - 0.3 W
Power - Power consumption (typical) - 15.3 W
Producer - Eizo
ProducerCode - EV2430-BK
ProductName - EV2430-BK
ShortDescription - 24.1" | IPS | 1920 x 1200 | D-SUB | DVI | DisplayPort | 2x USB | Głośniki | HAS | Pivot
ShortSummaryDescription - EIZO FlexScan EV2430-BK, 61.2 cm (24.1"), 1920 x 1200 pixels, WUXGA, LED, 14 ms, Black
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Sustainability - Sustainability certificates - ENERGY STAR, EPEAT Bronze, TCO
Sustainability - Sustainability compliance - Yes
Technical_details - Screen size: 24.1"/?61.2cm Resolution: 1920x1200, 16:10, 94dpi Brightness: 300cd/?m2 Contrast: 1.000:1 (static), not specified (dynamic) Response time: 14ms Viewing angle: 178°/?178° Panel: IPS Shape: straight Coating: matte (non-glare) Backlight: white-LED, flicker-free, blue light filter Colour depth: 8bit (8bit without FRC) Colour gamut: not specified (sRGB), not specified (Adobe RGB), not specified (DCI-P3), not specified (REC 709) Refresh rate: 60Hz Variable Synchronization: not available Blur reduction: not available Signal frequency: 31-76kHz (horizontal), 59-61Hz (vertical) Connectors: 1x VGA, 1x DVI, 1x DisplayPort Other connectors: not available USB-Hub Out: 2x USB-A 2.0 USB-Hub In: 1x USB-B 2.0 Audio: loudspeaker (2x 1W), 1x Line-In, 1x Line-Out Ergonomics: 140mm (height), 90° (Pivot), ±172° (rotation), +35°/?-5° (tilting) Colour: black (frame), black (bar), black (pedestal) VESA: 100x100 (occupied) Power consumption: 36W (maximum), 12W (typical), 0.3W (standby) Annual consumption: 17.52kWh Energy efficiency class: A++ Power supply: AC-In Dimensions (WxHxD): 552x499x233mm (with pedestal), 552x358x57mm (without pedestal) Weight: 6.70kg (with pedestal), 4.30kg (without pedestal) Special features: slim bezel, EPEAT Gold, presence sensor, light sensor Warranty: five years (on site)
Title - EIZO FlexScan EV2430-BK LED display 61.2 cm (24.1") 1920 x 1200 pixels WUXGA Black
Weight - 8,35
Weight & dimensions - Depth (with stand) - 233 mm
Weight & dimensions - Height (without stand) - 368 mm
Weight & dimensions - Height (with stand) - 499 mm
Weight & dimensions - Weight (without stand) - 4.3 kg
Weight & dimensions - Weight (with stand) - 6.7 kg
Weight & dimensions - Width (without stand) - 553 mm
Weight & dimensions - Width (with stand) - 553 mm
