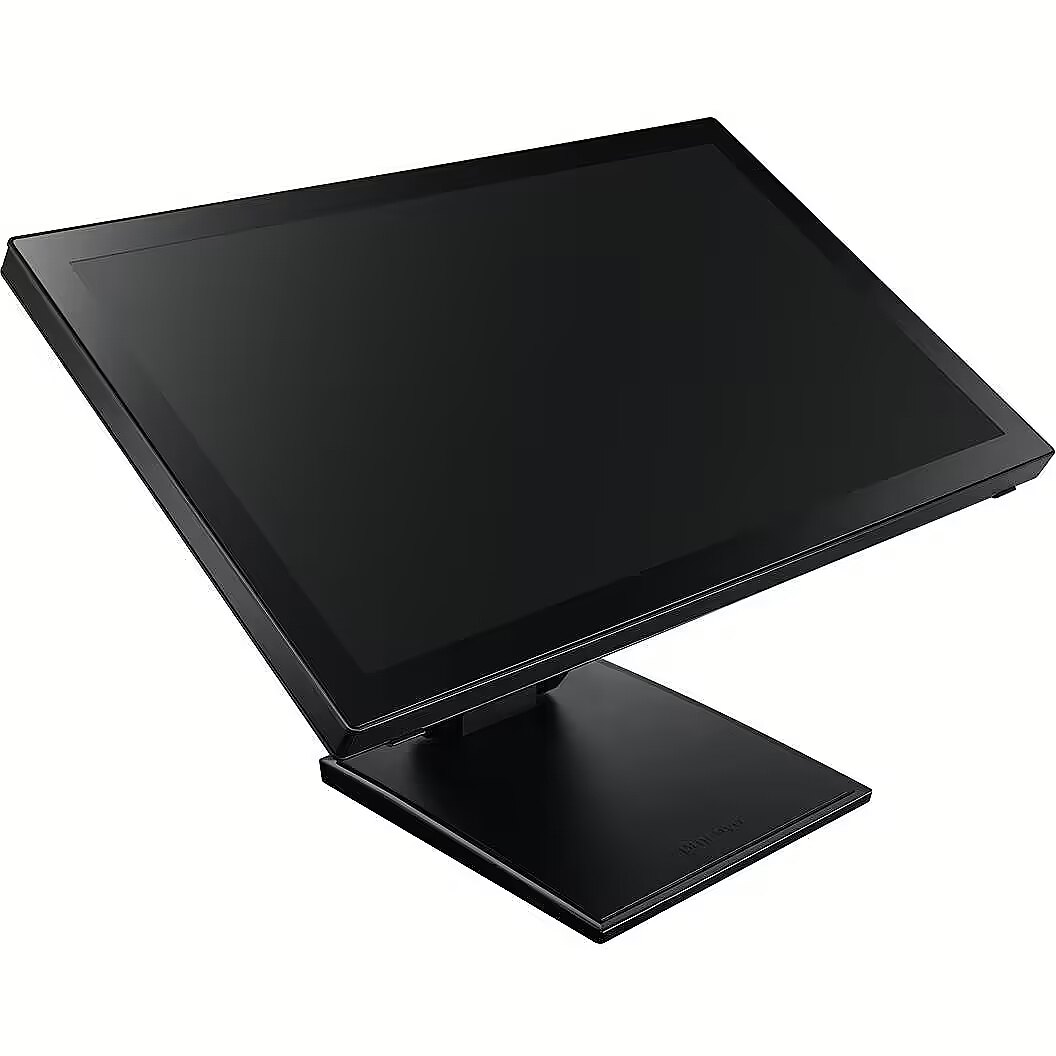

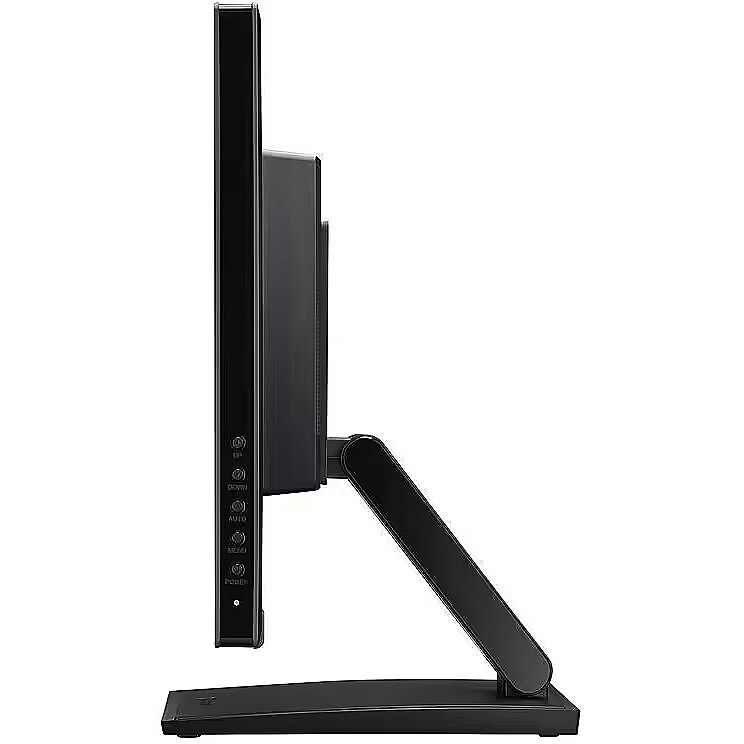

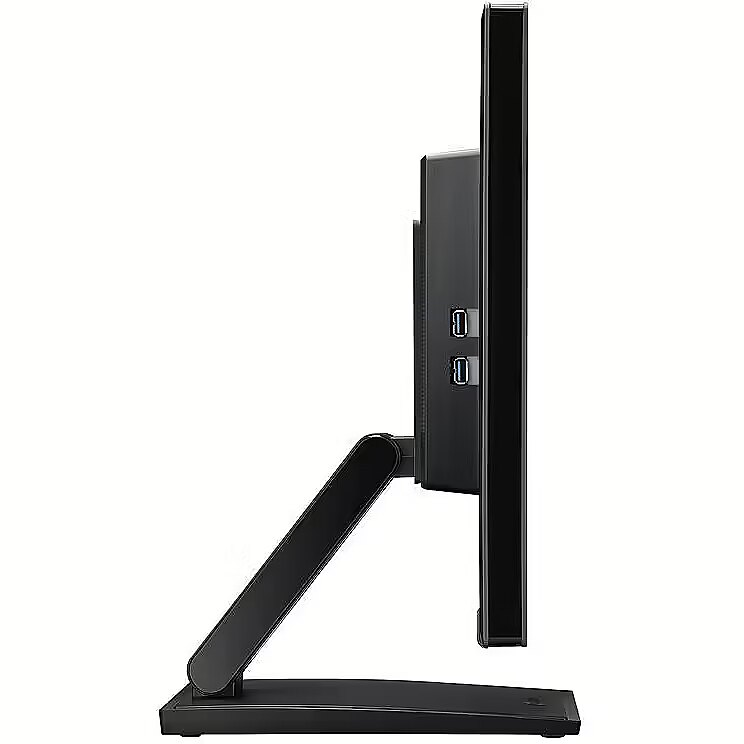

AG NEOVO TM-23, Touch Screen, Multi-Toich, 23"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 254664 Product code: TM-23
Can be ordered 7 units Availability: 14 days after order approval
Warranty: 2 years
501.63 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: IPS
  • Refresh rate: 60 Hz
  • Response time: 5ms
  • Contrast ratio: 20000000:1
  • Brightness: 250cd/m2
  • Size: 23"
  • Resolution: FHD 1920x1080
Description
We offer to buy AG NEOVO 23" a monitor with FHD 1920x1080 resolution.
  • Thanks to FullHD (1920px X 1080px) resolution this monitor will be perfectly suitable for enjoying BlueRay quality films in the full screen mode.
  • IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
  • The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
  • DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
  • The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
  • Thanks to the 5ms fast response time this monitor will be an excellent choice for enjoying dynamic games and films.
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : YES
VESA DisplayHDR : Nav
Response time 5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.
Contrast ratio 20000000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 23"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav
Height adjustment : Ir
Pivot : Nav
Swivel : None
Tilt : YES
VESA wall mount : 100x100 mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website AG NEOVO TM-23, Touch Screen, Multi-Toich, 23"
Accessories included - CD Power cable D-Sub USB Audio
ARTIKEL1 - TM-23 58.4CM 23IN LED
ARTIKEL2 - 10TP MULTITOUCH HDMI
Brand - AG Neovo
BrandPartCode - TM230011E0100
Breite - 0.45
Brightness - 250 cd/m²
Category - Computer Monitors
Certificates - CB
Certificates - CE
Certificates - FCC Class B
Certificates - GOST-R
Certificates - RoHS
Color - Black
Depth - 422.6 mm
Description - Monitor TM-23
Equipped with capacitive 10-point touch technology, the TM-23 not only provides a smooth and precise touch response, but also provides more creative and exciting interactive applications. Full HD resolution and IPS panel provide exceptional and accurate color reproduction in every angle of view. The high level of adjustment and tilting flexibility in the range of 5 to 90 degrees, guarantees ergonomics and convenience for many users, making the display a valuable choice for public and interactive places.
Design - Certification - CE, FCC, LVD, BSMI, WEEE, RoHS, REACH, EAC, UKCA
Design - Glass thickness - 2.4 mm
Design - Market positioning - Business
Design - Product colour - Black
dimensionalWeight - 10532
dimension depth - 630 mm
dimension height - 440 mm
dimension weight - 8000 g
dimension width - 180 mm
Display - Aspect ratio - 16:9
Display - Backlight type - LED
Display - Contrast ratio (typical) - 20000000:1
Display - Digital horizontal frequency - 30 - 83 kHz
Display - Digital vertical frequency - 55 - 76 Hz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 58.4 cm (23")
Display - Display diagonal (metric) - 58 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel pitch - 0.265 x 0.265 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Capacitive
Display - Touchscreen type - Tabletop
Display - Touch technology - Multi-touch
Display - Viewable size diagonal - 58.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Dot pitch - 0.265 mm
ean - 4710739592436
EANCode - 4710739592436
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - 40 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 90°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Frequency, horizontal max. - 83 kHz
Frequency, horizontal min. - 30 kHz
Frequency, vertical max. - 76 Hz
Frequency, vertical min. - 50 Hz
Gewicht - 8.13
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 0813086002994
GTIN - 813086002994
GTIN - 4710739592436
GTIN - 8130860029940
guarantee - 36
guarantee_type - normal
Height - 238.5 mm
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0.19
HSTNUMMER - TM23D011E0100

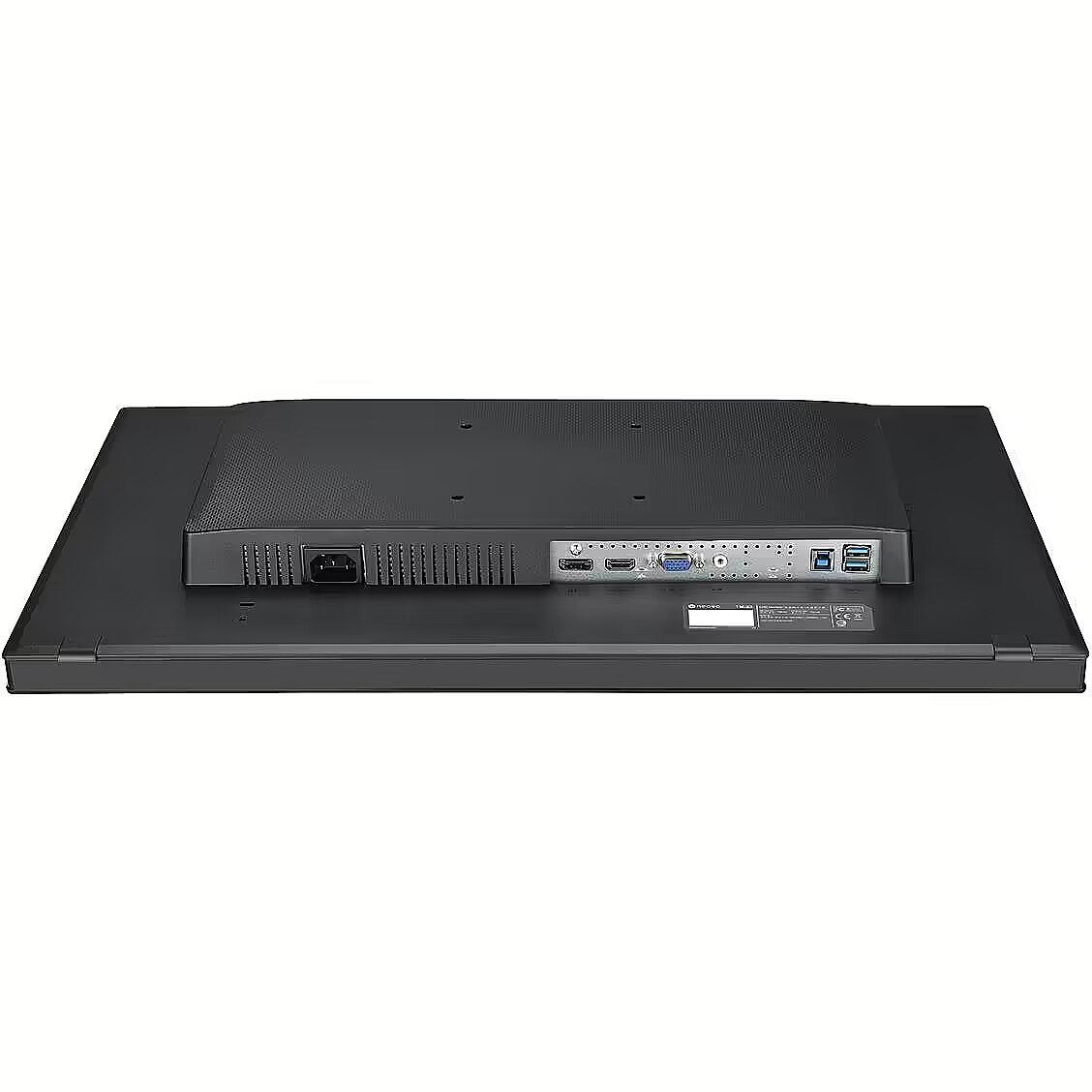

I/O connectors - 1 x 3,5 mm minijack
I/O connectors - 1 x 15-pin D-Sub
I/O connectors - 1 x DisplayPort
I/O connectors - 1 x HDMI
I/O connectors - 4 x USB 3.0
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - Crafted with advanced projected capacitive 10-point touch technology, the TM-23 not only delivers smooth and precise touch response, but also enables more creative and exciting interactive applications. Featuring Full HD resolution and an IPS panel, it ensures exceptional and accurate colour performance from all viewing angles. Its height adjustability and tilt flexibility ranging from –5 to 90 degrees guarantee ergonomic-friendliness and multi-user comfort, making it a value choice for public and interactive environments.
LongProductName - 23" IPS LED, 1920x1080, 16:9, 220cd/m², 3ms, 16.7M, 2x2W RMS, VGA, HDMI, DP, 4x USB 3.0, 28W, 7.4kg
LongSummaryDescription - AG Neovo TM-23. Display diagonal: 58.4 cm (23"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Matrix type - TFT IPS
Model - TM-23
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
name - Monitor 23 inches touch black TM-23
Number of colors - 16,7 mln
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 93%
Operational conditions - Storage temperature (T-T) - -25 - 55 °C
Optional accessory -
Other features -
Other features - Certification - CE, FCC, LVD, BSMI, WEEE, RoHS, REACH, EAC, UKCA
Other features - Compliance certificates - CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Other features - Energy efficiency class (old) - B
Packaging content - Cables included - AC
Packaging content - Cables included - AC, Audio (3.5mm), HDMI, USB
Packaging content - Cables included - Audio (3.5mm)
Packaging content - Cables included - HDMI
Packaging content - Cables included - USB
Packaging data - Package depth - 448 mm
Packaging data - Package height - 186 mm
Packaging data - Package weight - 8.7 kg
Packaging data - Package width - 632 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - Operating hours (hours/days) - 24/7
Performance - Operating system installed - Windows 10
Ports & interfaces - Audio input - 1
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.3
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Number of upstream ports - 4
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - European Product Registry for Energy Labelling (EPREL) code - 619804
Power - Power consumption (off) - 0.5 W
Power - Power consumption (standby) - 0.7 W
Power - Power consumption (typical) - 14 W
Power - Power supply type - Internal
Power consumption - 28 W
producer - AG NEOVO
producerCode - TM-23
productName - AG Neovo TM-23 computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LCD Touchscreen Tabletop Black
ProductName - TM-23
productSize - Normal
Resolution - 1920 x 1080 (FHD 1080)
Response time - 5 ms
Screen size (diag.) - 23"
ShortSummaryDescription - AG Neovo TM-23, 58.4 cm (23"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black
sizeX - 632
sizeY - 186
sizeZ - 448
Speakers built-in - Yes
Static contrast - 1 000:1
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Sustainability - European Product Registry for Energy Labelling (EPREL) code - 619804
Sustainability - Sustainability certificates - CE
Sustainability - Sustainability certificates - Federal Communications Commission (FCC)
Sustainability - Sustainability certificates - Low Voltage Directive (LVD)
Sustainability - Sustainability certificates - REACH
Sustainability - Sustainability certificates - RoHS
Sustainability - Sustainability certificates - UKCA
Sustainability - Sustainability certificates - WEEE
Title - AG Neovo TM-23 computer monitor 58.4 cm (23") 1920 x 1080 pixels Full HD LCD Touchscreen Tabletop Black
Touch screen - Yes
Transreflective technology - LED
TV tuner built-in - No
URL - https://www.agneovo.com/global/content/tm-23.asp
vendpn - TM-23
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Web camera - None
Weight - 7.4 kg
weight - 8700
Weight & dimensions - Depth (without stand) - 57.2 mm
Weight & dimensions - Depth (with stand) - 238.5 mm
Weight & dimensions - Height (without stand) - 338.2 mm
Weight & dimensions - Height (with stand) - 400 mm
Weight & dimensions - Weight (without stand) - 4.3 kg
Weight & dimensions - Weight (with stand) - 6.6 kg
Weight & dimensions - Width (without stand) - 561 mm
Weight & dimensions - Width (with stand) - 561 mm
Width - 561 mm
501.63 €
AG NEOVO TM-23, Touch Screen, Multi-Toich, 23"
Intel technology provider Platinum 2020
All categories
