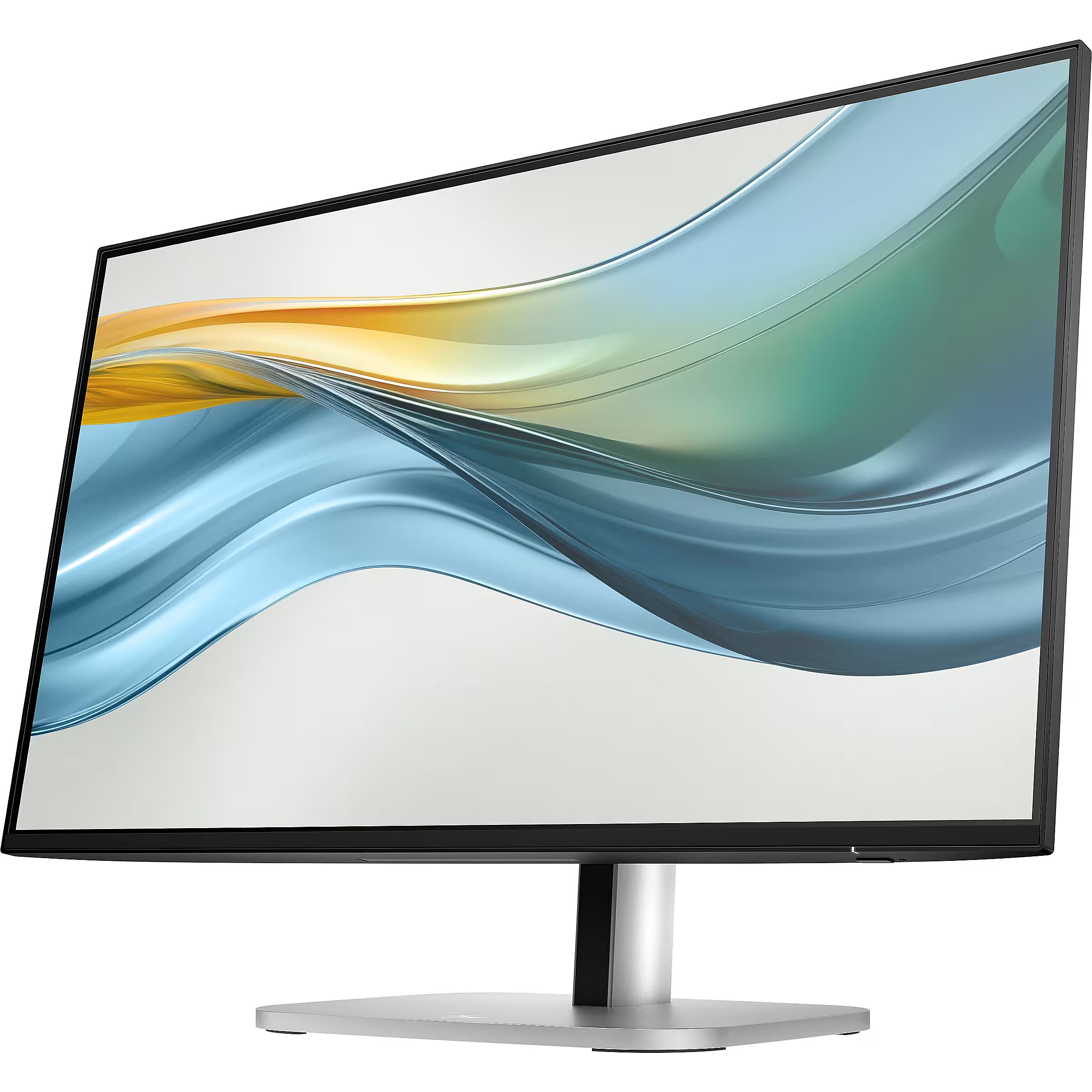

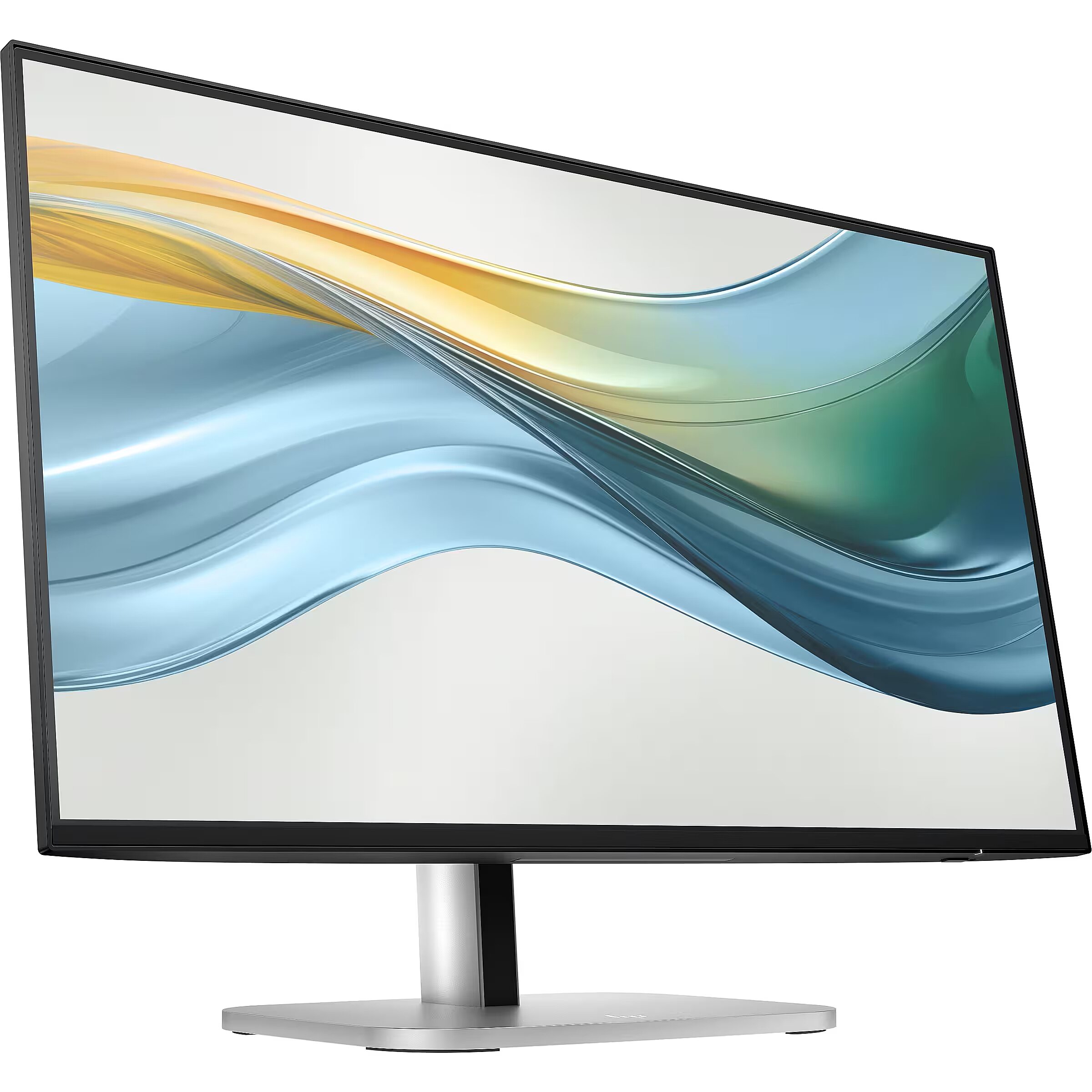

Hewlett Packard Series 5 Pro 524pu, 23.8"

Name: Hewlett Packard Series 5 Pro 524pu, 23.8"
Brand: Hewlett Packard
SKU: 1186082
Price: 329.05 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1186082 Product code: 9D9V7AA#ABB

In stock 9 units

Warranty: 3 years

Compare

Delivery options

Courier delivery 3.99 €: 01.04.2025

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 100 Hz
Response time: 5ms
Contrast ratio: 1500:1
Brightness: 350cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 100 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 5ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1500:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 350cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black, Silver

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Ir

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : 100W

USB-C video input : 1

More detailed specification

Additional information in manufacturers website Hewlett Packard Series 5 Pro 524pu, 23.8"

ARTIKEL1 - HP S5 PRO 524PU 23.8 ZOLL 16:9
ARTIKEL2 - 1920X1080 IPS 350CD 1500:1 USB-C
Audio - -
AudioFeatures - -
Brand - HP
Brand-specific features - HP GTIN (EAN/UPC) - 197961408201
BrandPartCode - 9D9V7AA#ABB
Breite - 0
Brightness - 350 cd/m2
Camera - No
Category - Computer Monitors
ContrastRatio - 1500:1
ContrastRatioDynamic - 10,000,000:1
Depth - 189.5 mm
Design - Colour name - Jet black
Design - Detachable stand - Yes
Design - Market positioning - Office
Design - Product colour - Black, Silver
Display - Anti-glare screen - Yes
Display - Aspect ratio - 16:9
Display - Colour depth - 8 bit
Display - Colour gamut - 100%
Display - Colour gamut standard - sRGB
Display - Contrast ratio (dynamic) - 10000000:1
Display - Contrast ratio (typical) - 1500:1
Display - Display bezel technology - Micro-Edge
Display - Display brightness (typical) - 350 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display surface - Matt
Display - Display technology - LCD
Display - Haze rate - 25%
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 115 kHz
Display - Maximum refresh rate - 100 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel density - 93 ppi
Display - Pixel pitch - 0.28 x 0.28 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 100%
Display - Supported graphics resolutions - 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA)
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Vertical scan range - 50 - 100 Hz
Display - Viewable size, horizontal - 52.7 cm
Display - Viewable size, vertical - 29.6 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
DisplayCaseColour - Black / Silver
DisplayFeatures -

3-sided micro-edge bezel

16.7 M colors

93 PPI

Edge-lit backlight

Flicker-free

Anti-glare

3H hardness

25% Haze

DisplayFormat - 16:9
DisplayNativeResolution - 1920 x 1080
DisplayPort - Yes
DisplaySizecm - 60.47 cm
DisplayType - LED IPS
DisplayViewingArea - -
EANCode - 0197961408171
EmissionStandard - -
EPEAT - -

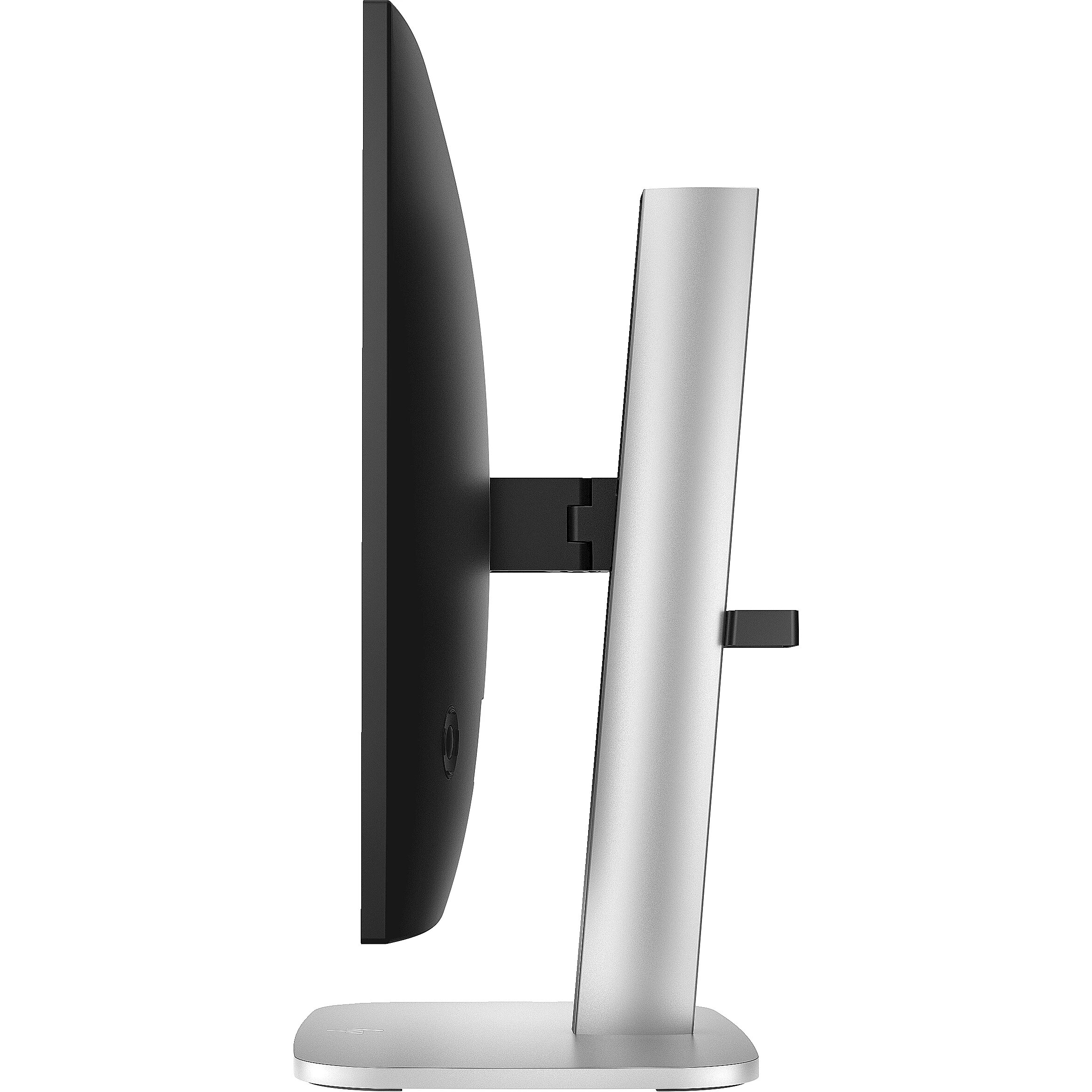

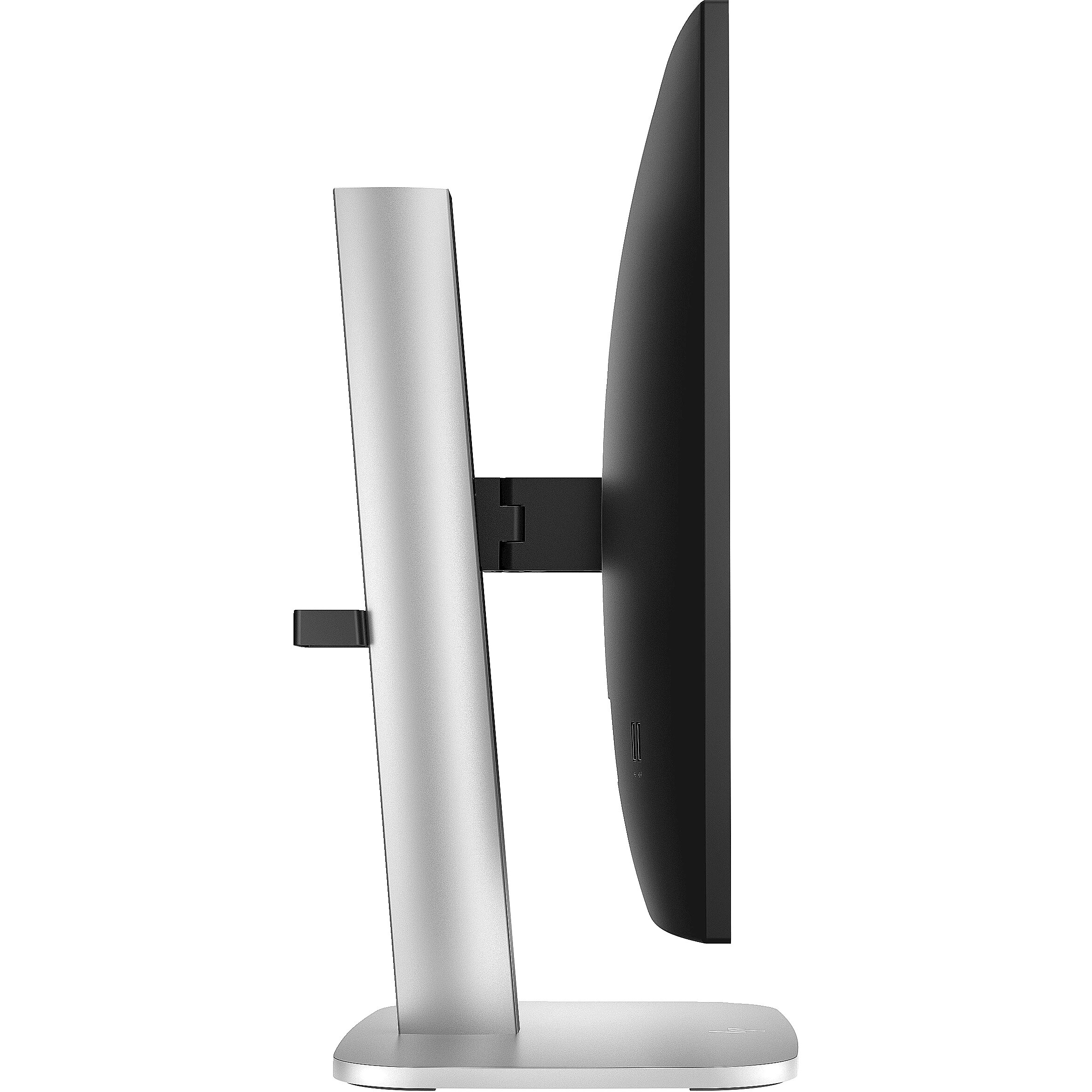

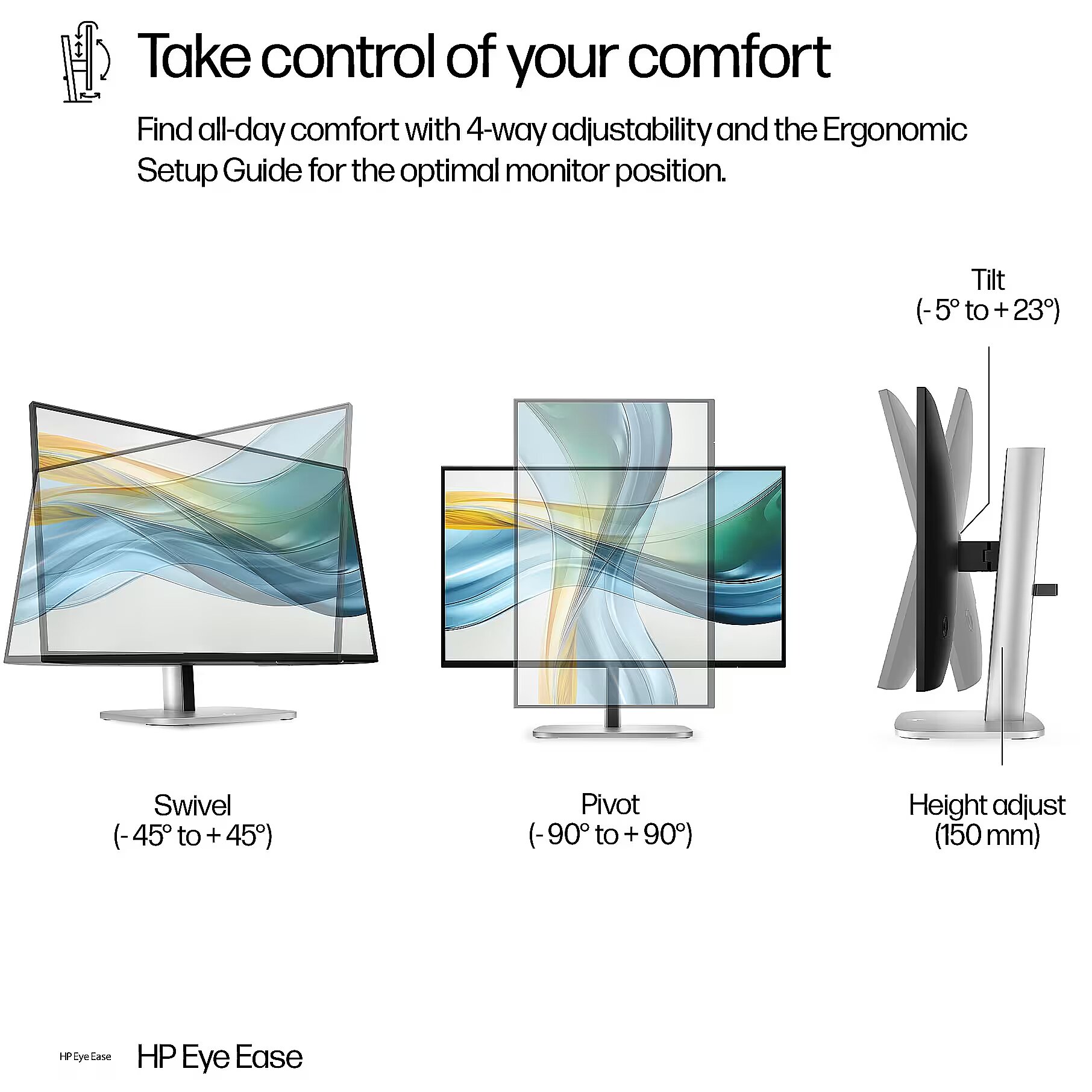

Ergonomics - Adjustable height (max) - 15 cm
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - Yes
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - -90 - 90°
Ergonomics - Swivel angle range - -45 - 45°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 23°
Ergonomics - VESA mounting - Yes
Ethernet - No
Frequency - 30-115 kHz
FrequencyV - 100 Hz
Gewicht - 7.9
GrossWeight - -
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 0197961408171
GTIN - 197961408171
HDMI - 1
Height - 503.2 mm
HeightAdjustment - Yes
HERSTELLER - HP INC.
Hoehe - 0
HSTNUMMER - 9D9V7AA#ABB
InputSignal -

HDMI

2x DisplayPort

2x USB Type-C

3x USB 3.1

RJ-45

KensingtonLock - Yes
Laenge - 0
LongDesc -
LongDesc - Powerfully designed to connectPlug into more possibilities with the HP Series 5 Pro 23.8” FHD USB-C Monitor. Its sleek, modern design gives you crisp, stunning visuals and enhanced 100W power delivery with a single cable connection that seamlessly connects to PCs and peripherals at home or in the office.
LongProductName - Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu
LongSummaryDescription - HP Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Display surface: Matt, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black, Silver
MANUFDATASHEET - https://www8.hp.com/h20195/v2/GetDocument.aspx?docname=c09048350
MonitorControls -

Brightness+

Color


Input

Power

Management

Information

Exit

MonitorSize - 23.8"
MonitorType - Desktop
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - No
Network - Ethernet LAN - Yes
Network - Remotely operated - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 80%
Other features - Certification - Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL Grade 1; cTUVus; EAC; FCC; ICES; ISO 9241-307; KC; KCC; NOM; PSB; RCM; SEPA; TUV-S; VCCI; Vietnam MEPS; WEEE; ISC; California Energy Commission (CEC); UAE; Ukraine certificates; TÜV Flicker free certified; NRCS; PSE; GS; Ukraine EE; TÜV Low Blue Light Hardware Solution certified; Korea MEPS; Australian-New Zealand DoC; EMF
Other features - Compliance certificates - BIS, BSMI, CB, CCC, CE, CECP, EAC, Federal Communications Commission (FCC), ICES, KC, KCC, Norma Oficial Mexicana (NOM), PSE, RCM, VCCI, WEEE, cTUVus
Other features - Country of origin - China
Other features - Ethernet LAN (RJ-45) ports - 1
Other features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Other features - RJ-45 ports quantity - 1
Other features - UNSPSC-code - 43211902
Other features - Weight - 5.93 kg
PackageContents -

Warranty card

AC power cable

Quick Setup Poster

USB Type-C to Type-C cable

Packaging content - Bundled software - HP Display Center; HP Client Management Script Library
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 140 mm
Packaging data - Package height - 393 mm
Packaging data - Package type - Box
Packaging data - Package weight - 8.42 kg
Packaging data - Package width - 621 mm
Performance - AMD FreeSync - No
Performance - Flicker-free technology - Yes
Performance - HP segment - Business
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Pivot - Yes
Pixelpitch - 0.28 mm

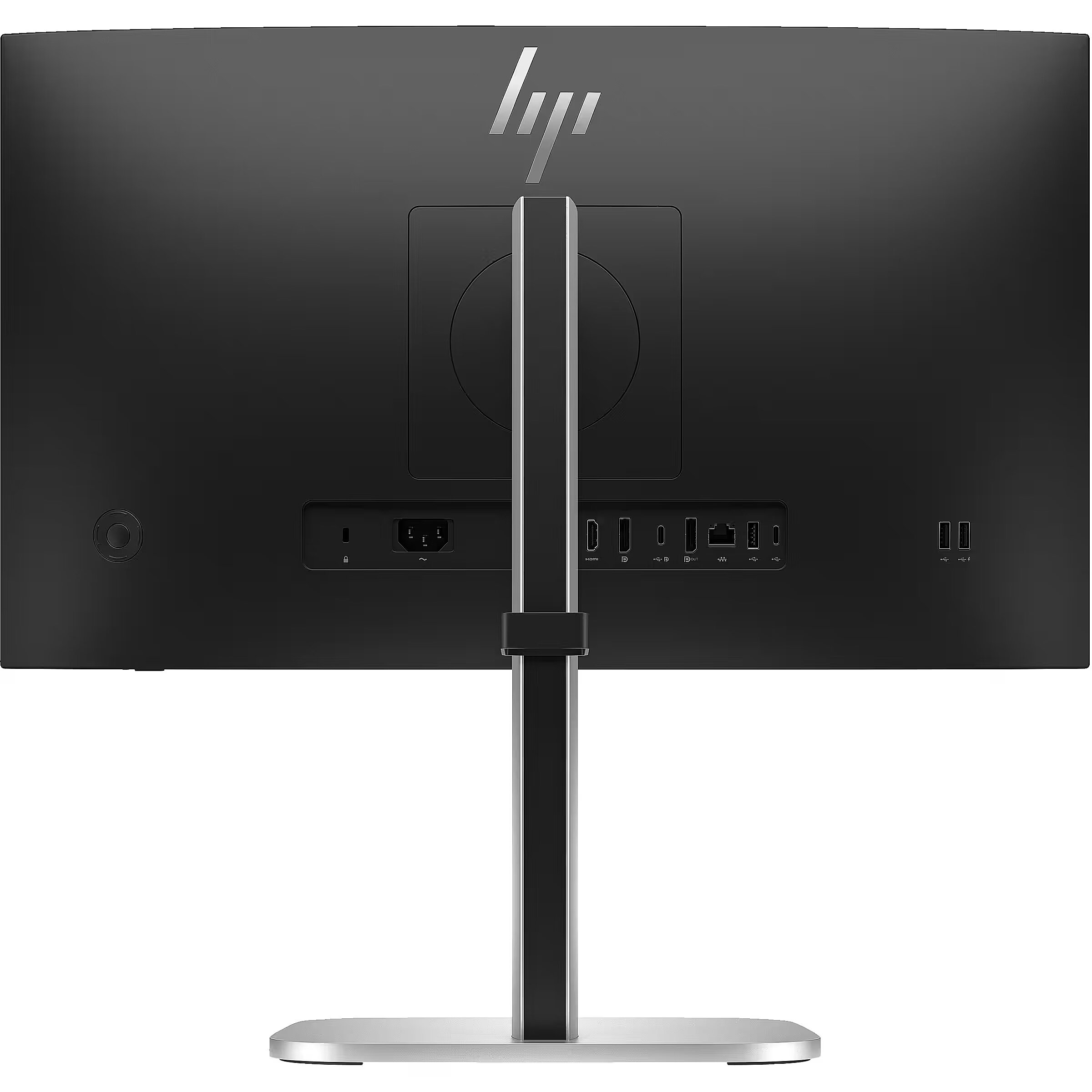

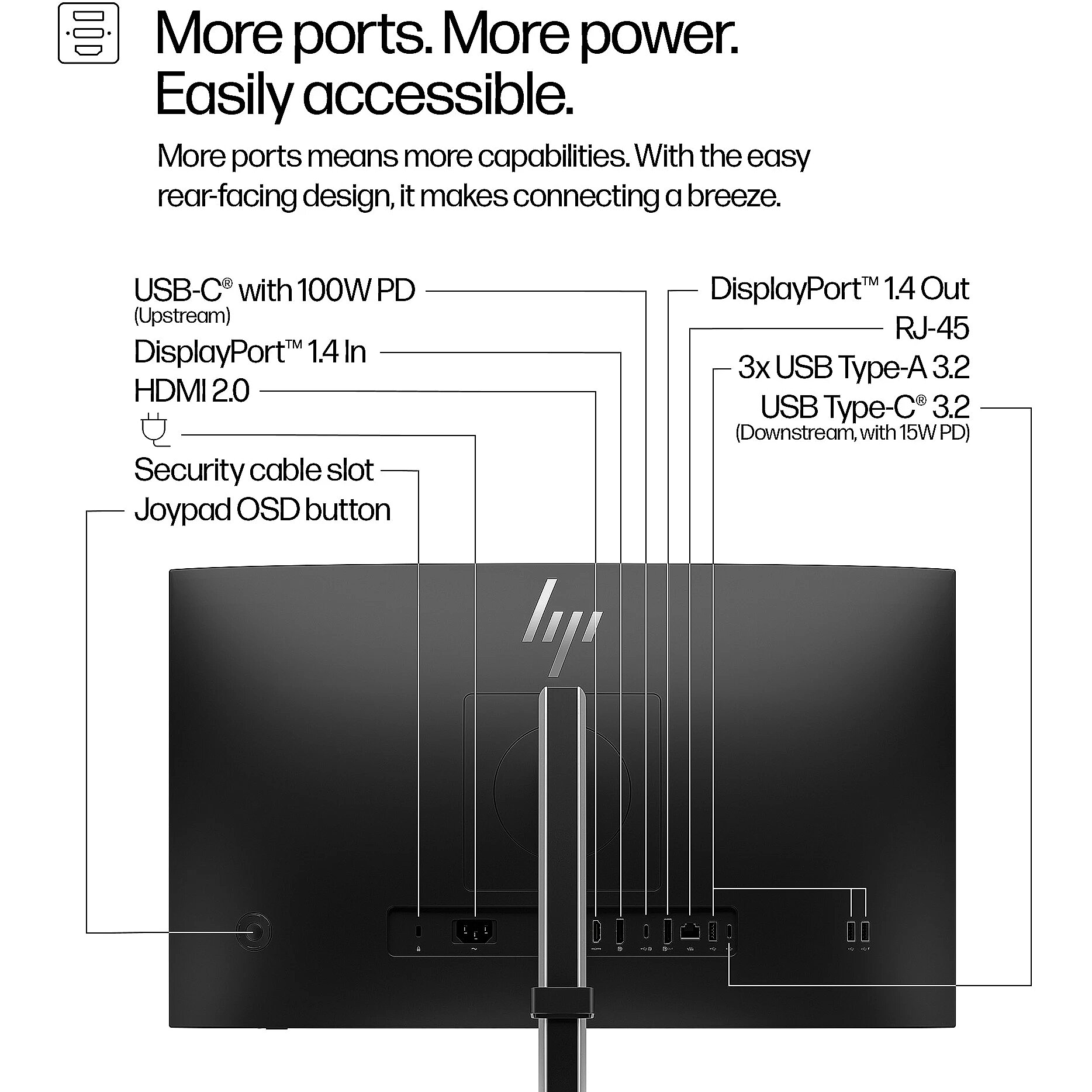

Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPort out quantity - 1
Ports & interfaces - DisplayPort out version - 1.4
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Headphone out - No
Ports & interfaces - Number of USB Type-C upstream ports quantity - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Type-A downstream ports quantity - 3
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB Type-C downstream ports quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 14 kWh
Power - Energy efficiency class (HDR) - D
Power - Energy efficiency class (SDR) - Not available
Power - Energy efficiency scale - A to G
Power - Power consumption (max) - 198 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 22 W
Power - Power supply type - Internal
ProdDesc - HP 524pu Series 5 Pro FHD Charging Monitor - 23.8" 1920x1080 FHD 350-nit 100Hz AG, IPS, USB-C(100W/15W)/HDMI/DisplayPort Daisy-Chain, 3x USB-A, RJ-45 LAN, height adjustable/tilt/swivel/pivot, 3 years (replaces E24u G5)
ProductName - Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu
ProductPicture - http://www.tdbaltic.ee/images/ds4/9D9V7UT-01.jpg
ProductPicture2 - http://www.tdbaltic.ee/images/ds4/9D9V7UT-01.jpg
ProductPicture3 - http://www.tdbaltic.ee/images/ds4/9D9V7UT-03.jpg
ProductPicture4 -
ResponseTime - 5 ms
Rotate - Yes
ShortSummaryDescription - HP Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LCD, 5 ms, Black, Silver
Stck_Kart - 1
Stck_Pal - 60
Storno - Y
Sustainability - Sustainability certificates - ENERGY STAR
Technical details - General Product Safety Regulation (GPSR) URL - https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true
Tilt - Yes
Title - HP Series 5 Pro 23.8 inch FHD USB-C Monitor - 524pu
URL - https://www8.hp.com
USB - 4
USBTypeC - 100 W
VESACompatible - Yes
VESAStandard - 100 x 100
ViewingAngle - 178
ViewingAngleV - 178
Warranty - 3 years
WarrantyInfo - HP three-year limited warranty
Weight - 5.93 kg

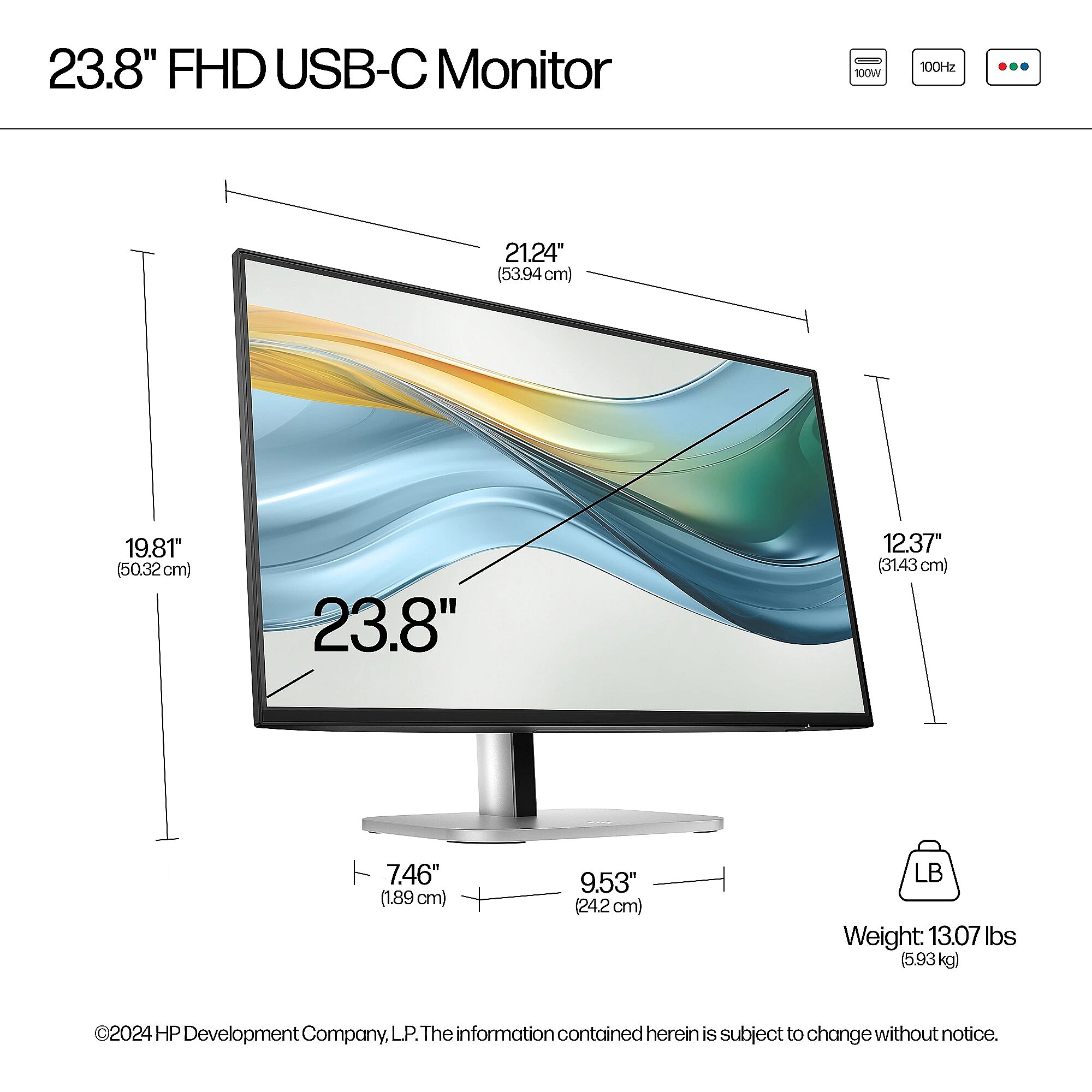

Weight & dimensions - Depth (without stand) - 47.2 mm
Weight & dimensions - Depth (with stand) - 189.5 mm
Weight & dimensions - Height (without stand) - 314.3 mm
Weight & dimensions - Height (with stand) - 503.2 mm
Weight & dimensions - Weight (with stand) - 5.93 kg
Weight & dimensions - Width (without stand) - 539.4 mm
Weight & dimensions - Width (with stand) - 539.4 mm
Width - 539.5 mm
Wireless - No
WirelessFeatures - -
