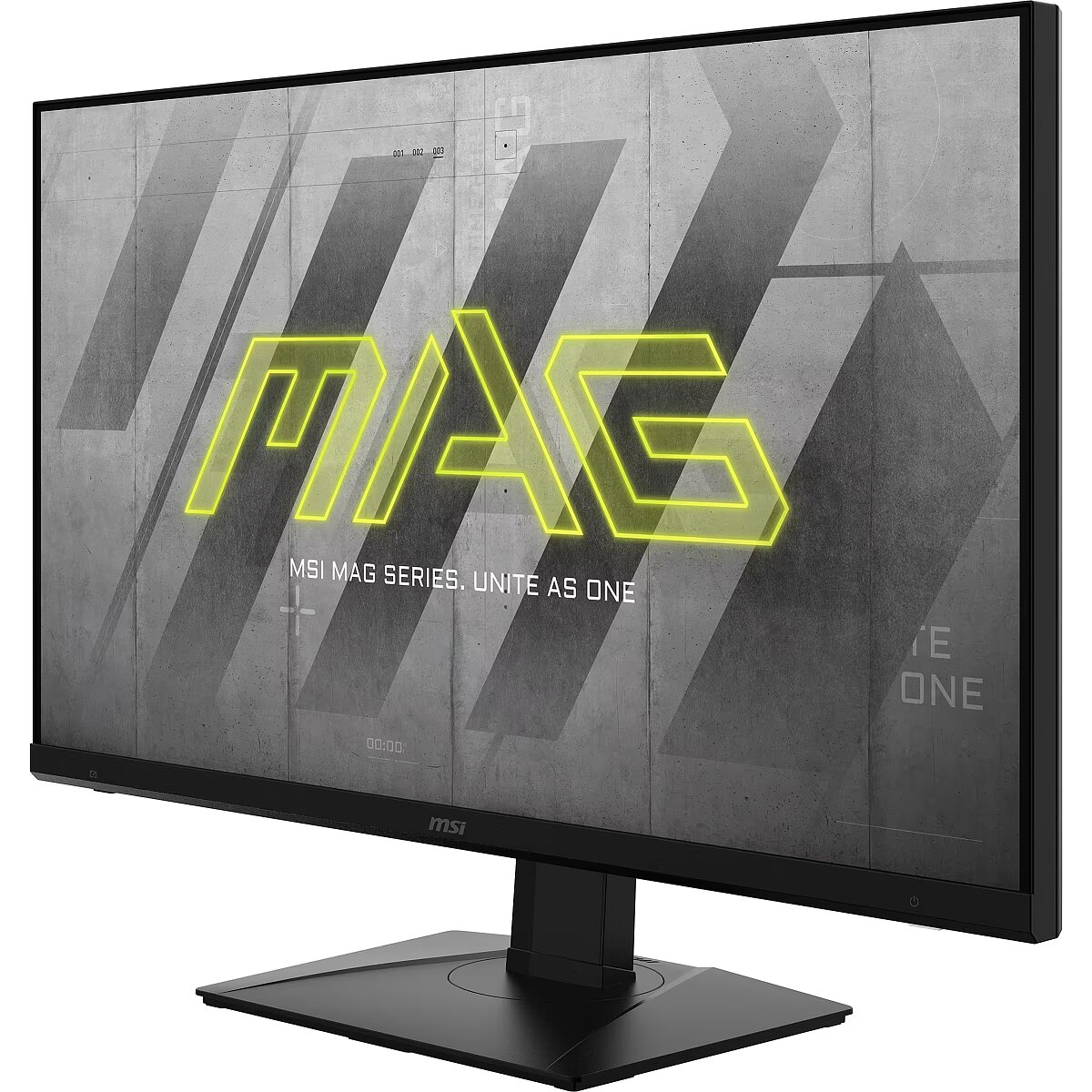

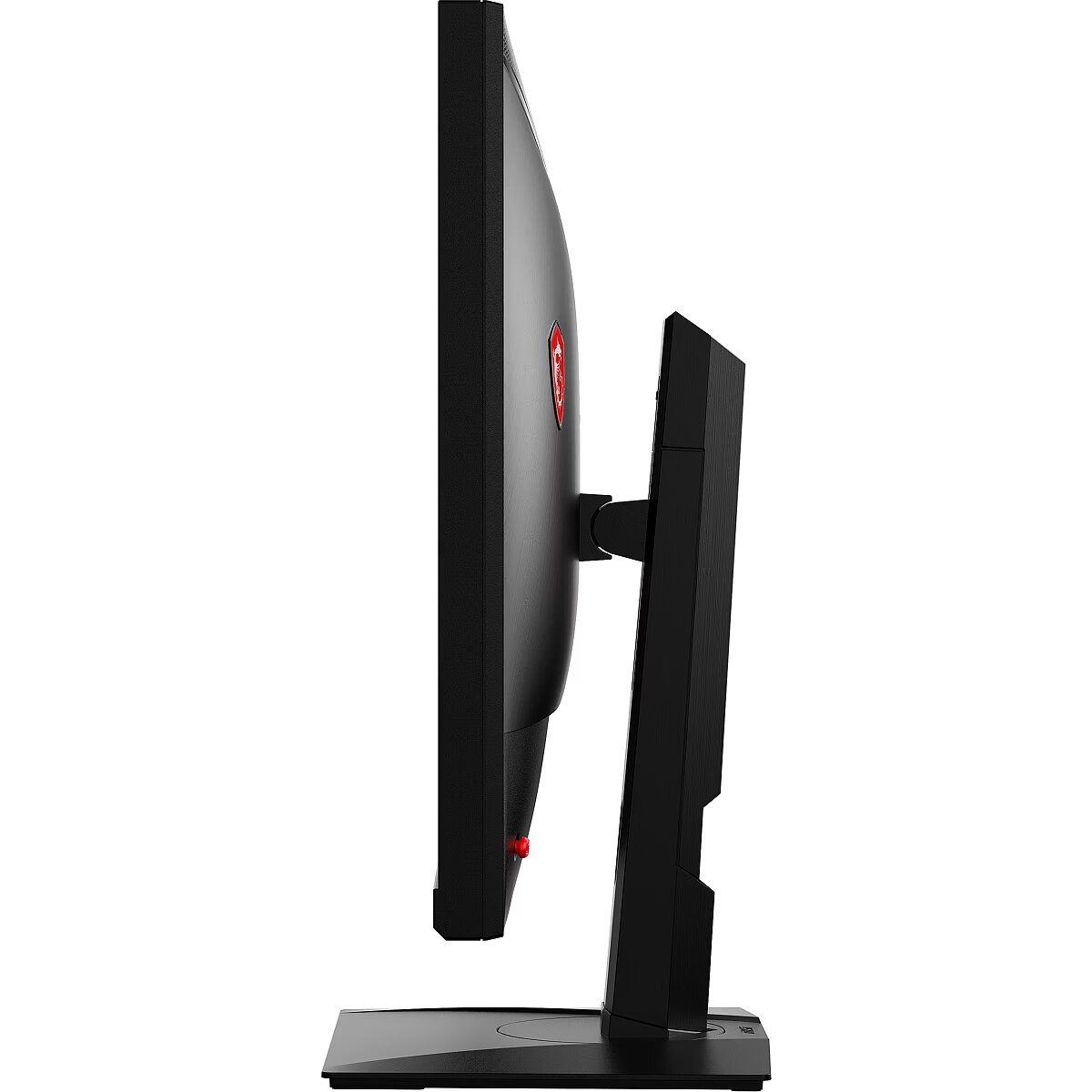

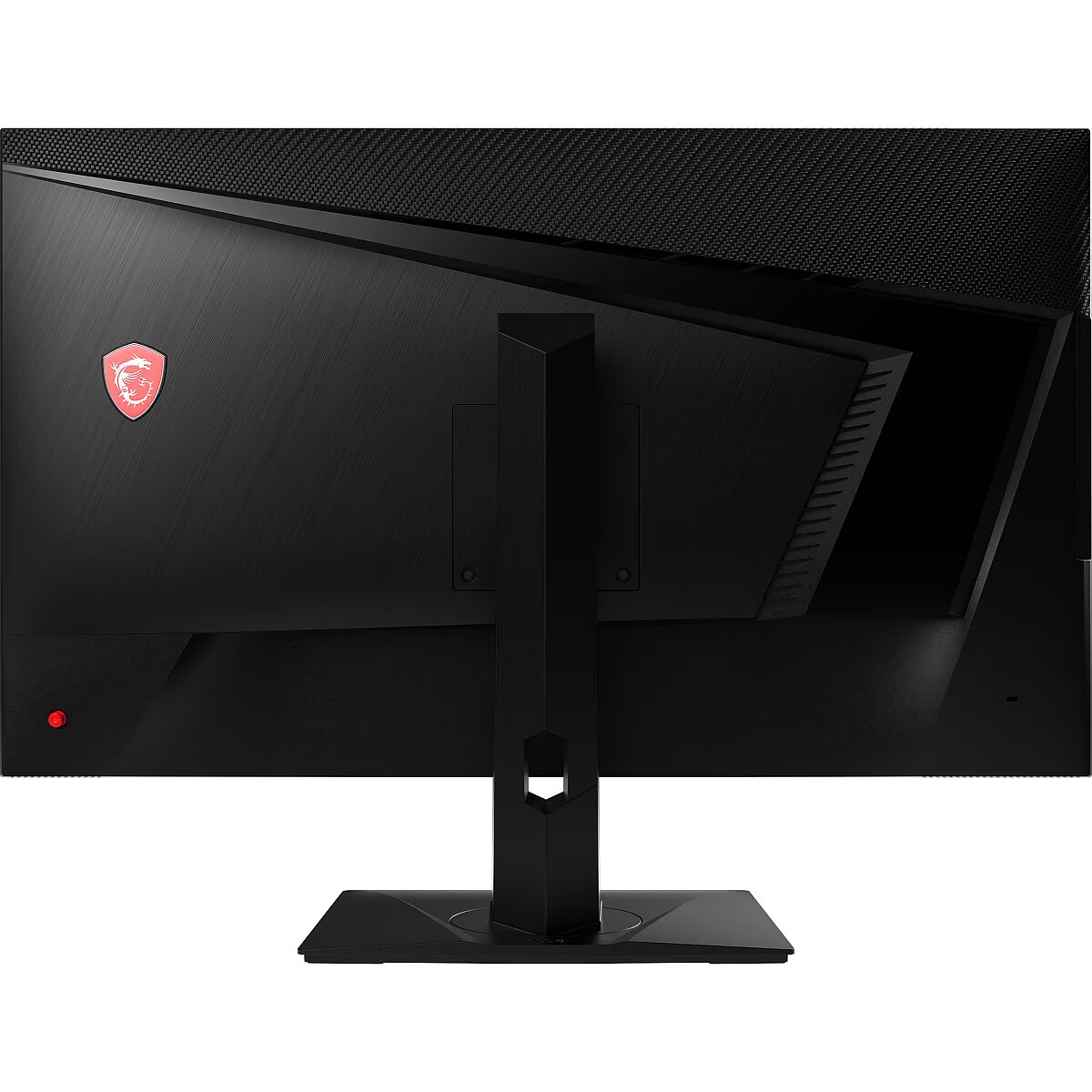

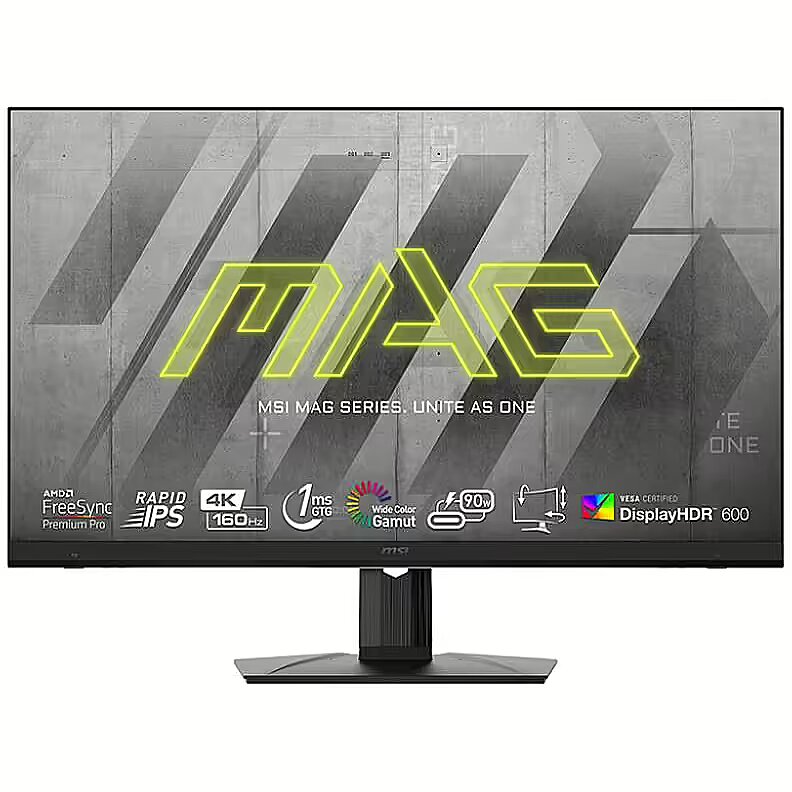

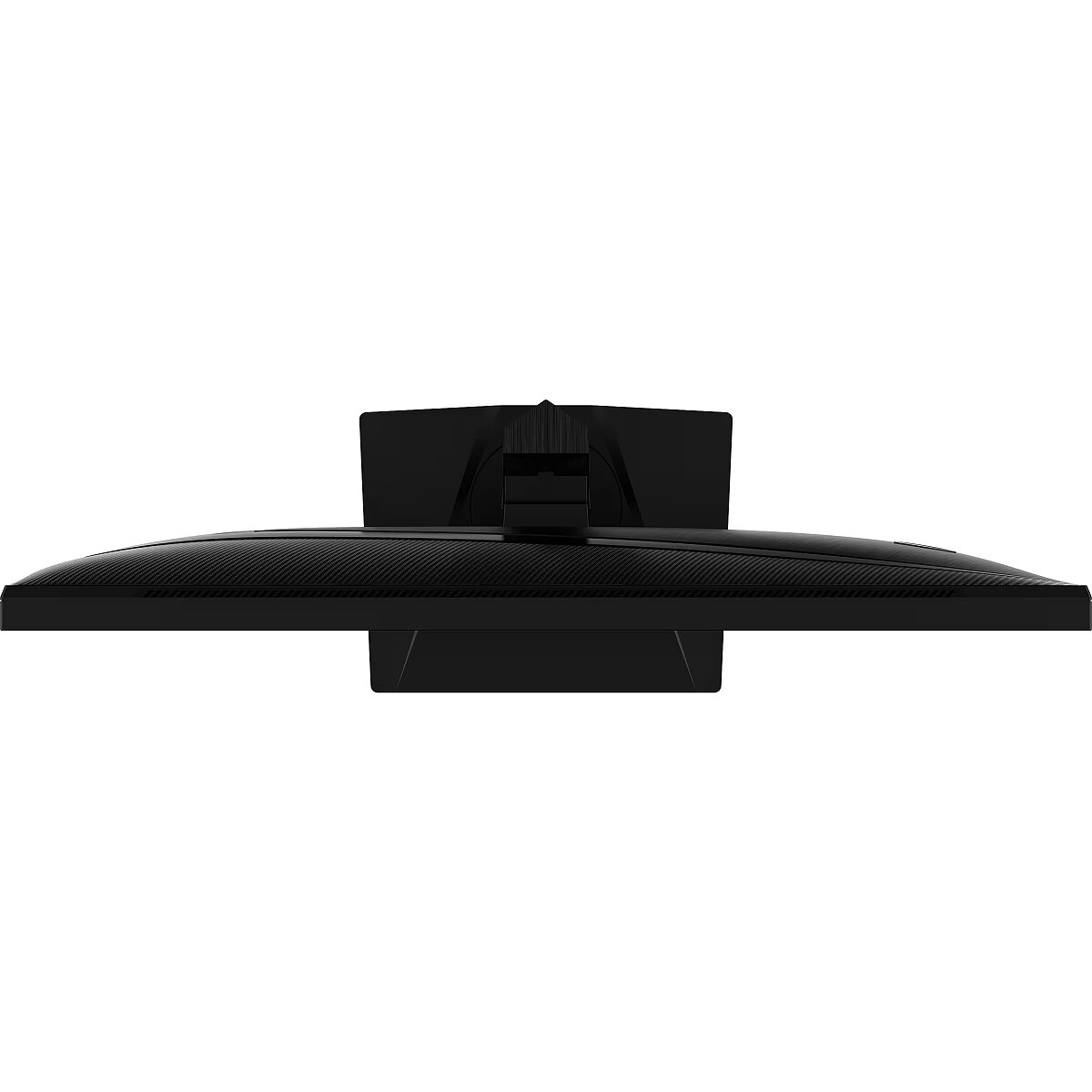

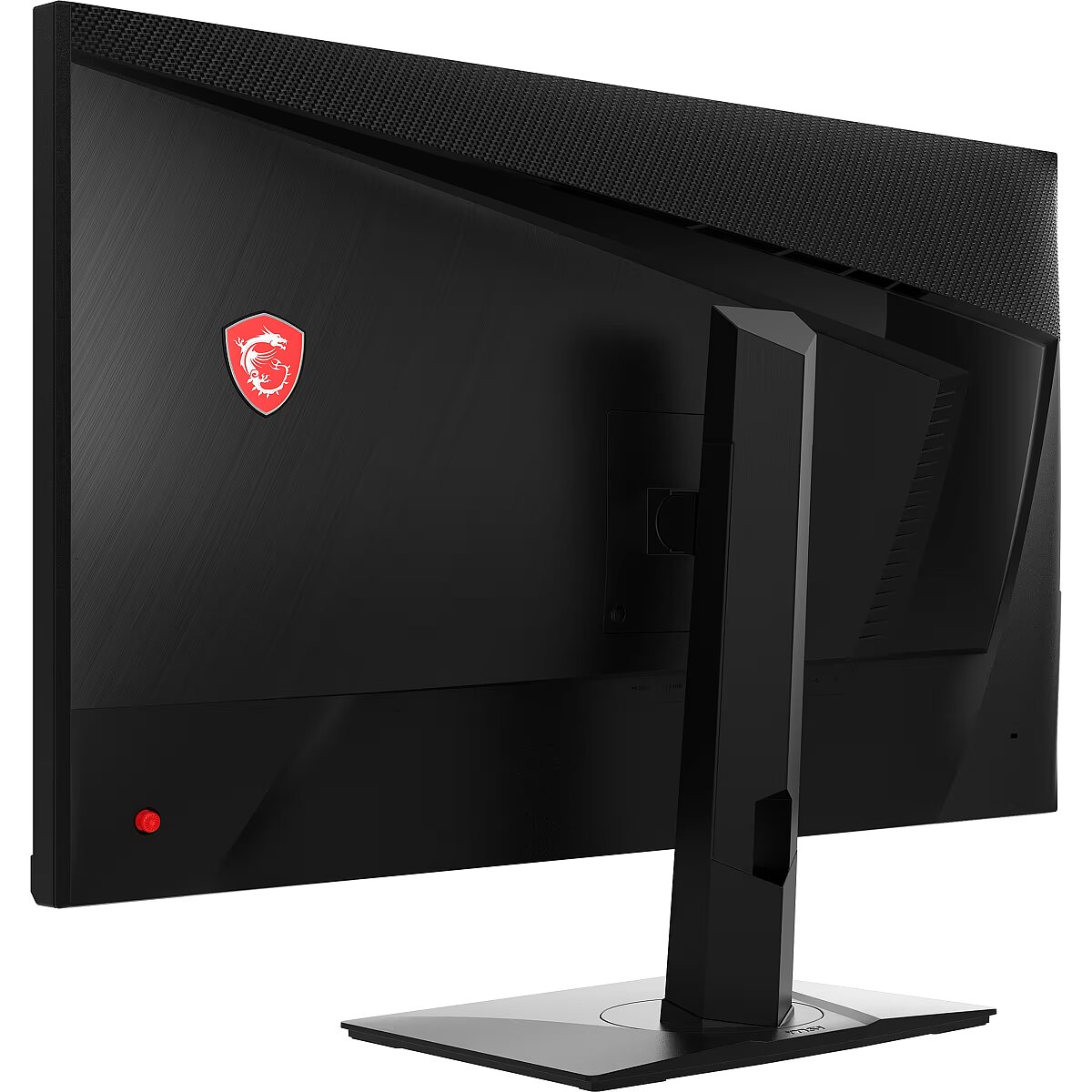

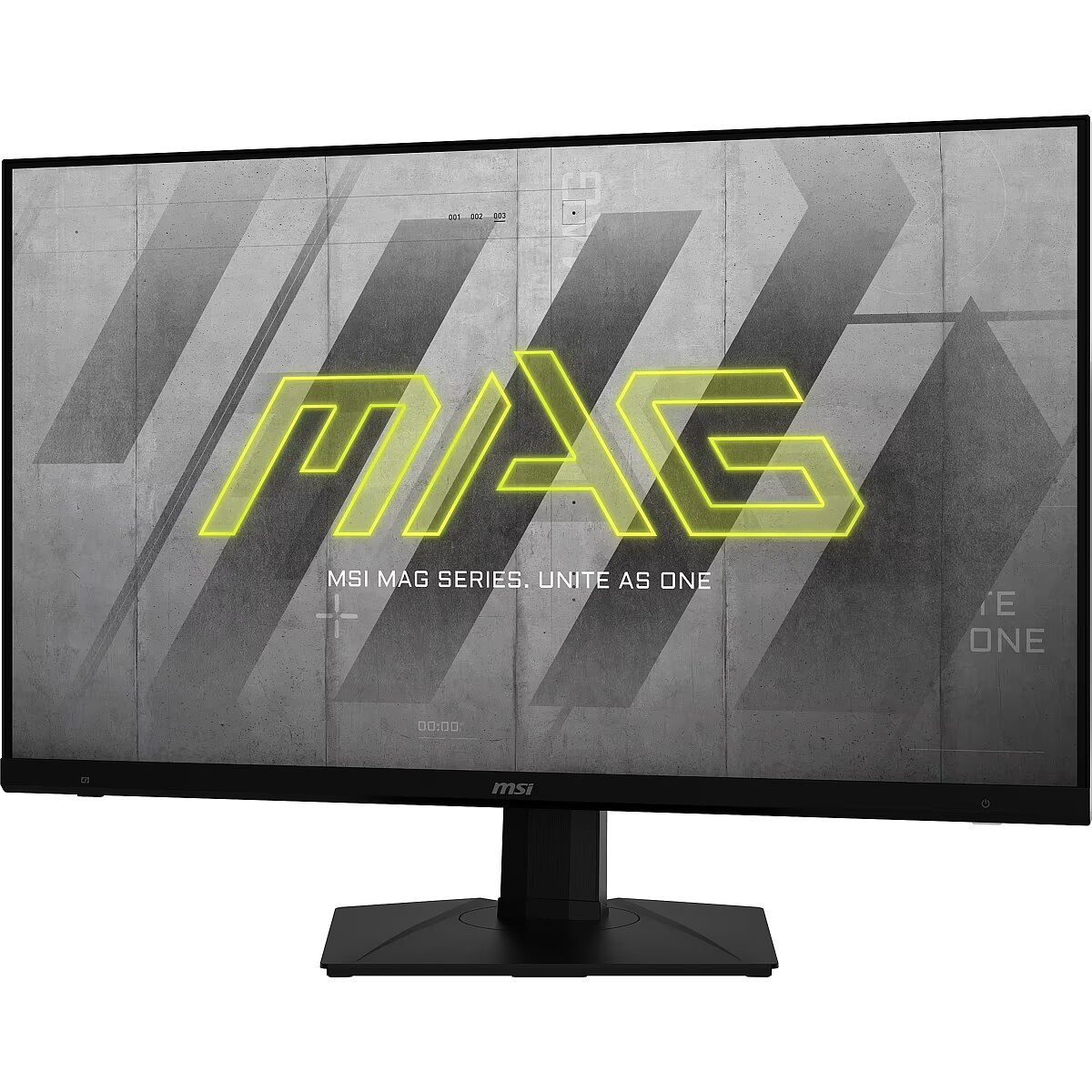

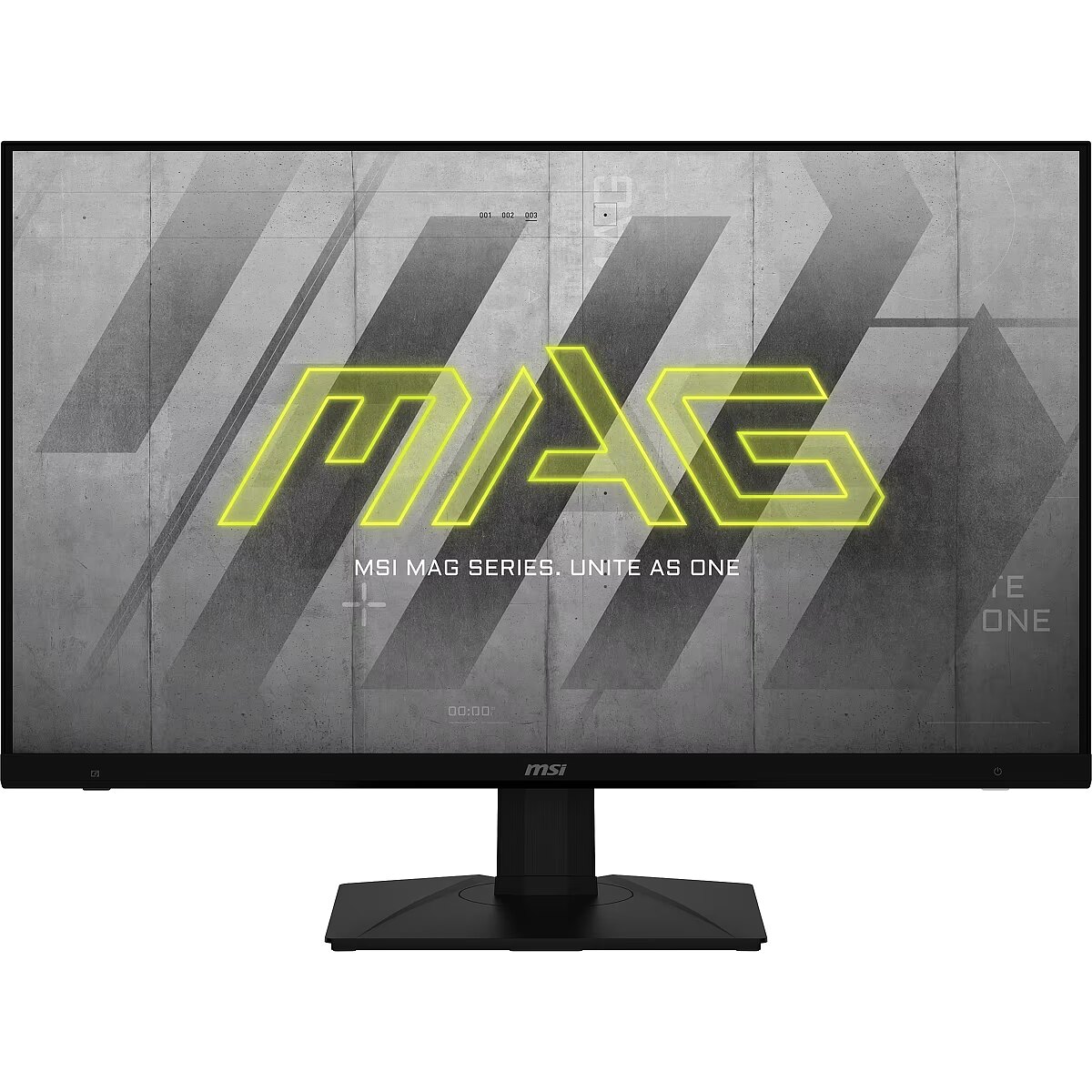

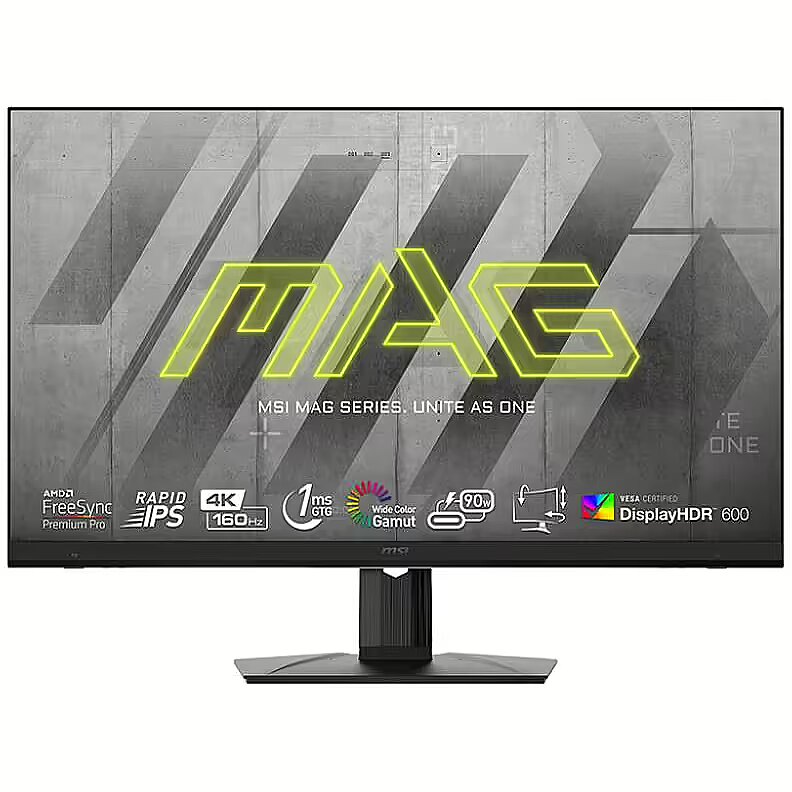

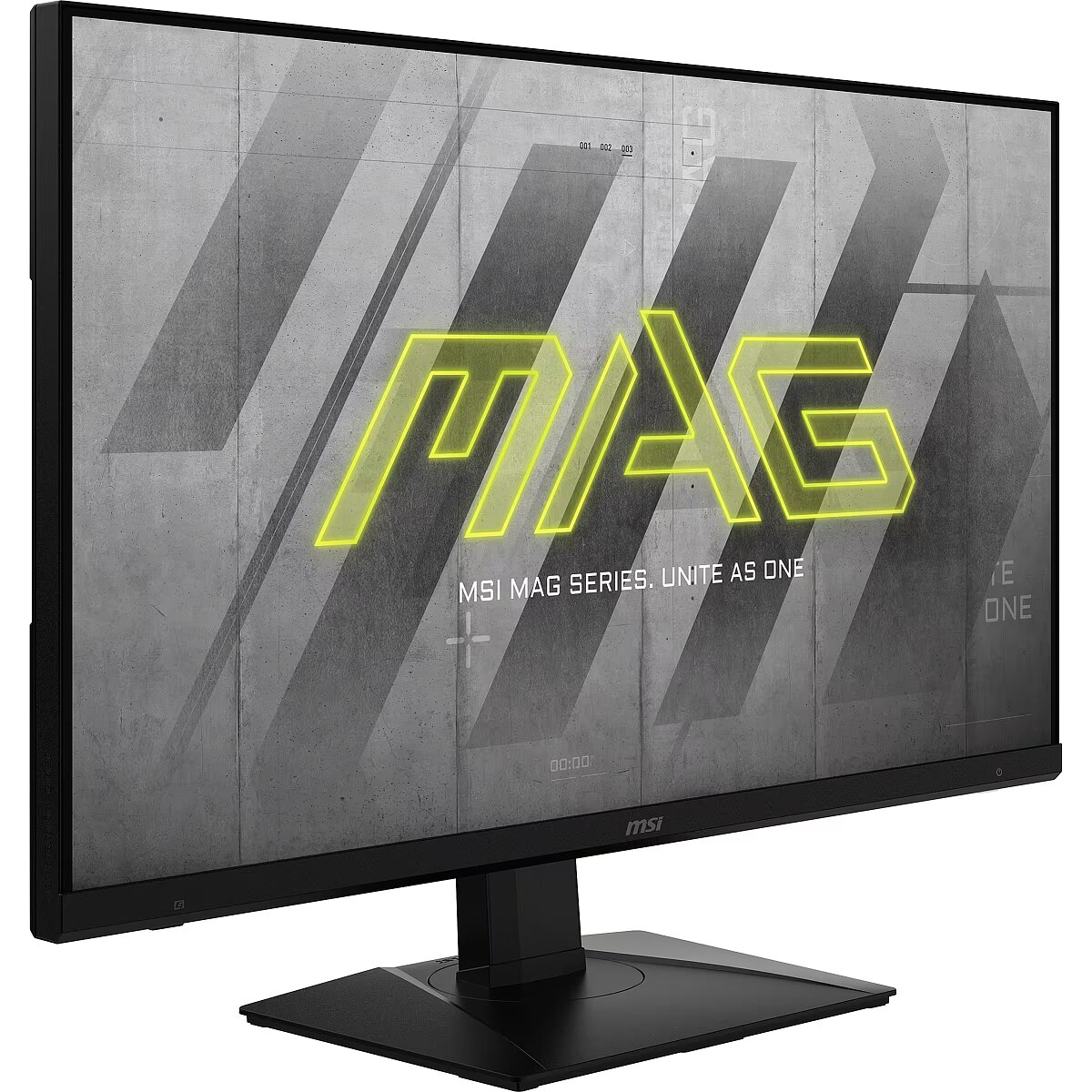

MSI MAG 323UPF, 32"

Name: MSI MAG 323UPF, 32"
Brand: MSI
SKU: 1131897
Price: 843.35 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1131897 Product code: MAG323UPF

In stock 23 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Courier delivery 3.99 €: on Wednesday, 20.11.2024

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 160 Hz
Response time: 1ms
Contrast ratio: 1000:1
Brightness: 440cd/m2
Size: 32"
Resolution: 4K UHD 3840x2160

Description

We offer to buy MSI 32" a monitor with 4K UHD 3840x2160 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
1ms the response time is suitable for games and dynamic films.

Display characteristics

AMD FreeSync : Ir

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 160 Hz

Touchscreen : NO

VESA DisplayHDR : DisplayHDR 400

Response time 1ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 440cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Gaming

Aspect ratio : 16:9

Color : Black

Size 32"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution 4K UHD 3840x2160

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Nav

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Nav

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : 90W

USB-C video input : 1

More detailed specification

Additional information in manufacturers website MSI MAG 323UPF, 32"

100 mm x 100 mm VESA mounting interface - Yes
Brand - MSI
BrandPartCode - MAG 323UPF
Category - Computer Monitors
Category Code - LC3
Colour - Black
Contrast - 1000:1
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/1619849/fiches?language=EN
Depth Unit Dimensions - 168 mm
Description - MAG 323UPF - Rapid IPS Panel – Provides 1ms fast GtG response time, optimizes screen colors and brightness. - 4K UHD High Resolution – Games will look even better, displaying more details. - 160Hz Refresh Rate – Respond faster with smoother frames. - 1ms GtG Response Time – Eliminate screen tearing and choppy frame rates. - HDMI™ 2.1-Best solution for console users. 4K 120Hz with HDMI™ interface. Bandwidth is up to 48gb - Gaming Intelligence APP – Create the perfect viewing settings for your games. - AMD Free-Sync premium Pro Technology – Tear free, stutter free, fluid gaming. - Adjustable Stand – Easily change the position of the monitor for maximum ergonomics. - VESA DisplayHDR 600 – Stunning visuals through contrast and shadow adjustment. - Night Vision – Smart black tuner to brighten your day by bringing out the fine details in dark areas.
Design - Frameless design - Yes
Design - Market positioning - Gaming
Design - Product colour - Black
Display - Aspect ratio - 16:9
Display - Colour gamut - 95%
Display - Colour gamut standard - DCI-P3
Display - Contrast ratio (dynamic) - 100000000:1
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness (typical) - 440 cd/m²
Display - Display diagonal - 81.3 cm (32")
Display - Display diagonal (metric) - 81.28 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 180 - 352 kHz
Display - Maximum refresh rate - 160 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel pitch - 0.1845 x 0.1845 mm
Display - Response time - 1 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 125.7%
Display - Supported graphics resolutions - 3840 x 2160
Display - Supported video modes - 2160p
Display - Touchscreen - No
Display - Vertical scan range - 48 - 160 Hz
Display - Viewable size, horizontal - 70.8 cm
Display - Viewable size, vertical - 39.9 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displayable colours - 1070 million
DisplayPort Input/Output connectors - 1
Display surface - Matte
Dynamic contrast (DCR) - 100000000:1
Energy consumption, standard - 34 kWh/1000h
Energy efficiency class - G
EPREL Registration Number - 1.61985e+006
EPREL Version Number - 2
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - 10 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - No
Ergonomics - Swivel angle range - -45 - 45°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 20°
Ergonomics - VESA mounting - Yes
Full Description Line - Model MAG 323UPF|32"|Gaming/4K|Panel IPS|Resolution 3840x2160|Form factor 16:9|Refresh rate 160Hz|Contrast 1000:1|Dynamic contrast (DCR) 100000000:1|Display Matte|Response time 1 ms|Horizontal 178 degrees|Vertical 178 degrees|Displayable colours 1070 million|2xHDMI|1xDisplayPort|3xUSB 2.0|1xUSB 2.0 type B|1xUSB-C|1xHeadphones jack|Swivel|Height adjustable|Tilt|100 mm x 100 mm|Kensington lock|Colour Black
GTIN - 0824142319635
GTIN - 824142319635
GTIN - 4711377085847
GTIN - 4711377085922
HDMI Input/Output connectors - 2
Headphones jack Input/Output connectors - 1
Height adjustable Stand - Yes
Height Unit Dimensions - 550 mm
Kensington lock support - Yes
LongDesc -
LongProductName - 81.3cm (32") 4K Ultra HD 3840 x 2160 IPS, 16:9, 440cd/m², 1.07B, 1ms, 178°/178°, 1000:1
LongSummaryDescription - MSI MAG 323UPF. Display diagonal: 81.3 cm (32"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0. VESA mounting, Height adjustment. Product colour: Black
Model name - MAG 323UPF
Monitor features - 4K/Gaming
Native resolution - 3840x2160
Packaging data - Package depth - 168 mm
Packaging data - Package height - 550 mm
Packaging data - Package weight - 12.5 kg
Packaging data - Package width - 975 mm
Panel type - IPS
Performance - AMD FreeSync - Yes
Performance - AMD FreeSync type - FreeSync Premium
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.4a
Ports & interfaces - DVI port - No
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - USB hub version - 2.0
Ports & interfaces - USB Type-A downstream ports quantity - 3
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB upstream port type - USB Type-B
Power - AC adapter output voltage - 19 V
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (HDR) per 1000 hours - 66 kWh
Power - Energy consumption (SDR) per 1000 hours - 34 kWh
Power - Energy efficiency class (HDR) - G
Power - Energy efficiency class (SDR) - G
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1619849
Power - Input current - 4.74 A
ProductName - MAG 323UPF
Refresh rate - 160Hz
Response time - 1 ms
Screen form factor - 16:9
Screen size - 32"
Shipping Box Depth Shipping/Package Box Dimensions - 97 cm
Shipping Box Height Shipping/Package Box Dimensions - 54.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 12.5 kg
Shipping Box Width Shipping/Package Box Dimensions - 16.5 cm
ShortSummaryDescription - MSI MAG 323UPF, 81.3 cm (32"), 3840 x 2160 pixels, 4K Ultra HD, 1 ms, Black
Standby consumption - 0.5 Watts
Swivel Stand - Yes
Tilt Stand - Yes
Title - MSI MAG 323UPF computer monitor 81.3 cm (32") 3840 x 2160 pixels 4K Ultra HD Black
Unit Box Height - 0.545
Unit Box Length - 0.97
Unit Box Width - 0.165
Unit Brutto Volume - 0.08723 cubm
Unit Gross Weight - 12.5 kg
Unit Net Weight - 9.7 kg
URL - https://www.msi.com/index.php
USB-C Input/Output connectors - 1
USB 2.0 Input/Output connectors - 3
USB 2.0 type B Input/Output connectors - 1
Vendor Homepage - www.msi.com/Monitor/MAG-323UPF
Viewing angle horizontal - 178 degrees
Viewing angle vertical - 178 degrees
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 72.9 mm
Weight & dimensions - Depth (with stand) - 233.7 mm
Weight & dimensions - Height (without stand) - 432.4 mm
Weight & dimensions - Height (with stand) - 494.9 mm
Weight & dimensions - Weight (without stand) - 6.8 kg
Weight & dimensions - Weight (with stand) - 9.7 kg
Weight & dimensions - Width (without stand) - 727.1 mm
Weight & dimensions - Width (with stand) - 727.1 mm
Width Unit Dimensions - 727.1 mm
