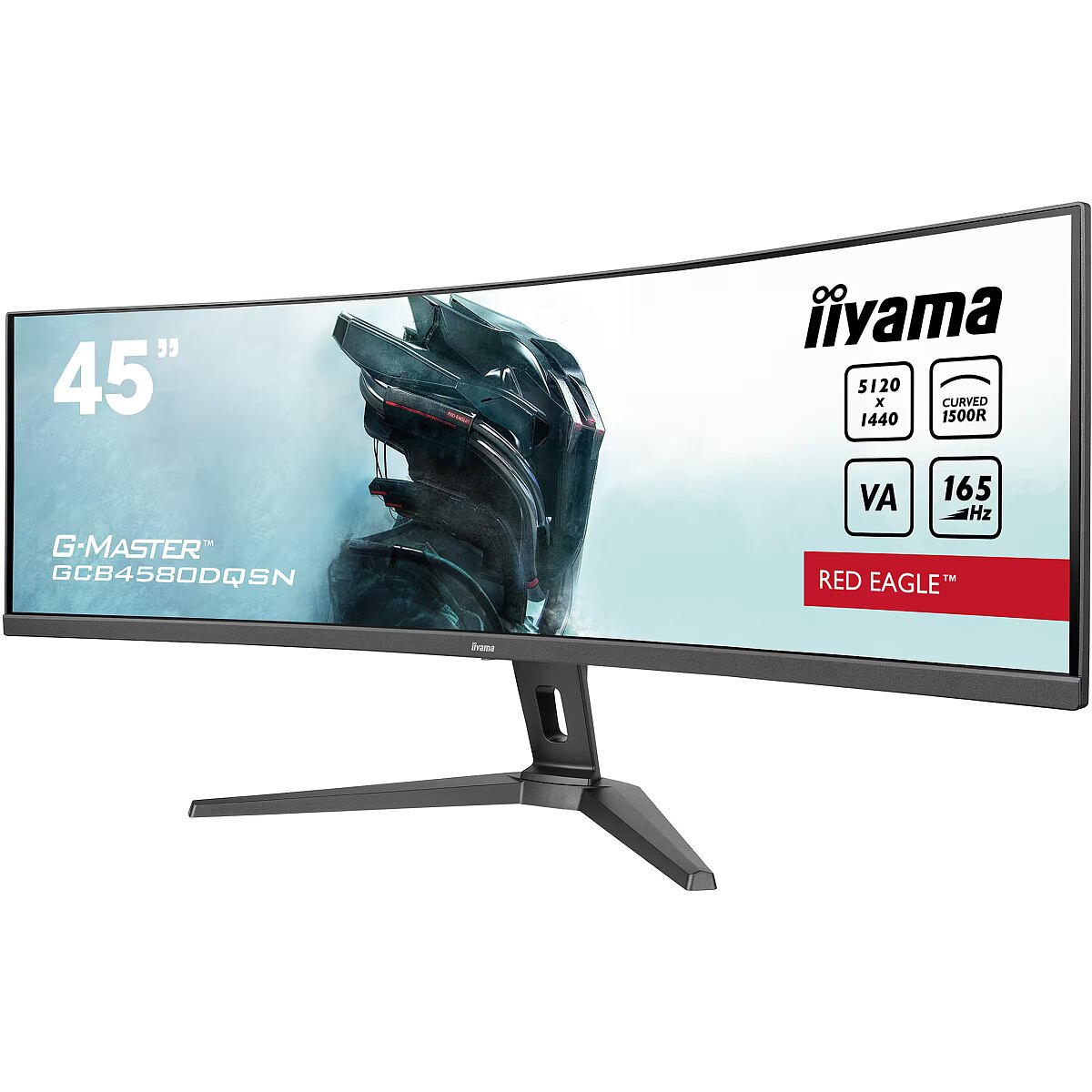

Iiyama G-Master GCB4580DQSN-B1, 44.5"

Name: Iiyama G-Master GCB4580DQSN-B1, 44.5"
Brand: Iiyama
SKU: 1077695
Price: 918.1 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1077695 Product code: GCB4580DQSN-B1

In stock 3 units

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Courier delivery 3.99 €: on Thursday, 28.11.2024

Main product parameters All parameters

Curved: Ir
Panel Type: VA
Refresh rate: 165 Hz
Response time: 0.8ms
Contrast ratio: 3000:1
Brightness: 450cd/m2
Size: 44.5"
Resolution: DQHD 5120x1440

Description

We offer to buy Iiyama 44.5" a monitor with DQHD 5120x1440 resolution.

The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.

Display characteristics

AMD FreeSync : Ir

Curved : Ir

NVIDIA G-SYNC : Nav

Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 165 Hz

Touchscreen : NO

VESA DisplayHDR : DisplayHDR 400

Response time 0.8ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 3000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 450cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Gaming

Aspect ratio : 32:9

Color : Black

Size 44.5"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution DQHD 5120x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Nav

Swivel : None

Tilt : YES

VESA wall mount : 100x100 mm

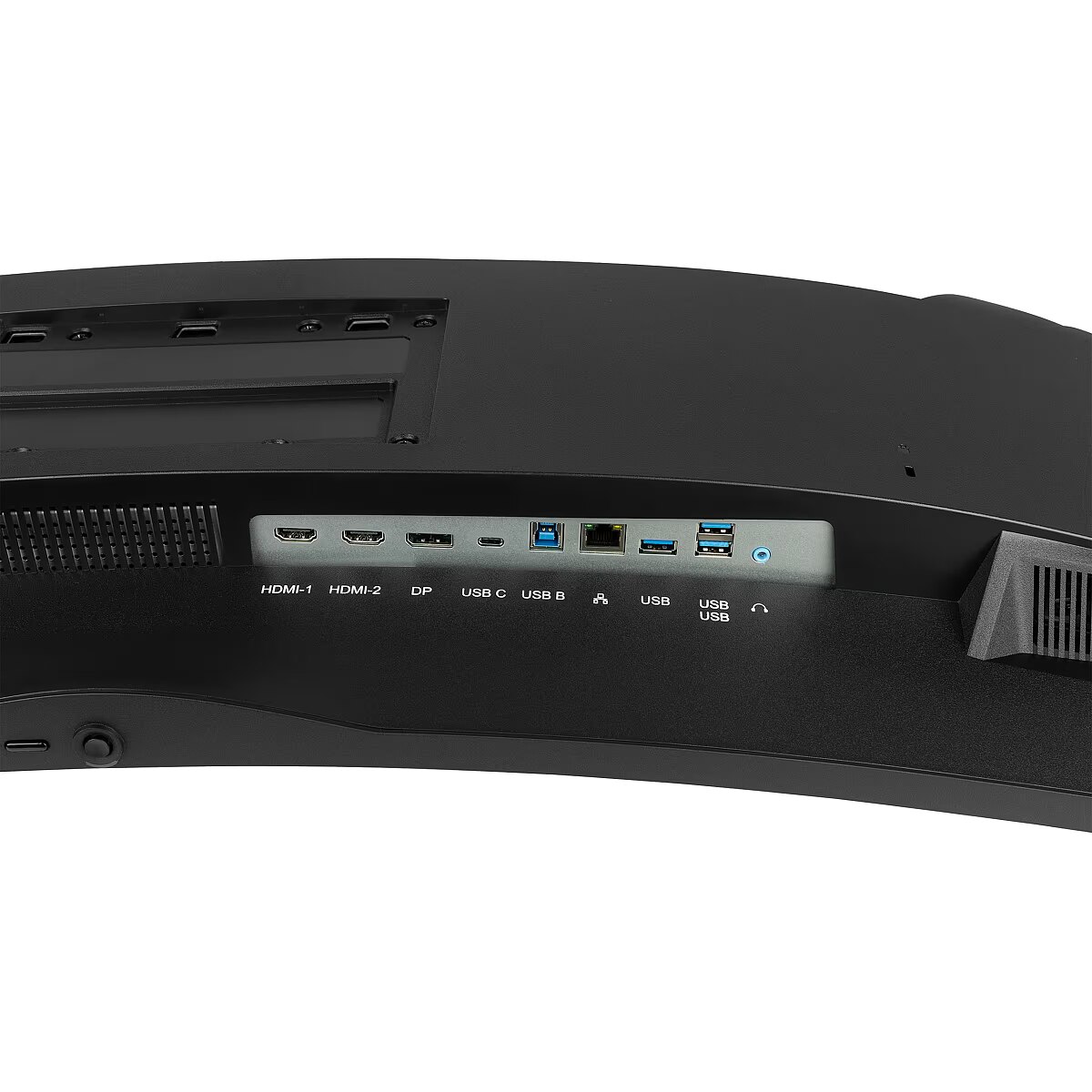

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : 90W

USB-C video input : 1

More detailed specification

Additional information in manufacturers website Iiyama G-Master GCB4580DQSN-B1, 44.5"

100 mm x 100 mm VESA mounting interface - Yes
ARTIKEL1 - GCB4580DQSN-B1 45IN DQHD
ARTIKEL2 - 44.5IN ETE DQHD CURVED GAMING 15
Brand - iiyama
BrandPartCode - GCB4580DQSN-B1
Breite - 0.48
Brightness - 450
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Category 1 - Displays
Category 2 - Monitore
Category Code - LC3
Category_1 - Monitors and TV
Category_2 - LED Monitors 31 inches and up
Colour - Black
Contrast - 3000:1
Data Sheet (Link) - https://eprel.ec.europa.eu/api/product/1774067/fiches?language=EN
Depth Unit Dimensions - 275 mm
Description - G-MASTER GCB4580DQSN-B1 Immerse yourself in the game with the curved 45’’ Dual QHD Red Eagle Gaming Display Unleash a panoramic visual experience and immerse yourself into your gaming world with this ultra-wide DQHD 5120 x 1440 resolution 32:9 display. With 1500R curved VA panel with a 165Hz refresh rate featuring 0.8ms MPRT, delivering a high framerate and smooth yet sharp rendered images with beautiful colour, that brings your games to life.
Design - Detachable stand - Yes
Design - Feet colour - Black
Design - Market positioning - Gaming
Design - Product colour - Black
Display - Backlight type - LED
Display - Contrast ratio (dynamic) - 80000000:1
Display - Contrast ratio (typical) - 3000:1
Display - Digital horizontal frequency - 30 - 260 kHz
Display - Display brightness (typical) - 450 cd/m²
Display - Display diagonal - 114.3 cm (45")
Display - Display diagonal (metric) - 113 cm
Display - Display resolution - 5120 x 1440 pixels
Display - Display surface - Matt
Display - Display technology - LED
Display - HD type - Dual QHD
Display - High Dynamic Range (HDR) supported - Yes
Display - High Dynamic Range (HDR) technology - High Dynamic Range (HDR) 400
Display - Maximum refresh rate - 165 Hz
Display - Native aspect ratio - 32:9
Display - Panel type - VA
Display - Pixel pitch - 0.212 x 0.212 mm
Display - Response time - 0.8 ms

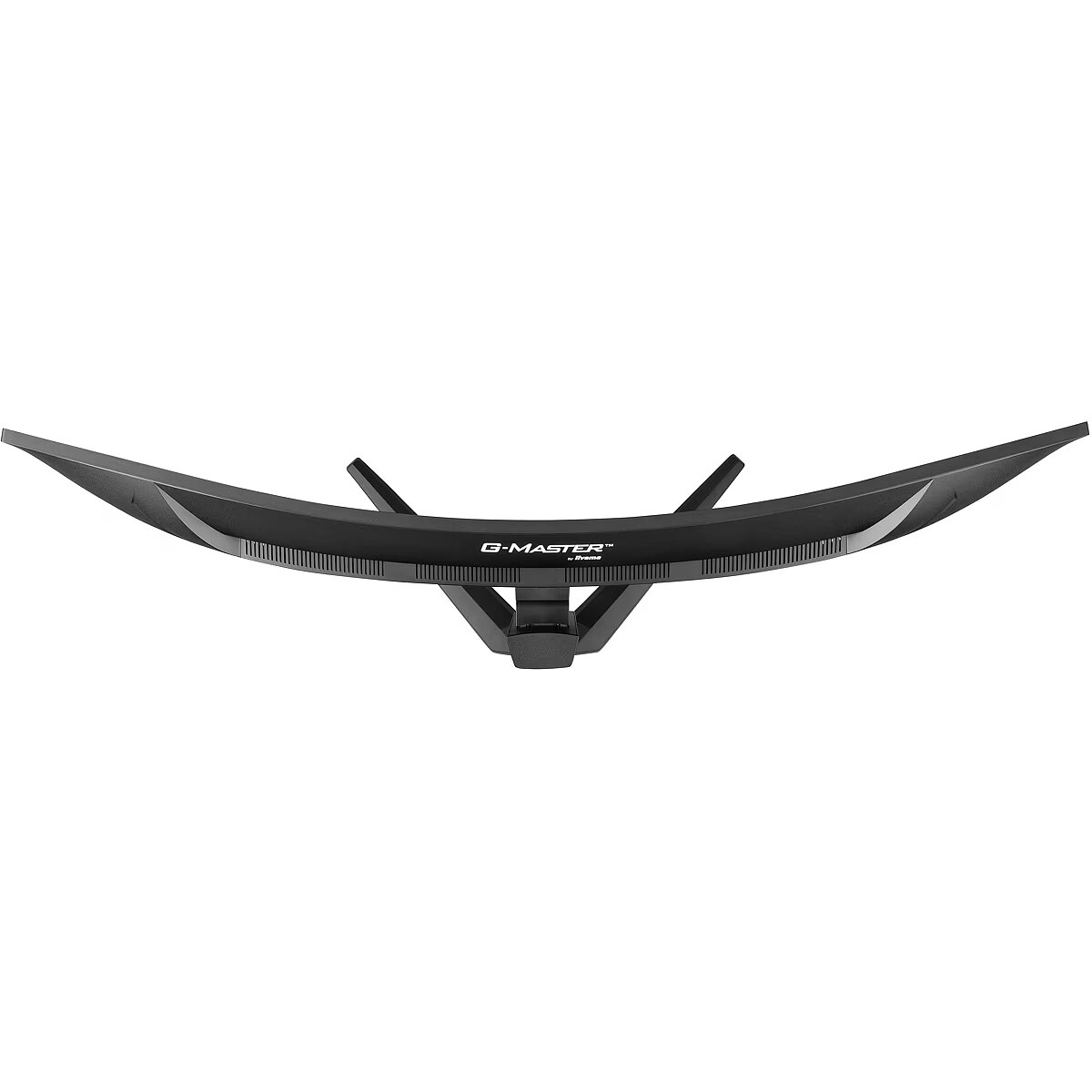

Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - Touchscreen - No
Display - Viewable size, horizontal - 30.6 cm
Display - Viewable size, vertical - 108.8 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displayable colours - 16.7 million
DisplayPort Input/Output connectors - 1
Display surface - Matte
EAN - 4948570122264
EANCode - 4948570122264
Eans - 4948570122264
EAN_code - 4948570122264
Energy consumption, standard - 37 kWh/1000h
Energy efficiency class - F
EPREL Registration Number - 1.77407e+006
EPREL Version Number - 1
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - 13 cm
Ergonomics - Height adjustment - Yes
Ergonomics - Number of OSD languages - 9
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Czech, German, English, French, Hungarian, Italian, Japanese, Polish, Russian
Ergonomics - Panel mounting interface - 100 x 100,200 x 100 mm
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - 3 - 20°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - No
Full Description Line - Model GCB4580DQSN-B1|45"|Curved|Panel VA|Resolution 5120x1440|Form factor 32:9|Refresh rate 165Hz|Brightness 450|Contrast 3000:1|Display Matte|Response time 0.8 ms|Horizontal 178 degrees|Vertical 178 degrees|Displayable colours 16.7 million|2xHDMI|1xDisplayPort|3xUSB 3.2|1xUSB-C|1xHeadphones jack|1xRJ45|Speakers|Height adjustable|Tilt|100 mm x 100 mm|Kensington lock|Included Accessories Cables power, USB, HDMI, DPOther quick start guide, safety guide|Colour Black
Gewicht - 16.32
GRUPPE1 - Displays
GRUPPE2 - Led Small Format
GTIN - 4948570122264
HDMI Input/Output connectors - 2
Headphones jack Input/Output connectors - 1
Height adjustable Stand - Yes
Height Unit Dimensions - 409 mm
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0.33
HSTNUMMER - GCB4580DQSN-B1
Included Accessories - Cables power, USB, HDMI, DP
Other quick start guide, safety guide
Kensington lock support - Yes
Laenge - 1.28
LongDesc - G-MASTER GCB4580DQSN-B1Immerse yourself in the game with the curved 45’’ Dual QHD Red Eagle Gaming DisplayUnleash a panoramic visual experience and immerse yourself into your gaming world with this ultra-wide DQHD 5120 x 1440 resolution 32:9 display. With 1500R curved VA panel with a 165Hz refresh rate featuring 0.8ms MPRT, delivering a high framerate and smooth yet sharp rendered images with beautiful colour, that brings your games to life.DQHDUltra-wide 32:9 monitors boasting DQHD 5120 x 1440 resolution, also recognized as Dual QHD, guarantee razor-sharp images that bring your games to life. These monitors empower you to organize your gaming setup for an unparalleled gaming experience. You won't miss a single detail!165HZ & 0.8MS MPRTWith 165Hz refresh rate and 0.8ms MPRT response time the force is with you! Make split second decisions and be sure the image on the screen is always sharp and smooth.CURVED DESIGN 1500RThe 1500R curvature of the screen guarantees a realistic and comfortable viewing experience allowing you to really immerse yourself in the game.VA PANEL TECHNOLOGYGuaranteeing excellent contrast ratio making all the nuances between the light and dark colours clearly visible.BLACK TUNERThe users can adjust the brightness and the dark shades with the Black Tuner, giving greater viewing performance in shadowed areas and helping to spot the enemy earlier.
LongProductName - 45" DQHD, 5120x1440, 165Hz, VA, 1500R, 450cd/m², 3000:1, 80M:1, 0.8ms, 32:9, 178°/178°, 30-260kHz, 2 x 3W Audio, KVM, 2x HDMI, 1x DisplayPort, 3x USB 3.2Gen.1 Type-A, 1x USB 3.2 Gen.1 Type-C, RJ45, HDCP, 3.5mm Audio Out, Blue light reducer, Flicker free, FreeSync, HDR400, Kensington-Lock, VESA 100x100/200x100, 100-240V, 50/60Hz, 37W, 1090x275x409mm, 11.2kg
LongSummaryDescription - iiyama G-MASTER RED EAGLE CURVED. Display diagonal: 114.3 cm (45"), Display resolution: 5120 x 1440 pixels, HD type: Dual QHD, Display technology: LED, Display surface: Matt, Response time: 0.8 ms, Native aspect ratio: 32:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Manufacturer - Iiyama
Manufacturer - iiyama
Manufacturer_code - GCB4580DQSN-B1
Model name - GCB4580DQSN-B1
Monitor features - Curved
MPN - GCB4580DQSN-B1
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 6 W
Name - 113cm/45" (5120x1440) iiyama G-MASTER GCB4580DQSN-B1 32:9 DQHD Curved 165Hz 0,8ms HDMI DP USB-C RJ45 KVM LS Black
Name - iiyama G- Master GCB4580DQSN-B1 Red Eagle - 45'' | VA | DQHD | 0.8ms | 165Hz
Name - iiyama G-Master GCB4580DQSN-B1, gaming monitor - 44 - black (matt), DQHD, VA, curved, AMD Free-Sync, 165Hz panel
Native resolution - 5120x1440
Network - Ethernet LAN - Yes
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Other features - Brand specific technologies - Black Equalizer, Eye Saver
Other features - Compliance certificates - CE, PSE, REACH, RoHS, cTUVus, UKCA, VCCI, WEEE
Other features - Volume control - Buttons
Packaging content - Cables included - DisplayPort, HDMI, Power, USB
Packaging content - Manual - Yes
Packaging content - Power adapter included - Yes
Packaging content - Quick start guide - Yes
Packaging content - Stand included - Yes
Panel type - VA
Performance - AMD FreeSync - Yes
Performance - ConnectShare (USB) - Yes
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Pixel size - 0.212 mm
Ports & interfaces - Built-in KVM switch - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery up to - 90 W
Ports & interfaces - USB Type-A downstream ports quantity - 3
Ports & interfaces - USB Type-C downstream ports quantity - 1
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (HDR) per 1000 hours - 67 kWh
Power - Energy consumption (SDR) per 1000 hours - 37 kWh
Power - Energy efficiency class (HDR) - G
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1774067
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 37 W
Power - Power supply type - External
Producer - iiyama
ProducerCode - GCB4580DQSN-B1
ProductName - RED EAGLE CURVED
Refresh rate - 165Hz
Response time - 0.8 ms
RJ45 Input/Output connectors - 1
Screen form factor - 32:9
Screen size - 45"
Shipping Box Depth Shipping/Package Box Dimensions - 126 cm
Shipping Box Height Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 17 kg
Shipping Box Width Shipping/Package Box Dimensions - 31.5 cm
ShortDescription - 45'' | VA | DQHD | 0,8ms | 165Hz
ShortSummaryDescription - iiyama G-MASTER RED EAGLE CURVED, 114.3 cm (45"), 5120 x 1440 pixels, Dual QHD, LED, 0.8 ms, Black
Speakers - Yes
Standby consumption - 0.4 Watts
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability certificates - ErP
Sustainability - Sustainability compliance - Yes
Tilt Stand - Yes
Title - iiyama G-MASTER RED EAGLE CURVED computer monitor 114.3 cm (45") 5120 x 1440 pixels Dual QHD LED Black
Unit Box Height - 0.465
Unit Box Length - 1.26
Unit Box Width - 0.315
Unit Brutto Volume - 0.1846 cubm
Unit Gross Weight - 17 kg
Unit Net Weight - 11.2 kg
URL - https://iiyama.com/gl_en/products/g-master-gcb4580dqsn-b1/
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 3
Vendor Homepage - iiyama.com/gl_en/products/g-master-gcb4580dqsn-b1/
Viewing angle horizontal - 178 degrees
Viewing angle vertical - 178 degrees
Warranty - 36 months
WarrantyInfo - 3 Years
Weight - 16,15
Weight - 16.38
Weight & dimensions - Depth (with stand) - 275 mm
Weight & dimensions - Height (with stand) - 409 mm
Weight & dimensions - Weight (with stand) - 11.2 kg
Weight & dimensions - Width (with stand) - 1090 mm
Width Unit Dimensions - 1090 mm
