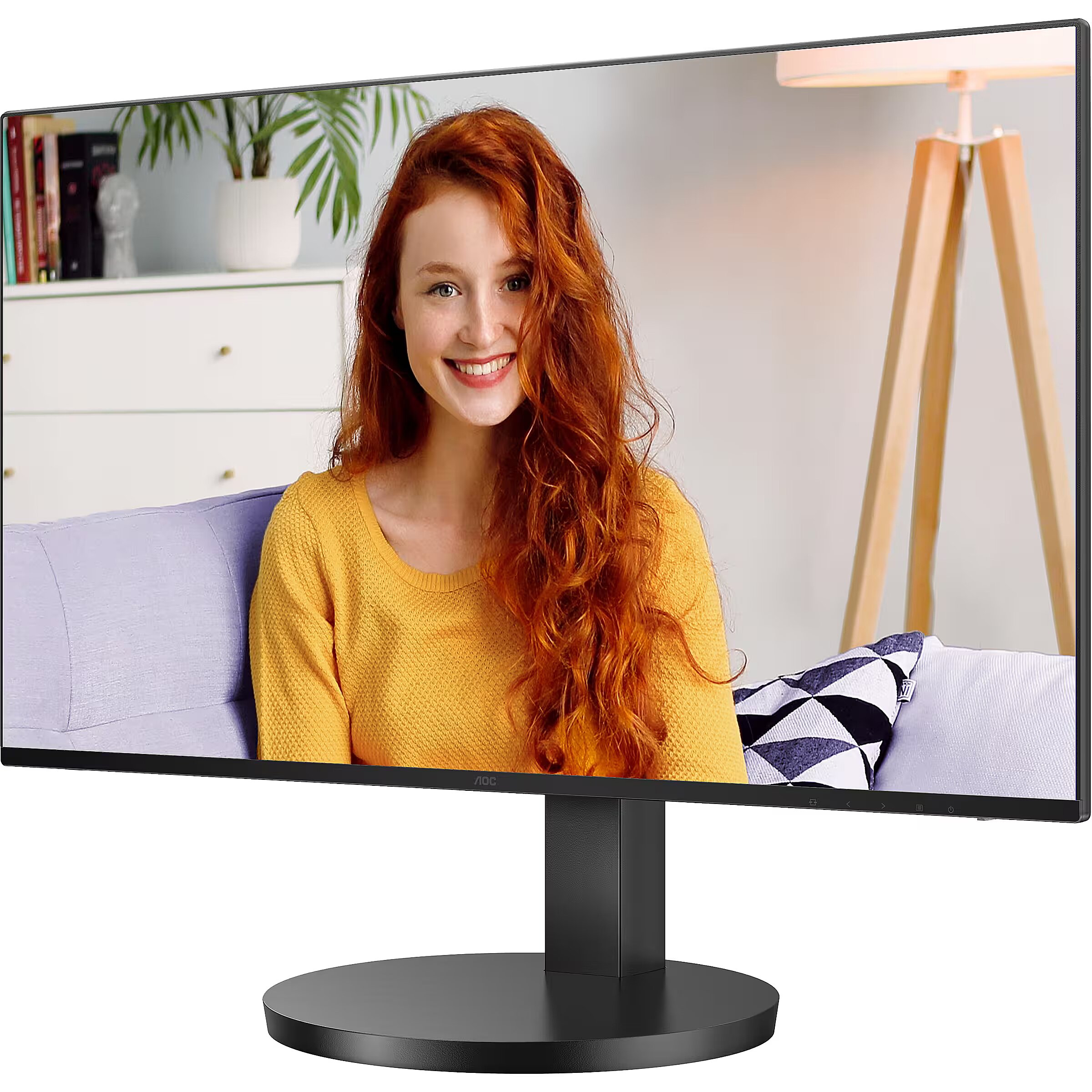

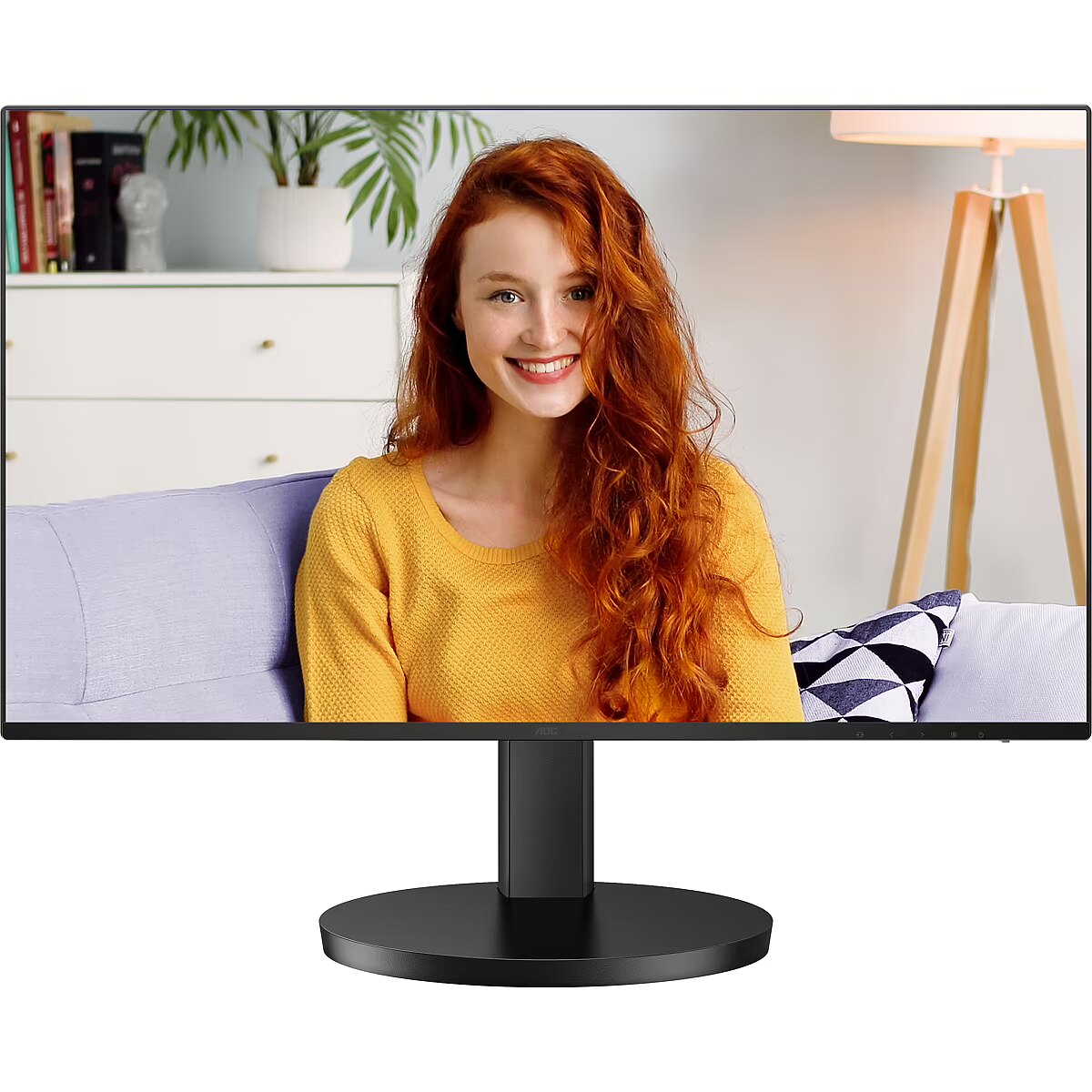

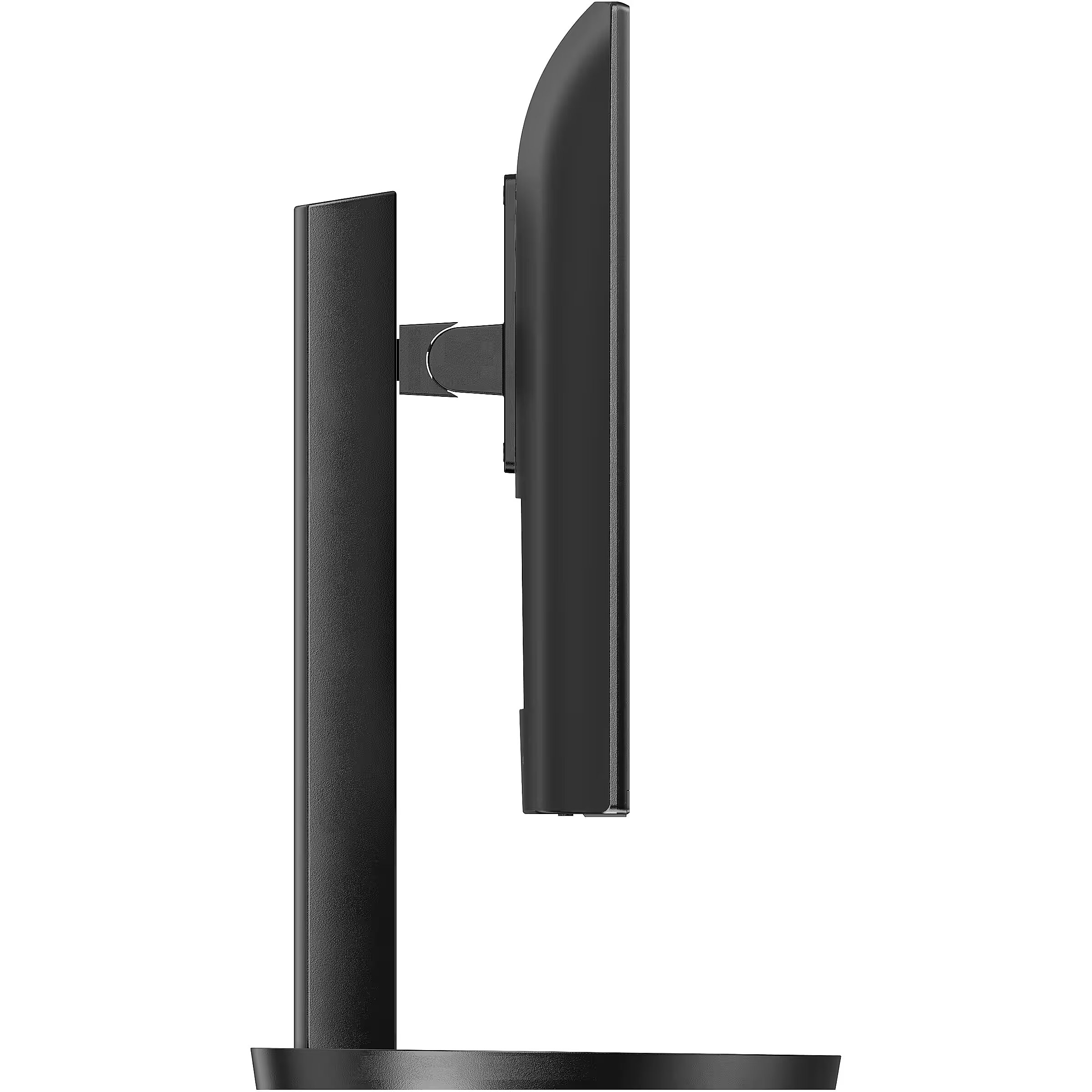

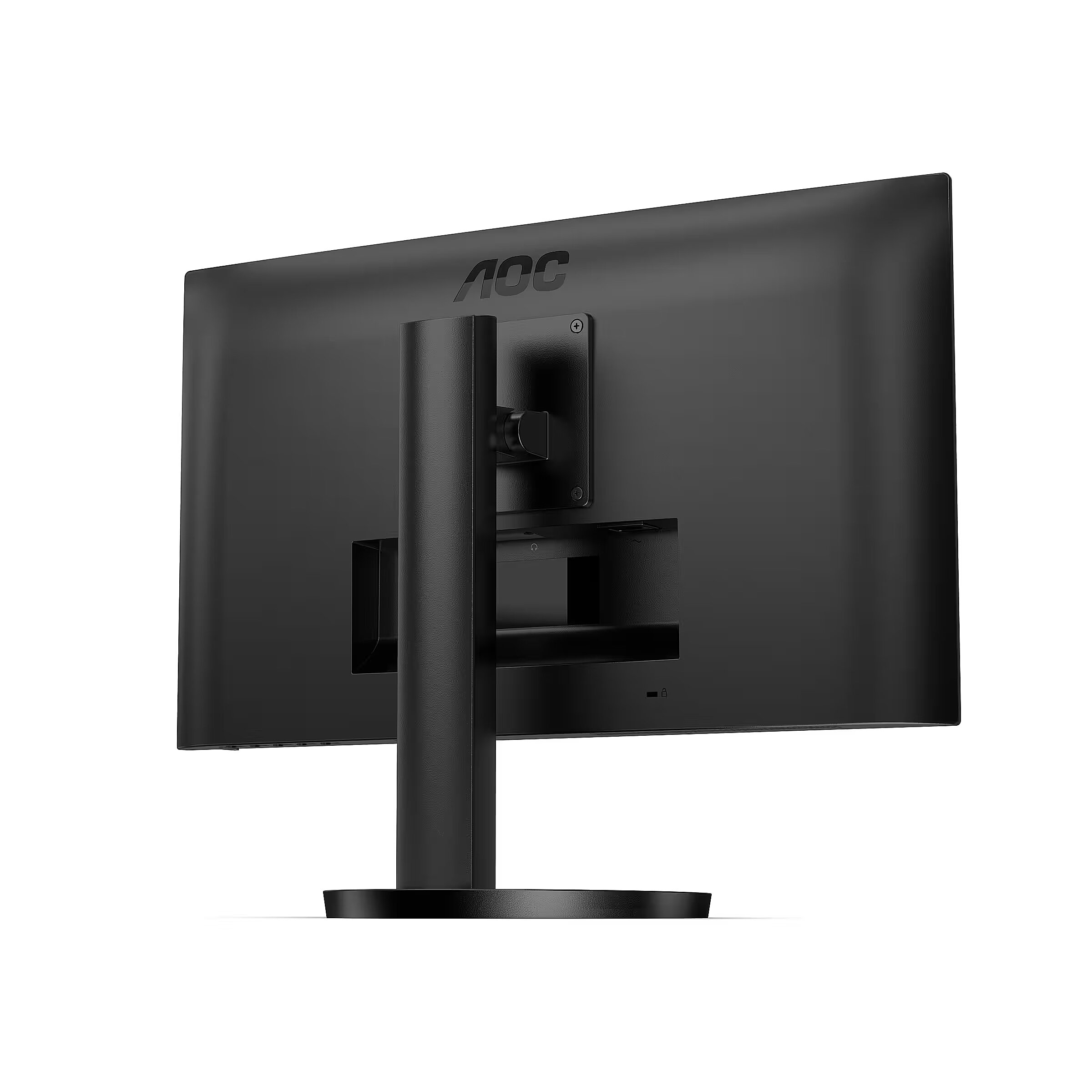

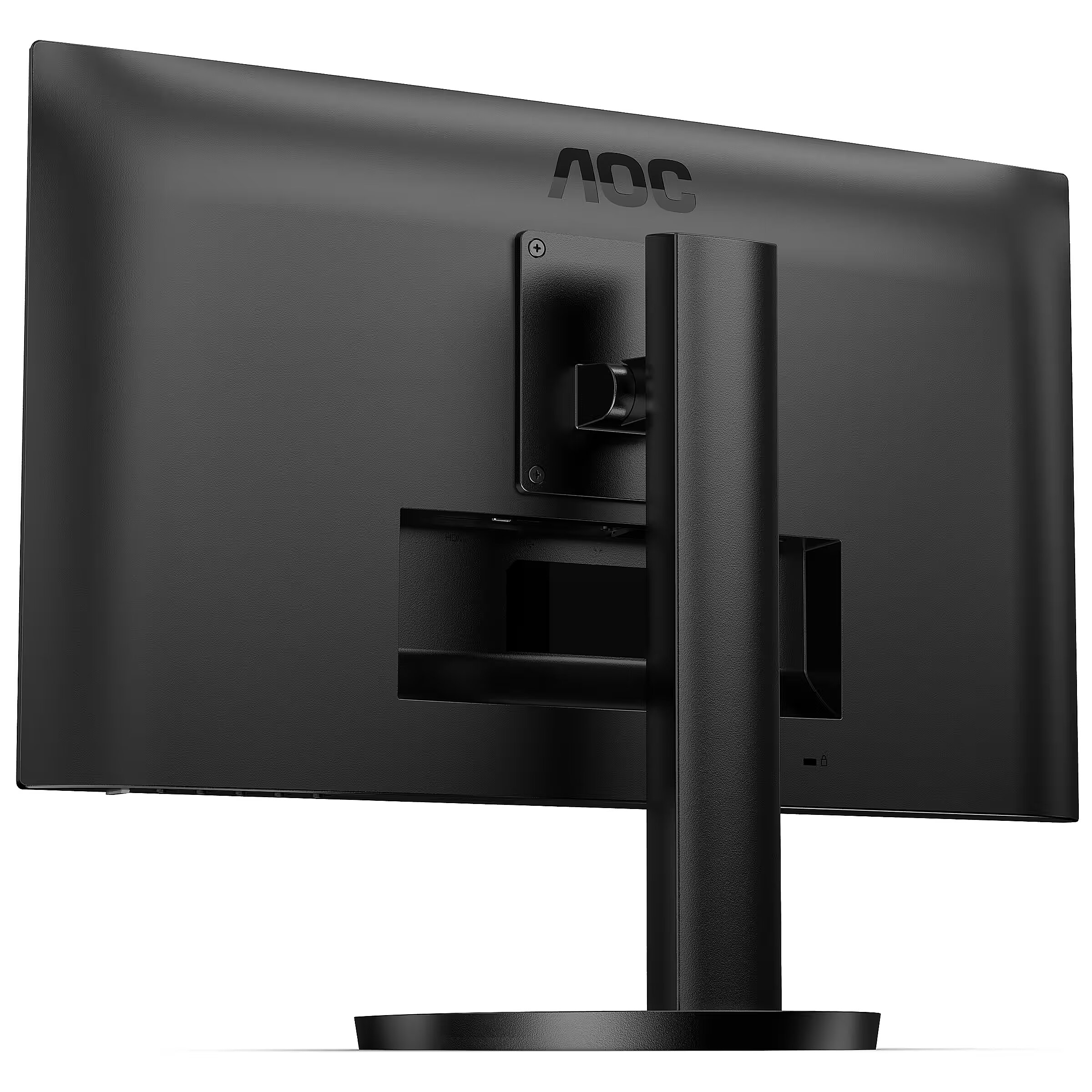

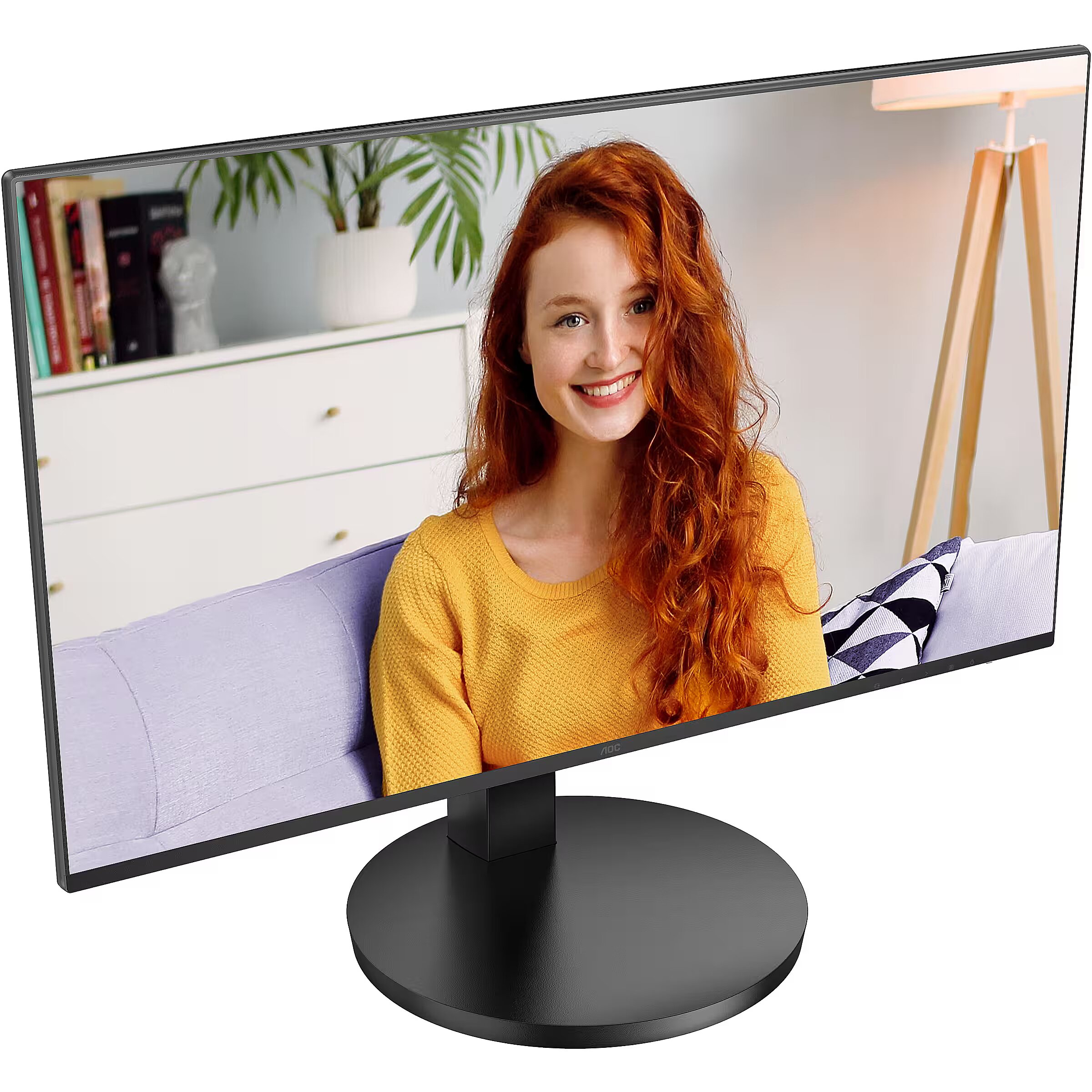

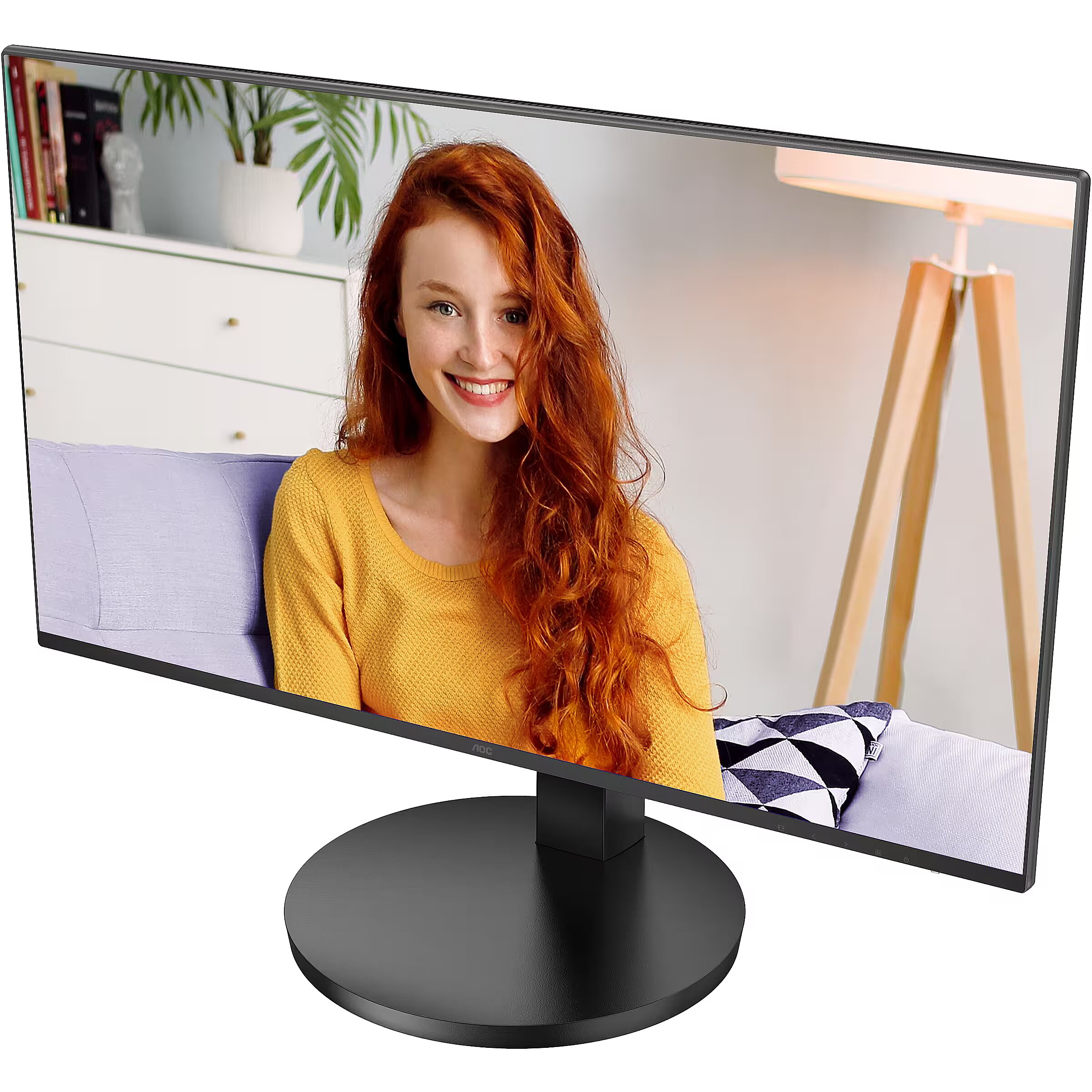

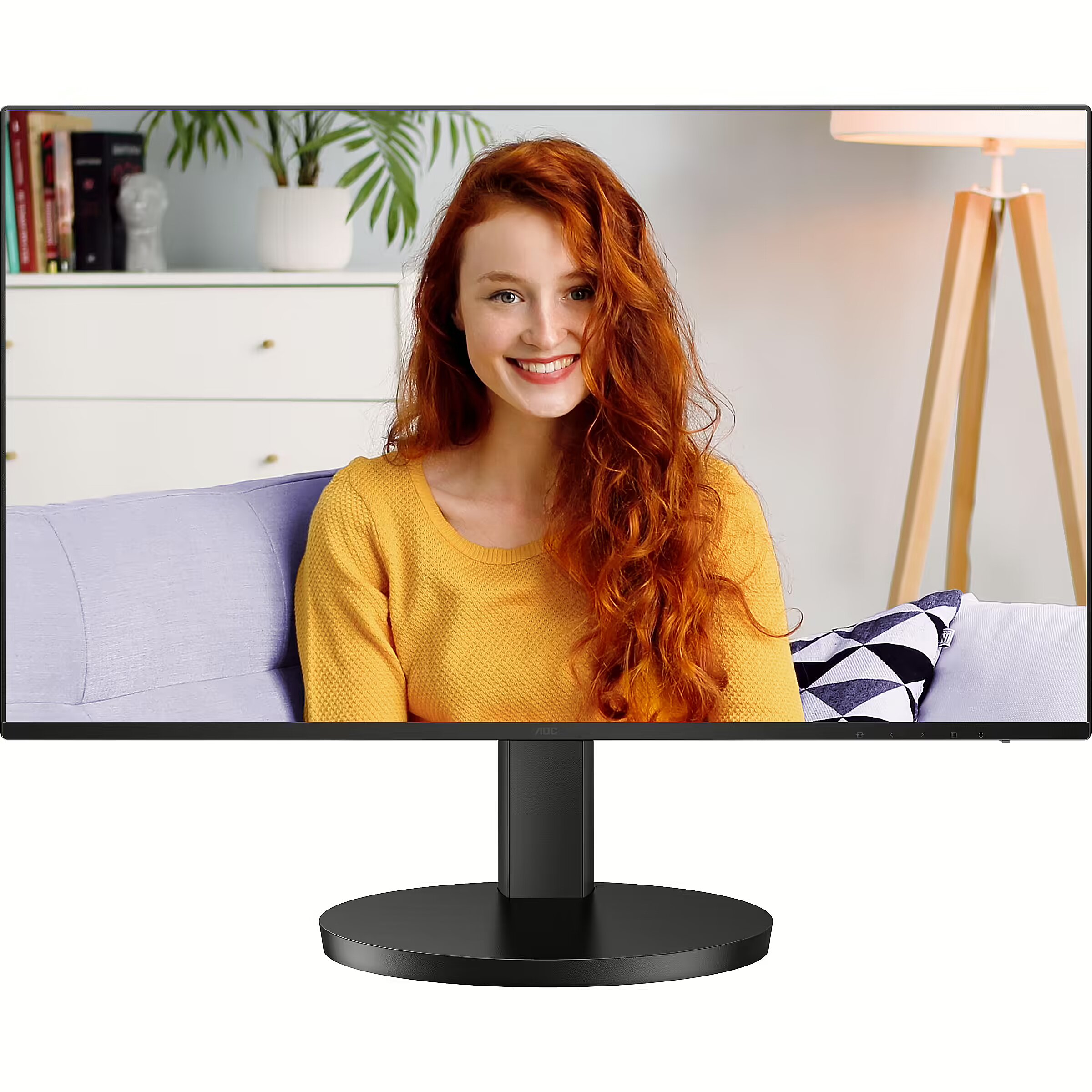

AOC 24B3CF2, 23.8"

Name: AOC 24B3CF2, 23.8"
Brand: AOC
SKU: 1067517
Price: 161.75 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1067517 Product code: 24B3CF2

Can be ordered 65 units Availability: 14 days after order approval

Warranty: 3 years

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Courier delivery 3.99 €: 11.12.2024

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 100 Hz
Response time: 1ms
Contrast ratio: 1300:1
Brightness: 250cd/m2
Size: 23.8"
Resolution: FHD 1920x1080

Description

We offer to buy AOC 23.8" a monitor with FHD 1920x1080 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
The port D-SUB supports graphics cards with the preceding generation analogous VGA plug-in and the comparatively newer generation DVI-I standard using a transition DVI-I -> D-Sub.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.
1ms fast response time makes this monitor perfectly suitable for enjoying computer games and dynamic films.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 100 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 1ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1300:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 23.8"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Nav

Swivel : None

Tilt : YES

VESA wall mount : 100x100 mm

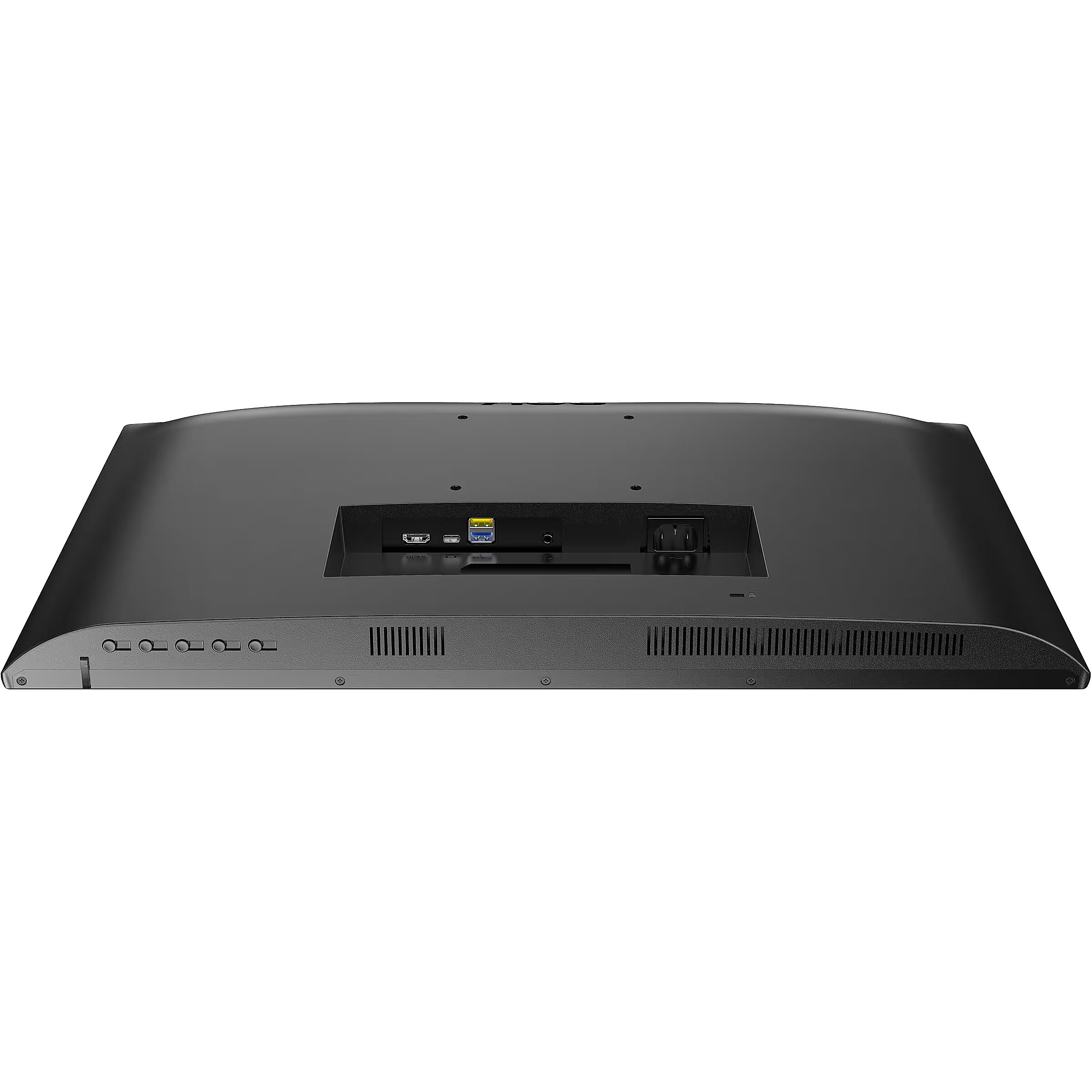

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : 65W

USB-C video input : 1

More detailed specification

Additional information in manufacturers website AOC 24B3CF2, 23.8"

Accessories included - HDMI 1.5 Cable USB-C to C 1.8 Cable Power Cable Power Supply
ARTIKEL1 - 24B3CF2 23.8IN IPS
ARTIKEL2 - 1920X1080 16:9 1 MS SCHWARZ
Aspect ratio - 16:9
Auto Pivot - No
Bluetooth - No
Brand - AOC
BrandPartCode - 24B3CF2
Breite - 0
Brightness - 250 cd/m²
Category - Computer Monitors
Category - Root/Electronics/PC peripherals/Monitors
Color - Black
Curved - 0 R
Depth - 44.6 mm
Depth with stand - 229.8 mm
Description - 24B3CF2 23.8 inch IPS 100Hz HDMI USB-C HAS Monitor Compact brilliance with USB-C connectivity and height-adjustable stands for enhanced productivity Introducing the latest addition to the B3 lineup, a brilliant 23.8-inch display with an IPS panel that delivers stunning visuals and true-to-life colors. If youre looking for a monitor with a compact footprint, the 24B3CF2 is the perfect choice. It also features USB-C connectivity, meaning you can kill three birds with one stone. You can get video, power, and data all with a single cable, boosting your productivity. This monitor comes with height-adjustable stands that seamlessly integrate ergonomic features into your workspace. With the ability to adjust the height to suit your preferences, you can achieve the perfect viewing angle, reducing neck and eye strain during long work or study sessions. Whether you are working or studying, enjoy a more comfortable and enjoyable viewing experience with the compact 24B3CF2 screen.
Design - Detachable stand - Yes
Design - Feet colour - Black
Design - Frameless design - Yes
Design - Front bezel colour - Black
Design - Market positioning - Home
Design - Product colour - Black
dimension depth - 615 mm
dimension height - 160 mm
dimension weight - 7000 g
dimension width - 520 mm
Display - Adobe RGB coverage - 87.8%
Display - Anti-glare screen - Yes
Display - Backlight type - W-LED
Display - BT.2020 coverage - 59.5%
Display - Contrast ratio (dynamic) - 20000000:1
Display - Contrast ratio (typical) - 1300:1
Display - DDC/CI - Yes
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 60.5 cm (23.8")
Display - Display diagonal (metric) - 60.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - Haze rate - 25%
Display - HD type - Full HD
Display - High Dynamic Range (HDR) supported - Yes
Display - Maximum refresh rate - 100 Hz
Display - Native aspect ratio - 16:9
Display - NTSC coverage (typical) - 89.4%
Display - Panel type - IPS
Display - Pixel density - 93 ppi
Display - Pixel pitch - 0.2745 x 0.2745 mm
Display - Response time - 1 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 102.5%
Display - Surface hardness - 3H
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Display surface - Matt
Dynamic contrast - 20 000 000:1
ean - 4038986141437
EANCode - 4038986141437
Eans - 4038986141437
Energy class - E
Energy label - Pobierz
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - 11 cm
Ergonomics - LED indicators - Operation, Stand-by
Ergonomics - Number of OSD languages - 19
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - No
Ergonomics - Plug and Play - Yes
Ergonomics - Swivelling - No
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 23°
Ergonomics - VESA mounting - Yes
Gewicht - 7.1
GRUPPE1 - Displays
GRUPPE2 - Led Small Format
GTIN - 4038986141437
guarantee - 36
guarantee_type - external
Height - 316.2 mm
Height (max) - 469.9 mm
Height adjustment - Yes
Height with stand - 359.9 mm
HERSTELLER - AOC
Hoehe - 0
HSTNUMMER - 24B3CF2
I/O connectors - 1 x Audio out
I/O connectors - 1 x HDMI
I/O connectors - 1 x USB 3.2 Type-C Gen 1
I/O connectors - 2 x USB 3.2 Type-A Gen 1
Laenge - 0
LongDesc - Compact brilliance with USB-C connectivity and Height-Adjustable Stands for enhanced productivityIntroducing the newest addition to the B3 line– a brilliant 23,8-inch display featuring an IPS panel for breathtaking visuals and true-to-life colors. If you're looking for a compact sized monitor, the 24B3CF2 is the ideal choice. Also, it offers USB-C which means it is possible to catch three birds with one stone. By one single cable, video signal, power delivery and data transfer are available which will improve your productivity. This monitor boasts height-adjustable stands, seamlessly integrating ergonomic features into your workspace. With the ability to customize the height according to your preferences, you can achieve the perfect viewing angle, reducing strain on your neck and eyes during extended work or studying sessions. Whether you're working or studying, enjoy a more comfortable and enjoyable viewing experience with the compact screen size of the 24B3CF2.
LongProductName - Screen size (inch) 23.8, Panel resolution 1920x1080, Refresh rate 100 Hz, Response time MPRT 1 ms, Panel type IPS, USB-C connectivity USB-C 3.2 x 1 (DP alt mode, upstream, power delivery up to 65 W), HDMI HDMI 1.4 x 1, D-SUB (VGA) 0x, DVI 0x, Sync technology (VRR) Adaptive Sync
LongSummaryDescription - AOC B3 24B3CF2. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 1 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
Matrix type - TFT IPS
Model - 24B3CF2
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Name - AOC 24B3CF2 - 24'' | IPS | Full HD | 1ms | 100Hz | HDR
name - AOC 24B3CF2 23.8 inch IPS 100Hz HDMI USB-C HAS
Number of colors - 16,7 mln
Optional accessory -
Other features -
Other features - Mean time between failures (MTBF) - 30000 h
Other features - Warranty period - 3 year(s)
Packaging content - Cables included - AC, HDMI, USB Type-C to USB Type-C
Packaging content - HDMI cable length - 1.5 m
Packaging content - Power adapter included - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 162 mm
Packaging data - Package height - 519 mm
Packaging data - Package type - Box
Packaging data - Package weight - 7.04 kg
Packaging data - Package width - 613 mm
Performance - Fast charging - Yes
Performance - Fast charging technology - Power Delivery
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Performance - VESA Adaptive Sync support - Yes
Performance - Windows operating systems supported - Windows 10, Windows 11, Windows 8.1
Ports & interfaces - AC (power) in - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - Charging port type - USB Type-C
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 1.4
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4b
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Power Delivery - Yes
Ports & interfaces - USB Power Delivery up to - 65 W
Ports & interfaces - USB Type-A downstream ports quantity - 2
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Ports & interfaces - USB Type-C downstream ports quantity - 1
Ports & interfaces - USB upstream port type - USB Type-A
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 130 W
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 30 W
Power - Power supply type - Internal
Power consumption - 18 W
producer - AOC
Producer - AOC
ProducerCode - 24B3CF2
ProductName - 24B3CF2
Refresh rate - 100 Hz
Resolution - 1920 x 1080 (FHD 1080)
Response time - 4 ms
Screen size (diag.) - 23.8''
ShortDescription - 24'' | IPS | Full HD | 1ms | 100Hz | HDR
ShortSummaryDescription - AOC B3 24B3CF2, 60.5 cm (23.8"), 1920 x 1080 pixels, Full HD, LED, 1 ms, Black
Speakers built-in - Yes
Static contrast - 1 300:1
Stck_Kart - 1
Stck_Pal - 24
Storno - Y
Title - AOC B3 24B3CF2 LED display 60.5 cm (23.8") 1920 x 1080 pixels Full HD Black
Touch screen - No
Transreflective technology - LED
TV tuner built-in - No
URL - https://eu.aoc.com/
vendpn - 24B3CF2
VESA - 100 x 100
Viewing angle, horizontal - 178 °
Viewing angle, vertical - 178 °
Warranty -
WarrantyInfo - 3 years
Web camera - None
Weight - 3.04 kg
Weight & dimensions - Depth (without stand) - 44.6 mm
Weight & dimensions - Depth (with stand) - 223.8 mm
Weight & dimensions - Height (without stand) - 316.2 mm
Weight & dimensions - Height (with stand) - 469.9 mm
Weight & dimensions - Weight (without stand) - 3.04 kg
Weight & dimensions - Weight (with stand) - 4.56 kg
Weight & dimensions - Width (without stand) - 542.4 mm
Weight & dimensions - Width (with stand) - 542.4 mm
Weight with stand - 4.56 kg
Width - 542.4 mm
WiFi - No
