ID: 803867
Product code: R-PF350D-HA0B-EU
Can be ordered 189 units Availability: 14 days after order approval
Warranty: 2 years

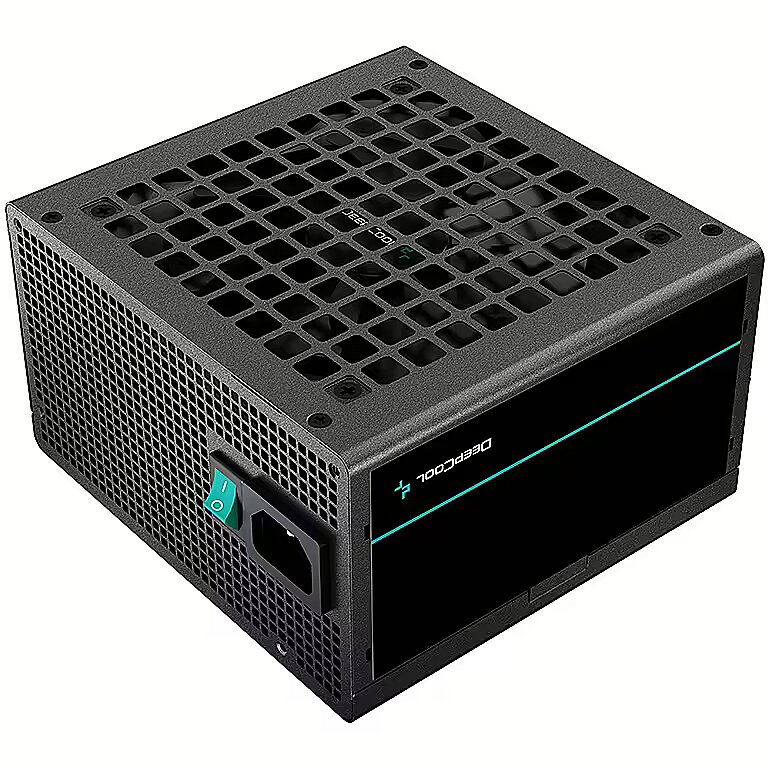

Deepcool PF350, 350W, 80PLUS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 27.11.2024
- Courier delivery 3.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 350W
- 80 PLUS certification: 80 PLUS (White)
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by Deepcool with a power output of 350W. The product has been awarded an 80 PLUS (White) energy efficiency certificate.

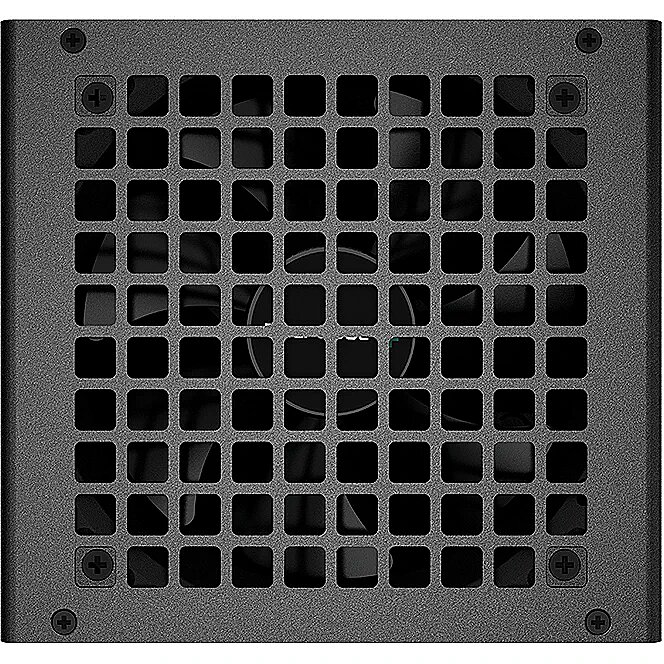

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply unit has received the 80 PLUS (White) energy efficiency certificate, which guarantees at least 80% efficiency. This means that for every 100W of power that the power supply unit receives from the electrical grid, at least 80W is delivered to your computer components, while the remaining 20W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
This power supply unit was produced by Deepcool. You can view all Deepcool power supply units here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
350W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS (White)

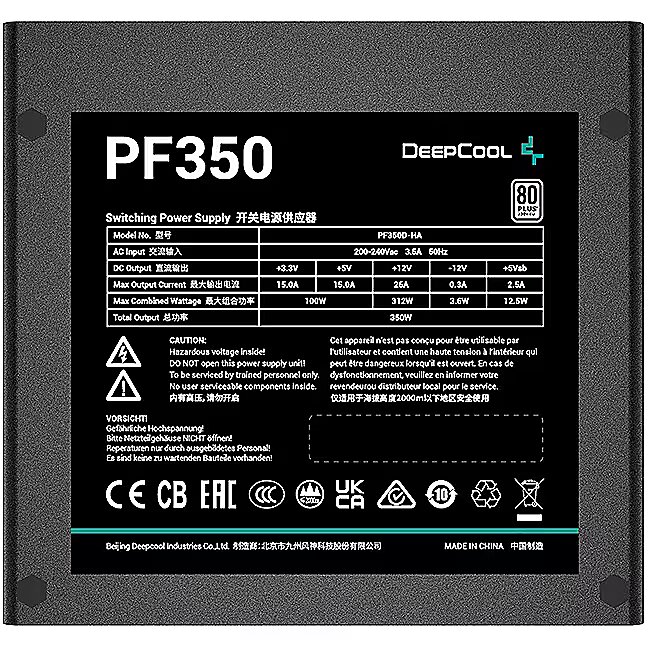

Total amperage (+12V)
: 26A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Standard Certified
Code - R-PF350D-HA0B-EU
Desc - Jauda: 350 W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 2, MOLEX PATA pieslēgumi: Nav, PCI-E: 1 x 6 + 2 PIN, Garantija: 2 gadi
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1098
EAN - 6933412702139
EAN_code - 6933412702139
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_89427_1.jpg
LargeDescHTML -
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PF350D-230V-Power-Supply-Unit/2021/15143.shtml?status=authorization
Manufacturer - Deepcool
Manufacturer_code - R-PF350D-HA0B-EU
Name - DeepCool PF350 350W
Name - DeepCool PF350 350W, PC power supply (black, 2x PCIe, 350 watts)
Name - DEEPCOOL PF350 350W 80 PLUS Standard PSU, ATX12V V2.4, Black | Deepcool | PF350 | 350 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 115 mm
Package features > Gross depth master carton - 280 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross height master carton - 215 mm
Package features > Gross width (mm) - 262 mm
Package features > Gross width master carton - 600 mm
Package features > Net weight master carton - 7.8 kg
Package features > Packing quantity - 5 pc(s)
Package features > Palette Qty - 235 pc(s)
Package features > Paper/Pasteboard - 700.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 0.484 kg
Package features > Tare weight master carton - 0.614 kg
Package features > Volume (m3) - 0.0054234 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Performance - 80 PLUS certification - 80 PLUS White
Performance - Bearing technology - Hypro Bearing
Performance - Certification - CB/CCC/CE/UKCA/EAC/RCM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - Peripheral (Molex) power cable length - 900
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces > ATX power connector (20+4 pin) - 1
Ports & interfaces > EPS power connector (8-pin) - 1
Ports & interfaces > Number of SATA power connectors - 2
Ports & interfaces > PCI Express power connectors (6+2 pin) - 1
Power - AC input voltage - 230 V
Power - Efficiency - 85%
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 350 W
Power > Nominal power - 350 W
producerCode - R-PF350D-HA0B-EU
Producer product name - PF350
productName - DeepCool R-PF350D-HA0B-EU power supply unit 350 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 260
sizeY - 113
sizeZ - 187
Technical details > Gross weight - 1.56 kg
Technical details > Net weight - 1.076 kg
Technical details > Other features - 120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
Technical details > Producer - Deepcool
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 24
warrantyType - G
Weight - 1,70
weight - 1635
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
