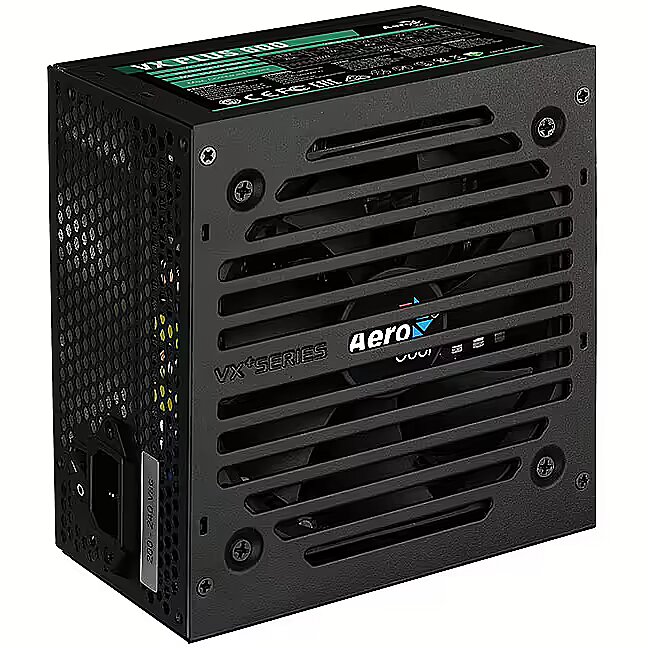

Aerocool VX PLUS 600, 600W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 600527 Product code: AEROPGSVX-600PLUS-80
Can be ordered 28 units Availability: 14 days after order approval
Warranty: 2 years
51.98 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 10.12.2024
  • Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Aerocool
  • Power output: 600W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

600W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 46A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 3
4pin Molex : 2
Case
More detailed specification
Additional information in manufacturers website Aerocool VX PLUS 600, 600W
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - None
Description - Zasilacz VX PLUS 600W ATX Koncentrując się na dostarczaniu zasilacza o najlepszej wartości, VX PLUS umożliwia łatwą instalację, zapewniając jednocześnie niezawodną jakość i doskonałą wydajność, co czyni go idealnym zasilaczem dla początkujących konstruktorów systemów. Jest wyposażony w ulepszony transformator i 12-centymetrowy wentylator ze zoptymalizowaną termiczną kontrolą prędkości. Najlepszy zasilacz dla początkujących konstruktorów systemów Kompatybilny z ATX 12V 2.3 Zmodernizowany transformator pozwala na obsługę ciężkich systemów ładowania 12V Potężna pojedyncza linia +12V oferuje kompatybilne wyjście DC Cichy wentylator 12 cm ze zoptymalizowaną termiczną kontrolą prędkości wentylatora Zabezpieczenie elektryczne OPP/OVP/UVP/SCP/SIP w zestawie
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 870
dimension depth - 95 mm
dimension height - 235 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1425 g
dimension width - 195 mm
ean - 4718009159358
Eans - 4718009159358
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 2
Name - AEROCOOL PGS VX-600plus 600W 80+ BOX PSU
name - Power supply VX PLUS 600W ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 552 W
Power - Input current - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 600 W
Power supply - 600 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROPGSVX-600PLUS-80
ProducerCode - AEROPGSVX-600PLUS-80
productName - POWER SUPPLY AEROCOOL PGS VX-600PLUS 600W 80+ BOX
productSize - Normal
SATA power connectors - 5
ShortDescription - AEROCOOL PGS VX-600plus 600W 80+ BOX PSU
sizeX - 95
sizeY - 235
sizeZ - 195
vendpn - AEROPGSVX-600PLUS-80
warrantyLength - 24
warrantyType - G
weight - 1425
