ID: 1104745
Product code: R-PL800D-FC0B-EU
In stock 50 units
Warranty: 2 years

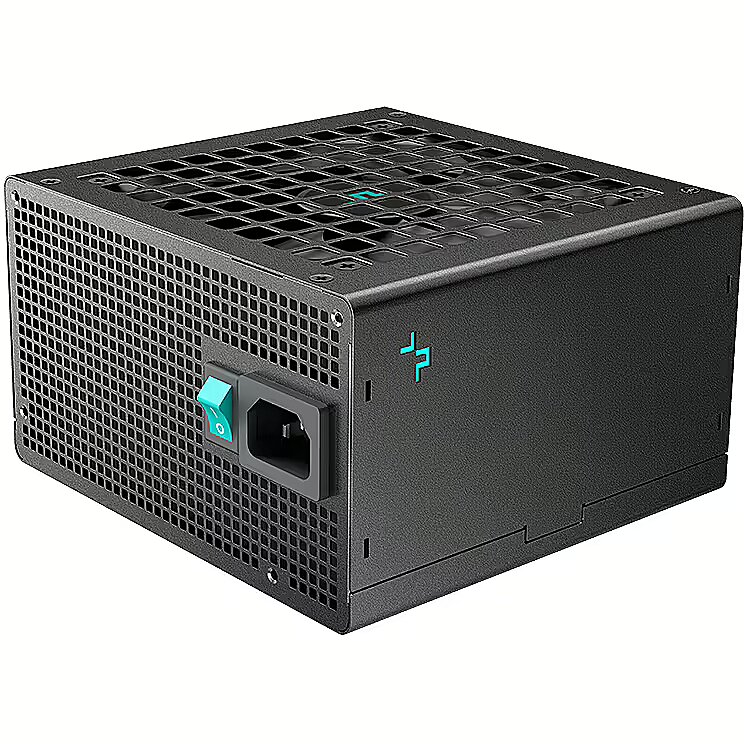

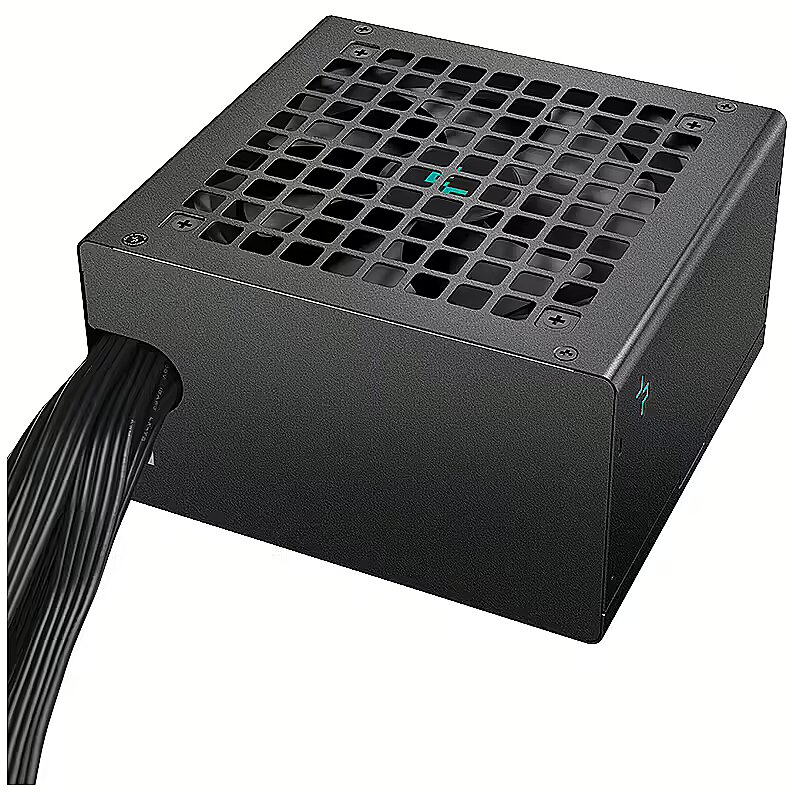

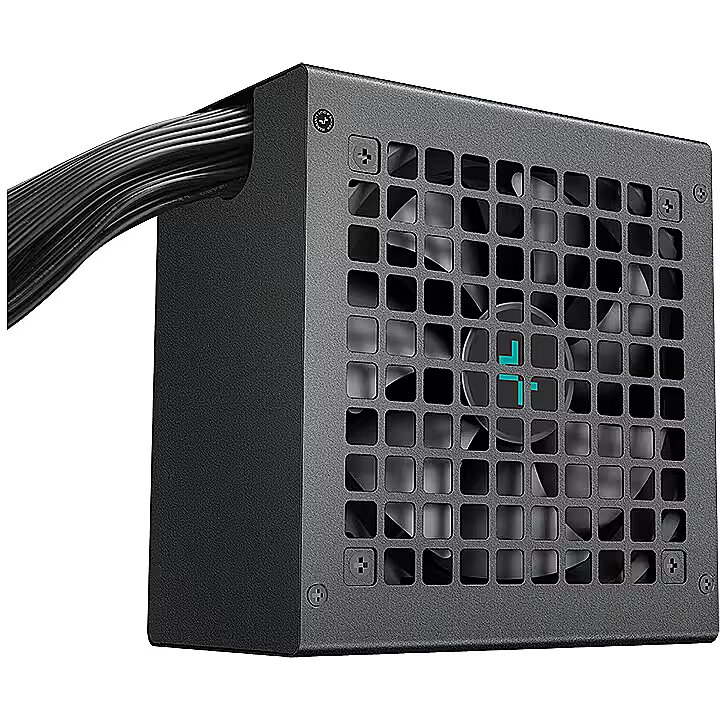

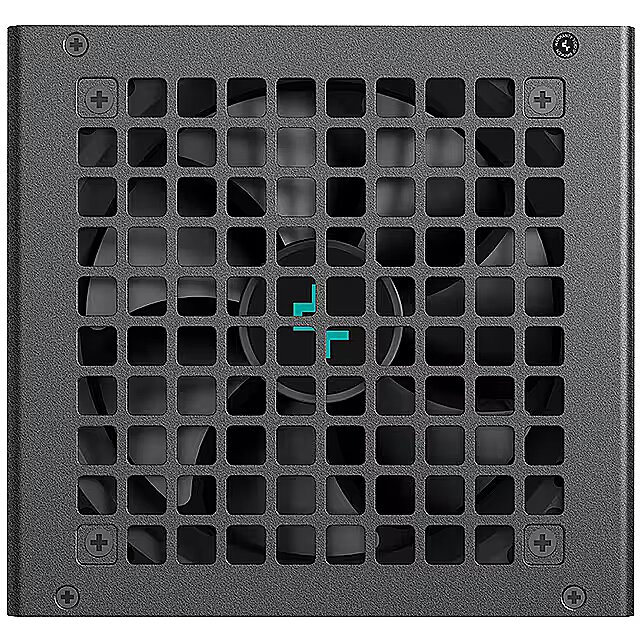

Deepcool PL800D, 800W, 80 PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 29.11.2024
- Courier delivery 3.99 €: 29.11.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 800W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
This Deepcool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 800W.
800W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
1 x 450W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
The manufacturer of this power supply is Deepcool. View all Deepcool power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
800W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 66.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: 1 x 450W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 2
More detailed specification
Code - R-PL800D-FC0B-EU
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1276
EAN - 6933412718239
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PL800D-ATX3.0-Direct-Power-Supply/2023/17603.shtml
Name - Deepcool PSU | PL800D | 800 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 155.00 mm
Package features > Gross height (mm) - 91.00 mm
Package features > Gross width (mm) - 145.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 422 pc(s)
Package features > Paper/Pasteboard - 240.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
Packaging content - Cables included - AC
Packaging content - Cable tie(s) included - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 850 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces - SATA power cable length - 550
Ports & interfaces - SATA power cable length - 650
Ports & interfaces - SATA power cable length - 750 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 798 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 10 - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 66.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - No load operation
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Surge protection
Power - Power protection features - Under voltage
Power - Total power - 800 W
Power > Nominal power - 800 W
producerCode - R-PL800D-FC0B-EU
productName - DeepCool PL800D power supply unit 800 W 20+4 pin ATX ATX Black
productSize - Normal
sizeX - 120
sizeY - 190
sizeZ - 280
Technical details - Compliance certificates - CCC
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - EAC
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - RCM
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - WEEE
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Technical details > Gross weight - 1.40 kg
Technical details > Net weight - 1.10 kg
Technical details > Producer - Deepcool
Technical details > Producer product family - PSU
Technical details > Producer product name - PL800D
Warranty - 60
Warranty - 60 month(s)
warrantyLength - 24
warrantyType - G
weight - 2390
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
