ID: 934140
Product code: BN333
In stock 4 units
Warranty: 2 years

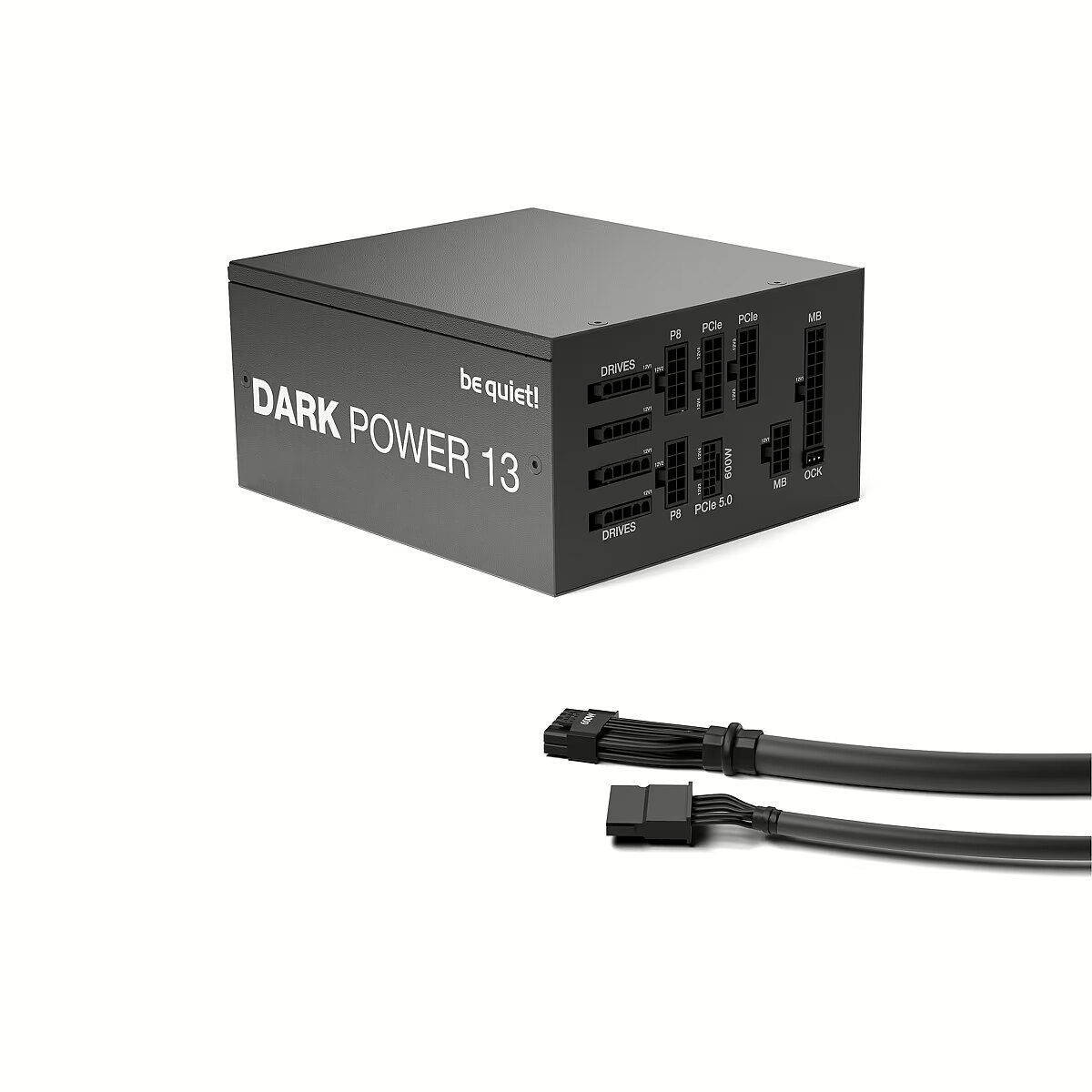

Be Quiet Dark Power 13, 750W, ATX 3.0, 80PLUS Titanium
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Monday, 09.12.2024
- Courier delivery 3.99 €: on Monday, 09.12.2024
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 750W
- 80 PLUS certification: 80 PLUS Titanium
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
Available for purchase is a power supply produced by Be Quiet with a power output of 750W. The product has been awarded an 80 PLUS Titanium energy efficiency certificate.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).
This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.
The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
This power supply has been manufactured by Be Quiet. You can view all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Titanium
Total amperage (+12V)
: 110A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 12
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
ARTIKEL1 - DARK POWER 13 750W
ARTIKEL2 - 80 PLUS TITANIUM POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN333
Breite - 0.28
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Certificates 80+ - 80 PLUS Titanium
code - BN333
Colour - Black
Cooling System - 13.5cm fan
Description - DARK POWER 13 SILENCE AND PERFORMANCE WITHOUT COMPROMISE Dark Power 13 is the most efficient power supply series that be quiet! has ever designed. It is characterised by unparalleled efficiency, up to 95.8%, which is confirmed by the 80 PLUS Titanium certification. This makes the Dark Power 13 series a benchmark of efficiency. In addition to unparalleled efficiency, the patented Silent Wings frameless fan concept guarantees an optimised cooling effect and virtually inaudible operation. The overclocking key allows manual switching between multiple 12 V lines and a single powerful line mode. Dark Power 13's ATX 3.0 compatibility and compatibility with PCIe 5.0 and PCIe 4.0 graphics cards underlines that this is the high-end power supply of choice for all advanced users with next-generation graphics cards or planning an upgrade. All these features make the new Dark Power 13 the most progressive be quiet! DARK POWER 13 750W. SILENCE AND PERFORMANCE WITHOUT COMPROMISE. Be quiet! Dark Power 13 750W offers 80 PLUS Titanium efficiency, virtually inaudible operation and ATX 3.0 compatibility for full compatibility with next-generation GPUs. 80 PLUS Titanium efficiency (up to 95.8%) ATX 3.0 power supply with full PCIe 5.0 graphics card support and PCIe 6+2 connectors Virtually inaudible operation due to patented Silent Wings frameless fan Fully meshed front panel and redesigned air intake funnel Overclocking key switches between four 12V rails and one heavy-duty rail Modular cabling system for maximum convenience Active rectifier and full bridge LLC technology 10-year manufacturer's warranty 80 PLUS TITANIUM CERTIFICATION. The highest performance certification available. The Dark Power 13 750W is 80 PLUS Titanium certified and has an energy efficiency of up to 95.8%. This provides many benefits for your high-end configuration, including lower power consumption and cooler and quieter operation. Standby power consumption is less than 0.1 watts. FUTURE-READY CONFIGURATION. Meets ATX 3.0 specification. Dark Power 13 750W is an ATX 3.0 power supply with native 12VHPWR connector integration for next-generation PCIe 5.0 graphics cards and PCIe 6+2-pin connectors to support legacy current-generation GPUs. The power supply is extremely versatile and is an excellent choice for current and future high-end configurations. THE NEW POWER STANDARD. For massive transient loads. Dark Power 13 750W of continuous power with 2 independent 12 V lines. Even if your graphics card requires excessive power for short periods of time: Dark Power 13 750W can easily cope with power surges of up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards. FRAMELESS SILENT WINGS FAN. Patented fan technology for virtually inaudible operation. The be quiet! Silent Wings fan mounted on a stand provides maximum airflow and virtually inaudible operation. This is due to the unique airflow-optimised fan blade design, as well as the advanced dynamic bearing and 6-field fan motor, which ensures less vibration, extremely long service life and minimal energy consumption. INNOVATIVE COOLING CONCEPT. For a longer service life. The fan inlet of the Dark Power 13 750W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The ductless design inside allows cool air to reach all components flawlessly, ultimately leading to longer life. READY FOR OVERCLOCKING. Maximise the performance of your PSU. The Dark Power 13 750W is perfect for overclocking thanks to its powerful and stable 12V lines. The overclocking key gives you full control over overclocking by manually switching between the default mode of four 12V lines and the alternative mode of one powerful line. WORLD-CLASS TOPOLOGY. State-of-the-art technology for exceptionally high energy efficiency. With its active rectifier and full LLC bridge technology, Dark Power 13 750W offers some of the most advanced technology available, resulting in higher efficiency, better regulation and lower ripple noise for incomparably stable operation. JAPANESE 105° CAPACITORS. A testament to high quality. Only the best components are used in the Dark Power 13 750W. This is why we have used only high-quality Japanese capacitors in the power supply housing. They are rated to 105°C, which ensures stability, reliability and a long service life. HIGHEST CONVENIENCE AND BEST CONNECTIVITY. Modular cables. Component installation is simplified with modular braided cables up to 120cm long. This results in increased airflow and better cooling in even the largest PC cases.
Description - NO COMPROMISE SILENCE AND PERFORMANCE The be quiet! Dark Power 13 750W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility. 80 PLUS Titanium efficiency (up to 95.8%) ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector Improved frameless Silent Wings fan for virtually inaudible operation Full-mesh front with funnel shape air inlet upholds the high air circulation abilities Overclocking key switches between four 12V rails and one massive 12V rail Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency Modular cable management for maximum convenience
Design - Built-in display - No
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Fan speed - 0 - 2100 RPM
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 2277
dimension depth - 120 mm
dimension height - 260 mm
Dimensions - 175 x 150 x 86 mm
Dimensions - 175 x 150 x 86mm
dimension weight - 4082 g
dimension width - 360 mm
ean - 4260052189382
EAN - 4260052189382
EANCode - 4260052189382
Eans - 4260052189382
EAN_code - 4260052189382
Efficiency - 80 PLUS TITANIUM
Fan - 13.5 cm
Floppy power connectors - 1
Full Description Line - Dark Power 13|ATX 3.0|750 Watts|Cooling System 13.5cm fan|80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|Colour Black
Gewicht - 4.09
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052189382
guarantee - 120
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.12
HSTNUMMER - BN333
Laenge - 0.35
Logistics data - Pallet gross weight (air) - 18.2 kg
Logistics data - Shipping (inner) case height - 36.8 cm
Logistics data - Shipping (inner) case length - 50.4 cm
Logistics data - Shipping (inner) case width - 30.5 cm
LongDesc - NO COMPROMISE SILENCE AND PERFORMANCEThe be quiet! Dark Power 13 750W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.80 PLUS® TITANIUM CERTIFIEDThe highest efficiency certificate availableDark Power 13 750W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsDark Power 13 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come. THE NEW STANDARD OF POWERFor massive transient loadsDark Power 13 offers 750W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.FRAMELESS SILENT WINGS FANPatented fan technology for virtuallyinaudible operationThe improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.INNOVATIVE COOLING CONCEPTFor a longer lifespanThe split fan inlet of the Dark Power 13 750W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.READY FOR OVERCLOCKINGPushing the performance of your PSU to the maxDark Power 13 750W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.WORLD CLASS TOPOLOGYState-of-the-art technology for extremelyhigh efficiencyWith an active rectifier and full bridge LLC technology Dark Power 13 750W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparablystable operation.JAPANESE 105° CAPACITORSA testament to high qualityOnly the best components are used in Dark Power 13 750W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.HIGHEST CONVENIENCE AND BEST CONNECTIVITYModular cablesModular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
LongProductName - Dark Power 13 750W, Peak 850W, Active Rectifier + Full bridge + LLC + SR + DC/DC, 100-240V, 50-60Hz, 9/4.5A, 0.13W stanby
LongSummaryDescription - be quiet! Dark Power 13. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 850 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 86 mm, Height: 175 mm
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN333
MB power connector - 20 + 4 pin
Model - BN333
Model name - Dark Power 13
Modular power supply - Yes
MOLEX power connectors - 4
MPN - BN333
MTBF - 100000 hours
Name - 750W be quiet! DARK POWER 13
Name - be quiet! Dark Power 13 750W
Name - be quiet! Dark Power 13 750W, PC power supply (black, 5x PCIe, cable management, 750 watts)
name - be quiet! Dark Power 13 Netzteil 80 PLUS Titanium, ATX 3.0, PCIe 5.0 - 750 Watt
name - Power Supply Dark Power 13 750W 80+ Titanium
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 350 mm
Packaging data - Package height - 270 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.23 kg
Packaging data - Package width - 120 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Certification - BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman
Performance - ECC - Yes
Performance - EPS version - 2.92
Performance - Noise level - 18.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (8-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 1050 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 93.8%
Power - Hold time - 22.6 ms
Power - Input current - 9 A
Power - Maximum input current (@110V) - 4.5 A
Power - Maximum input current (@220V) - 9 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 25 A
Power - Max output current (+12V2) - 25 A
Power - Max output current (+12V3) - 30 A
Power - Max output current (+12V4) - 30 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 850 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN333
ProducerCode - BN333
productName - be quiet! Dark Power 13 power supply unit 750 W 20+4 pin ATX ATX Black
ProductName - Dark Power 13
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 750 Watts
PSU Peak Output Power - 850 Watts
SATA power connectors - 12
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 27.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 175mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power 13, 750 W, 100 - 240 V, 850 W, 50 - 60 Hz, 9 A, 4.5 A
sizeX - 345
sizeY - 275
sizeZ - 120
Stck_Kart - 4
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - RoHS, WEEE
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - WEEE
Technical details - Warranty period - 10 year(s)
Title - be quiet! Dark Power 13 power supply unit 750 W 20+4 pin ATX ATX Black
Unit Brutto Volume - 0.01203 cubm
Unit Gross Weight - 4.1 kg
Unit Net Weight - 2 kg
URL - https://www.bequiet.com/en/powersupply/4044
Vendor Homepage - www.bequiet.com/en/powersupply/4044
vendpn - BN333
Warranty - 24 months
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 4,05
Weight - 4.02
weight - 4065
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 175 mm
Weight & dimensions - Weight - 1.96 kg
Weight & dimensions - Width - 150 mm
Accessories included -
ARTIKEL1 - DARK POWER 13 750W
ARTIKEL2 - 80 PLUS TITANIUM POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN333
Breite - 0.28
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
Certificates 80+ - 80 PLUS Titanium
code - BN333
Colour - Black
Cooling System - 13.5cm fan
Description - DARK POWER 13 SILENCE AND PERFORMANCE WITHOUT COMPROMISE Dark Power 13 is the most efficient power supply series that be quiet! has ever designed. It is characterised by unparalleled efficiency, up to 95.8%, which is confirmed by the 80 PLUS Titanium certification. This makes the Dark Power 13 series a benchmark of efficiency. In addition to unparalleled efficiency, the patented Silent Wings frameless fan concept guarantees an optimised cooling effect and virtually inaudible operation. The overclocking key allows manual switching between multiple 12 V lines and a single powerful line mode. Dark Power 13's ATX 3.0 compatibility and compatibility with PCIe 5.0 and PCIe 4.0 graphics cards underlines that this is the high-end power supply of choice for all advanced users with next-generation graphics cards or planning an upgrade. All these features make the new Dark Power 13 the most progressive be quiet! DARK POWER 13 750W. SILENCE AND PERFORMANCE WITHOUT COMPROMISE. Be quiet! Dark Power 13 750W offers 80 PLUS Titanium efficiency, virtually inaudible operation and ATX 3.0 compatibility for full compatibility with next-generation GPUs. 80 PLUS Titanium efficiency (up to 95.8%) ATX 3.0 power supply with full PCIe 5.0 graphics card support and PCIe 6+2 connectors Virtually inaudible operation due to patented Silent Wings frameless fan Fully meshed front panel and redesigned air intake funnel Overclocking key switches between four 12V rails and one heavy-duty rail Modular cabling system for maximum convenience Active rectifier and full bridge LLC technology 10-year manufacturer's warranty 80 PLUS TITANIUM CERTIFICATION. The highest performance certification available. The Dark Power 13 750W is 80 PLUS Titanium certified and has an energy efficiency of up to 95.8%. This provides many benefits for your high-end configuration, including lower power consumption and cooler and quieter operation. Standby power consumption is less than 0.1 watts. FUTURE-READY CONFIGURATION. Meets ATX 3.0 specification. Dark Power 13 750W is an ATX 3.0 power supply with native 12VHPWR connector integration for next-generation PCIe 5.0 graphics cards and PCIe 6+2-pin connectors to support legacy current-generation GPUs. The power supply is extremely versatile and is an excellent choice for current and future high-end configurations. THE NEW POWER STANDARD. For massive transient loads. Dark Power 13 750W of continuous power with 2 independent 12 V lines. Even if your graphics card requires excessive power for short periods of time: Dark Power 13 750W can easily cope with power surges of up to twice its rated power. This ensures reliable operation with the next generation of processors and graphics cards. FRAMELESS SILENT WINGS FAN. Patented fan technology for virtually inaudible operation. The be quiet! Silent Wings fan mounted on a stand provides maximum airflow and virtually inaudible operation. This is due to the unique airflow-optimised fan blade design, as well as the advanced dynamic bearing and 6-field fan motor, which ensures less vibration, extremely long service life and minimal energy consumption. INNOVATIVE COOLING CONCEPT. For a longer service life. The fan inlet of the Dark Power 13 750W is a specially shaped funnel that increases airflow while reducing unwanted turbulence. The ductless design inside allows cool air to reach all components flawlessly, ultimately leading to longer life. READY FOR OVERCLOCKING. Maximise the performance of your PSU. The Dark Power 13 750W is perfect for overclocking thanks to its powerful and stable 12V lines. The overclocking key gives you full control over overclocking by manually switching between the default mode of four 12V lines and the alternative mode of one powerful line. WORLD-CLASS TOPOLOGY. State-of-the-art technology for exceptionally high energy efficiency. With its active rectifier and full LLC bridge technology, Dark Power 13 750W offers some of the most advanced technology available, resulting in higher efficiency, better regulation and lower ripple noise for incomparably stable operation. JAPANESE 105° CAPACITORS. A testament to high quality. Only the best components are used in the Dark Power 13 750W. This is why we have used only high-quality Japanese capacitors in the power supply housing. They are rated to 105°C, which ensures stability, reliability and a long service life. HIGHEST CONVENIENCE AND BEST CONNECTIVITY. Modular cables. Component installation is simplified with modular braided cables up to 120cm long. This results in increased airflow and better cooling in even the largest PC cases.
Description - NO COMPROMISE SILENCE AND PERFORMANCE The be quiet! Dark Power 13 750W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility. 80 PLUS Titanium efficiency (up to 95.8%) ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connector Improved frameless Silent Wings fan for virtually inaudible operation Full-mesh front with funnel shape air inlet upholds the high air circulation abilities Overclocking key switches between four 12V rails and one massive 12V rail Active Rectifier + full bridge LLC technology provides unmatched signal stability and extremely high efficiency Modular cable management for maximum convenience
Design - Built-in display - No
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Fan speed - 0 - 2100 RPM
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 2277
dimension depth - 120 mm
dimension height - 260 mm
Dimensions - 175 x 150 x 86 mm
Dimensions - 175 x 150 x 86mm
dimension weight - 4082 g
dimension width - 360 mm
ean - 4260052189382
EAN - 4260052189382
EANCode - 4260052189382
Eans - 4260052189382
EAN_code - 4260052189382
Efficiency - 80 PLUS TITANIUM
Fan - 13.5 cm
Floppy power connectors - 1
Full Description Line - Dark Power 13|ATX 3.0|750 Watts|Cooling System 13.5cm fan|80 PLUS TITANIUM|PFC Active|MTBF 100000 hours|Colour Black
Gewicht - 4.09
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052189382
guarantee - 120
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.12
HSTNUMMER - BN333
Laenge - 0.35
Logistics data - Pallet gross weight (air) - 18.2 kg
Logistics data - Shipping (inner) case height - 36.8 cm
Logistics data - Shipping (inner) case length - 50.4 cm
Logistics data - Shipping (inner) case width - 30.5 cm
LongDesc - NO COMPROMISE SILENCE AND PERFORMANCEThe be quiet! Dark Power 13 750W offers 80 PLUS® Titanium efficiency, virtually inaudible operation, and ATX 3.0 compliance for next-gen GPU compatibility.80 PLUS® TITANIUM CERTIFIEDThe highest efficiency certificate availableDark Power 13 750W is certified with 80 PLUS Titanium and a money-saving energy efficiency rating of up to 95.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.FUTURE-PROOF YOUR SYSTEMFulfills all ATX 3.0 specificationsDark Power 13 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for present high-end systems and the ones to come. THE NEW STANDARD OF POWERFor massive transient loadsDark Power 13 offers 750W of continuous power with 4 independent 12V rails. Even if the graphics card demands excessive power for a short time: Dark Power 13 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.FRAMELESS SILENT WINGS FANPatented fan technology for virtuallyinaudible operationThe improved tripod-mounted be quiet! Silent Wings fan enables maximum airflow and a virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing. A 6-pole fan motor ultimately makes for less vibration, super-long life and minimal power consumption.INNOVATIVE COOLING CONCEPTFor a longer lifespanThe split fan inlet of the Dark Power 13 750W is a custom-shaped funnel that increases airflow while reducing unwanted turbulence. The wire-free design inside allows the cool air to reach all components flawlessly which ultimately leads to a longer lifespan.READY FOR OVERCLOCKINGPushing the performance of your PSU to the maxDark Power 13 750W is particularly suitable for overclocking. The overclocking key gives you full overclocking control by manually switching between the default four 12V-rail mode and the alternative massive single-rail operation.WORLD CLASS TOPOLOGYState-of-the-art technology for extremelyhigh efficiencyWith an active rectifier and full bridge LLC technology Dark Power 13 750W offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparablystable operation.JAPANESE 105° CAPACITORSA testament to high qualityOnly the best components are used in Dark Power 13 750W. That is why we have exclusively built high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability, and a long operating life.HIGHEST CONVENIENCE AND BEST CONNECTIVITYModular cablesModular, sleeved cables of up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.
LongProductName - Dark Power 13 750W, Peak 850W, Active Rectifier + Full bridge + LLC + SR + DC/DC, 100-240V, 50-60Hz, 9/4.5A, 0.13W stanby
LongSummaryDescription - be quiet! Dark Power 13. Total power: 750 W, AC input voltage: 100 - 240 V, Peak power: 850 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 1050 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 86 mm, Height: 175 mm
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN333
MB power connector - 20 + 4 pin
Model - BN333
Model name - Dark Power 13
Modular power supply - Yes
MOLEX power connectors - 4
MPN - BN333
MTBF - 100000 hours
Name - 750W be quiet! DARK POWER 13
Name - be quiet! Dark Power 13 750W
Name - be quiet! Dark Power 13 750W, PC power supply (black, 5x PCIe, cable management, 750 watts)
name - be quiet! Dark Power 13 Netzteil 80 PLUS Titanium, ATX 3.0, PCIe 5.0 - 750 Watt
name - Power Supply Dark Power 13 750W 80+ Titanium
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging content - Cable tie(s) included - Yes
Packaging data - Package depth - 350 mm
Packaging data - Package height - 270 mm
Packaging data - Package type - Box
Packaging data - Package weight - 4.23 kg
Packaging data - Package width - 120 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.0
Performance - Bearing technology - FDB
Performance - Certification - BSMI , CB, CCC, CE, cTUVus, CU, FCC, RCM, TÜV, UKCA, Triman
Performance - ECC - Yes
Performance - EPS version - 2.92
Performance - Noise level - 18.8 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - ATX
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (8-pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 1050 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 93.8%
Power - Hold time - 22.6 ms
Power - Input current - 9 A
Power - Maximum input current (@110V) - 4.5 A
Power - Maximum input current (@220V) - 9 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 25 A
Power - Max output current (+12V2) - 25 A
Power - Max output current (+12V3) - 30 A
Power - Max output current (+12V4) - 30 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 850 W
Power - Power factor - 0.98
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power supply - 750 W
producer - Be quiet!
Producer - be quiet!
producerCode - BN333
ProducerCode - BN333
productName - be quiet! Dark Power 13 power supply unit 750 W 20+4 pin ATX ATX Black
ProductName - Dark Power 13
productSize - Normal
PSU - ATX 3.0
PSU Output Power - 750 Watts
PSU Peak Output Power - 850 Watts
SATA power connectors - 12
Shipping Box Depth Shipping/Package Box Dimensions - 35 cm
Shipping Box Height Shipping/Package Box Dimensions - 27.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.1 kg
Shipping Box Width Shipping/Package Box Dimensions - 12.5 cm
ShortDescription - 750 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 175mm | 80 PLUS Titanium | modularny |
ShortSummaryDescription - be quiet! Dark Power 13, 750 W, 100 - 240 V, 850 W, 50 - 60 Hz, 9 A, 4.5 A
sizeX - 345
sizeY - 275
sizeZ - 120
Stck_Kart - 4
Stck_Pal - 0
Storno - Y
Technical details - Compliance certificates - RoHS, WEEE
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability certificates - WEEE
Technical details - Warranty period - 10 year(s)
Title - be quiet! Dark Power 13 power supply unit 750 W 20+4 pin ATX ATX Black
Unit Brutto Volume - 0.01203 cubm
Unit Gross Weight - 4.1 kg
Unit Net Weight - 2 kg
URL - https://www.bequiet.com/en/powersupply/4044
Vendor Homepage - www.bequiet.com/en/powersupply/4044
vendpn - BN333
Warranty - 24 months
WarrantyInfo - 10 years
warrantyLength - 120
warrantyType - G
Weight - 4,05
Weight - 4.02
weight - 4065
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 175 mm
Weight & dimensions - Weight - 1.96 kg
Weight & dimensions - Width - 150 mm
