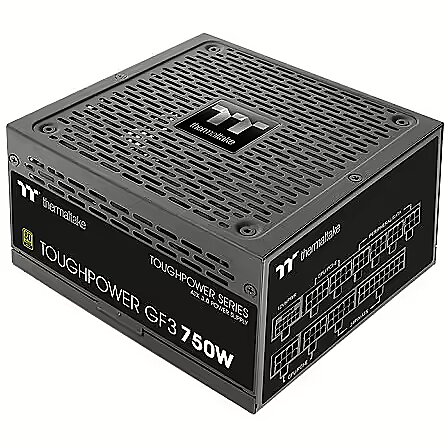

Thermaltake Toughpower GF3, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 919694 Product code: PS-TPD-0750FNFAGE-4
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product Thermaltake Toughpower GF3, 750W, 80PLUS Gold
Recommended XPG COREREACTOR II VE, 750W, 80PLUS Gold
Recommended Cougar Atlas, 750W, 80PLUS Bronze
Recommended Cooler Master MWE Gold 750 V2, 750W, 80PLUS Gold, Black
ADATA XPG Pylon, 750W, 80PLUS Bronze
Show similar specs. Hide similar specs.
128.81 €
104.11 €
65.01 €
95.54 €
69.47 €
Basic information
Cybenetics Efficiency certification Cybenetics Gold Cybenetics Gold Nav Cybenetics Gold Cybenetics Silver
Cybenetics Noise level certification Cybenetics A - Nav Nav Cybenetics A - Cybenetics Standard ++
Power supply type ATX ATX ATX ATX ATX
Power output 750W 750W 750W 750W 750W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Bronze 80 PLUS Gold 80 PLUS Bronze
Total amperage (+12V) 62.5A 62.5A 62.5A 62.5A 62.5A
Fan size 135 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Nav Fully-Modular Nav
Ports and equipment
PCI-E 5.0 1 x 300W 12VHPWR 1 x 600W 12V-2X6 Nav Nav Nav
Processor plug-in 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS
Motherboard power 24-pin 24-pin 20+4pin 24-pin 24-pin
PCI-E 4 X 6+2pin 3 x 6+2pin 4 X 6+2pin 4 X 6+2pin 4 X 6+2pin
SATA cconnectors 12 6 Eight Core 12 Eight Core
4pin Molex 4 2 3 4 3
Description

For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 1 x 300W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.

This power supply's noise level is 25-30 dB and it has a Cybenetics A - noise level certificate.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62.5A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 300W 12VHPWR
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 12
4pin Molex : 4
More detailed specification
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description -
Designation - CE+WEEE
dimension depth - 160 mm
dimension height - 320 mm
Dimensions - 150 x 86 x 160 mm
dimension weight - 3415 g
dimension width - 235 mm
ean - 4713227533812
Eans - 4713227533812
EAN_code - 4713227533812
Fan - 13.5 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPD-0750FNFAGE-4
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
name - Power supply Toughpower GF3 750W Gold F Modular 14cm Gen5
Name - Thermaltake Toughpower GF3 750W
Name - Thermaltake Toughpower GF3 750W, PC power supply (black, 5x PCIe, cable management, 750 watts)
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PFC - Active
Power supply - 750 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-TPD-0750FNFAGE-4
SATA power connectors - 12
ShortDescription - 750 | ATX 3.0 | 135mm | 20+4 | 150mm x 86mm x 160mm | 80 PLUS Gold | PCIe 12+4pin | modularny
vendpn - PS-TPD-0750FNFAGE-4
Weight - 2,00
