ID: 918778
Product code: EY7A009
In stock 1 units
Warranty: 2 years

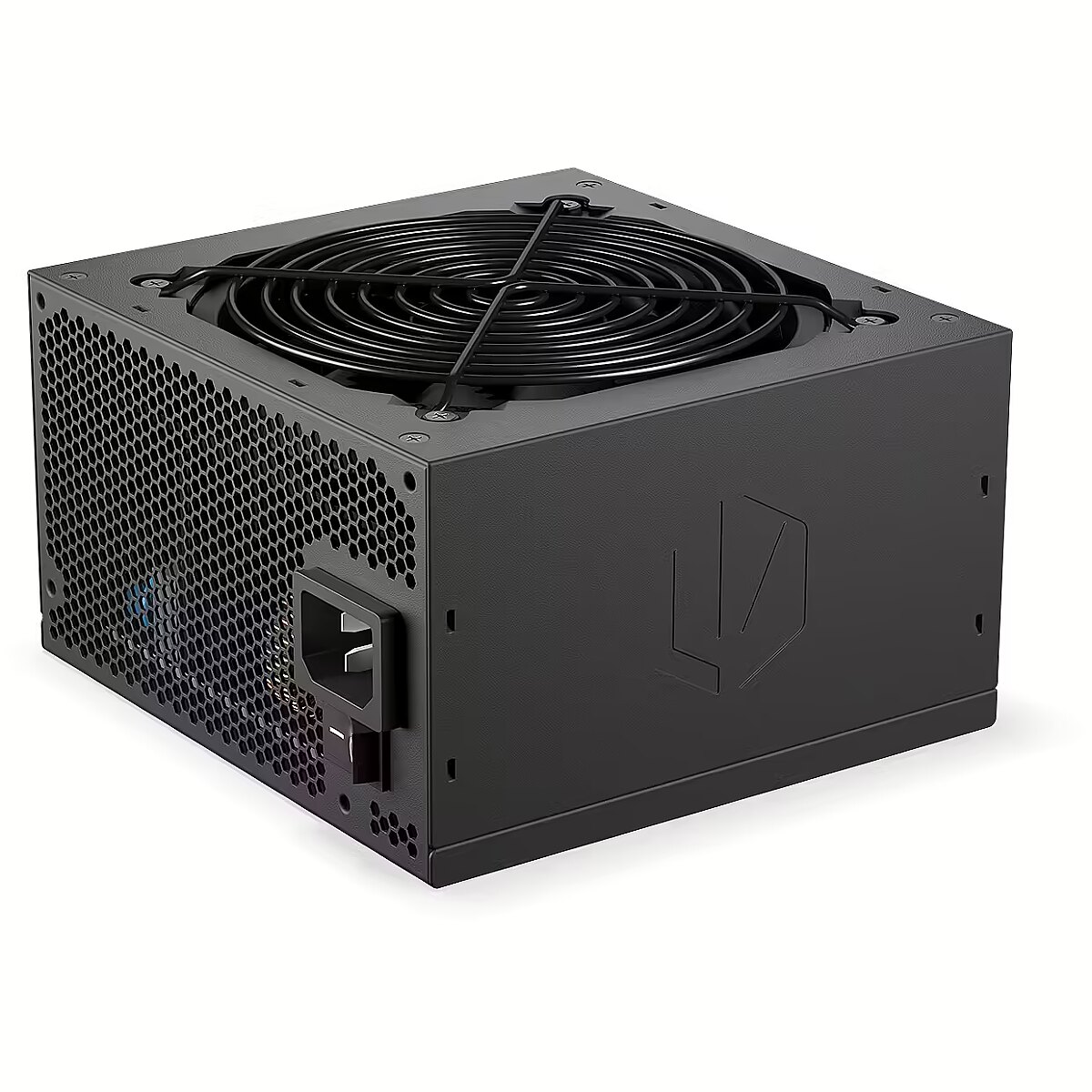

Endorfy Supremo FM5 Gold, 850W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Producer: Endorfy
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
Available for purchase is a power supply produced by Endorfy with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
850W power supply unit designed for a high-performance gaming computer or workstation. It will be able to power a top-tier processor (possibly overclocked), a high-end graphics card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), and water cooling.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 1
More detailed specification
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description - The Endorfy Supremo FM5 Gold 850 W is a high-performance power supply that can calmly handle the exacting demands of your PC's components. Get ready for top-notch support without unexpected resets. This is a power supply with DC-DC topology. Experts know that this powerful little guy guarantees precise voltage regulation, stable operation and a total continuous output of 850 watts. On top of that, you get a 12 cm Fluctus 120 PWM fan. That's enough to keep you at the right operating temperature while maintaining a performance that satisfies you and your computer, no wonder our PSU is 80 PLUS Gold certified :) Apart from that, the Endorfy Supremo FM5 Gold 850 is small. It is only 14 cm long, which gives you the possibility to fit it even into smaller cases and you can simply disconnect the unnecessary cables. DC-DC topology The Supremo FM5 Gold 850 W power supply is the kind of hardware you work and play with, without the fuss of seeing blue screeen in a moment. We have designed it in such a way that it provides your components with a stable voltage separately on each line. To put it simply, your computer runs stably even when it's packed with high-end hardware configurations inside. That's thanks to DC-DC conversion, which guarantees precise voltage regulation, stable operation and a total continuous output of 850 watts. On top of this, you get a full package of protections protecting against short circuits and overloads, among other things. Thanks to these, in the event of a fault or overvoltage from the electrical system, the power supply will simply switch off. Quiet night at the Supremo FM5 Gold 850 W If we had to briefly summarise the Supremo FM5 Gold 850 W, we would say that it is one of the quietest power supplies in its class. After a couple of hours at top speed, you can pop out with your crew for an all-night raid and your PC will still be silent. That's thanks to our proudest pride of the silent Fluctus 120 PWM fan, which we developed in collaboration with Synergy Cooling. It is small, but cools like the best air-conditioning. It keeps the Supremo cool even during the most demanding tasks, and allows you to work and play without monotonous background noise. Exclusive Japanese capacitors (no katanas, but still powerful) The Supremo FM5 Gold 850 W is a power supply that can handle the most hardcore temperatures with ease. Where water starts to boil, it won't boil from the effort it is rated to operate even at 105 o Celsius. This is thanks to Japanese electrolytic and aluminium-polymer (solid state) capacitors. They are small, but they hide the real power of samurai we are thinking of fitting tiny katanas in the next version ;)
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1233
dimension depth - 95 mm
dimension height - 220 mm
Dimensions - 87 x 140 x 150 mm
dimension weight - 2626 g
dimension width - 270 mm
ean - 5903018666181
Eans - 5903018666181
EAN_code - 5903018666181
Fan - 12 cm
guarantee - 24
guarantee_type - statutory
Manufacturer - ENDORFY
Manufacturer_code - EY7A009
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 1
Name - ENDORFY Supremo FM5 Gold 850 W
Name - ENDORFY Supremo FM5 Gold 850W, PC power supply (black, 850 watts)
name - Power supply Supremo FM5 Gold 850W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features - Security features: OVP UVP OCP SCP OPP SIP OTP
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Fan speed (max) - 1400 RPM
Performance - Fan speed (min) - 250 RPM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
PFC - Active
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 115 - 230 V
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Power protection features - SIP
Power - Power protection features - UVP
Power - Total power - 850 W
Power supply - 850 W
producer - Endorfy
Producer - Endorfy
producerCode - EY7A009
ProducerCode - EY7A009
productName - POWER SUPPLY ENDORFY SUPREMO FM5 GOLD 850 W
productSize - Normal
SATA power connectors - 8
ShortDescription - 850 | ATX | 120 mm| 87 mm 140mm 150 mm | 80PLUS GOLD | modularny |
sizeX - 273
sizeY - 100
sizeZ - 226
vendpn - EY7A009
warrantyLength - 24
warrantyType - F
Weight - 2,64
weight - 2628
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Fan dimensions (W x D x H) - 120 x 120 x 25 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.45 kg
Weight & dimensions - Width - 140 mm
