ID: 887401
Product code: R-PK750D-FA0B-EU
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 3 years

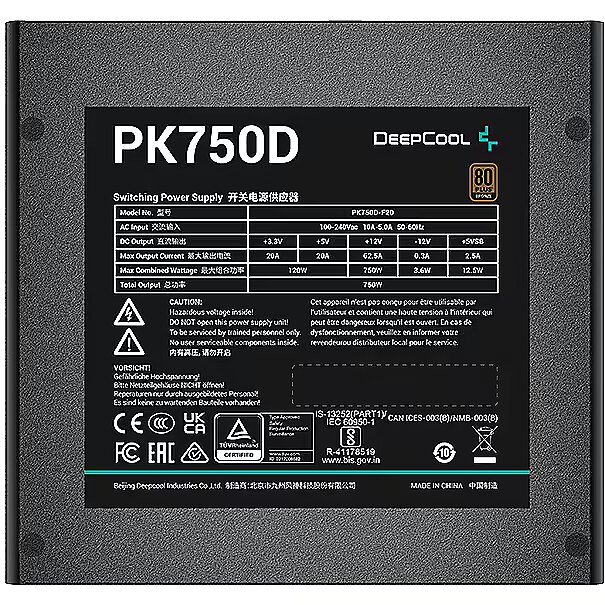

Deepcool PK750D, 750W, 80 PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 11.12.2024
- Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Deepcool power supply unit with a power capacity of 750W, which has received the 80 PLUS Bronze energy efficiency certification.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

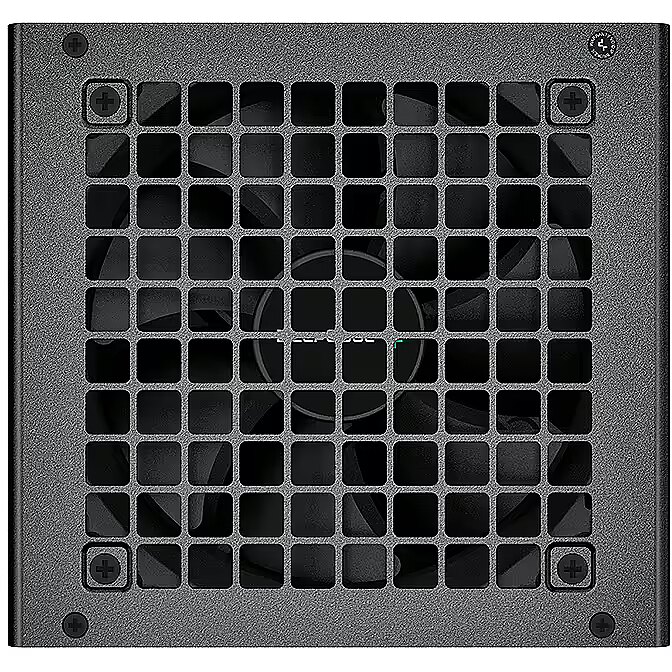

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
The manufacturer of this power supply is Deepcool. View all Deepcool power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Bronze Certified
Code - R-PK750D-FA0B-EU
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design > Colour of product - Black
dimensionalWeight - 1219
EAN - 6933412715375
EAN_code - 6933412715375
Link - https://www.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PK750D-80-PLUS-Bronze-Power-Supply/2022/15609.shtml
Manufacturer - Deepcool
Manufacturer_code - R-PK750D-FA0B-EU
Name - DeepCool PK750D 750W, PC power supply (black, 4x PCIe, 750 watts)
Name - Deepcool | Power Supply, EU Version | PK750D | 750 W
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 115 mm
Package features > Gross depth master carton - 560 mm
Package features > Gross height (mm) - 190 mm
Package features > Gross height master carton - 220 mm
Package features > Gross width (mm) - 270 mm
Package features > Gross width master carton - 360 mm
Package features > Net weight master carton - 13.26 kg
Package features > Packing quantity - 6 pc(s)
Package features > Palette Qty - 234 pc(s)
Package features > Paper/Pasteboard - 400.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.50 kg
Package features > Tare weight master carton - 0.754 kg
Package features > Volume (m3) - 0.0058995 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes

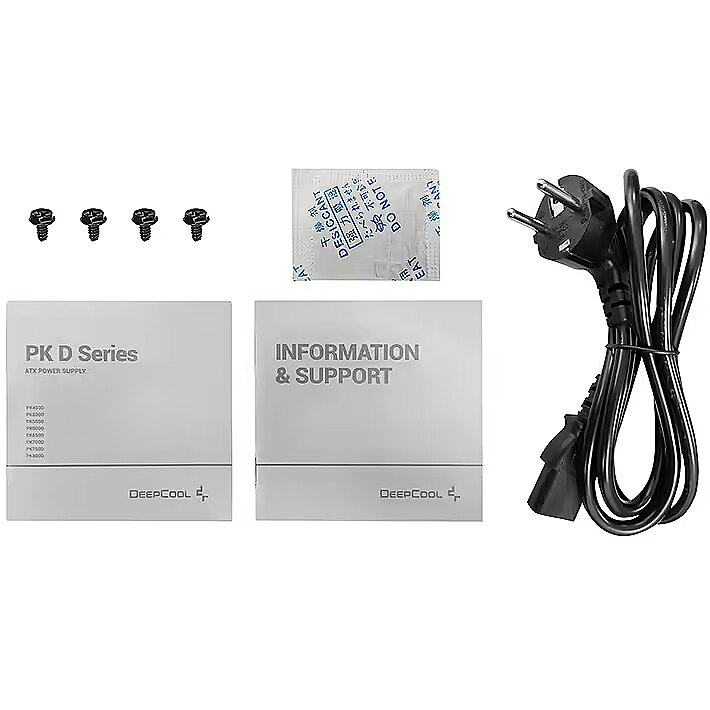

Packaging content - Cables included - AC
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.4
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Purpose - PC
Performance > Bearing technology - Hypro Bearing
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 2
Ports & interfaces - PCI Express power cable length - 62 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 700
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 400
Ports & interfaces - SATA power cable length - 500 mm
Ports & interfaces - SATA power cable length - 600 mm
Ports & interfaces - SATA power cable length - 700 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Nominal power - 750 W
producerCode - R-PK750D-FA0B-EU
Producer product family - Power Supply, EU Version
Producer product name - PK750D
productName - DeepCool PK750D power supply unit 750 W 20+4 pin ATX Black
productSize - Normal
sizeX - 272
sizeY - 195
sizeZ - 115
Technical details > Gross weight - 2.21 kg
Technical details > Net weight - 1.71 kg
Technical details > Other features - 120mm Fan Size; Protection: SCP, OPP, OTP, OVP, OCP, UVP
Technical details > Producer - Deepcool
Technical details > Warranty - 60 month(s)
Technical_details - Type: PC power supply Color: Black EAN: 6933412715375 Manufacturer No.: R-PK750D-FA0B-EU Series: PK-D Power: 750W : 750W : 120W : Up to 85% : 100-240 volts Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Bronze Current: 20A : 20A : 2.5A : 0.3A : 62.5A : 62.5A Power Factor Correction: Active PFC Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 4x 4-pin 5.25", 4x 6+2-pin graphics, 8x 15-pin SATA Cable: 24-pin mainboard main connector: 1x 50 cm, 8-pin additional motherboard connectors: 1x 62 cm, 1x 74 cm, 5.25-inch drive connectors: 1x 40 cm, 1x 50 cm, 1x 60 cm, 1x 80 cm, SATA drive connectors : 2x 40 cm, 2x 50 cm, 2x 60 cm, 2x 70 cm, 6-/8-pin graphics connectors: 2x 50 cm, 2x 62 cm Cooling: 1x 120mm fan Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Warranty - 60
warrantyLength - 60
warrantyType - G
Weight - 2,16
weight - 2200
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
