Thermaltake Toughpower PF1, 1200W, 80PLUS Platinum

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 876960 Product code: PS-TPD-1200FNFAPE-1
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
251.91 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 11.12.2024
  • Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 1200W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

Available for purchase is a power supply produced by Thermaltake with a power output of 1200W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

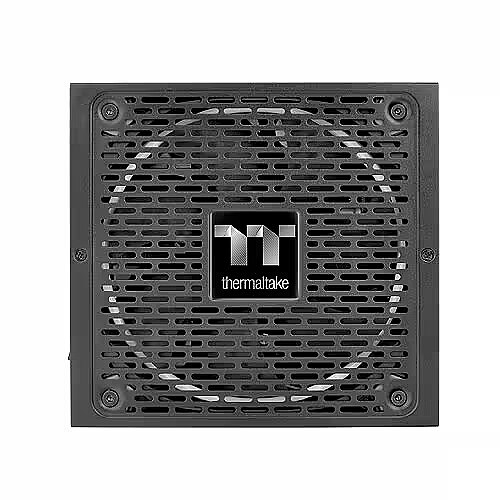

This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.

80 PLUS Platinum energy efficiency certificate, received by this power supply unit, guarantees at least 92% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the power grid, at least 92 W reaches your computer components, while the remaining 8 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

The power supply has received Cybenetics Standard noise level certification – the noise produced by the unit will be 40-45 decibels.

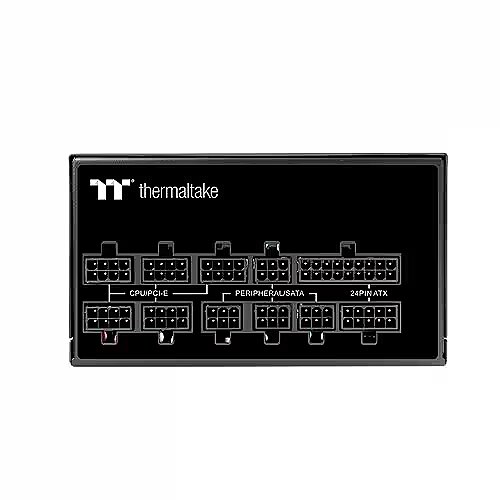

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics Standard
Power supply type : ATX
Power output 1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 100A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 12
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description - Power Supply - ToughPower PF1 1200W Fmod Platinum full JP CAP
dimension depth - 135 mm
dimension height - 350 mm
Dimensions - 150 * 86 * 160 mm
dimension weight - 3518 g
dimension width - 223 mm
ean - 4713227530149
EAN_code - 4713227530149
Fan - 14 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPD-1200FNFAPE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
Name - Thermaltake Toughpower PF1 1200W, PC power supply (black, 8x PCIe, cable management, 1200 watts)
name - Thermaltake Toughpower PF1 1200W Platinum
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 1200 W
producer - Thermaltake
SATA power connectors - 12
vendpn - PS-TPD-1200FNFAPE-1
Weight - 3,95
