Deepcool PQ650M, 650W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 856270 Product code: R-PQ650M-FA0B-EU
Can be ordered 33 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
108.80 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 20.12.2024
  • Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
  • Producer: Deepcool
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

Available for purchase is a power supply produced by Deepcool with a power output of 650W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.

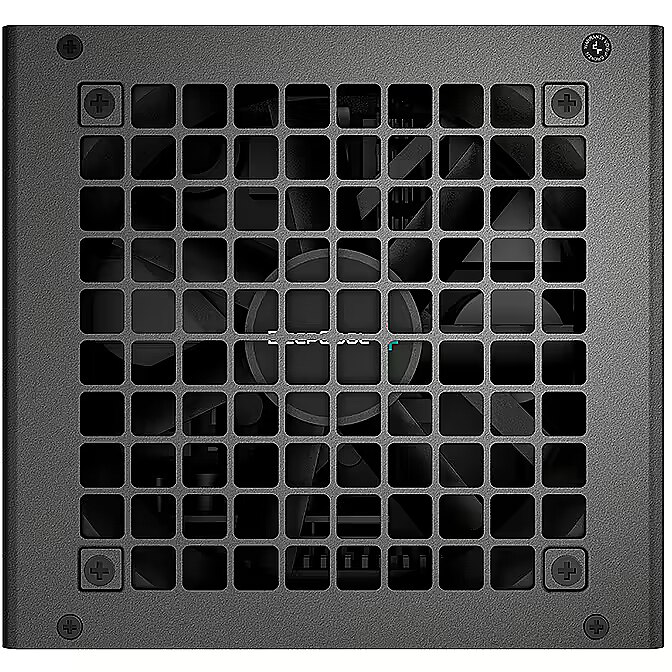

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

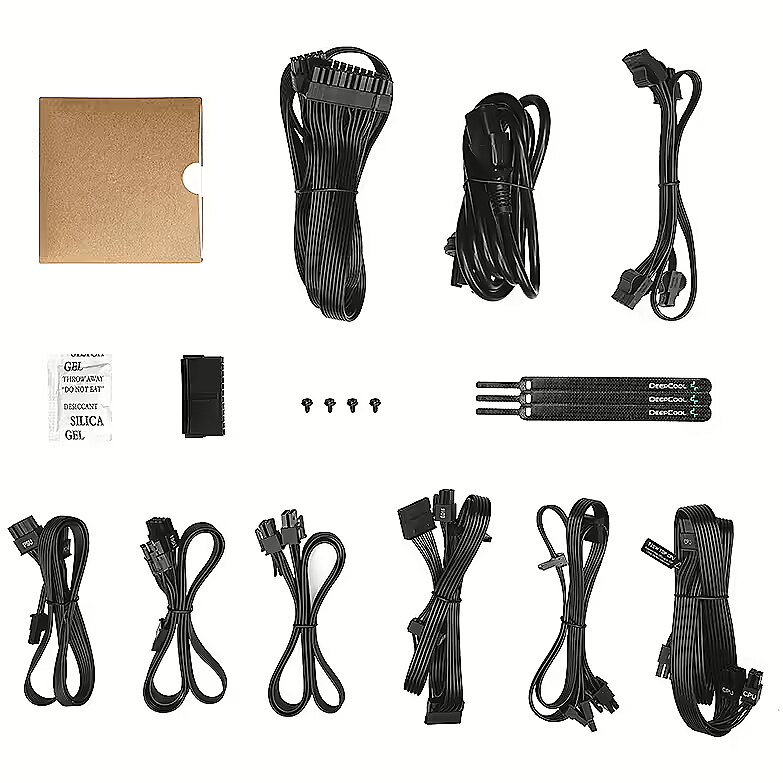

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

This power supply unit was produced by Deepcool. You can view all Deepcool power supply units here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 54A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav

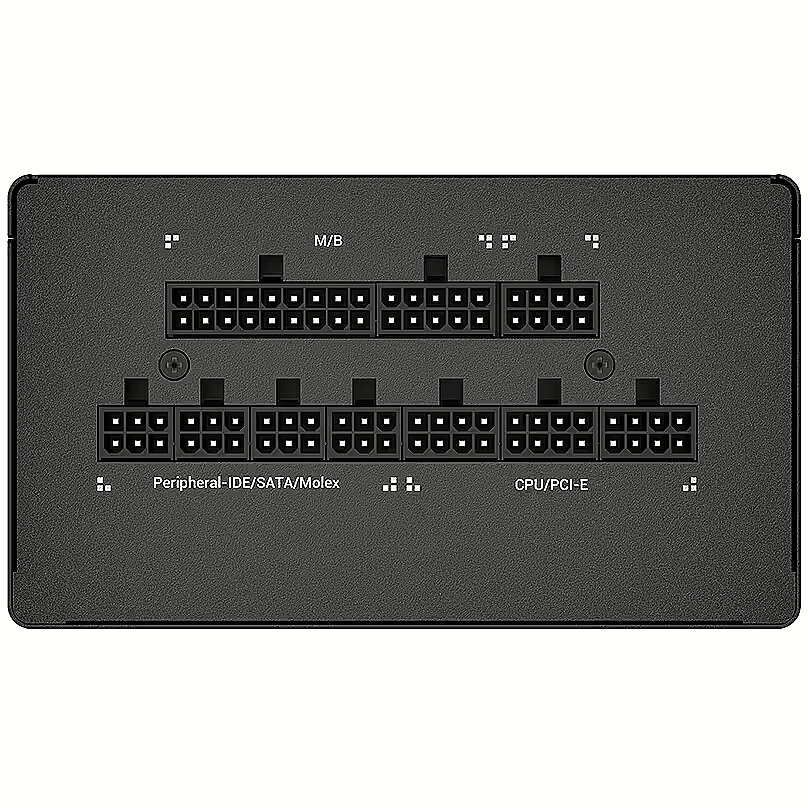

Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 3 x 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 3
Case
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
EAN_code - 6933412701729
Manufacturer - Deepcool
Manufacturer_code - R-PQ650M-FA0B-EU
Name - DeepCool PQ650M EU 12V V2.4 ATX black - GOLD

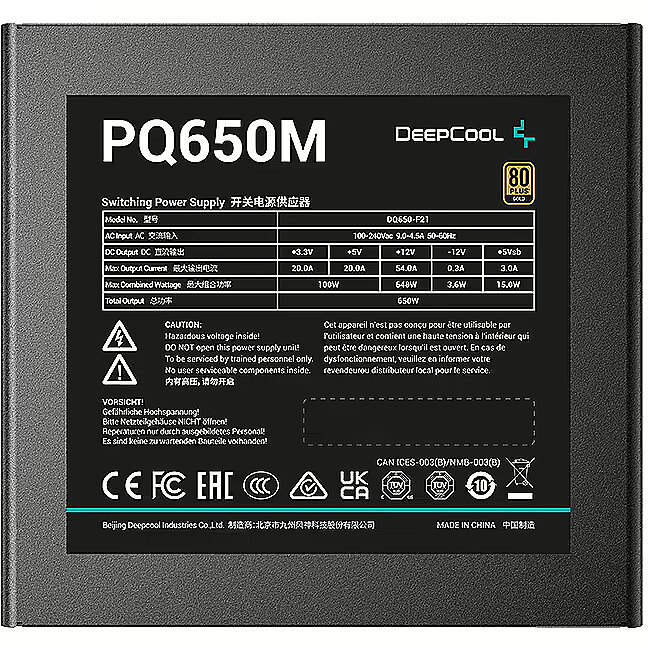

Technical_details - PQ650M 650W, PC power supply The modular PC power supply of the DeepCool PQ-M series with 80 PLUS Gold represents another generation of power supply and is characterized by quiet operation with high efficiency and stability for powerful PCs. Certified according to 80 PLUS Gold for the generation of environmentally friendly and even power while reducing waste heat and noise. The PQ-M series achieves an efficiency of 90% at 50% system load. Type: PC power supply Color: Black EAN code: 6933412701729 Manufacturer No.: R-PQ650M-FA0B-EU Series: PQ-M Performance: Total | 650W Power: +12V total | 648W Power: +3.3V/+5V total | 100W Performance: Efficiency | up to 90% Performance: input voltage range | 100-240 volts Power: input current | 4.5 A at 230 volts / 50 Hz, 9 A at 110 volts / 60 Hz Default: ATX12V 2.4 Design: ATX Certification: 80 PLUS Gold Amperages: +3.3 V | 20A Amperages: +5 V | 20A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 54 A Amperages: +12 V1 | 54 A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 2x 4+4-pin 12V, 3x 4-pin 5.25", 3x 6+2-pin graphics, 4x 15-pin SATA Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Cooling: Regulation | Temperature controlled Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Overload Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm
Weight - 2,67
