ID: 835477
Product code: R-PF750D-HA0B-EU
Can be ordered 18 units Availability: 14 days after order approval
Warranty: 2 years

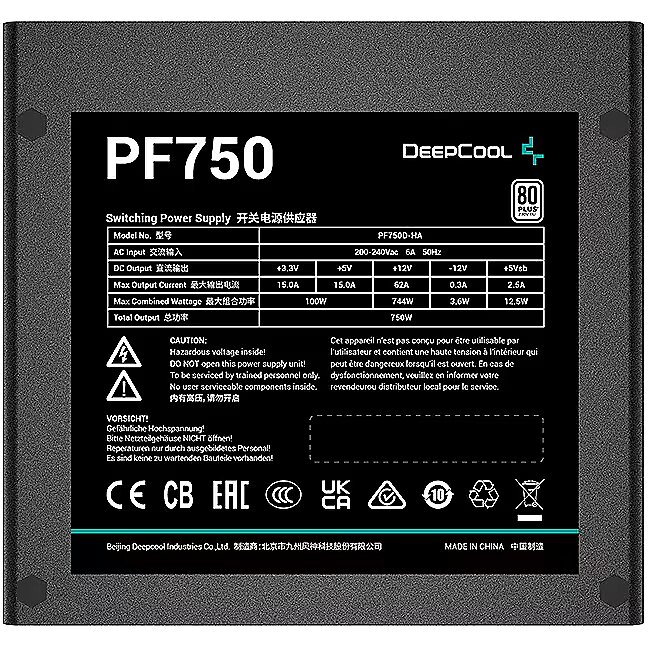

Deepcool PF750, 750W, 80PLUS
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 27.11.2024
- Courier delivery 3.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Deepcool
- Power output: 750W
- 80 PLUS certification: 80 PLUS (White)
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Deepcool power supply unit with a power capacity of 750W, which has received the 80 PLUS (White) energy efficiency certification.
For polite mid-range computer game playing, a power supply with a 750W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has been awarded the 80 PLUS (White) energy efficiency certificate, which ensures at least 80% efficiency. This indicates that at least 80 W out of 100 W of power received from the mains by the power supply is delivered to the computer components, with the remaining 20 W being lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
This power supply unit was produced by Deepcool. You can view all Deepcool power supply units here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS (White)
Total amperage (+12V)
: 62A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
BrandCode - DEEPCOOL
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates > Certification - 80 PLUS Standard Certified
Code - R-PF750D-HA0B-EU
Desc - Jauda: 750W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design > Colour of product - Black
Desktop - motherboard type -
dimensionalWeight - 1098
EAN - 6933412711605
EAN_code - 6933412711605
General parameters - manufacturer - Deepcool
GrossWeight - 1.9180
Group - IT > IT ACCESSORIES > PC COMPONENTS > POWER
Height - 0.1800
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_103108_1.jpg
LargeDescHTML -
Length - 0.1150
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PF750D-230V-Power-Supply-Unit/2021/15134.shtml?status=authorization
Manufacturer - Deepcool
Manufacturer_code - R-PF750D-HA0B-EU
Name - Barošanas bloks Deepcool PF750 750W
Name - Deepcool PF750 750W (black, 2x PCIe, 750 Watt)
Name - Deepcool | PF750 | 750 W
Name EN - PSU Deepcool 750W, 80+
Name ET - PSU Deepcool 750W, 80+
NameInWeb EN - Deepcool 750W, 80+ - Power supply unit
NameInWeb ET - Deepcool 750W, 80+ - Toiteplokk
NameInWeb LV - Deepcool 750W, 80+ - Barošanas bloks
Name LV - PSU Deepcool 750W, 80+
NetWeight - 1.5000
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross width (mm) - 115 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 161 pc(s)
Package features > Paper/Pasteboard - 700.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.00 kg
Package features > Volume (m3) - 0.005382 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Performance - 80 PLUS certification - 80 PLUS White
Performance - Bearing technology - Hypro Bearing
Performance - Certification - CB/CCC/CE/UKCA/EAC/RCM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > Form factor - ATX12V V2.4
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - Peripheral (Molex) power cable length - 900
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 450 mm
Ports & interfaces > ATX power connector (20+4 pin) - 1
Ports & interfaces > EPS power connector (8-pin) - 1
Ports & interfaces > Number of SATA power connectors - 2
Ports & interfaces > PCI Express power connectors (6+2 pin) - 2
Power - AC input voltage - 230 V
Power - Efficiency - 85%
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Nominal power - 750 W
Power supply - PSU - 750
Processor - processor -
producerCode - R-PF750D-HA0B-EU
Producer product name - PF750
ProductCode - R-PF750D-HA0B-EU
ProductionCountry - CN
productName - DeepCool PF750 power supply unit 750 W 20+4 pin ATX ATX Black
productSize - Normal
ShortDescription EN - The DeepCool PF Series Power Supply Unit offers safe and stable power performance with reliable 80 PLUS Standard efficiency and affordable pricing.
ShortDescription ET - DeepCool PF seeria toiteplokk pakub turvalist ja stabiilset energiatoimetust, usaldusväärset 80 PLUS Standard efektiivsust ja taskukohast hinda.
ShortDescription LV - DeepCool PF sērijas barošanas bloks piedāvā drošu un stabilu jaudas veiktspēju ar uzticamu 80 PLUS standarta efektivitāti par pieņemamu cenu.
sizeX - 260
sizeY - 113
sizeZ - 187
TariffNo - 85044095
Technical details > Gross weight - 1.822 kg
Technical details > Net weight - 0.822 kg
Technical details > Other features - 120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
Technical details > Producer - Deepcool
UnitOfMeasureCode - tk
UnitsPerPackage - 1
Volume - 0.00548550
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 24
warrantyType - G
Weight - 1,93
weight - 1750
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Width - 0.2650
