ID: 769875
Product code: MAG A650BN
In stock 1 units
Warranty: 2 years

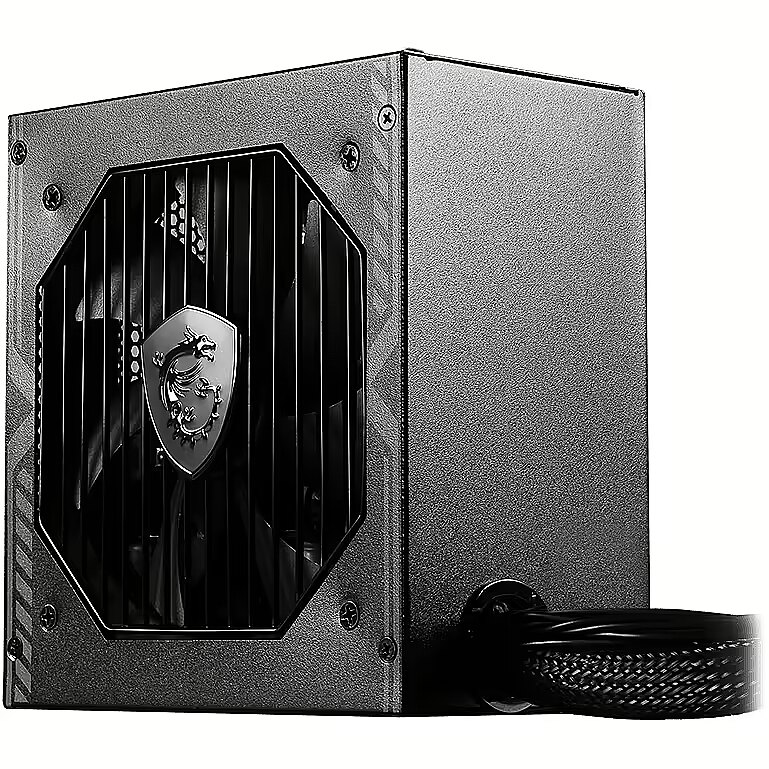

MSI MAG A650BN, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
- Courier delivery 3.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: MSI
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This MSI brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 650W.
The 650W power will be enough for running Microsoft Office programs, browsing the internet, and budget-level computer games. The power supply unit will be able to run a computer with a mid-range processor, mid-range graphics card (for example, GTX 1650), and 1-2 hard drives. For serious gaming, a more powerful power supply unit is needed.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
The power supply manufacturer is MSI. All power supplies produced by MSI can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - MSI
BrandPartCode - MAG A650BN
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|80 Plus Bronze
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Bronze
code - 306-7ZP2B11-CE0
Code - MAG A650BN
Colour - Black
Cooling System - 12cm fan
Desc - Jauda: 650W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 5, MOLEX PATA pieslēgumi: 2, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Description - MAG A650BN to podstawowej klasy zasilacz, który oferuje graczom bezpieczne, niezawodne i wydajne zasilanie komputera. Jego podstawowe funkcje i cechy obejmują certyfikat 80 PLUS Bronze, konstrukcję obwodów zasilania z przetwornicami prądu stałego (tzw. układ DC to DC), pojedynczą fazę 12V, aktywny PFC oraz cicho pracujący wentylator. MAG A650BN to jeden z najlepszych wyborów dla graczy, którzy dopiero zaczynają swoją przygodę z samodzielnym składaniem komputerów. Po jego zainstalowaniu, użytkownik może od razu cieszyć się niezawodną pracą urządzenia i dużą wydajnością, bez potrzeby jego dodatkowego konfigurowania.
Certyfikat 80 Plus Bronze
Sprawność Twojego zasilacza ma bezpośredni wpływ na wydajność systemu i zużycie energii. 80 PLUS BRONZE to certyfikat gwarantujący niższe zużycie energii i wyższą sprawność.
120-milimetrowy wentylator generujący niewielki hałas
Łożysko tulejowe wentylatora redukuje generowany hałas przy jednoczesnym zachowaniu możliwości doskonałego rozpraszania ciepła.
Konstrukcja obwodu zasilania z przetwornicami prądu stałego
Zastosowanie konstrukcji obwodu zasilania z przetwornicami prądu stałego (DC-to-DC) zmniejsza niestabilność napięcia wyjściowego i zwiększa niezawodność pracy zasilacza.
Kompleksowa ochrona obwodów
W zasilaczu zastosowano takie mechanizmy zabezpieczające jego obwody, jak: OCP (nadprądowe), OVP (przeciwprzepięciowe), SCP (przeciwzwarciowe), OPP (przeciążeniowe) i OTP (temperaturowe), które gwarantują kompleksową ochronę urządzenia.
Description - MSI POWER SUPPLY MAG A650BN
description_en - Power: 650W
Energy efficiency: 80 Plus Bronze
PFC: Active
Fan: 120mm
SATA connections: 5
MOLEX PATA connections: 2
PCI-E: 2 x 6 + 2 PIN
description_lv - Jauda: 650W
Energoefektivitāte: 80 Plus Bronze
PFC: Aktīvs
Ventilators: 120mm
SATA pieslēgumi: 5
MOLEX PATA pieslēgumi: 2
PCI-E: 2 x 6 + 2 PIN
description_ru - Мощность: 650 Вт
Энергоэффективность: 80 Plus Bronze
PFC: Активный
Вентилятор: 120 мм
SATA-подключения: 5
Разъемы MOLEX PATA: 2
PCI-E: 2 х 6 + 2 контакта
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 951
dimension depth - 105 mm
dimension height - 245 mm
Dimensions - 150 x 140 x 86 mm
Dimensions - 150mm x140mm x86mm
dimension weight - 2095 g
dimension width - 185 mm
EAN - 4719072849627
ean - 4719072849627
Eans - 4719072849627
Efficiency - 80 PLUS BRONZE
Fan - 12 cm
Floppy power connectors - 0
Full Description Line - MAG A650BN|650 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|Colour Black
gross_weight - 2.04 kg
GTIN - 4719072849627
GTIN - 4719072870478
guarantee - 60
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_84133_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - MAG A650BN provides players with a safe, reliable, and efficient entry-level power supply option. Its core features include 80 PLUS Bronze certification, DC to DC circuit design, 12V single rail, active PFC, and low-noise fan. The MAG A650BN will be one of the best choices for players who are just getting started with looking into DIY computers. After installation, gamers can immediately enjoy a reliable performance experience without additional settings.80 PLUS BRONZE CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.120MM LOW NOISE FANThe fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.DC TO DC CIRCUIT DESIGNAdopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.COMPREHENSIVE CIRCUIT PROTECTIONSupports OCP, OVP, SCP, OPP, OTP protectionmechanisms and provides comprehensive protection.5-YEAR LIMITED WARRANTYThe MAG A650BN is proudly backed by a 5-year limited warranty, guaranteeing long term reliable operation.
LongProductName - MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
LongSummaryDescription - MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - MSI
MB power connector - 20 + 4 pin
Model - MAG A650BN
Model name - MAG A650BN
Modular power supply - No
MOLEX power connectors - 2
MPN - 306-7ZP2B11-CE0
Name - 650W MSI MAG A650BN 80+ Bronze
name - MAG A650BN 650W 80PLUS BRONZE N.MODULAR
Name - MSI MAG A650BN
name - MSI MAG A650BN Netzteil, 80 PLUS Bronze, ATX 2.4 - 650 Watt
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Max output current (+3.3V) - 20 A
Performance - Max output current (+12V) - 54 A
Performance - Max output current (-12V) - 0.3 A
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
PFC - Yes
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Maximum input current (@110V) - 10 A
Power - Maximum input current (@220V) - 5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 20 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP
Power - Power protection features - OPP
Power - Power protection features - OTP
Power - Power protection features - Over current, Over power, Over voltage, Short circuit
Power - Power protection features - OVP
Power - Power protection features - SCP
Power - Total power - 650 W
Power supply - 650 W
producer - MSI
Producer - MSI
producerCode - 306-7ZP2B11-CE0
ProducerCode - MAG A650BN
productName - MSI MAG A650BN 650W Power Supply
ProductName - MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
productSize - Normal
PSU Output Power - 650 Watts
SATA power connectors - 5
Shipping Box Depth Shipping/Package Box Dimensions - 24.6 cm
Shipping Box Height Shipping/Package Box Dimensions - 19 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.081 kg
Shipping Box Width Shipping/Package Box Dimensions - 10.6 cm
ShortDescription - 650 | ATX | 140 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80PLUS BRONZE
ShortSummaryDescription - MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black', 650 W, 100 - 240 V, 50 - 60 Hz, 10 A, 5 A, Active
sizeX - 245
sizeY - 185
sizeZ - 105
Title - MSI MAG A650BN UK PSU '650W, 80 Plus Bronze certified, 12V Single-Rail, DC-to-DC Circuit, 120mm Fan, Non-Modular, Sleeved Cables, ATX Power Supply Unit, UK Powercord, Black'
title_en - MSI MAG A650BN Power supply 650W
title_lv - MSI MAG A650BN Barošanas bloks 650W
title_ru - MSI MAG A650BN Блок питания 650W
Unit Box Height - 0.19
Unit Box Length - 0.246
Unit Box Width - 0.106
Unit Brutto Volume - 0.0049544 cubm
Unit Gross Weight - 2.081 kg
Unit Net Weight - 1.29 kg
URL - https://www.msi.com/Power-Supply/MAG-A650BN/Overview
Vendor Homepage - www.msi.com/Power-Supply/MAG-A650BN/Specification
vendpn - MAG A650BN
Warranty - 24 months
WarrantyInfo - 5 years
warrantyLength - 60
warrantyType - G
weight - 2 kg
Weight - 2.1
weight - 2065
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
