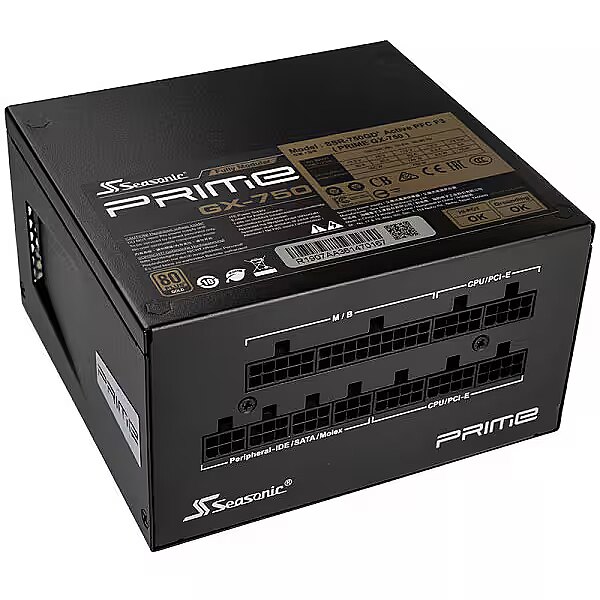

Seasonic Prime GX, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 658361 Product code: PRIME-GX-750
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Seasonic
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product Seasonic Prime GX, 750W, 80PLUS Gold
Recommended Seasonic Vertex GX, 750W, 80PLUS Gold
Recommended Inter-Tech Argus RGB Series, 750W, 80PLUS Gold
Recommended Seasonic Focus GX (2024), 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended Seasonic G12-GM, 850W, 80PLUS Gold
Show similar specs. Hide similar specs.
190.20 €
157.59 €
78.12 €
204.47 €
118.07 €
Basic information
Cybenetics Efficiency certification Nav Cybenetics Platinum Nav Nav Nav
Cybenetics Noise level certification Nav Cybenetics A Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 750W 750W 750W 1000W 850W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold
Total amperage (+12V) 62A 62A 62A 83A 70A
Fan size 135 mm 135 mm 140 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav RGB Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Fully-Modular Fully-Modular Semi-Modular Fully-Modular Semi-Modular
Ports and equipment
PCI-E 5.0 Nav 1 x 600W 12VHPWR Nav 1 x 600W 12V-2X6 Nav
Processor plug-in 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 20+4pin 20+4pin 20+4pin
PCI-E 4 X 6+2pin 3 x 6+2pin 4 X 6+2pin 3 x 6+2pin 3 x 6+2pin
SATA cconnectors 10 10 Eight Core 10 6
4pin Molex 3 5 3 1 3
Description

Available for purchase is a power supply produced by Seasonic with a power output of 750W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 10
4pin Molex : 3
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Eans - 4711173874249
EAN_code - 4711173874249
Manufacturer - Seasonic
Manufacturer_code - PRIME-GX-750
Name - Seasonic PRIME GX-750 - 750W ATX23
Name - Seasonic Prime GX - 750W
Producer - Seasonic
ProducerCode - SSR-750GD
ShortDescription - 750 | ATX | 135 mm | 24 pin | 150 x 86 x 140 mm | 80 Plus Gold | modularny
Weight - 3,25
