ID: 573971
Product code: P550B
Can be ordered 53 units Availability: 14 days after order approval
Warranty: 3 years

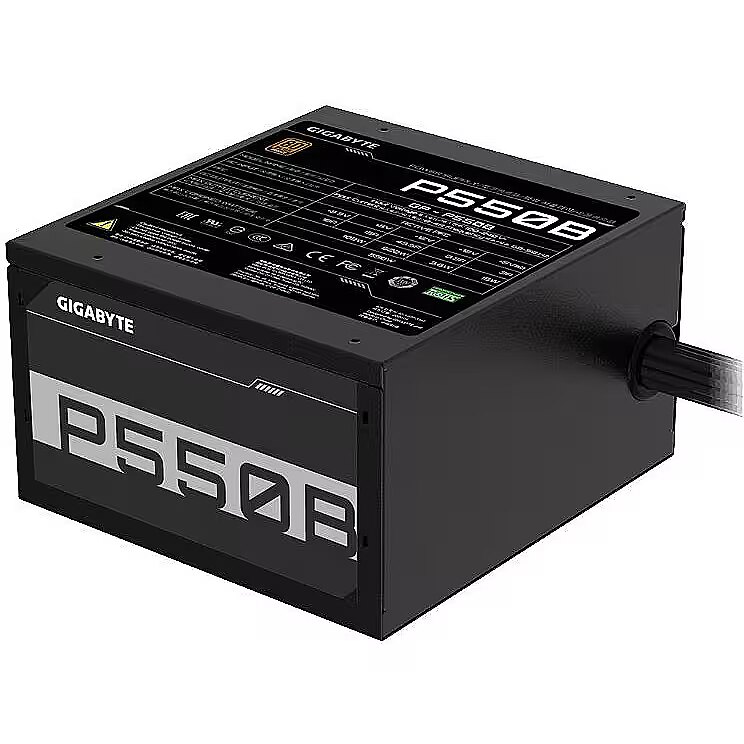

Gigabyte P550B, 550W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 20.12.2024
- Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This Gigabyte brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 550W.
The power of 550W is more than sufficient for office programs, web browsing, and light computer games. It will be able to run a basic computer with an integrated graphics card, budget-level processor, small SSD or hard drive. If you plan to upgrade your computer in the future, you should definitely consider a more powerful power supply.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
The noise level of this power supply is 40-45 dB and it has a Cybenetics Standard noise level certificate.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
The manufacturer of this power supply is Gigabyte. View all Gigabyte power supplies here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Cybenetics Standard
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 43.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-P550B
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze certified
Code - GP-P550B
Colour - Black
Cooling System - 12cm fan
Desc - Jauda: 550W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 4, PCI-E: 2 x 6 + 2 Pin, Garantija: 2 gadi
Description -
Description - P550B Power Supply - 80 PLUS Bronze certified - 120mm Silent Hydraulic Bearing (HYB) Fan - Reliable flat cable - Single +12V rail - OVP/OPP/SCP/UVP/OCP/OTP protection Connectors: - ATX/MB 20+4 Pin x 1 - CPU/EPS 4+4 Pin x 1 - PCI-e 6+2 Pin x 2 - SATA x 6 - 4 Pin Peripheral x 3 + 4-Pin floppy x 1
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)

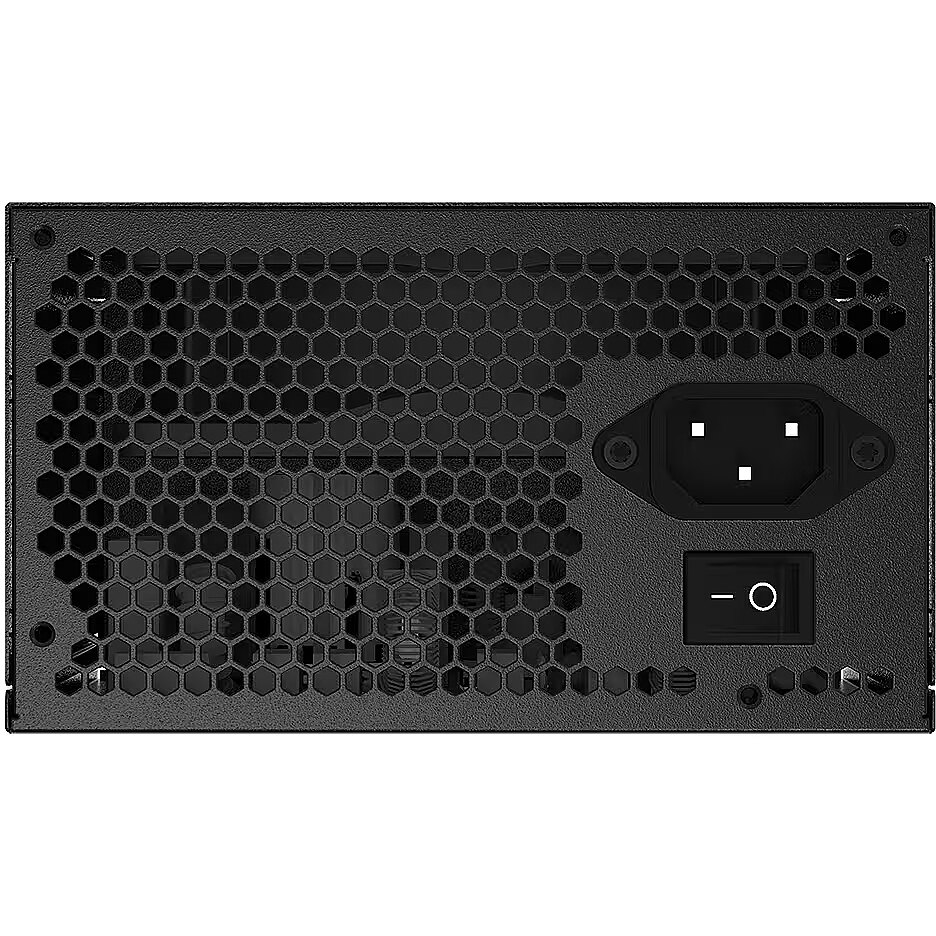

Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1315
dimension depth - 120 mm
dimension height - 210 mm
Dimensions - 150 x 140 x 86 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2000 g
dimension width - 260 mm
EAN - 4719331551490
ean - 4719331551490
EAN - GP-P550B
Eans - 4719331551490
EAN_code - 4719331551490
Efficiency - 80 PLUS BRONZE
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - P550B|ATX 2.31|550 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331551490
guarantee - 36
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_65871_1.jpg
LargeDescHTML -
Link - https://www.gigabyte.com/lt/Power-Supply/GP-P550B#kf
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - 80 PLUS BRONZE CERTIFIED80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.Reliable Flat CableP550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.120mm Silent Hydraulic Bearing (HYB) Fan120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
LongProductName - 550 W, 100-240 V, 50-60 Hz, 8-4 A, 80 PLUS Bronze, 150x140x86 mm
LongSummaryDescription - GIGABYTE P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-P550B
MB power connector - 20 + 4 pin
Model name - P550B
Modular power supply - No
MOLEX power connectors - 3
MTBF - 100000 hours
Name - Gigabyte GP-P550B
Name - GIGABYTE GP-P550B, PC power supply unit (black, 2x PCIe)
Name - Gigabyte P550B
Name - Gigabyte | GP-P550B | 550 W
name - Power supply P550B 550W PFC 120mm hydraulic fan ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 121 mm
Package features > Gross depth master carton - 530 mm
Package features > Gross height (mm) - 207 mm
Package features > Gross height master carton - 260 mm
Package features > Gross weight - 2.021 kg
Package features > Gross width (mm) - 255 mm
Package features > Gross width master carton - 625 mm
Package features > Net weight master carton - 20.21 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 200 pc(s)
Package features > Paper/Pasteboard - 320.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Tare weight master carton - 1.464 kg
Package features > Volume (m3) - 0.006386985 m³
Package features > WEEE tax - No
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.31
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 500
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 108 W
Power - Combined power (+5V) - 108 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 522 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 8 - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 15 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 43.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power > Nominal power - 550 W
Power supply - 550 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-P550B
ProducerCode - GP-P550B
Producer product name - GP-P550B
productName - Gigabyte P550B power supply unit 550 W 20+4 pin ATX ATX Black
ProductName - P550B
productSize - Normal
PSU - ATX 2.31
PSU Output Power - 550 Watts
SATA power connectors - 6
Shipping Box Depth Shipping/Package Box Dimensions - 62.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 21.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 53 cm
ShortDescription - 550 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | 80 PLUS Bronze |
ShortSummaryDescription - GIGABYTE P550B, 550 W, 100 - 240 V, 50 - 60 Hz, 8 - 4 A, Active, 108 W
sizeX - 255
sizeY - 215
sizeZ - 120
Technical details > Net weight - 1.621 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - GIGABYTE P550B power supply unit 550 W 20+4 pin ATX ATX Black
Unit Box Height - 0.12
Unit Box Length - 0.26
Unit Box Width - 0.21
Unit Brutto Volume - 0.008447 cubm
Unit Gross Weight - 2.19 kg
Unit Net Weight - 1.9 kg
URL - https://www.gigabyte.com/Power-Supply/GP-P550B/sp#sp
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-P550B#kf
vendpn - GP-P550B
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years warranty (Adjusted according to different regions)
warrantyLength - 36
warrantyType - G
Weight - 1,98
weight - 2050
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Accessories included -
Brand - GIGABYTE
BrandPartCode - GP-P550B
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze certified
Code - GP-P550B
Colour - Black
Cooling System - 12cm fan
Desc - Jauda: 550W, Energoefektivitāte: 80 Plus Bronze, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 4, PCI-E: 2 x 6 + 2 Pin, Garantija: 2 gadi
Description -
Description - P550B Power Supply - 80 PLUS Bronze certified - 120mm Silent Hydraulic Bearing (HYB) Fan - Reliable flat cable - Single +12V rail - OVP/OPP/SCP/UVP/OCP/OTP protection Connectors: - ATX/MB 20+4 Pin x 1 - CPU/EPS 4+4 Pin x 1 - PCI-e 6+2 Pin x 2 - SATA x 6 - 4 Pin Peripheral x 3 + 4-Pin floppy x 1
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1315
dimension depth - 120 mm
dimension height - 210 mm
Dimensions - 150 x 140 x 86 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 2000 g
dimension width - 260 mm
EAN - 4719331551490
ean - 4719331551490
EAN - GP-P550B
Eans - 4719331551490
EAN_code - 4719331551490
Efficiency - 80 PLUS BRONZE
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - P550B|ATX 2.31|550 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331551490
guarantee - 36
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_65871_1.jpg
LargeDescHTML -
Link - https://www.gigabyte.com/lt/Power-Supply/GP-P550B#kf
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - 80 PLUS BRONZE CERTIFIED80 Plus Bronze certified ensures to deliver 85% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.Reliable Flat CableP550B provides the best solution for the system builds. The flat cable reduces the clutter and improves the airflow in the case.120mm Silent Hydraulic Bearing (HYB) Fan120mm Silent Hydraulic Bearing fan optimizes the noise reduction and the thermal performance. The fan speed is adjusted according to the automatic power detection. The Hydraulic Bearing fan provides longer and more stable life time.SINGLE +12V RAILSingle +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.PROTECTIONIn order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
LongProductName - 550 W, 100-240 V, 50-60 Hz, 8-4 A, 80 PLUS Bronze, 150x140x86 mm
LongSummaryDescription - GIGABYTE P550B. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-P550B
MB power connector - 20 + 4 pin
Model name - P550B
Modular power supply - No
MOLEX power connectors - 3
MTBF - 100000 hours
Name - Gigabyte GP-P550B
Name - GIGABYTE GP-P550B, PC power supply unit (black, 2x PCIe)
Name - Gigabyte P550B
Name - Gigabyte | GP-P550B | 550 W
name - Power supply P550B 550W PFC 120mm hydraulic fan ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 121 mm
Package features > Gross depth master carton - 530 mm
Package features > Gross height (mm) - 207 mm
Package features > Gross height master carton - 260 mm
Package features > Gross weight - 2.021 kg
Package features > Gross width (mm) - 255 mm
Package features > Gross width master carton - 625 mm
Package features > Net weight master carton - 20.21 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 200 pc(s)
Package features > Paper/Pasteboard - 320.00 g
Package features > Plastic (No PET) - 80.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Tare weight master carton - 1.464 kg
Package features > Volume (m3) - 0.006386985 m³
Package features > WEEE tax - No
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.31
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 60 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 55 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 500
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 500
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 108 W
Power - Combined power (+5V) - 108 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 522 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 16 ms
Power - Input current - 8 - 4 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 15 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 43.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power > Nominal power - 550 W
Power supply - 550 W
producer - Gigabyte
Producer - Gigabyte
producerCode - GP-P550B
ProducerCode - GP-P550B
Producer product name - GP-P550B
productName - Gigabyte P550B power supply unit 550 W 20+4 pin ATX ATX Black
ProductName - P550B
productSize - Normal
PSU - ATX 2.31
PSU Output Power - 550 Watts
SATA power connectors - 6
Shipping Box Depth Shipping/Package Box Dimensions - 62.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25.5 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 21.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 53 cm
ShortDescription - 550 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | 80 PLUS Bronze |
ShortSummaryDescription - GIGABYTE P550B, 550 W, 100 - 240 V, 50 - 60 Hz, 8 - 4 A, Active, 108 W
sizeX - 255
sizeY - 215
sizeZ - 120
Technical details > Net weight - 1.621 kg
Technical details > Producer - Gigabyte
Technical details > Warranty - 36 month(s)
Title - GIGABYTE P550B power supply unit 550 W 20+4 pin ATX ATX Black
Unit Box Height - 0.12
Unit Box Length - 0.26
Unit Box Width - 0.21
Unit Brutto Volume - 0.008447 cubm
Unit Gross Weight - 2.19 kg
Unit Net Weight - 1.9 kg
URL - https://www.gigabyte.com/Power-Supply/GP-P550B/sp#sp
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-P550B#kf
vendpn - GP-P550B
Warranty - 36
Warranty - 36 months
WarrantyInfo - 3 years warranty (Adjusted according to different regions)
warrantyLength - 36
warrantyType - G
Weight - 1,98
weight - 2050
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
