Thermaltake Smart RGB, 700W, 80PLUS

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 247192 Product code: PS-SPR-0700NHSAWE-1
Can be ordered 149 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
72.84 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 10.12.2024
  • Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 700W
  • 80 PLUS certification: 80 PLUS (White)
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

This Thermaltake brand power supply unit has an 80 PLUS (White) energy efficiency certificate and a power output of 700W.

For polite mid-range computer game playing, a power supply with a 700W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS (White) energy efficiency certificate, which ensures at least 80% efficiency. This indicates that at least 80 W out of 100 W of power received from the mains by the power supply is delivered to the computer components, with the remaining 20 W being lost as heat.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply has received Cybenetics Standard noise level certification – the noise produced by the unit will be 40-45 decibels.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

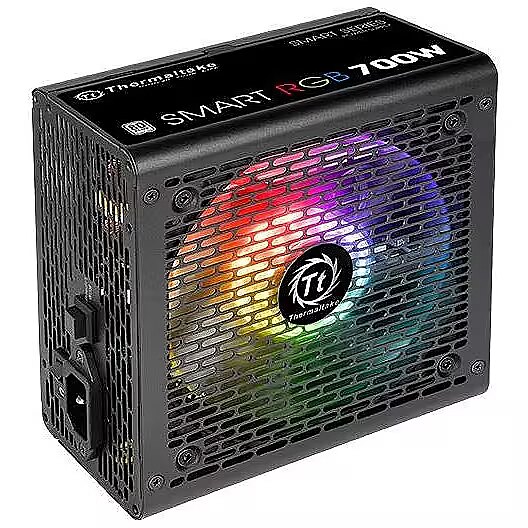

This power supply has received RGB lighting.

Basic information
Cybenetics Efficiency certification : Cybenetics Bronze
Cybenetics Noise level certification : Cybenetics Standard
Power supply type : ATX
Power output 700W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS (White)
Total amperage (+12V) : 54A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : RGB
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 6
4pin Molex : 5
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS
Description -
dimension depth - 100 mm
dimension height - 180 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 1645 g
dimension width - 230 mm
ean - 4711246870475
Eans - 4711246870475
EAN_code - 4711246870475
Fan - 12 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-SPR-0700NHSAWE-1
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 5
name - Smart 700W RGB (80+ 230V EU, 2xPEG, 120mm, Single Rail)
Name - Thermaltake Smart 700W RGB
Name - Thermaltake Smart RGB 700W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 700 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-SPR-0700NHSAWE-1
SATA power connectors - 6
ShortDescription - 700 | ATX | 120mm | 20+4 | 86mm x 150mm x 140mm | podświetlenie RGB

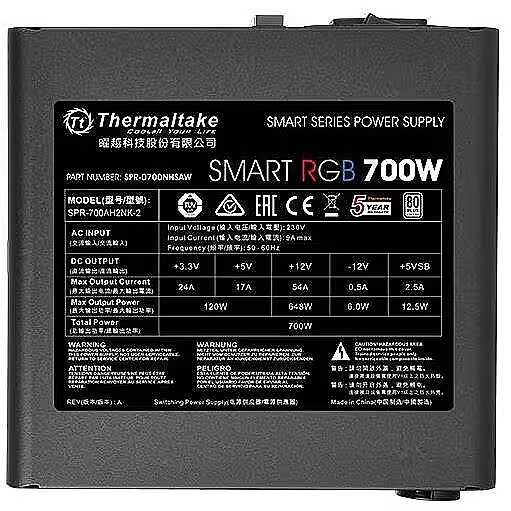

Technical_details - Fan(s): 120mm, 1800rpm (RGB illuminated) PFC: active Connectors: 1x 24-Pin, 1x 4/8-Pin ATX12V, 2x 6/8-Pin PCIe, 6x SATA, 5x IDE, 1x Floppy +3.3V: 24A +5V: 17A +12V: 54A -12V: 0.5A +5Vsb: 2.5A average efficiency (115V): >85% Form factor: ATX PS/2 Dimensions (WxHxD): 150x86x170mm Special features: supports "Haswell" C6/?C7 Low-Power States, ErP plumb line 6 Warranty: five years
vendpn - PS-SPR-0700NHSAWE-1
Weight - 1,97
