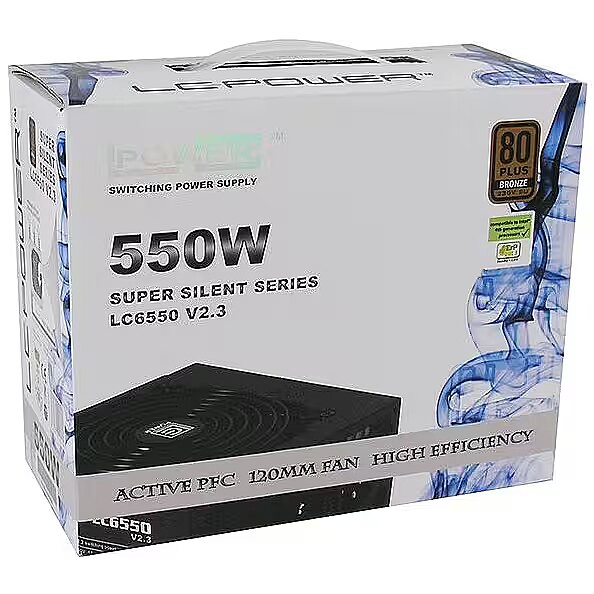

Lc-power LC6550 V2.3, 550W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 232511 Product code: LC6550 V 2.3
Can be ordered 30 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
58.63 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 10.12.2024
  • Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: LC-POWER
  • Power output: 550W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6+2pin
Description

This LC-POWER brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 550W.

With 550W power, it will be enough to run Office programs, browse the internet, and play simple computer games. It will be able to run a computer with a budget-level processor, integrated graphics card, small SSD, or HDD disk. If there is a desire to upgrade computer components in the future, it is definitely worth considering a more powerful power supply unit.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 44A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6+2pin
SATA cconnectors : 4
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates - CE/TUV
Certificates 80+ - 80 PLUS Bronze
dimension depth - 100 mm
dimension height - 220 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 1830 g
dimension width - 180 mm
ean - 4260070120589
EAN - 4260070120589
Fan - 12 cm
Floppy power connectors - 0
Gross Weight Kg - 2,36
guarantee - 24
guarantee_type - normal
Manufacturer Code - LC6550 V2.3
Manufacturer Name - LC-Power
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 4
name - PSU 550W LC6550 V2.3 80+ Bronze 120mm 4 x SATA 4 x PATA 1x PCIe BLACK Active PFC
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features - - Super Silent Series
- ATX v2.3
- Zabezpieczenia: OVP/OCP/OPP/SCP/UVP
- Haswell Compatible
- 2x +12 Rails
Długość przewodów:
- 20+4 pin: 45 cm
- 4+4 pin 12V: 45 cm
- PCI-E: 45 cm
- SATA: 1x 45/2x 60/1x 75 cm
- PATA: 2x 45/2x 60 cm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 550 W
producer - LC-POWER
SATA power connectors - 4
Short description - Netzteil ATX LC-Power 550W/120mm 80+ 4+4-pin 12V, 6+2-pin PCIe
vendpn - LC6550 V 2.3
Weight - 1.752 kg
