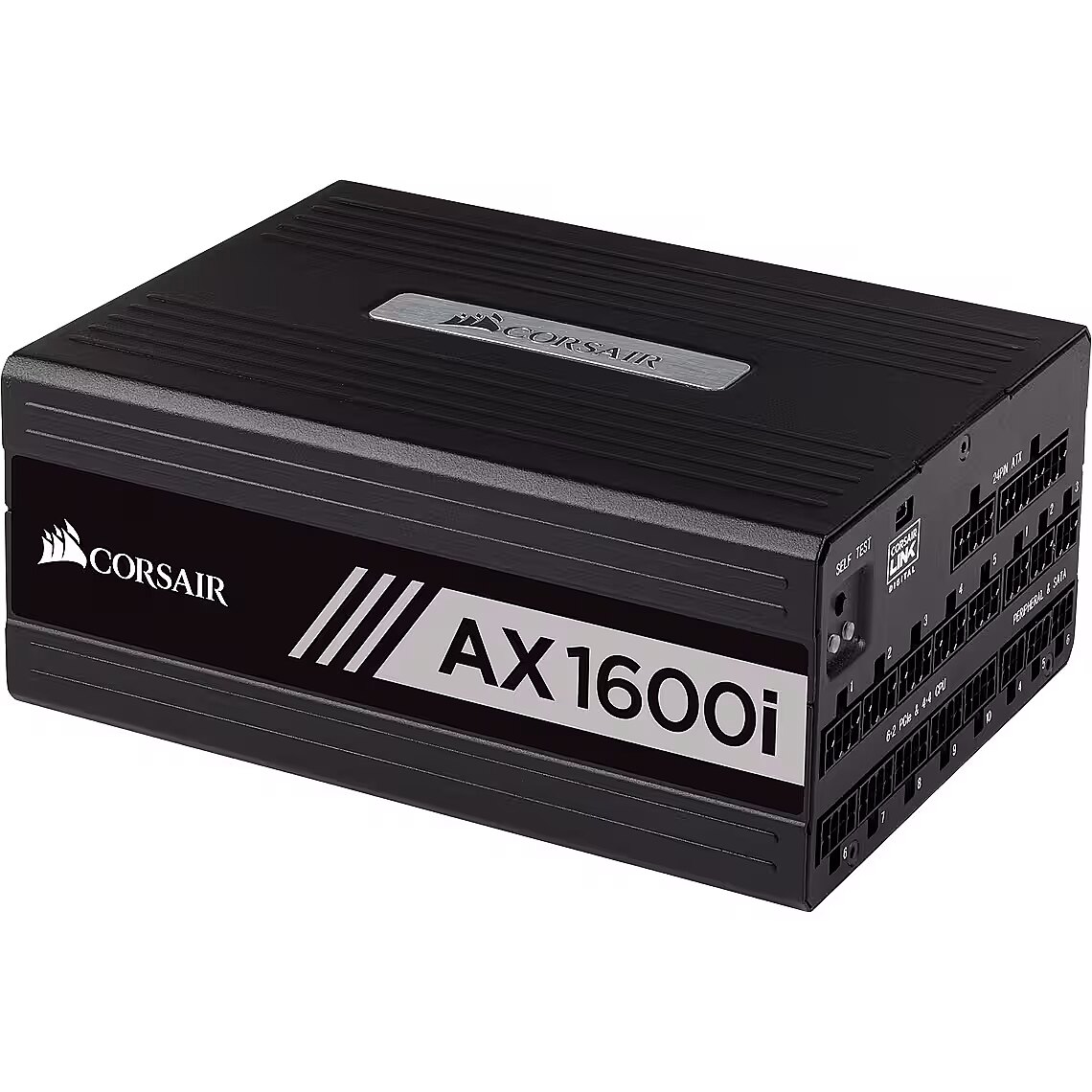

Corsair AX1600i, 1600W, 80PLUS Titanium

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 165598 Product code: CP-9020087-EU
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years
581.16 €
Main product parameters All parameters
  • Producer: Corsair
  • Power output: 1600W
  • 80 PLUS certification: 80 PLUS Titanium
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 10 X 6+2pin
Description

Available for purchase is a power supply produced by Corsair with a power output of 1600W. The product has been awarded an 80 PLUS Titanium energy efficiency certificate.

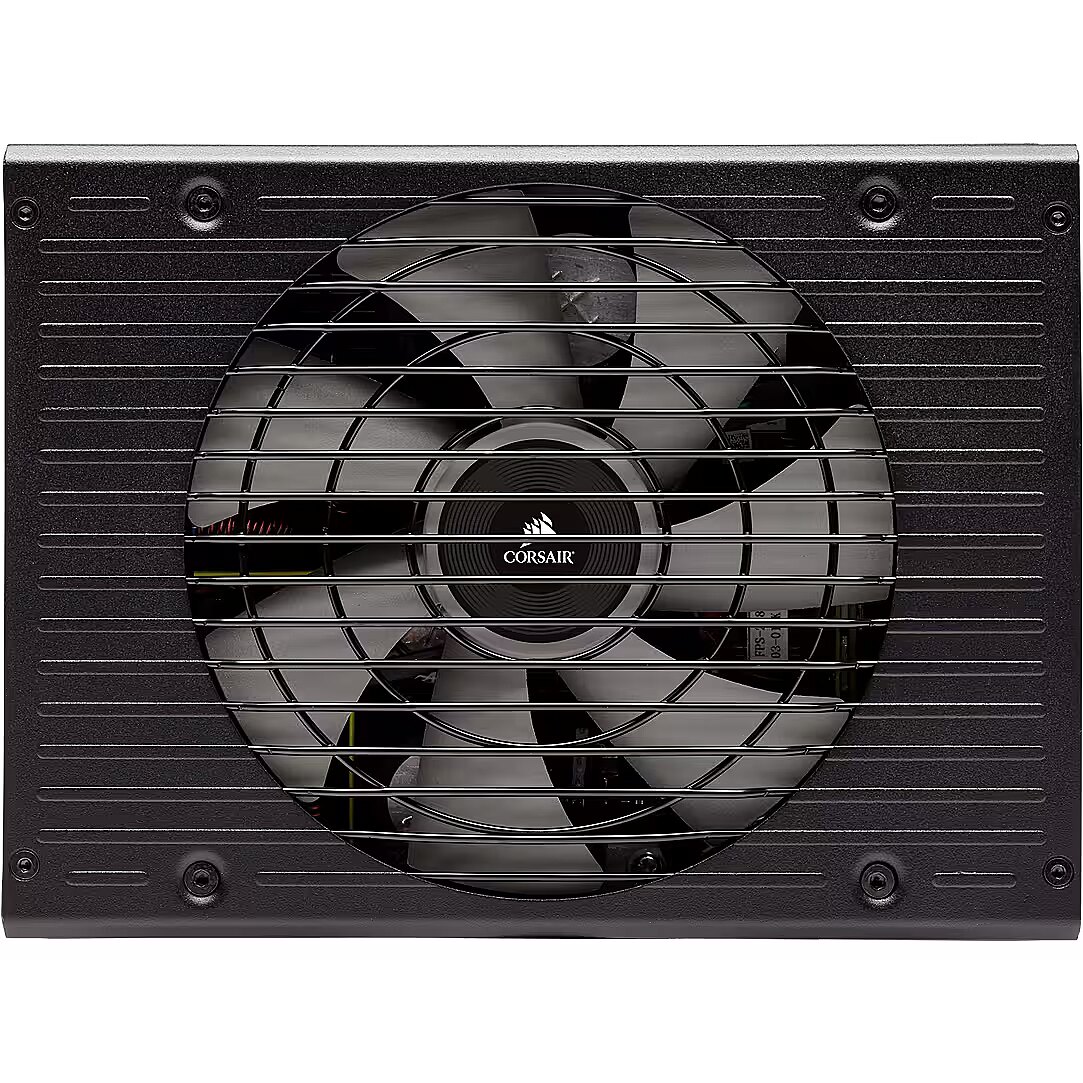

This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.

80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

The noise level of this power supply is 20-25 dB and it has a Cybenetics A noise level certificate.

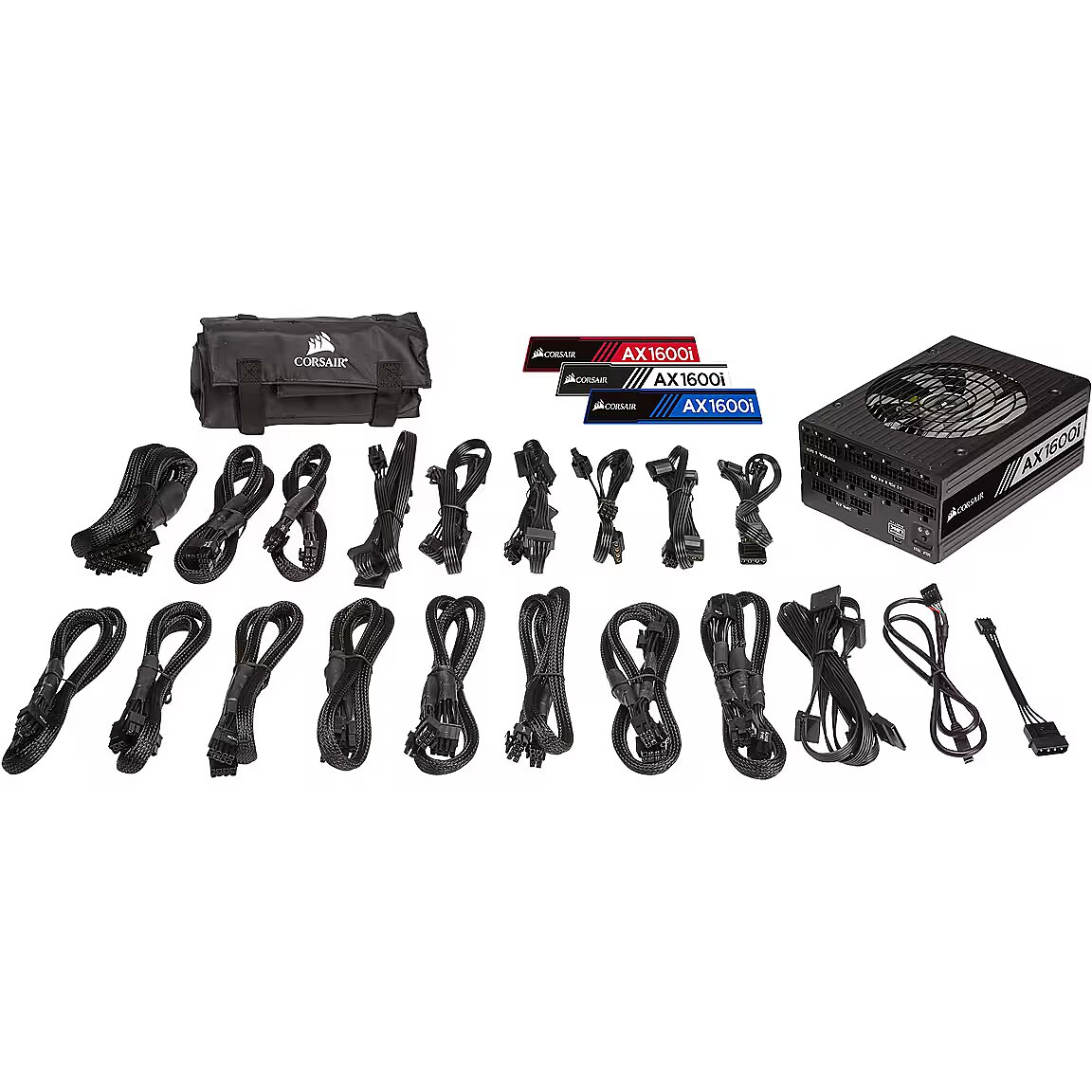

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Titanium
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Titanium
Total amperage (+12V) : 133A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 10 X 6+2pin
SATA cconnectors : 16
4pin Molex : 9
Case
More detailed specification
Additional information in manufacturers website Corsair AX1600i, 1600W, 80PLUS Titanium
category - Energy Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
code - CP-9020087-EU
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2880
ean - 0843591050319
Eans - 843591050319
EAN_code - 0843591050319
Logistics data - Harmonized System (HS) code - 84733020
Manufacturer - Corsair
Manufacturer_code - CP-9020087-EU
Name - Corsair AX1600i CP-9020087-EU
Name - Corsair Corsair AX1600i - 80Plus Platinum
name - Corsair Professional Titanium Series AX1600i Netzteil - 1600 Watt
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Case badge included - Yes
Packaging data - Manual - Yes
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 2.4
Performance - Bearing technology - FDB
Performance - Continuous output rated temperature - 50 °C
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 180 W
Power - Combined power (+5V) - 180 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1600 W
Power - Combined power (-12V) - 9.6 W
Power - Efficiency - 94%
Power - Input current - 9 - 15 A
Power - Max output current (+3.3V) - 30 A
Power - Max output current (+5V) - 30 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V) - 133.3 A
Power - Max output current (-12V) - 0.8 A
Power - Power protection features - Over current
Power - Total power - 1600 W
Producer - Corsair
producerCode - CP-9020087-EU
ProducerCode - CP-9020087-EU
productName - Corsair AX1600i power supply unit 1600 W ATX Black
productSize - Normal
ShortDescription - 1600 | ATX | 140mm | 20 + 4 pin | 200mm x 86mm x 150mm | 80 PLUS Titanium | modularny |
sizeX - 400
sizeY - 225
sizeZ - 160
warrantyLength - 24
warrantyType - G
Weight - 5,49
weight - 5510
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.65 kg
Weight & dimensions - Width - 200 mm
