Silverstone ST30SF, 300W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 160515 Product code: SST-ST30SF v 2.0
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Silverstone
  • Power output: 300W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 92 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6pin
Similar Products
This product Silverstone ST30SF, 300W, 80PLUS Bronze
Recommended Cougar Atlas, 600W, 80PLUS Bronze
Recommended Chieftec VITA Series, 750W, 80PLUS Bronze
Recommended Inter-Tech Argus BPS, 700W, 80PLUS Bronze
Recommended Deepcool PF500, 500W, 80PLUS
Show similar specs. Hide similar specs.
71.04 €
56.04 €
73.33 €
64.61 €
42.78 €
Basic information
Cybenetics Efficiency certification Nav Nav Nav Nav Nav
Cybenetics Noise level certification Nav Nav Nav Nav Nav
Power supply type SFX ATX ATX ATX ATX
Power output 300W 600W 750W 700W 500W
80 PLUS certification 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS (White)
Total amperage (+12V) 25A 50A 62.5A 58A 40A
Fan size 92 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Nav Nav Nav Nav Nav
Ports and equipment
PCI-E 5.0 Nav Nav Nav Nav Nav
Processor plug-in 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS
Motherboard power 20+4pin 24-pin 20+4pin 20+4pin 20+4pin
PCI-E 1 X 6pin 2 X 6+2pin 4 X 6+2pin 4 X 6+2pin 2 X 6+2pin
SATA cconnectors 3 6 6 6 6
4pin Molex 2 2 2 3 2
Description

80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

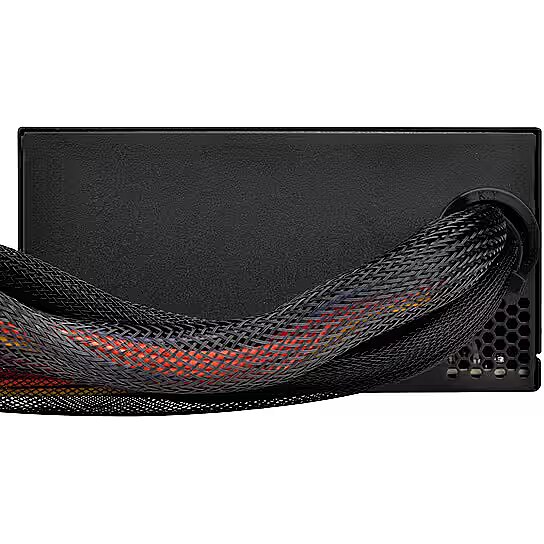

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

This is a SFX (Small Form Factor eXtended) type power supply. It is smaller in size and power compared to AFX type units, but is ideally suited for small form (SFF) computers where space is limited. It has smaller size fans and it is compatible with such motherboards as Mini-ITX.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : SFX
Power output 300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 25A
Fan size : 92 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6pin
SATA cconnectors : 3
4pin Molex : 2
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
EAN_code - 4710007224304
Manufacturer - Silverstone Technology
Manufacturer_code - SST-ST30SF v 2.0
Name - SilverStone SST-ST30SF v 2.0 300W SFX

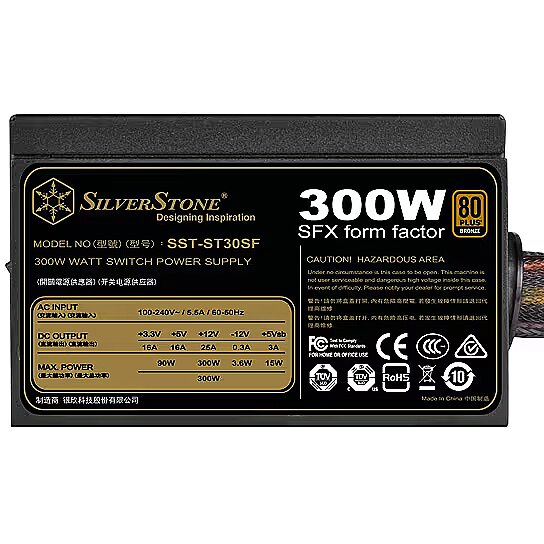

Technical_details - Fan(s): 92mm, 18dB(A) PFC: active Connectors: 1x 20/24-Pin, 1x 4/8-Pin ATX12V, 1x 6-Pin PCIe, 3x SATA, 2x IDE, 1x Floppy +3.3V: 16A +5V: 16A +12V: 25A -12V: 0.3A +5Vsb: 3A average efficiency (115V): >84%, 80 PLUS Bronze certified Form factor: SFX Dimensions (WxHxD): 125x63x100mm Special features: supports "Haswell" C6/?C7 Low-Power States, ErP plumb line 6 Warranty: three years
Weight - 1,60
