ID: 152624
Product code: BN239
In stock 1 units
Warranty: 3 years

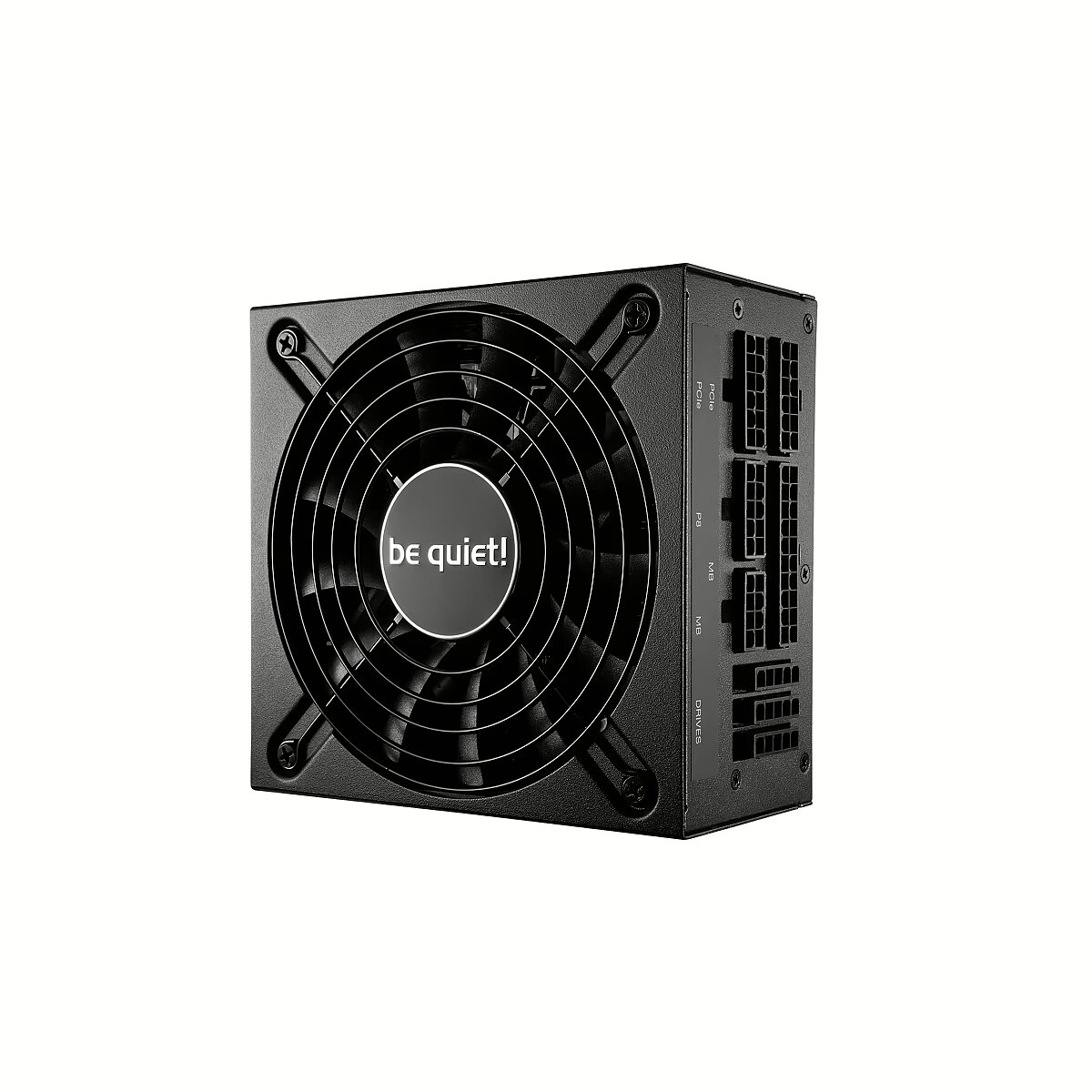

Be Quiet SFX L Power, 600W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 02.12.2024
- Courier delivery 3.99 €: 02.12.2024
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 600W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Be Quiet brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 600W.
600W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit has received a Cybenetics A - noise level certificate – the noise generated by the unit will be 25-30 decibels.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
This power supply has an SFX (Small Form Factor eXtended) type. Although it does not have as large size and power as AFX type supplies, it will be suitable for small form factor (SFF) computers. The power supply works with system boards like Mini-ITX, and it has smaller fans.
The power supply manufacturer is Be Quiet. All Be Quiet produced power supplies can be viewed here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics A -
Power supply type
: SFX-L
Power output
600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 50A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
Brand - be quiet!
BrandPartCode - BN239
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
code - BN239
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
ean - 4260052187135
EAN_code - 4260052187135
GTIN - 4260052187135
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case gross weight - 21.5 kg
Logistics data - Master (outer) case height - 240 mm
Logistics data - Master (outer) case length - 430 mm
Logistics data - Master (outer) case width - 430 mm
Logistics data - Products per master (outer) case - 10 pc(s)
LongDesc - Compact and Silent Energybe quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.POWERFUL, RELIABLE AND STABLEA strong partner for Mini ITX and compact gaming PCsThe SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.QUIET OPERATION FOR COMPACT SYSTEMSOptimized for low-noise operationThis PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.80 PLUS® GOLD CERTIFICATIONVery high operating efficiencySFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.MODULAR AND FLAT CABLESHighly compatible and convenientEntirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.SUPER VERSATILE INSTALLATIONAdapts to your individual requirementsThis power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.
LongProductName - 600 W, SFX 12V 3.3/ATX 2.4, 120mm fan, 28.7dB max., ATX 20+4-pin, 4x PCI-E 6+2-pin, 1x P4+4, 6x SATA, 3x PATA
LongSummaryDescription - be quiet! SFX L Power. Total power: 600 W, AC input voltage: 100 - 240 V, Peak power: 650 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 30 cm, PCI Express power cable length: 40 cm. Purpose: PC, Power supply unit (PSU) form factor: SFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 125 mm, Depth: 130 mm, Height: 64 mm
Manufacturer - Be quiet
Manufacturer_code - BN239
name - be quiet! SFX-L Power 80 PLUS Gold Netzteil, modular - 600 Watt
Name - be quiet! SFX-L Power 600W - 80Plus Gold
Other features - Cable ties included - Yes
Other features - Noise level (full-load mode, 100%) - 28.7 dB
Other features - Noise level (quiet mode, 50%) - 14.5 dB
Other features - Noise level (silent mode, Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 80 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.04 kg
Packaging data - Package width - 205 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - Sleeve
Performance - Certification - CE, CB, TÜV, FCC, cTUVus, RCM
Performance - Power supply unit (PSU) form factor - SFX
Performance - Purpose - PC
Performance - Silent mode - Yes
Performance - Supported motherboard form factors - Mini-ITX
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 40 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 30 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 3
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 40 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 16.8 ms
Power - Input current - 10 A
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 650 W
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 600 W
ProductName - SFX L Power
ShortSummaryDescription - be quiet! SFX L Power, 600 W, 100 - 240 V, 650 W, 50 - 60 Hz, 10 A, Active
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - be quiet! SFX L Power power supply unit 600 W 20+4 pin ATX Black
URL - https://www.bequiet.com/en/download/powersupply/1552?utm_source=newsletter
WarrantyInfo - 3 years
Weight - 2,05
Weight & dimensions - Depth - 130 mm
Weight & dimensions - Height - 64 mm
Weight & dimensions - Weight - 1.16 kg
Weight & dimensions - Width - 125 mm
