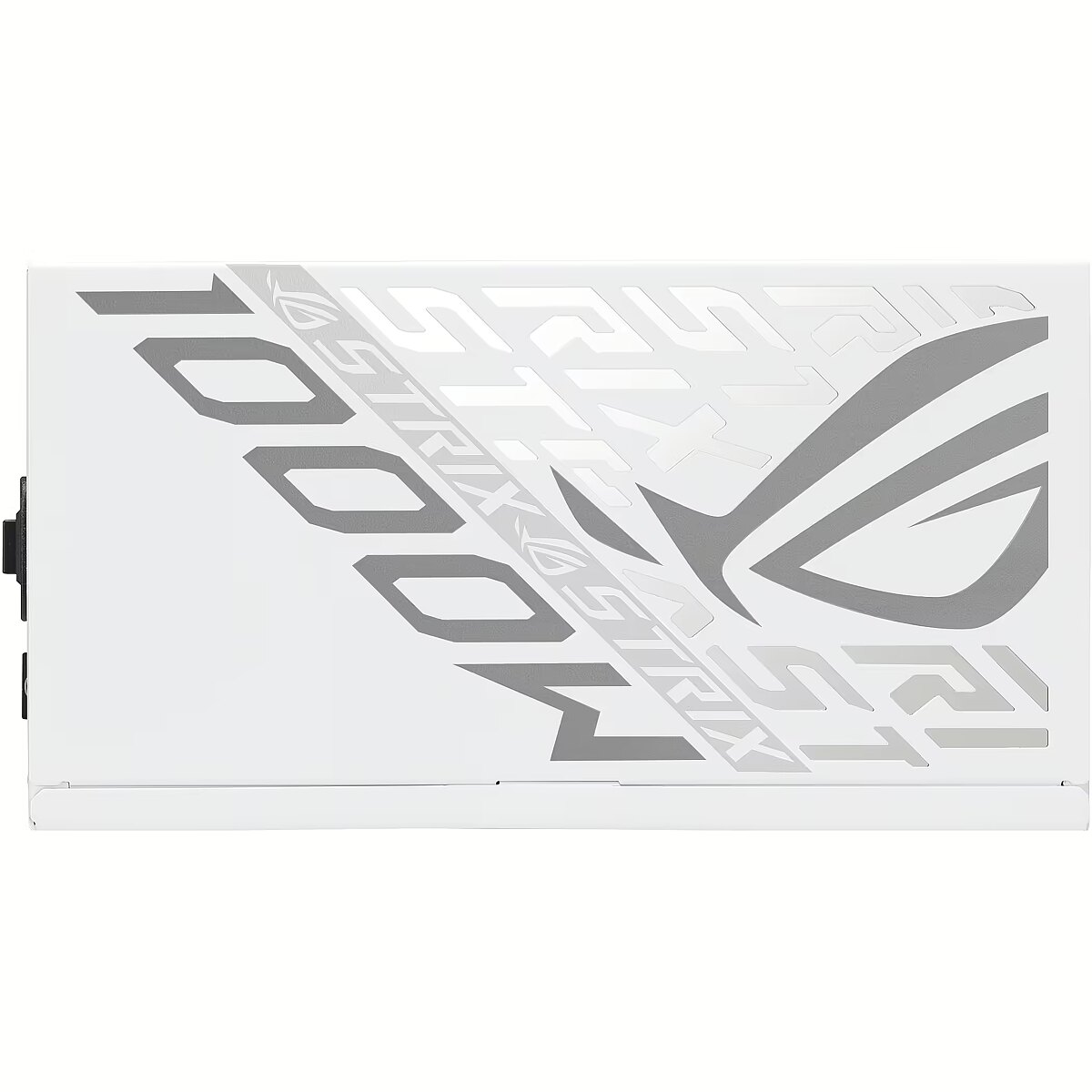

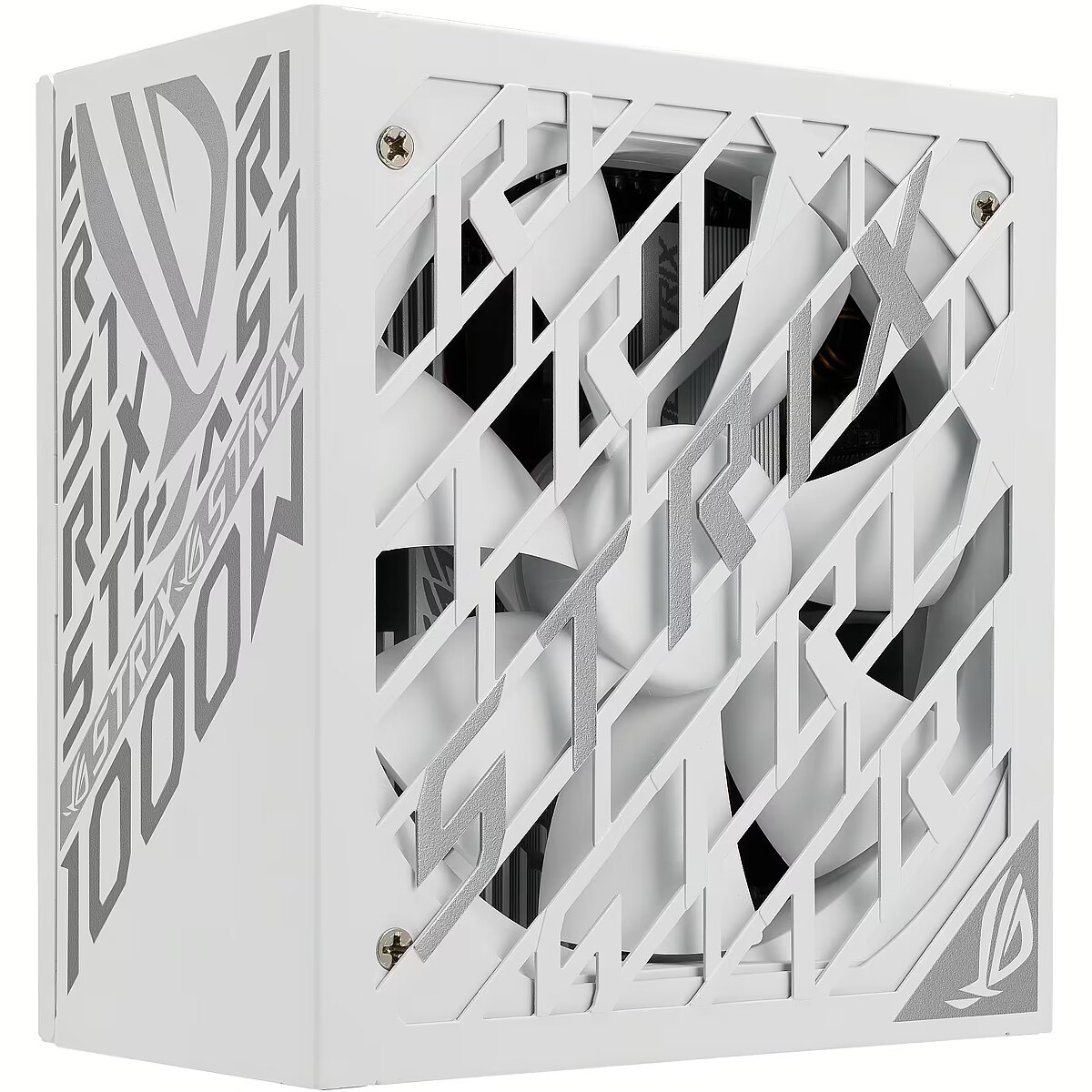

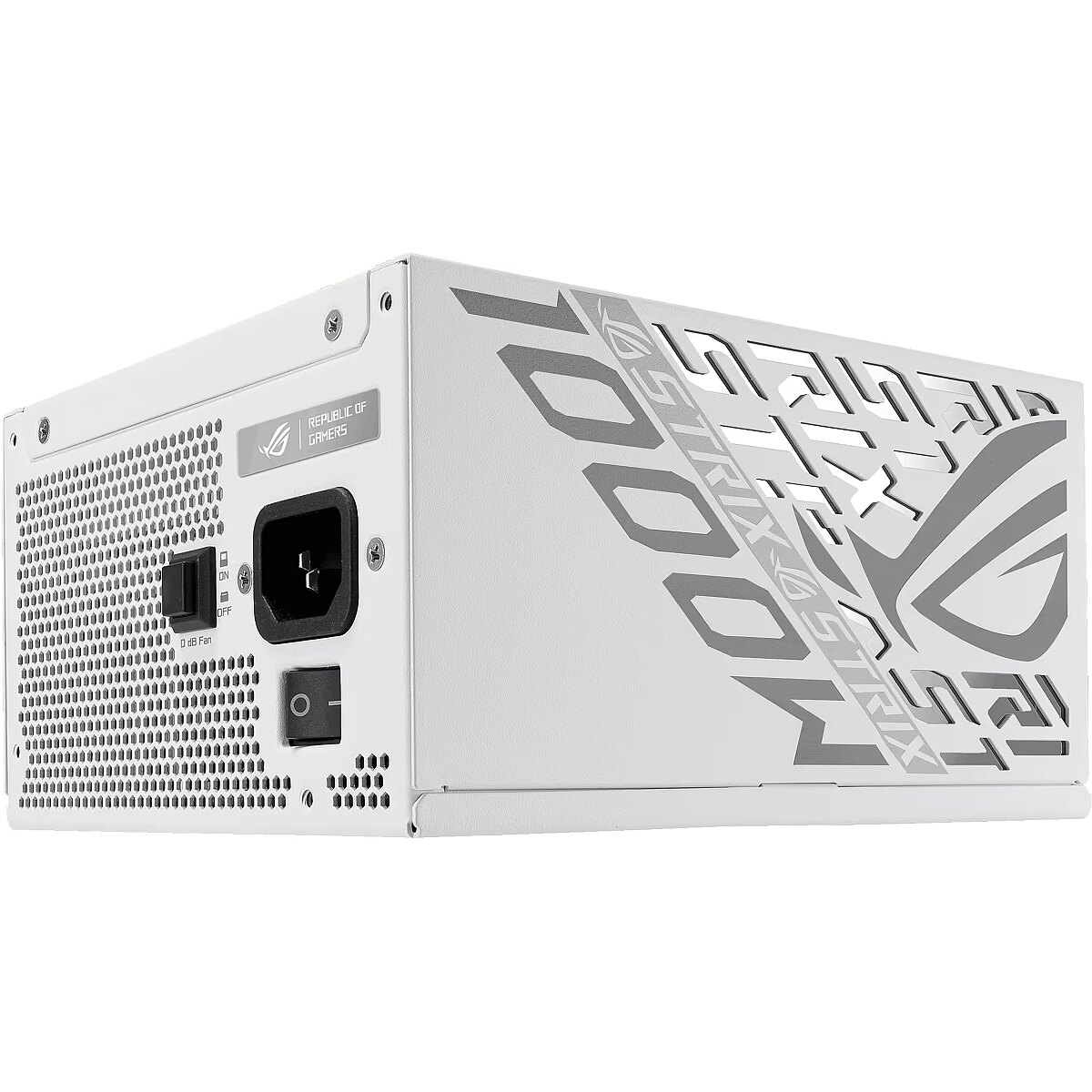

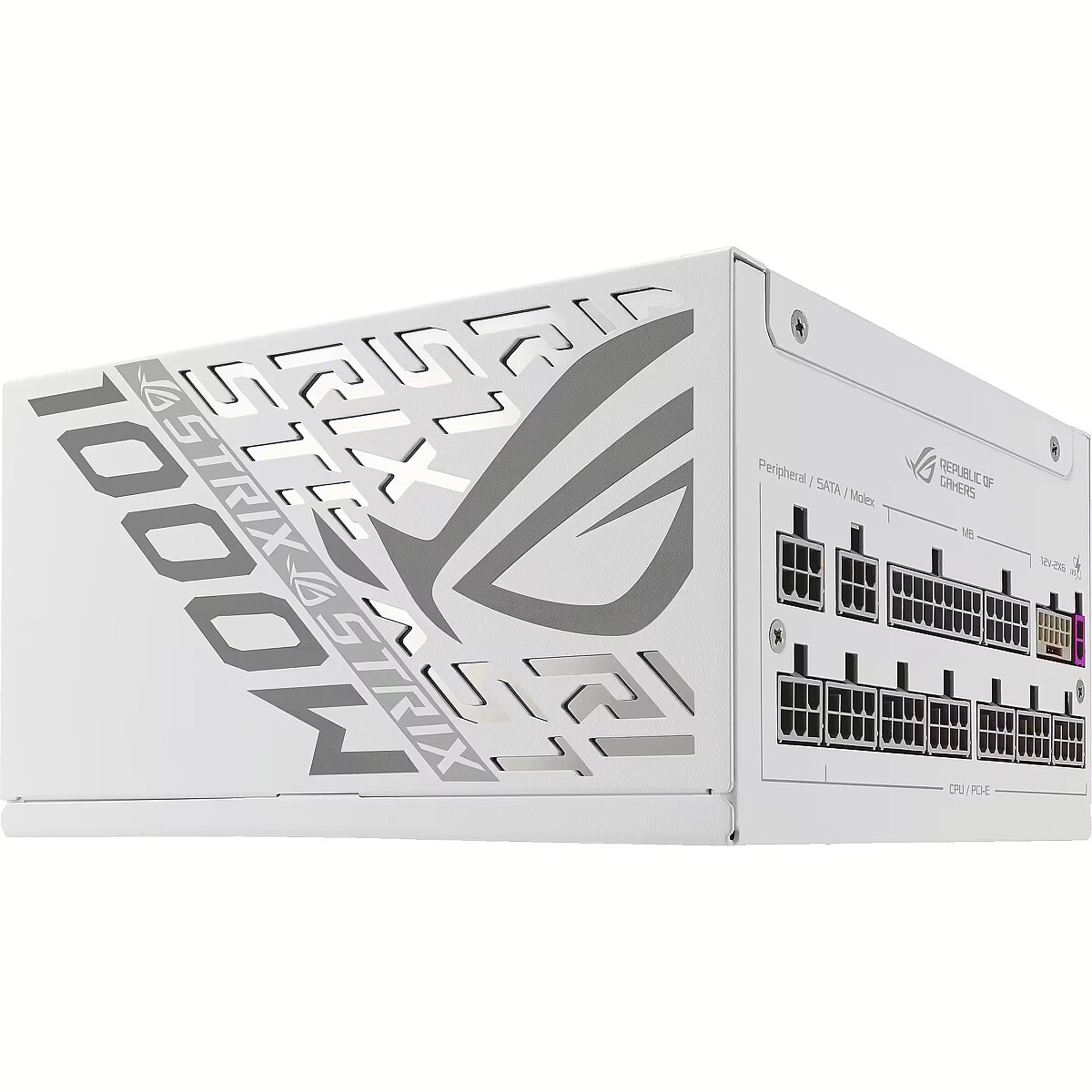

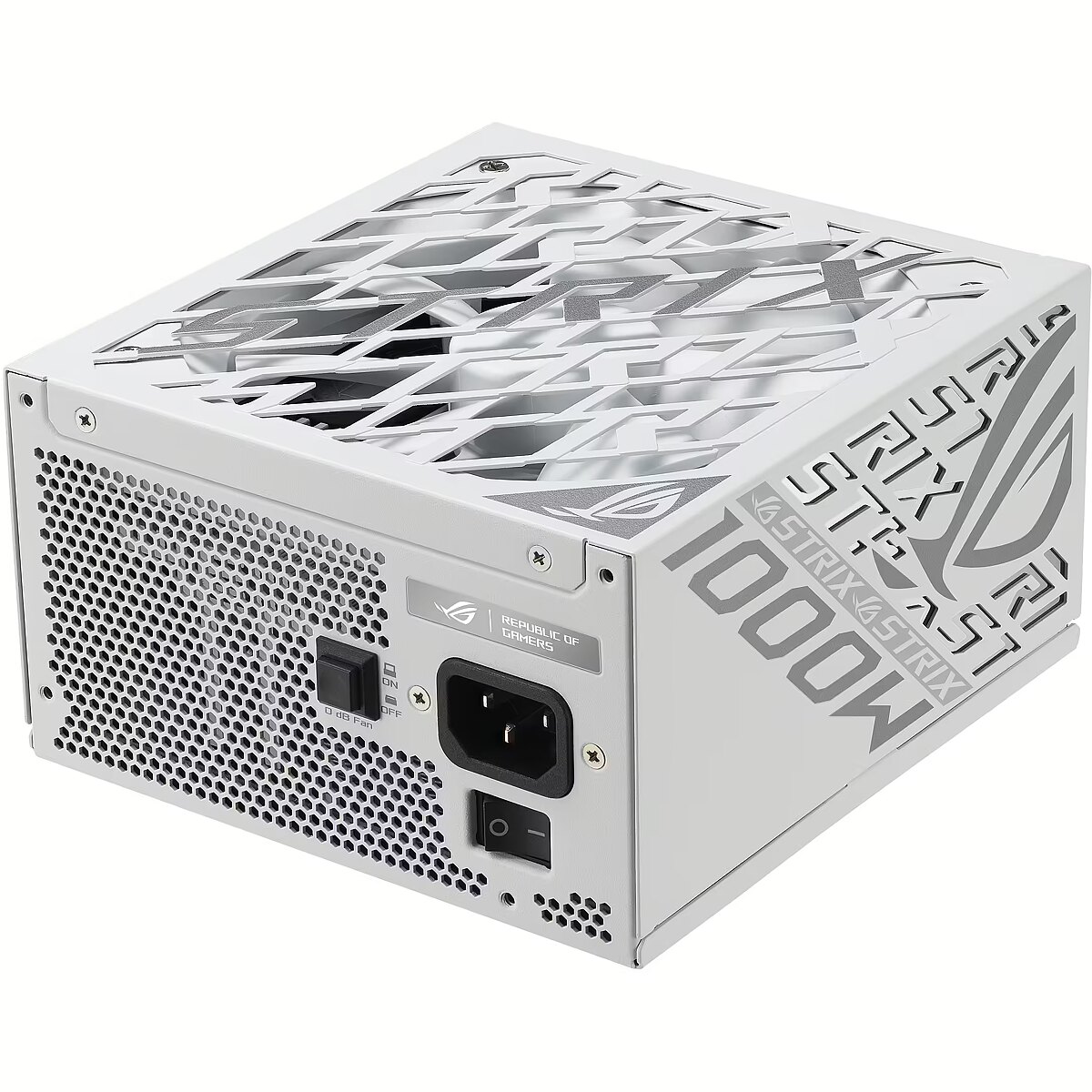

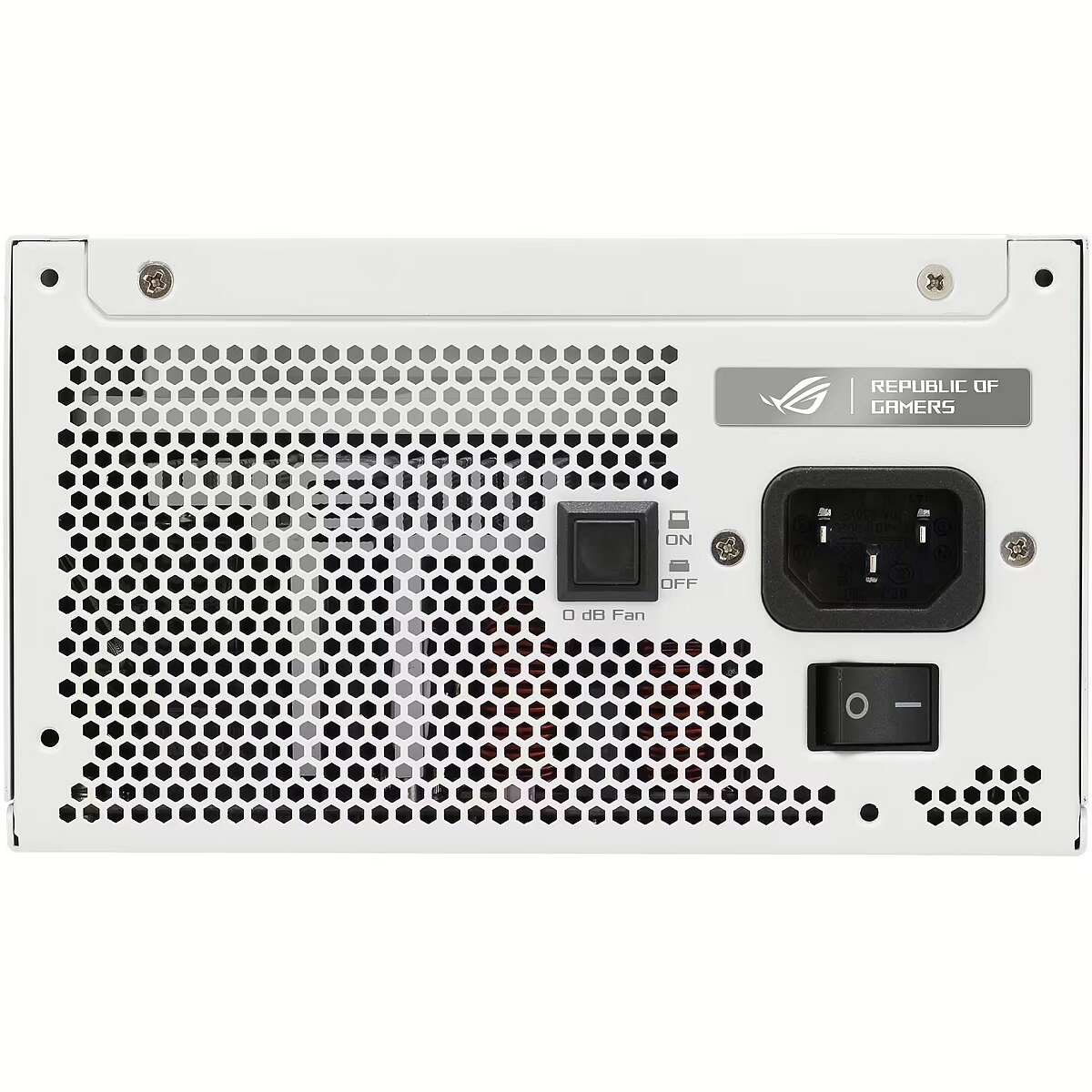

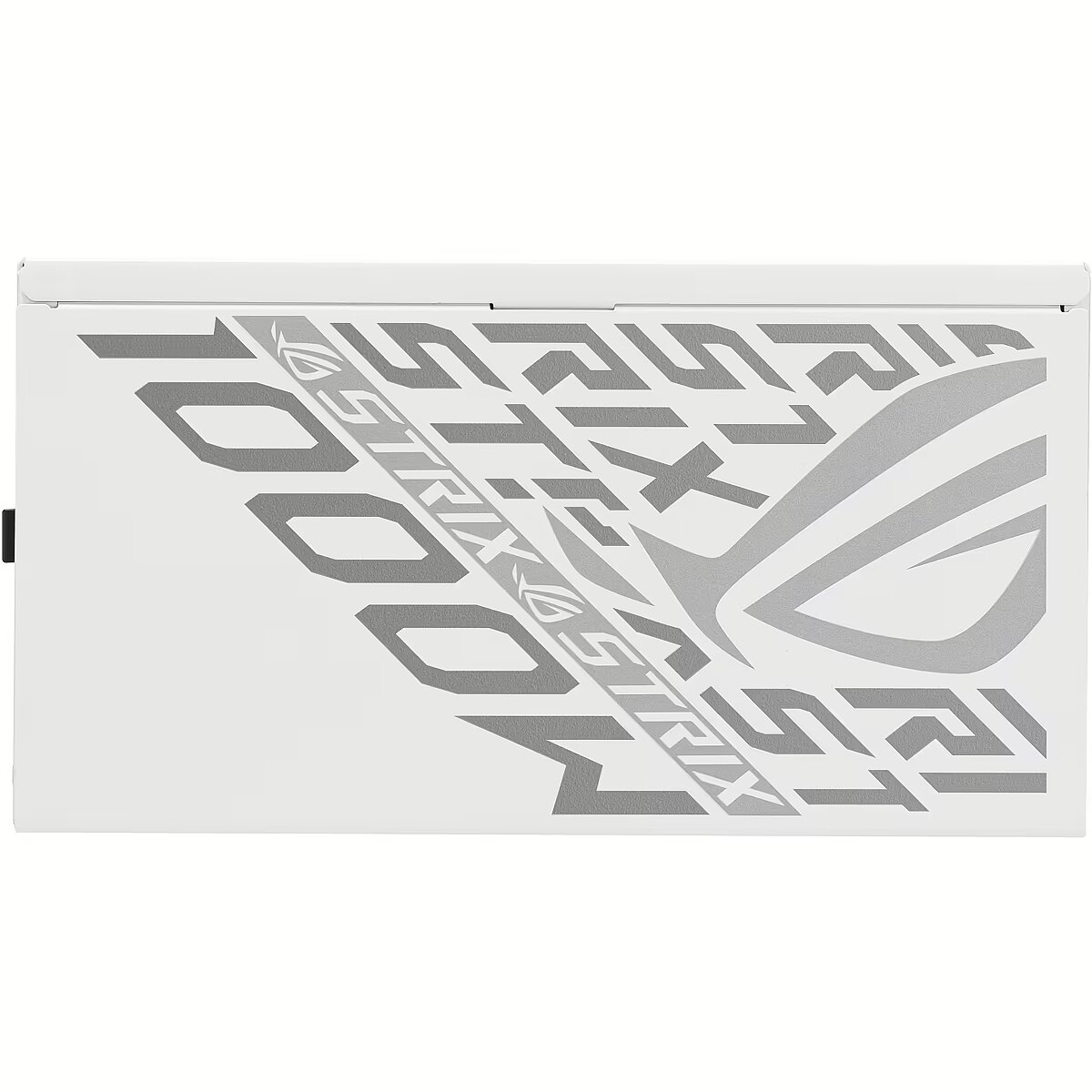

Asus ROG Strix Platinum White Edition, 1000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1218628 Product code: 90YE00W4-B0NA00
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
265.03 €
Delivery options
  • Delivery to Smartpost 1.99 €: 12.05.2025
  • Delivery to Omniva parcel locker 1.99 €: 12.05.2025
  • Courier delivery 3.99 €: 12.05.2025
Main product parameters All parameters
  • Producer: Asus
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Platinum

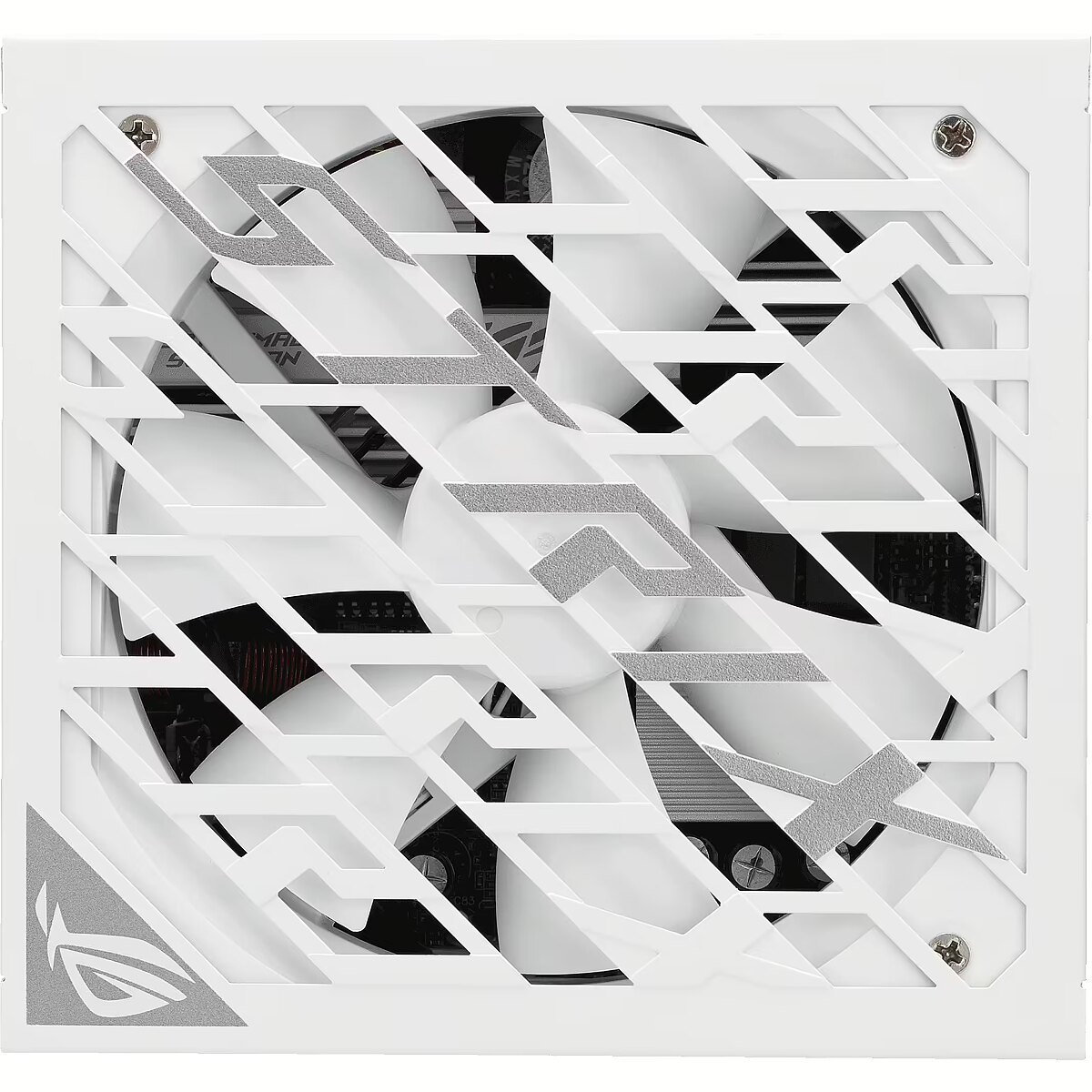

  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Asus with a power output of 1000W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of the power supply is Balta. It is equipped with flat cables, whose color is Balta.

The power supply unit has received the Cybenetics A + noise level certification – the noise produced by the unit will be 15-20 decibels.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

This power supply is manufactured by Asus. You can view all Asus power supplies here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Cybenetics A +
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 83.3A
Fan size : 120 mm
Functionality
Cable colour : White
Lighting : Nav
Color : White
Modular cables : Fully-Modular

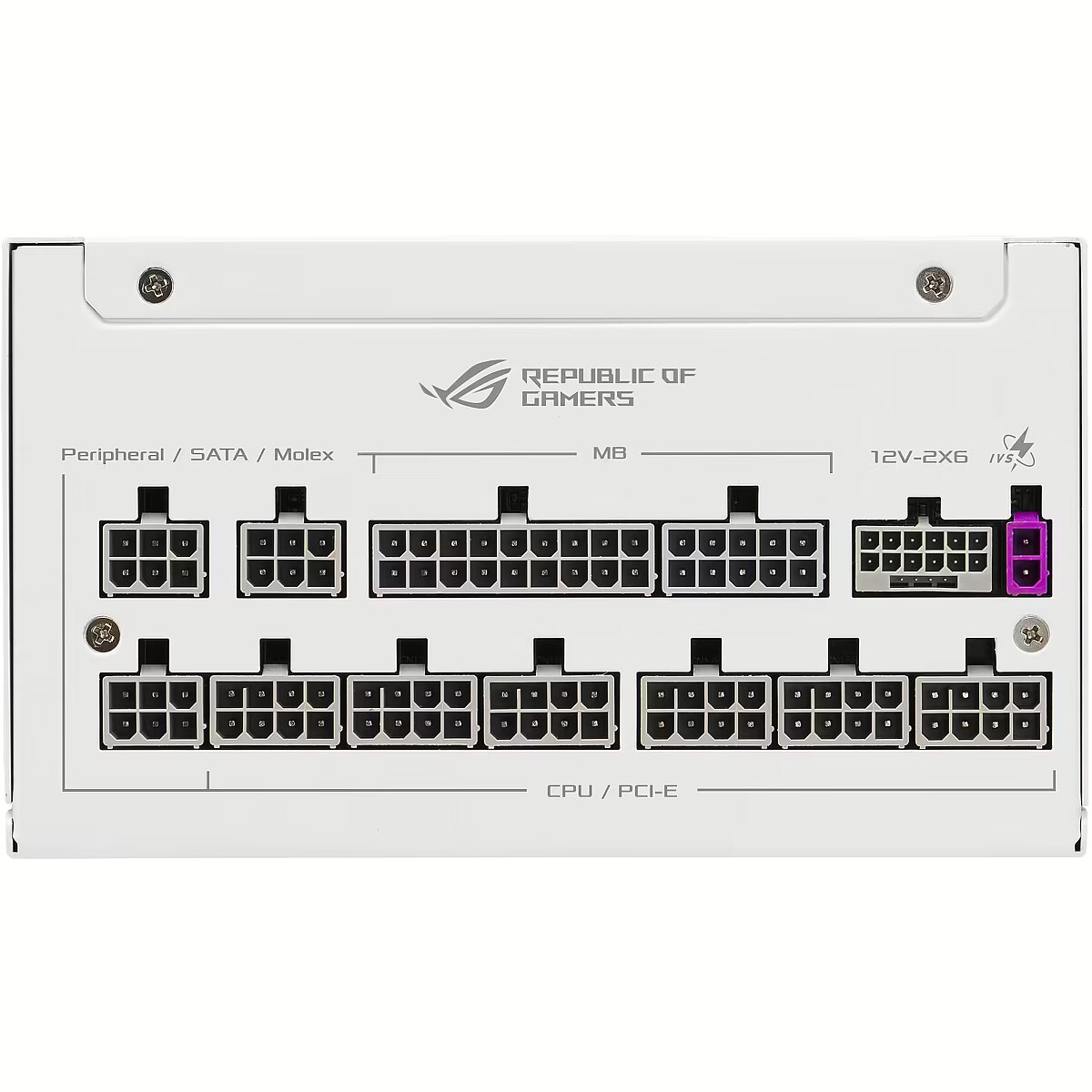

Ports and equipment
PCI-E 5.0 : 1 x 600W 12V-2X6
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
Brand - ASUS
BrandPartCode - 90YE00W4-B0NA00
Category - Power Supply Units
Design - Cooling type - Semi-passive
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - White
GTIN - 4711387835517
LongDesc - ROG Strix 1000W Platinum White EditionSuperior Stability.Next-Level EfficiencyThe ROG Strix Platinum White Edition PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
LongProductName - ROG Strix 1000W Platinum White Edition
LongSummaryDescription - ASUS ROG -STRIX-1000P-GAMING-WHITE. Total power: 1000 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: White, Cooling type: Semi-passive, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Packaging data - Package depth - 200 mm
Packaging data - Package height - 108 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.91 kg
Packaging data - Package width - 320 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400,120 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 130 W
Power - Combined power (+5V) - 130 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Power - Total power - 1000 W
ProductName - ROG-STRIX-1000P-GAMING-WHITE
ShortSummaryDescription - ASUS ROG -STRIX-1000P-GAMING-WHITE, 1000 W, 100 - 240 V, Active, 130 W, 1000 W, 130 W
Title - ASUS ROG -STRIX-1000P-GAMING-WHITE power supply unit 1000 W 20+4 pin ATX ATX
URL - https://rog.asus.com/power-supply-units/rog-strix/rog-strix-1000p-gaming-white/
WarrantyInfo - 10-year warranty included.
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.81 kg
Weight & dimensions - Width - 160 mm
