ID: 1206992
Product code: 75261547
Can be ordered 200 units Availability: 14 days after order approval
Warranty: 3 years

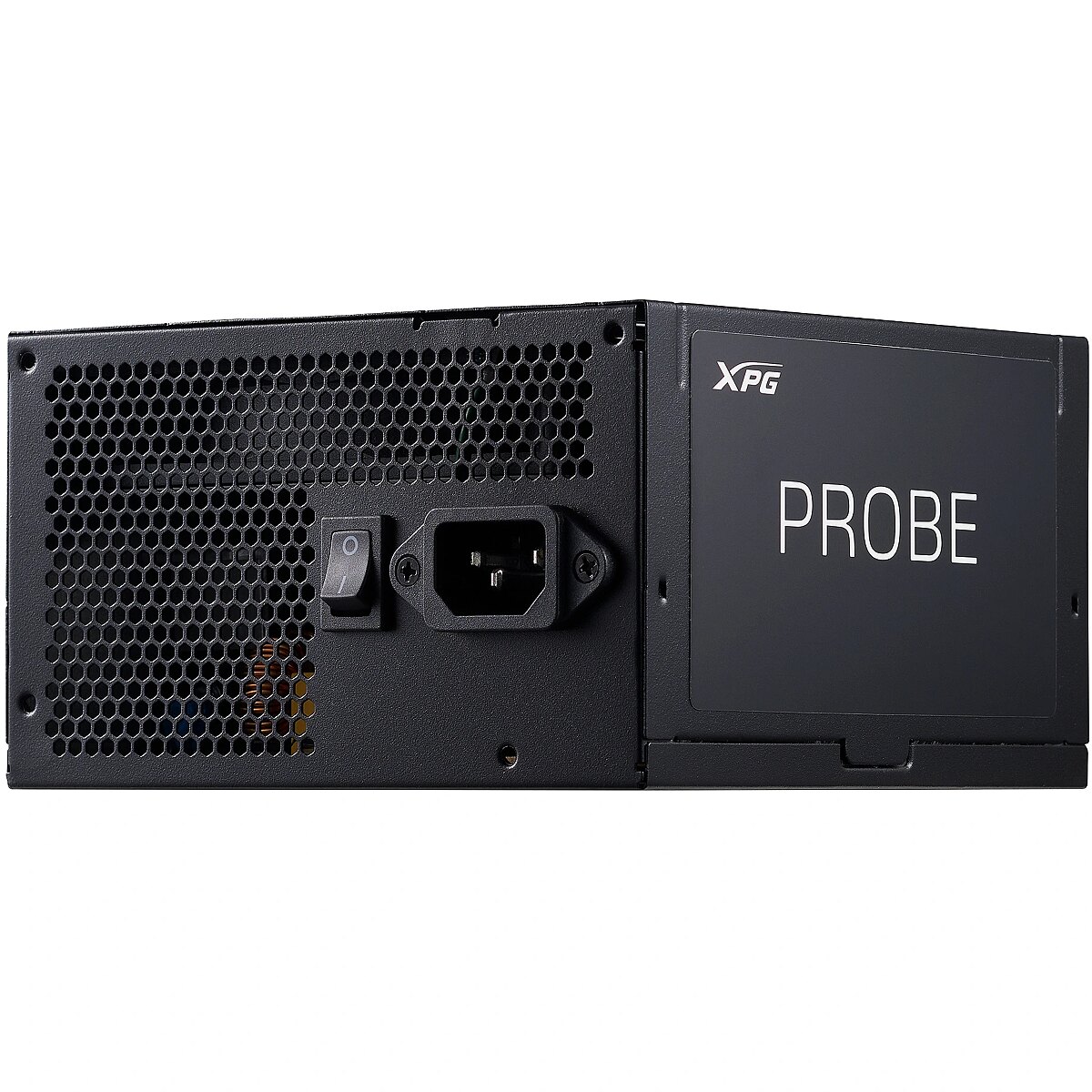

XPG PROBE, 600W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 1.99 €: 14.05.2025
- Delivery to Omniva parcel locker 1.99 €: 14.05.2025
- Courier delivery 3.99 €: 14.05.2025
Main product parameters All parameters
- Producer: XPG
- Power output: 600W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a XPG power supply unit with a power capacity of 600W, which has received the 80 PLUS Bronze energy efficiency certification.
600W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 46A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
More detailed specification
Brand - XPG
BrandPartCode - 75261547
Category - Power Supply Units
Certificates - Certification - CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan speed - 2160 - 2640 RPM
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 988
GTIN - 0842243033960
GTIN - 842243033960
GTIN - 4710273779942
LongDesc - VIABLE, APPLIABLE, & RELIABLEWith up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!Enhanced Safety in OperationUnlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.Compact Size for Easy InstallationWith a compact 140mm length, XPG PROBE allows for easier installation in mainstream PC cases and reduced cable clutter.Intelligent Fan-Curve DesignThe 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.Long, Reliable LifespanXPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.Six Industrial SafeguardsXPG PROBE offers 6 industrial-grade protections, shielding your system from over-power, over-voltage, surge and inrush, under-voltage, short circuits, and over temperature.
LongProductName - 600 W, PFC 0.99, 2400 rpm, 100 - 240 V, 47 - 63 Hz, ATX 2.52, 140 x 150 x 86 mm, 1480.1 g
LongSummaryDescription - XPG PROBE 600 BRONZE Power Supply. Total power: 600 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.52
Performance - Bearing technology - Sleeve
Performance - Certification - CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 10 A
Power - Max output current (+3.3V) - 19 A
Power - Max output current (+5V) - 17 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 46 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over power
Power - Power protection features - Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush protection (SIP)
Power - Power protection features - Under voltage
Power - Total power - 600 W
producerCode - 75261547
ProductName - PROBE 600 BRONZE Power Supply
productName - XPG PROBE 600 BRONZE Power Supply
productSize - Normal
ShortSummaryDescription - XPG PROBE 600 BRONZE Power Supply, 600 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 19 A
sizeX - 260
sizeY - 190
sizeZ - 100
Title - XPG PROBE 600 BRONZE Power Supply
URL - https://www.xpg.com/en/xpg/pc-components-probe-bronze?tab=desc#
WarrantyInfo - 3 years
warrantyLength - 120
warrantyType - G
weight - 1918
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.48 kg
Weight & dimensions - Width - 150 mm
