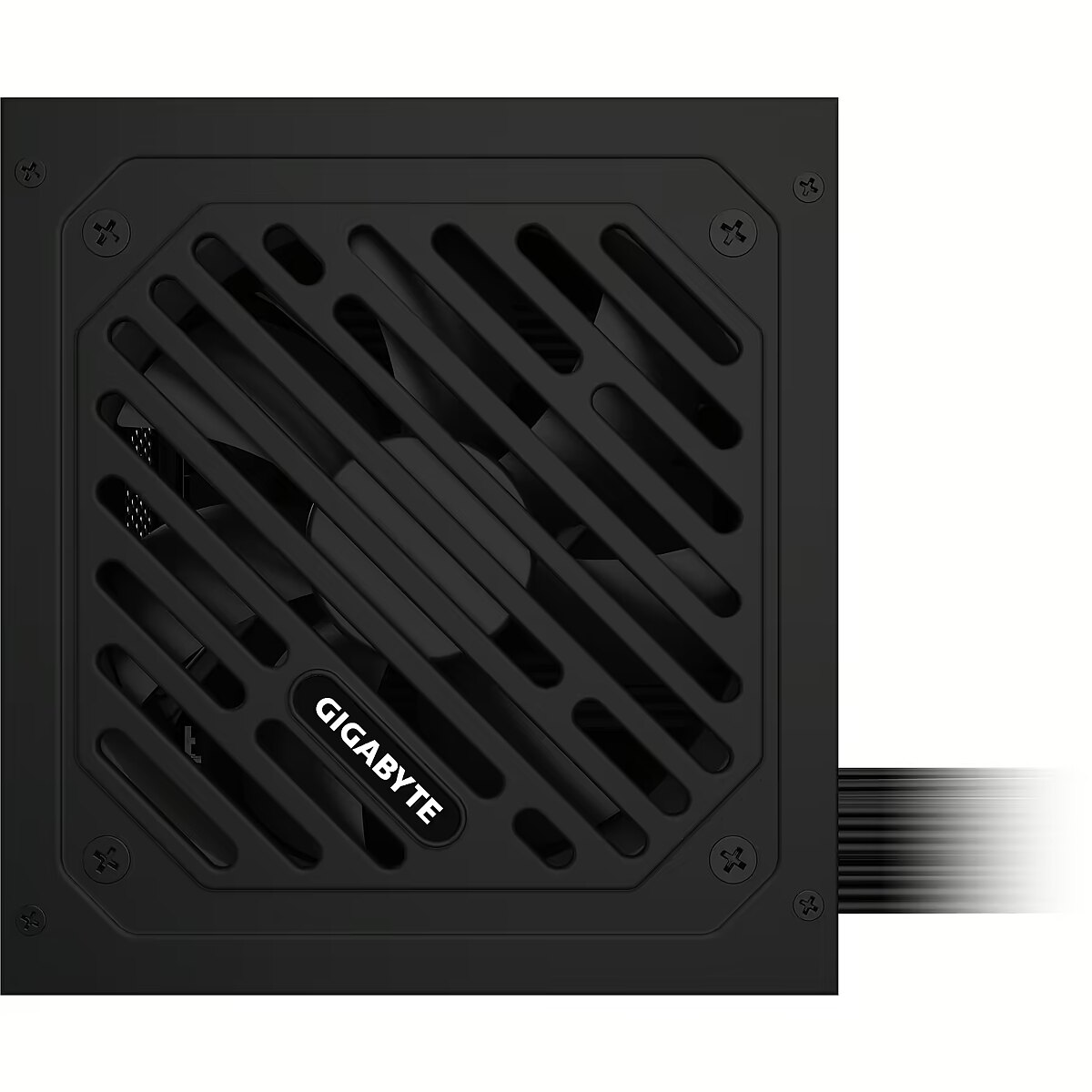

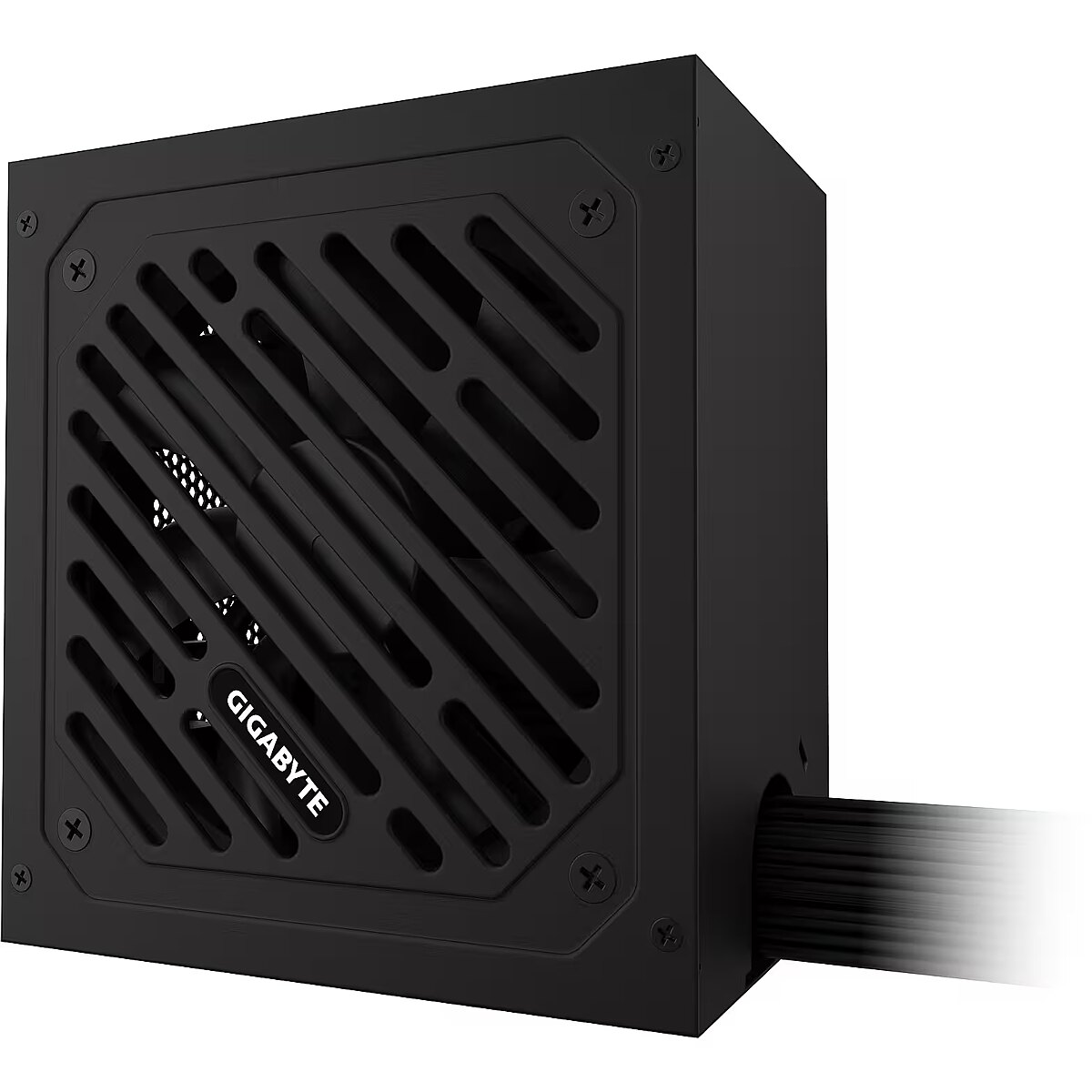

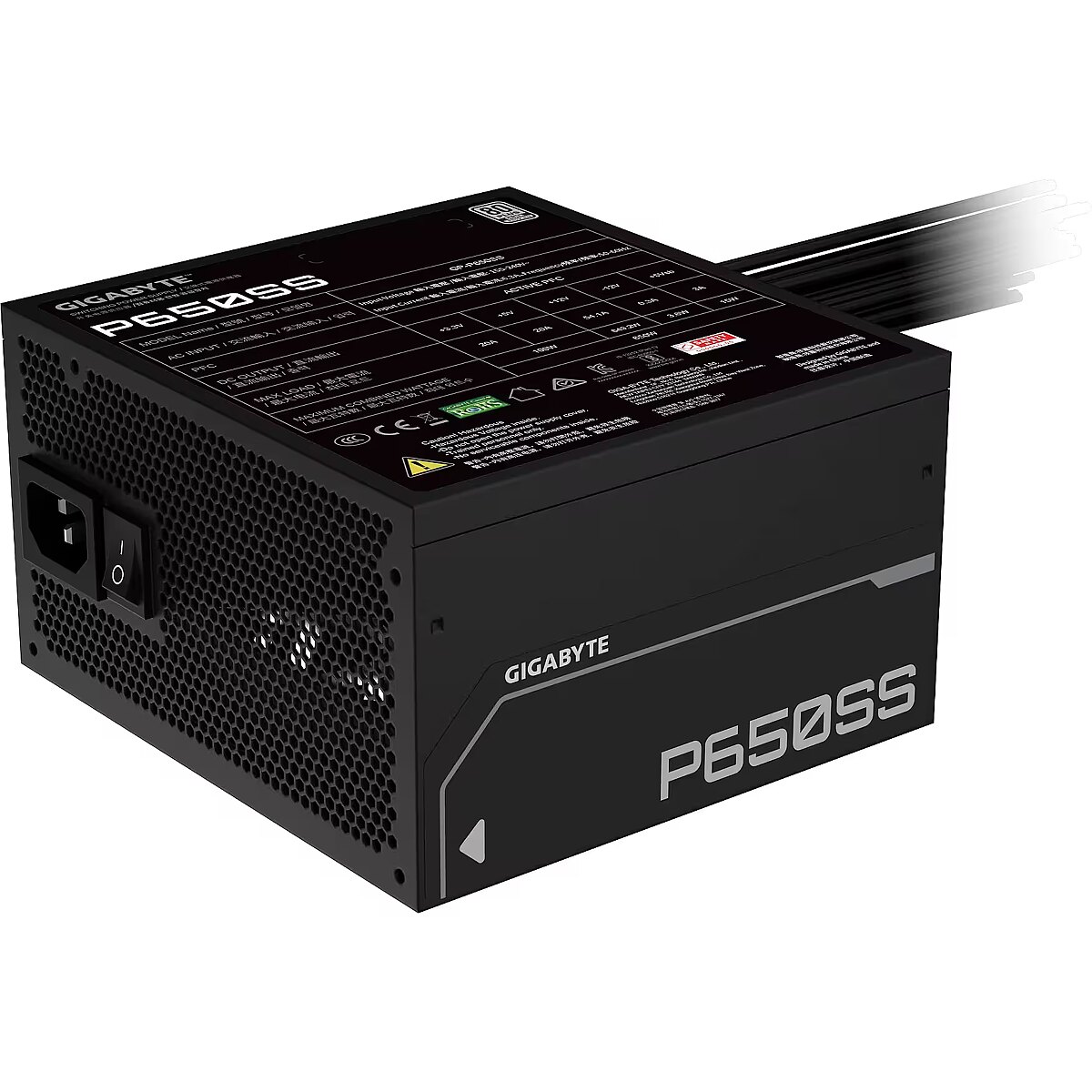

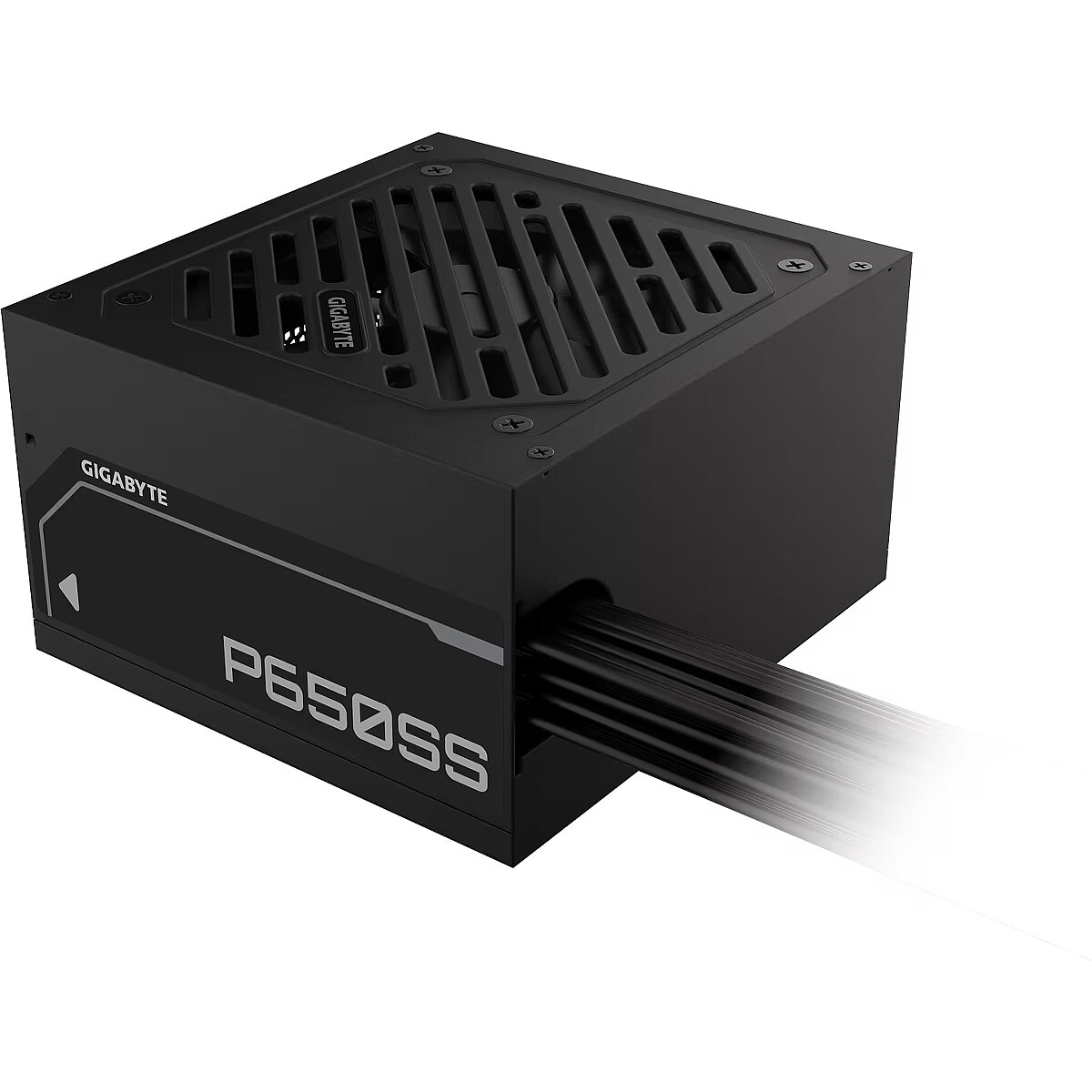

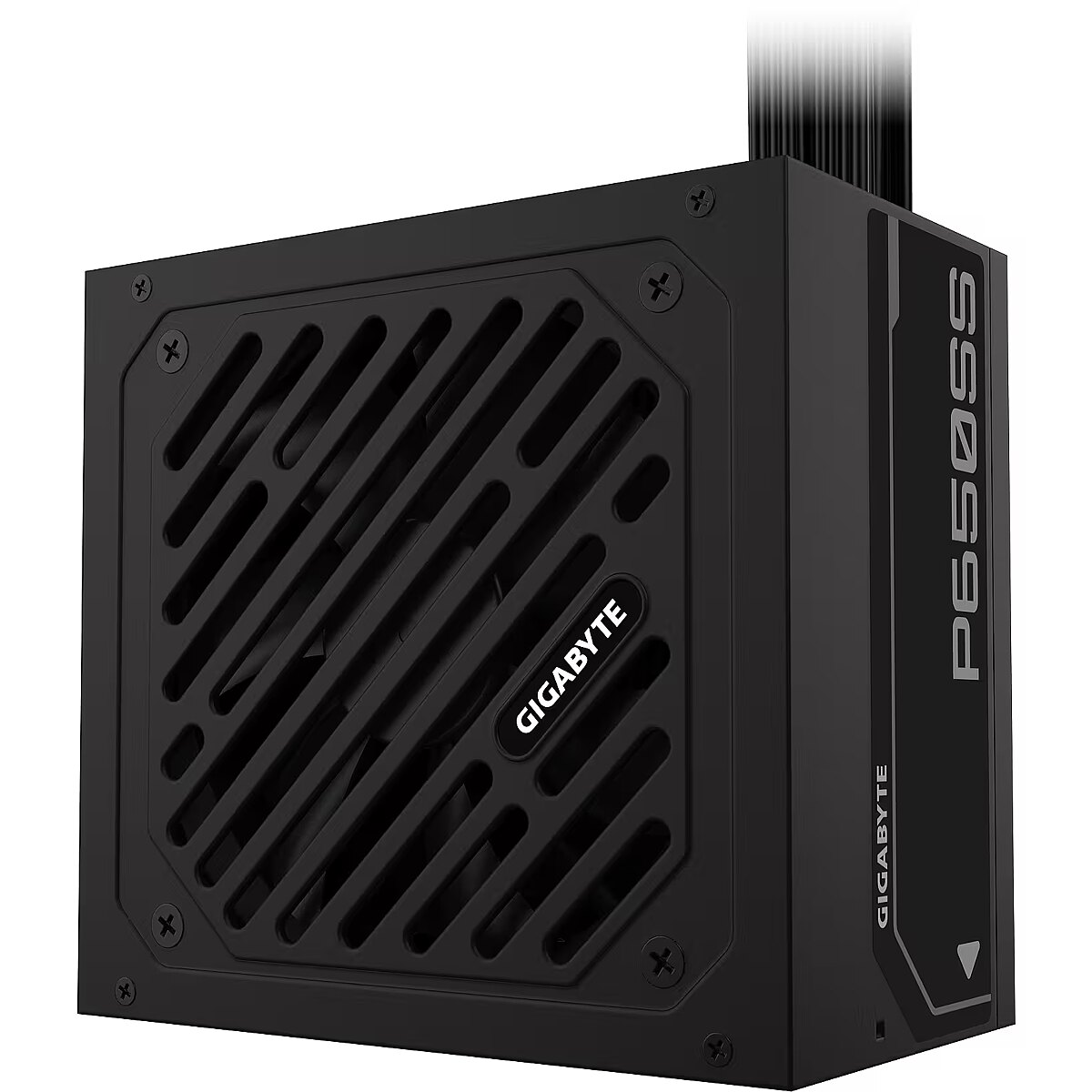

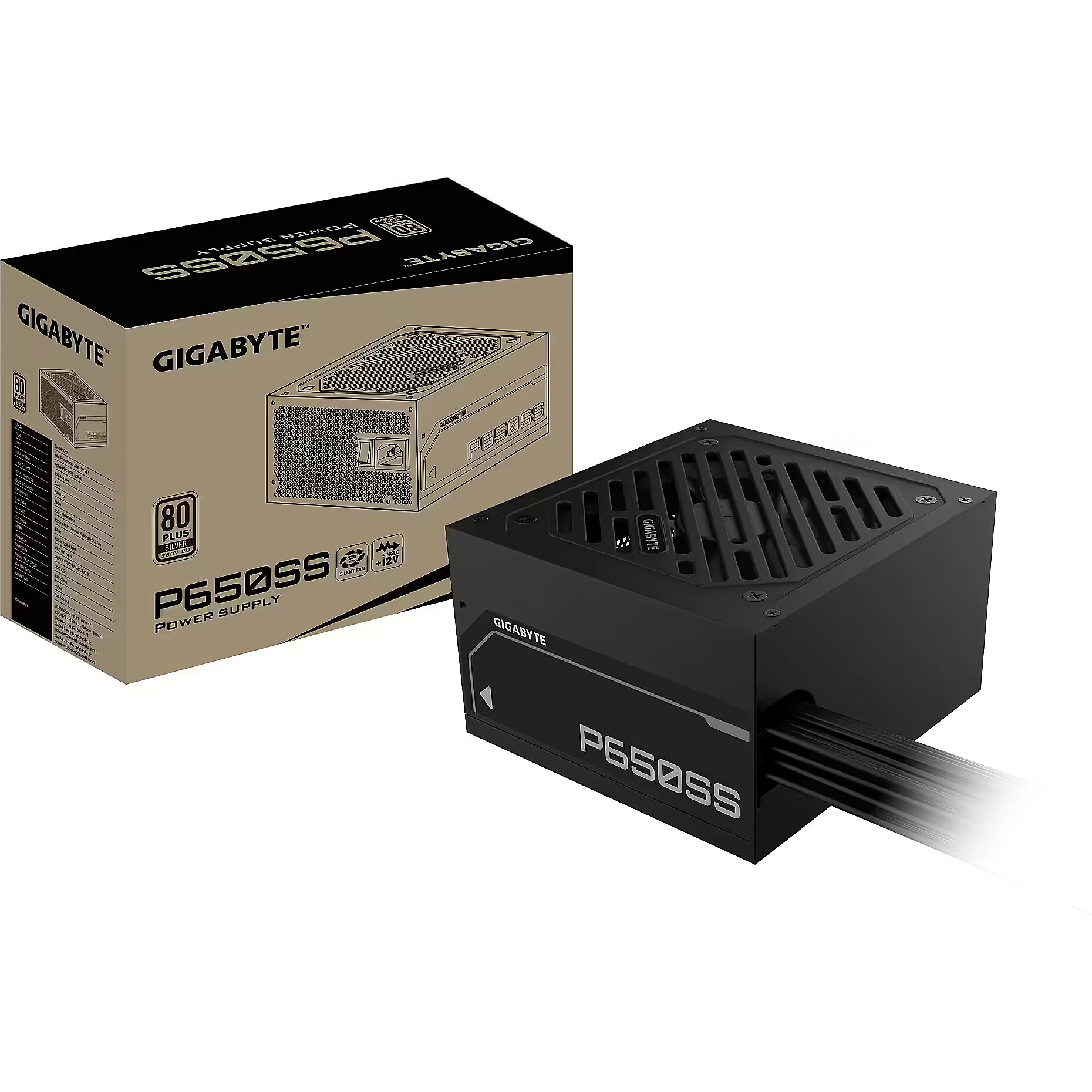

Gigabyte GP-P650SS, 650W, 80PLUS Silver

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1142524 Product code: GP-P650SS
In stock >50 units
Warranty: 3 years
61.87 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: on Thursday, 28.11.2024
  • Courier delivery 3.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Producer: Gigabyte
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Silver
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

Available for purchase is a power supply produced by Gigabyte with a power output of 650W. The product has been awarded an 80 PLUS Silver energy efficiency certificate.

650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded an 80 PLUS Silver energy efficiency certificate, which ensures at least 88% efficiency at 50% load. This indicates that at least 88 W out of 100 W power received by the power supply from the electricity grid is delivered to the computer components, with the remaining 12 W lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

This power supply unit is manufactured by Gigabyte. You can view all Gigabyte power supply units here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Silver

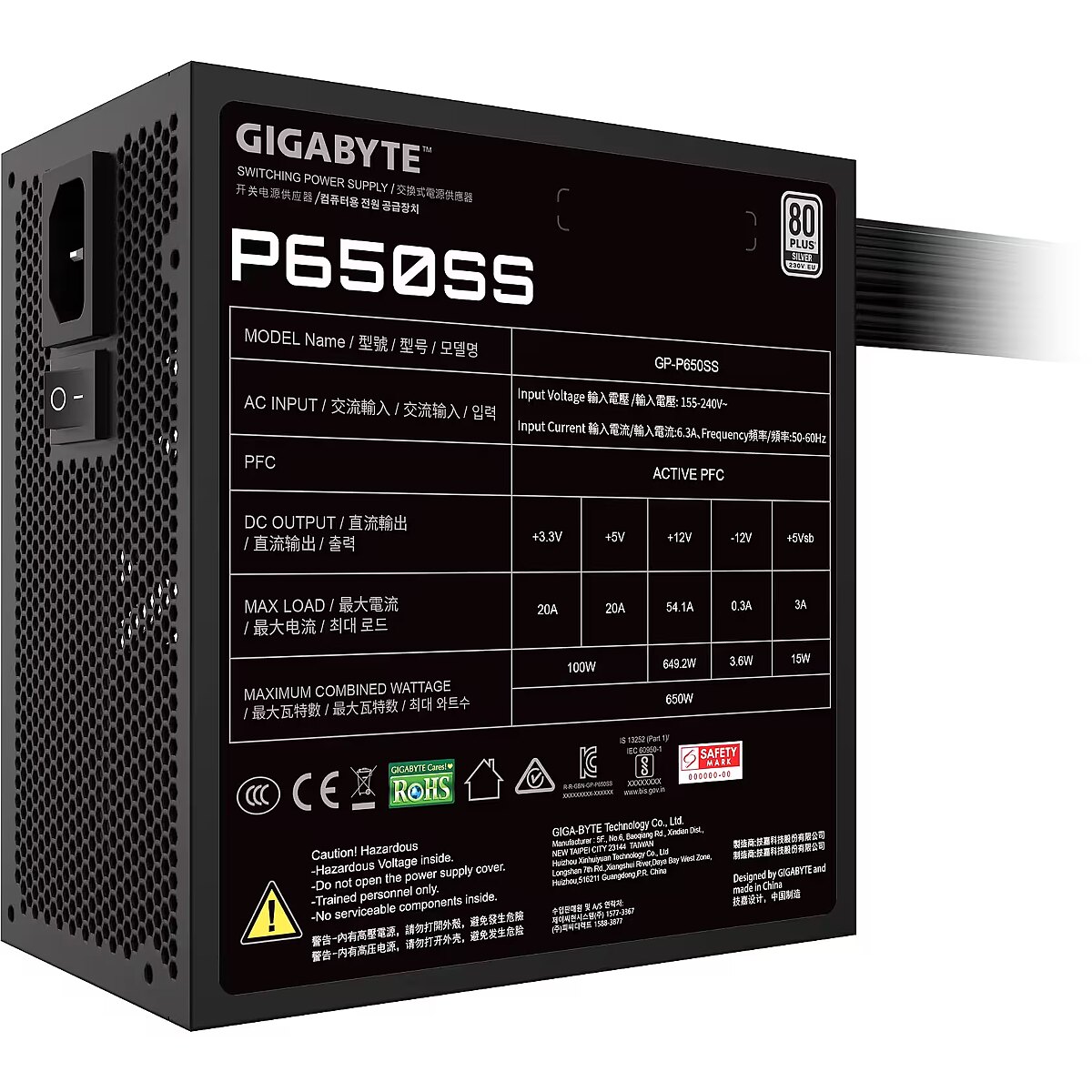

Total amperage (+12V) : 54.1A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 5
4pin Molex : 3
Case
More detailed specification
Additional information in manufacturers website Gigabyte GP-P650SS, 650W, 80PLUS Silver
Category Code - PSU
Colour - Black
Cooling System - 12cm fan
Description - GIGABYTE P650SS + 80 PLUS Silver certified (230V EU) + Support Intel ATX 3.0 standard + 120mm Fluid Dynamic Bearing (FDB) Fan + Flat cable design + Powerful single +12V rail + OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS SILVER CERTIFIED The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise. Support Intel ATX 3.0 standard The P650SS can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. 120MM FLUID DYNAMIC BEARING(FDB) FAN High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise. RELIABLE FLAT CABLE DESIGN The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis. SINGLE +12V RAIL The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes. PROTECTION To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
Dimensions - 150 x 140 x 86 mm
Full Description Line - GP-P650SS|ATX 3.0|650 Watts|Cooling System 12cm fan|Colour Black
Model name - GP-P650SS
PSU - ATX 3.0
PSU Output Power - 650 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 61.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 28 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 11.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 22 cm
Unit Box Height - 0.12
Unit Box Length - 0.255
Unit Box Width - 0.21
Unit Brutto Volume - 0.007577 cubm
Unit Gross Weight - 2.24 kg
Unit Net Weight - 2.1 kg
Vendor Homepage - GIGABYTE P650SS
Warranty - 120 months
