ID: 1077738
Product code: COREREACTORII850G-WHCEU
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 3 years

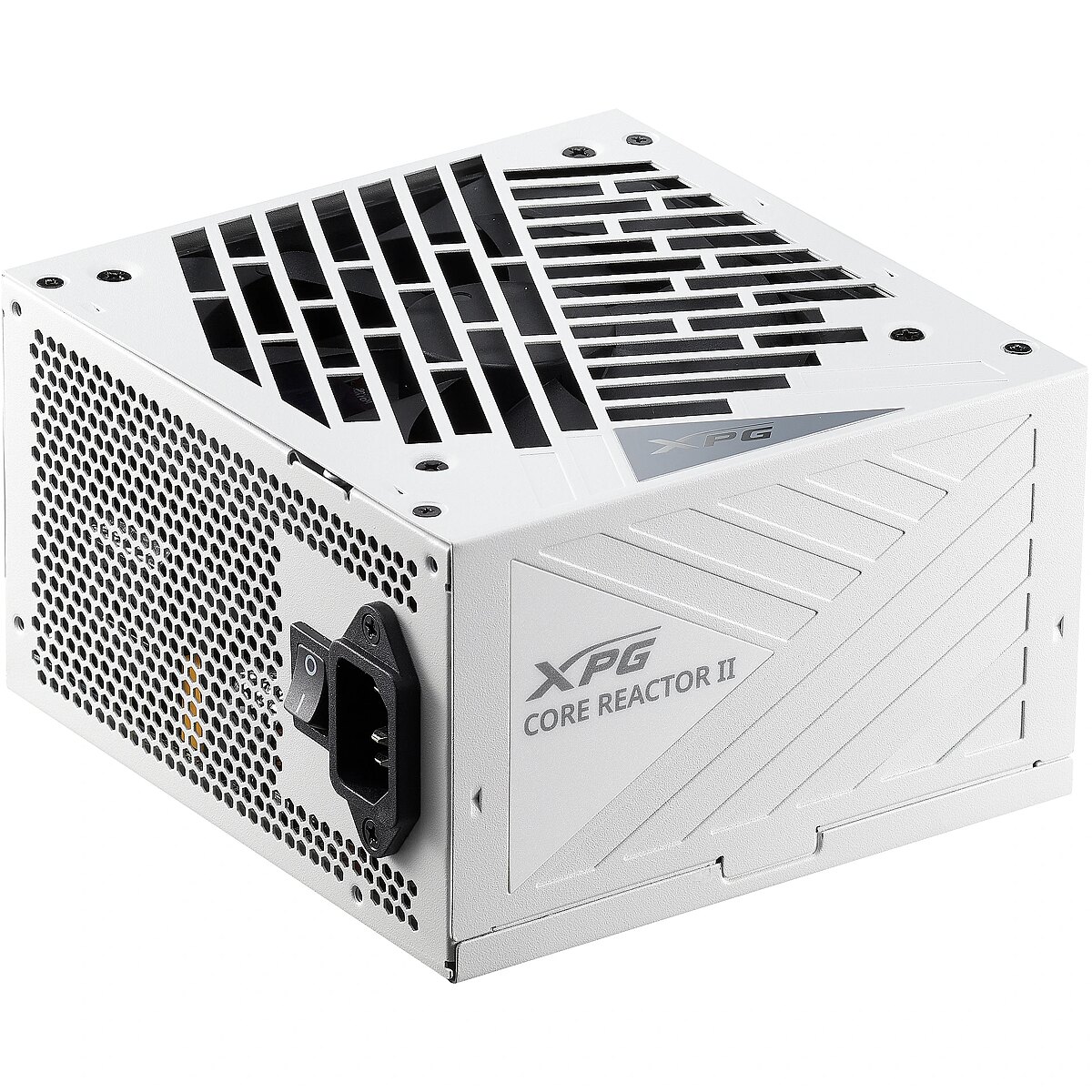

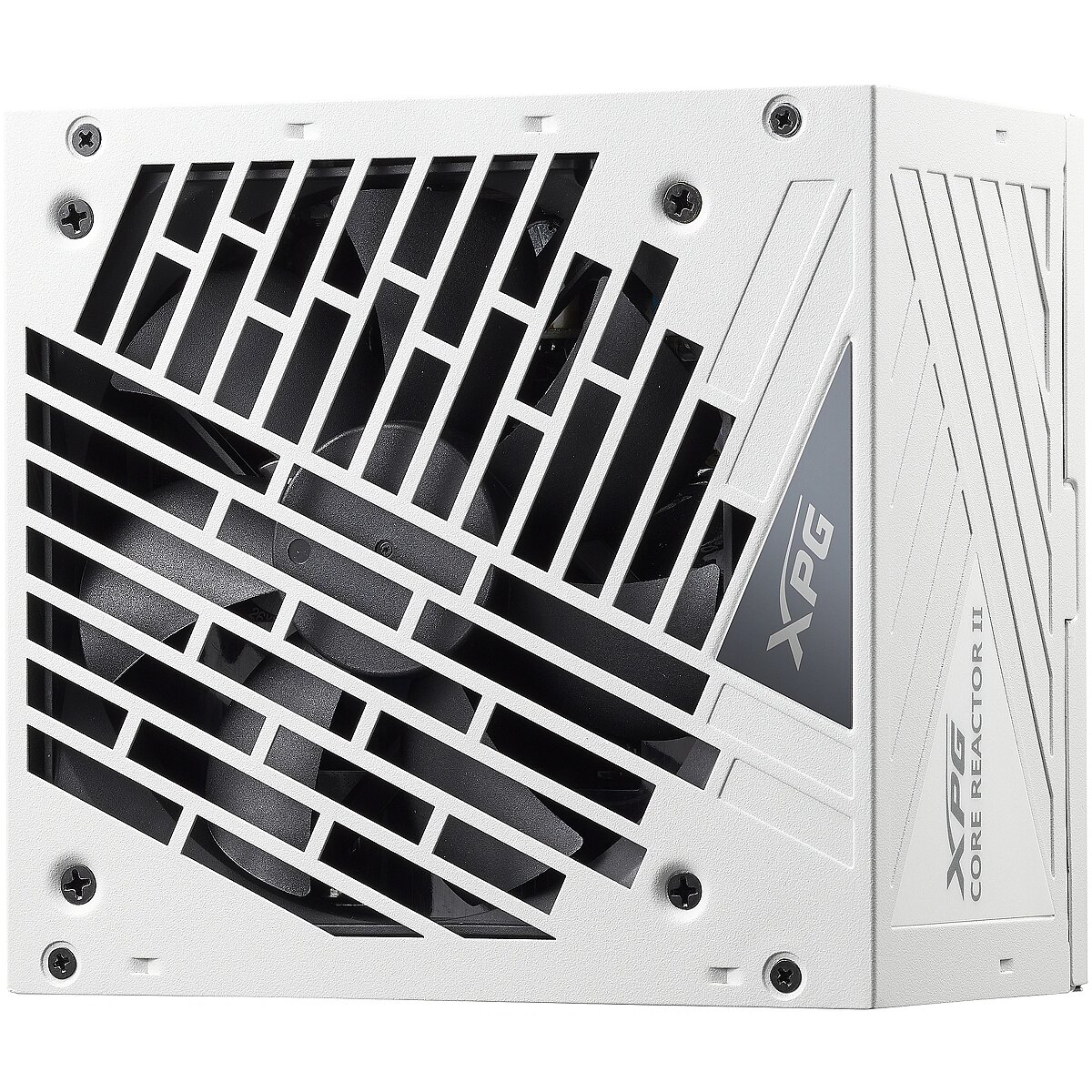

ADATA CORE REACTOR II White, 850W, 80PLUS Gold, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 11.12.2024
- Courier delivery 3.99 €: 11.12.2024
Main product parameters All parameters
- Producer: Adata
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Description
This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of the block is Balta. The block has flat cables, whose color is Balta.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: White
Lighting
: Nav
Color
: White
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 6 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
Brand - XPG
BrandPartCode - COREREACTORII850G-WHCUS
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Colour - White
Cooling System - 12cm fan
Description - CORE REACTOR II is a top-performing power supply unit designed for ATX 3.0 compliance with a modular cable design and an 80 PLUS GOLD certification. These power supplies thrive in high-performance scenarios like servers or workstation setups, where a lot of power is needed.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Product colour - White
Dimensions - 140 x 150 x 86mm
Eans - 4711085944702
Efficiency - 80 PLUS GOLD
Full Description Line - XPG CORE REACTOR II|For gaming|ATX 3.0|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|Colour White
LongSummaryDescription - XPG COREREACTORII850G-WHCUS. Total power: 850 W, AC input voltage: 100 - 240 V. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Width: 86 mm, Depth: 150 mm, Height: 140 mm
Model - COREREACTORII850G-WHCEU
Model name - XPG CORE REACTOR II
Name - XPG CORE REACTOR II 850W White
Packaging data - Package depth - 338 mm
Packaging data - Package height - 157 mm
Packaging data - Package width - 210 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.0
Performance - EPS version - 2.92
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 2
Power - AC input voltage - 100 - 240 V
Power - Power factor - 0.99
Power - Total power - 850 W
Producer - XPG
ProducerCode - COREREACTORII850G-WHCEU
ProductName - COREREACTORII850G-WHCUS
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 50 cm
Shipping Box Height Shipping/Package Box Dimensions - 37 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 22 kg
Shipping Box Width Shipping/Package Box Dimensions - 45 cm
ShortDescription - 850 | ATX | biały | 120 mm | 20 + 4 pin |140 x 150 x 86 mm| 80 Plus Gold |
ShortSummaryDescription - XPG COREREACTORII850G-WHCUS, 850 W, 100 - 240 V, 20+4 pin ATX, PC, ATX, 80 PLUS Gold
Technical details - Compliance certificates - BSMI, CB, China Compulsory Certification (CCC), Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, cTUVus
Technical details - Sustainability compliance - Yes
Title - XPG COREREACTORII850G-WHCUS power supply unit 850 W 20+4 pin ATX ATX White
Unit Box Height - 0.16
Unit Box Length - 0.34
Unit Box Width - 0.21
Unit Brutto Volume - 0.01388 cubm
Unit Gross Weight - 3.67 kg
Unit Net Weight - 2.85 kg
Vendor Homepage - www.xpg.com/us/xpg/pc-components-core-reactor-ii?tab=desc
Warranty - 36 months
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Weight - 2.85 kg
Weight & dimensions - Width - 86 mm
