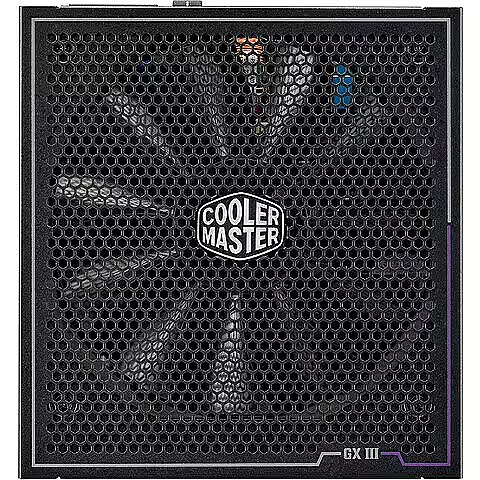

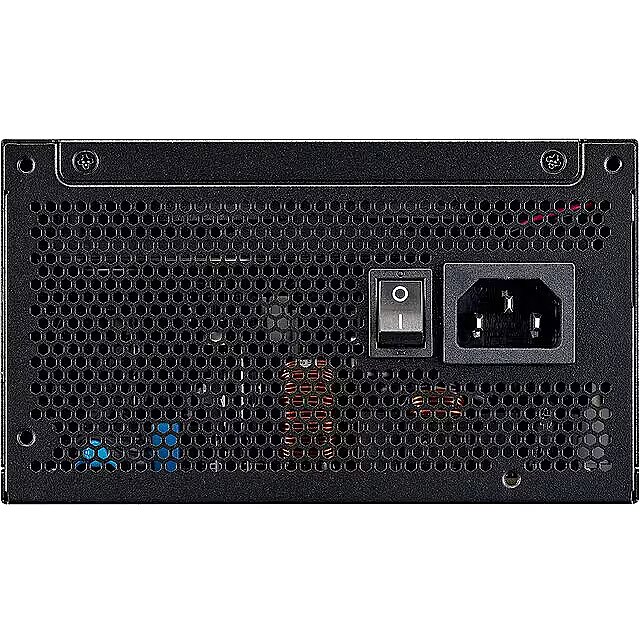

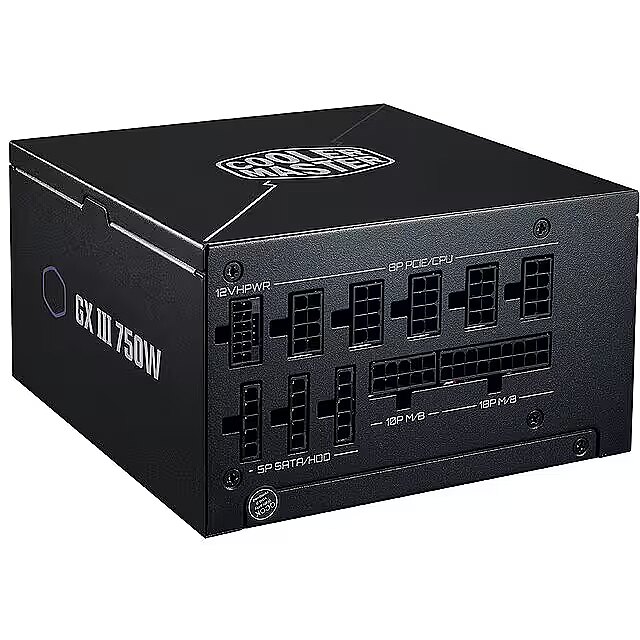

Cooler Master GX III Gold, 750W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1003286 Product code: MPX-7503-AFAG-BEU
Can be ordered 22 units Availability: 14 days after order approval
Warranty: 2 years
143.85 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 10.12.2024
  • Courier delivery 3.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Cooler Master
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

Available for purchase is a power supply produced by Cooler Master with a power output of 750W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

This power supply unit is equipped with a 1 x 300W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 62.5A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 300W 12VHPWR
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
More detailed specification
Additional information in manufacturers website Cooler Master GX III Gold, 750W, 80PLUS Gold
8-pin 12V power connectors - 1
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Code - MPX-7503-AFAG-BEU
Colour - Black
Cooling System - 13.5cm fan
Description - - Innovative, streamlined design - ATX 3.0 support & a 90-degree 12VHPWR cable - Optimized and silent thermal performance - Titanium efficiency at light loads - Fully modular cabling
Description - STRENGTH IN ELEGANCE
Cooler Master presents the GX III Gold featuring exceptional efficiency, low noise output, and superb reliability.
INNOVATIVE, STREAMLINED DESIGN
The innovative design streamlines the overall aesthetic of the unit and greatly improves airflow.
ATX 3.0 SUPPORT & A DURABLE 90-DEGREE 12VHPWR CABLE
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, improved safety, and capable of bringing up to 300W to your GPU.
OPTIMIZED THERMAL PERFORMANCE
An anodic-coated heat sink keeps average temperatures 5? lower than a traditional heat sink for enhanced durability and a prolonged life span.
EXCEPTIONAL EFFICIENCY
This 80 Plus Gold certified unit can achieve Titanium level efficiency at light loads in a 115V test.
SILENT FAN PERFORMANCE WITH A ZERO-RPM MODE
This unit includes a smart thermal control mode that defaults to zero spin.
FULLY MODULAR CABLING
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
dimension depth - 125 mm
dimension height - 200 mm
Dimensions - 160 x 150 x 86 mm
dimension weight - 3020 g
dimension width - 320 mm
EAN - 4719512136065
ean - 4719512136065
Eans - 4719512136065
EAN_code - 4719512136065
Efficiency - 80 PLUS GOLD
Fan - 13.5 cm
Fan speed (max) - 1900 rpm
Full Description Line - GX III GOLD 750|ATX 3.0|750 Watts|Cooling System 13.5cm fan|80 PLUS GOLD|PFC Active|MTBF 100000 hours|Colour Black
guarantee - 120
guarantee_type - normal
Link - https://www.coolermaster.com/catalog/power-supplies/gx-series/gx-iii-gold-750/#item2
Manufacturer - Cooler Master
Manufacturer_code - MPX-7503-AFAG-BEU
MB power connector - 24 pin
Model - MPX-7503-AFAG-BEU
Model name - GX III GOLD 750
Modular power supply - Yes
MOLEX power connectors - 4
MTBF - 100000 hours
Name - Cooler Master GX III Gold 750W, PC power supply (black, cable management, 750 watts)
Name - Cooler Master GX III Gold 750W Modularny 80+ Gold ATX3.0
Name - Cooler Master | Power supply | Master GX3 750 Gold | 750 W
name - Power Supply GX III Gold 750W modular 80+ Gold
Number of power connectors 12VHPWR - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connectors PCI-E 6 +2 pin - 3
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 160.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 413 pc(s)
Package features > Paper/Pasteboard - 340.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEEE tax - No
PFC - Active
PFC - Yes
Power > Nominal power - 750 W
Power supply - 750 W
producer - Cooler Master
Producer - CoolerMaster
ProducerCode - MPX-7503-AFAG-BEU
PSU - ATX 3.0
PSU Output Power - 750 Watts
SATA power connectors - 8
Shipping Box Depth Shipping/Package Box Dimensions - 52 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 4
Shipping Box Weight Shipping/Package Box Dimensions - 11.47 kg
Shipping Box Width Shipping/Package Box Dimensions - 33.5 cm
ShortDescription - 750W | ATX 12V v2.3 | 135mm| 80 Plus Gold | modularny
Technical details > Gross weight - 2.42 kg
Technical details > Net weight - 2.02 kg
Technical details > Producer - Cooler Master
Technical details > Producer product family - Power supply
Technical details > Producer product name - Master GX3 750 Gold
Unit Box Height - 0.2
Unit Box Length - 0.32
Unit Box Width - 0.125
Unit Brutto Volume - 0.010452 cubm
Unit Gross Weight - 2.8675 kg
Unit Net Weight - 2.582 kg
Vendor Homepage - www.coolermaster.com/catalog/power-supplies/gx-series/gx-iii-gold-750/#specifications
vendpn - MPX-7503-AFAG-BEU
Warranty - 24
Warranty - 24 month(s)
Warranty - 120 months
Weight - 3,00
