ID: 151134
Product code: AK-B1-400
Can be ordered 10 units Availability: 14 days after order approval
Warranty: 2 years

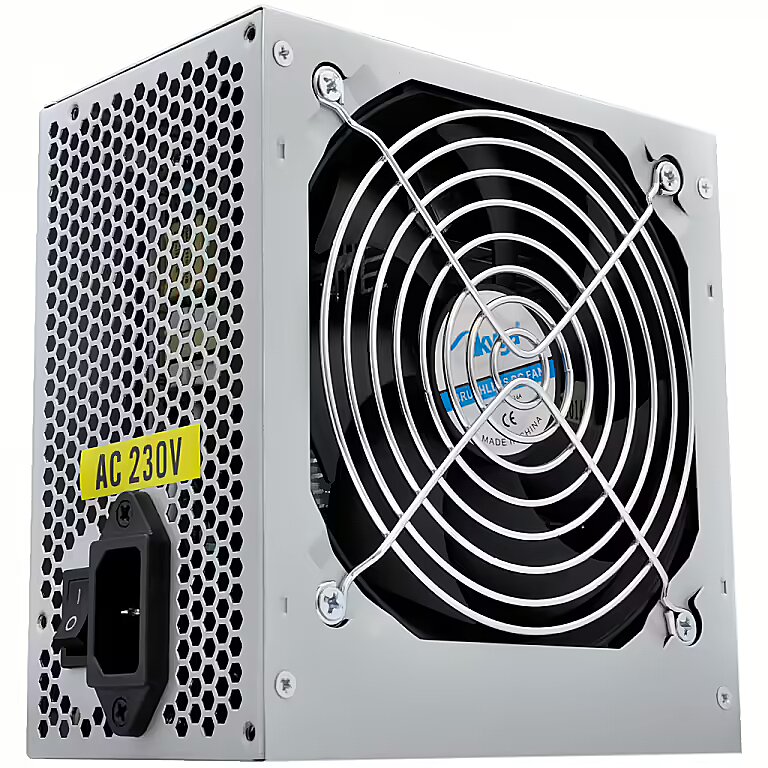

Akyga AK-B1-400, 400W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
- Delivery to Omniva parcel locker 1.99 €: 20.12.2024
- Courier delivery 3.99 €: 20.12.2024
Main product parameters All parameters
- Producer: Akyga
- Power output: 400W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 4-pin EPS
- PCI-E: Nav
Description
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
The color of the power supply is Sudraba. It is equipped with flat cables, whose color is Raiba.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
400W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 18A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Silver
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 4-pin EPS
Motherboard power
: 20+4pin
PCI-E
: Nav
SATA cconnectors
: 3
4pin Molex
: 2
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Green
dimensionalWeight - 589
Eans - 5901720130303
Name - Akyga Basic AK-B1-400
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Packaging data - Package depth - 190 mm
Packaging data - Package height - 88 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.03 kg
Packaging data - Package width - 151 mm
Performance - ATX version - 2.31
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 3
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 Hz
Power - AC input voltage - 230 V
Power - Combined power (+3.3V) - 190 W
Power - Combined power (+5V) - 190 W
Power - Combined power (+5Vsb) - 18.5 W
Power - Combined power (+12V) - 260 W
Power - Combined power (-12V) - 18.5 W
Power - Efficiency - 70%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 23 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 18 A
Power - Max output current (-12V) - 0.5 A
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 400 W
Producer - Akyga
producerCode - AK-B1-400
ProducerCode - AK-B1-400
productName - Akyga AK-B1-400 power supply unit 400 W 20+4 pin ATX ATX Green
productSize - Normal
ShortDescription - 400 | ATX | 120mm | 20 + 4 pin | 150mm x 85mm x 140mm | standardowy |
sizeX - 200
sizeY - 155
sizeZ - 95
Technical details - Sustainability certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 910
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.03 kg
Weight & dimensions - Width - 150 mm
