ID: 149855
Product code: GPB-400S
In stock 5 units
Warranty: 2 years

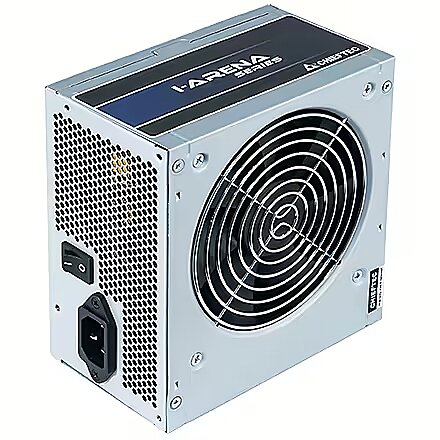

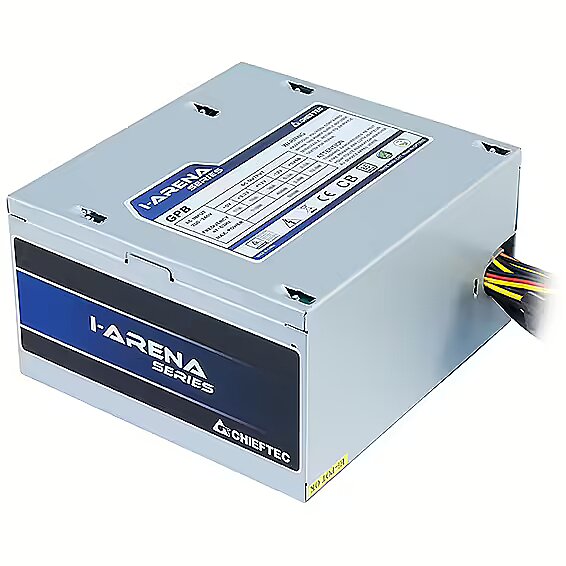

Chieftec iArena GPB Series, 400W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Producer: Chieftec
- Power output: 400W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The color of this power supply is Sudraba. The cable color is Raiba and they are flat.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
400W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 30A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Silver
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
Brand - Chieftec
BrandPartCode - GPB-400S
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Silver
dimensionalWeight - 585
Eans - 4710713233621
EAN_code - 4710713233621
GTIN - 4710713233621
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - High efficiency and a highly competitive pricing coupled with the latest “state-of-the-art” PCB design and components distinguish the 6 new power supplies of the iARENA series. Fully aware of environmental requirements, CHIEFTEC offers European PC manufacturers a solution, fixed @230V and with reduced procurement costs thanks to the resource-friendly bulk packaging.
LongProductName - 200-240V / 3A, 47-63 Hz, 400W, 20+4PIN, ATX 12V 2.3, 140 x 150 x 87 mm
LongSummaryDescription - Chieftec GPB-400S. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - GPB-400S
Name - Chieftec GPB-400S
Name - Chieftec GPB-400S 400W ATX2.3
Other features - Number of SATA connectors - 5
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Input current - 3 A
Power - Max output current (+3.3V) - 17 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V1) - 30 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Over voltage, Overload, Short circuit, Under voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 400 W
Producer - Chieftec
producerCode - GPB-400S
ProducerCode - GPB-400S
productName - Chieftec GPB-400S power supply unit 400 W 20+4 pin ATX PS/2 Silver
ProductName - GPB-400S
productSize - Normal
ShortDescription - 400 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | 80 PLUS | standard | bulk |
ShortSummaryDescription - Chieftec GPB-400S, 400 W, 200 - 240 V, 47 - 63 Hz, 3 A, Active, 100 W
sizeX - 210
sizeY - 90
sizeZ - 155
Title - Chieftec GPB-400S power supply unit 400 W 20+4 pin ATX PS/2 Silver
URL - https://www.chieftec.eu/en/psus/iarena-series/gpb-400s.html
WarrantyInfo - 24 Months
warrantyLength - 24
warrantyType - R
Weight - 1,20
weight - 1188
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 150 mm
