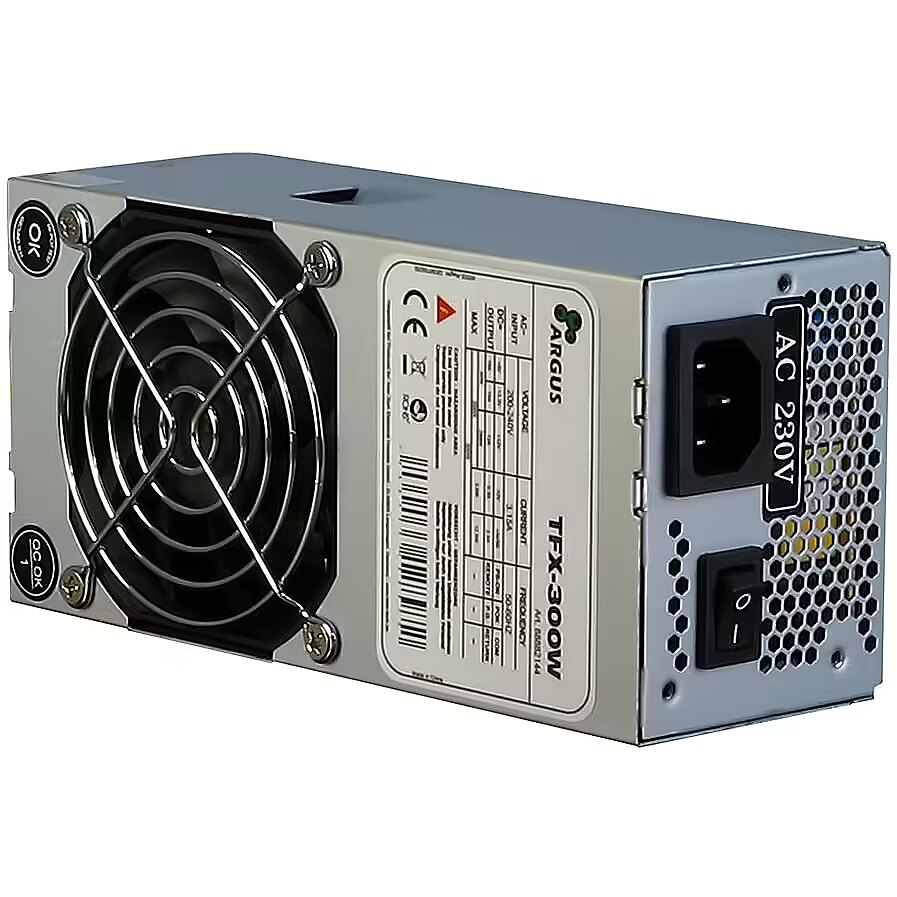

Inter-Tech TFX-300W, 300W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 143865 Product code: IT-TFX300W
In stock 6 units
Warranty: 2 years
34.73 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: on Wednesday, 27.11.2024
  • Courier delivery 3.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
  • Producer: Inter-Tech
  • Power output: 300W
  • 80 PLUS certification: Nav
  • Fan size:
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6+2pin
Description

The color of this power supply is Sudraba. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : TFX
Power output 300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 22A
Fan size :
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Silver
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6+2pin
SATA cconnectors : 3
4pin Molex : 2
Case
More detailed specification
+3.3V - 15 A
+5V - 15 A
+5VSB - 2.5 A
+12V - 12 A
-12V - 0.3 A
4-pin Floppy Drive Connector - 1
4-pin Peripheral Power Connector - 2
4/8-pin +12V Power Connector - 1
5-pin S-ATA Connector - 3
6/8-pin PCI Express Connector - 1
20+4-pin Main Connector - 1
Box Weight Brutto (kg) - 0.98 kg
Depth (mm) - 175 mm
EAN Code - 4260133128972
External Color - Metal
Fan Diameter - 80 mm
Fans Installed Quantity - 1
Height (mm) - 85 mm
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/160609160026444759.jpg
Input Frequency - 50/60 Hz
Input Power Connectors Quantity - 1
Input Power Connectors Type - IEC-320 C14
Input Voltage - AC 200-240 V
Maximum Fans Supported Quantity - 1
Maximum Output Power - 300 W
Output Voltage - DC 3.3/5/±12 V
Package Type - Box
Packs in Box - 1
Pack Weight Brutto (kg) - 0.98 kg
Pieces in pack - 1
Power Adapter and Power Supply Features - Active PFCAutomatic Fan Control
Power Device Location - Internal
Power Device Type - Power Supply
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=160608115237608610&THEME=asbis&LANG=lv
ProductCategory - Kabeļi
ProductCode - IT-TFX300W
ProductDescription - Power Supply INTER-TECH Argus TFX-300W, Retail, Active PFC, 1x80
ProductType - Power Supply Unit
Vendor - INTER-TECH
Warranty Products returnable - Yes
Warranty Term (month) - 24 month(s)
Warranty validation Criteria - Serial Number
Width (mm) - 65 mm
