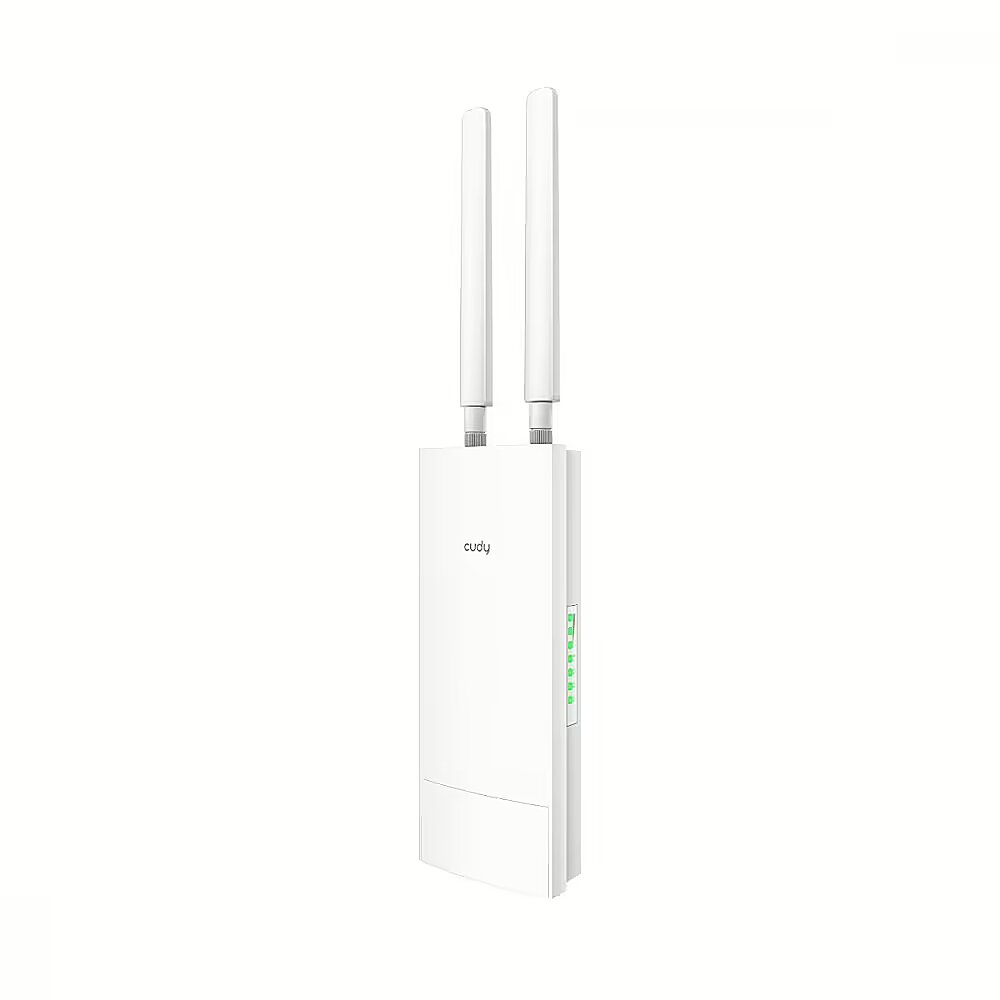

Cudy Outdoor 4G Cat 4 N300 Wi-Fi Router, Model: LT400 Outdoor

Name: Cudy Outdoor 4G Cat 4 N300 Wi-Fi Router, Model: LT400 Outdoor
Brand: Cudy
SKU: 998807
Price: 66.82 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 998807 Product code: LT400 Outdoor_EU

Can be ordered 30 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
Delivery to Omniva parcel locker 1.99 €: 10.12.2024
Courier delivery 3.99 €: 10.12.2024

Main product parameters All parameters

Speed index: 100
Type of device: LTE Router
Wi-Fi standard: Wi-Fi 4 (802.11n)

Basic information

Speed index : 100

Type of device LTE Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)

Functionality

3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 1

More detailed specification

Additional information in manufacturers website Cudy Outdoor 4G Cat 4 N300 Wi-Fi Router, Model: LT400 Outdoor

Accessories included - 2 x detachable 4G antenna Passive PoE adapter 24V/0.5A Accessories for pole installation Ethernet cable Quick Installation Guide
Aero2 support - No
Antenna - Built-in
Antenna - Detachable external
Antenna gain - 5 dBi
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Certificates -
Color - White
Data transmission - EDGE
Data transmission - LTE
Data transmission - UMTS
Description - Router LT400 Outdoor
LTE FDD/TDD Cat 4 N300 Wi-Fi 1 x 10/100Mbps WAN/LAN Nano SIM Slot 24V Passive PoE 2 x Internal WiFi Antennas + 2 x Detachable 4G Antennas VPN & DDNS IP65 WaterProof Turn Everywhere 4G into N300 Wi-Fi
With 4G Cat.4 standards, LT400 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. It features a N300 Wi-Fi, providing reliable network for web browsing,video streaming, surveilance, and POS services.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four dierent scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or oce with a better Wi-Fi signal. AP needs to bepurchased separately.
Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.
dimension depth - 87 mm
dimension height - 323 mm
Dimensions - Router body: 240 x 100 x 53.7 mm 4G antennas: 197.5 x 21.6 x 15.5mm
dimension weight - 798 g
dimension width - 108 mm
ean - 6971690792916
Eans - 6971690792916
Environment requirements - Operating temperature: -20°C to 60°C Storage temperature: -40°C to 70°C
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100 Mbit/s LAN / WAN (Combo)
I/O ports - 1 x SIM card slot
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration - WAN Type: 4G/Dynamic IP/Static IP/PPPoE DHCP: server, DHCP client list, address reservation Dynamic DNS: Compatible with 15 other DDNS providers NAT: port forwarding, port triggering, UPnP, DMZ VPN server and client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier CWMP protocol: TR069 / TR098 / TR111 / TR181 Compatible with ACS server: GenieACS, OpenACS Management: Access Control, Local Management, Remote Management, Wake on LAN TTL: Extend/Spoof/Custom DNS: Cloudare/Google/Custom Internet protocols: IPv4 / IPv6 IPv6: Relay; Dynamic (SLAAC/DHCPv6); Static (permanent IP address); Go through; MAP-E (dual stack); DS-Lite (Dual Stack) SMS: send/receive Blocking the 4G band
Model - LT400 Outdoor
Name - Cudy LT400 Outdoor
name - Router LT400 Outdoor 4G LTE SIM N300
Number of antennas - 4
Operating frequency - 2,4 GHz
Other features - Wi-Fi data rate: 2.4 GHz (802.11n/g/b, 300 Mbps) Cellular Data Rate: FDD: Max 150Mbps(DL)/ 50Mbps(UL) TDD: Max 130Mbps(DL)/ 30Mbps(UL) DC-HSDPA: Max. 21Mbps (DL) / 5.76Mbps (UL) WCDMA: 384Kbps (DL/UL)
Power supply - Passive PoE adapter 24V/0.5A
producer - Cudy
Producer - Cudy
ProducerCode - LT400 Outdoor
Security - WEP WPA/WPA2 WPA-PSK/WPA2-PSK
ShortDescription -
SIM card - Nano
Software -
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
Type - GSM 3G/4G
UMTS network - 900 MHz
UMTS network - 2100 MHz
vendpn - LT400 Outdoor_EU
