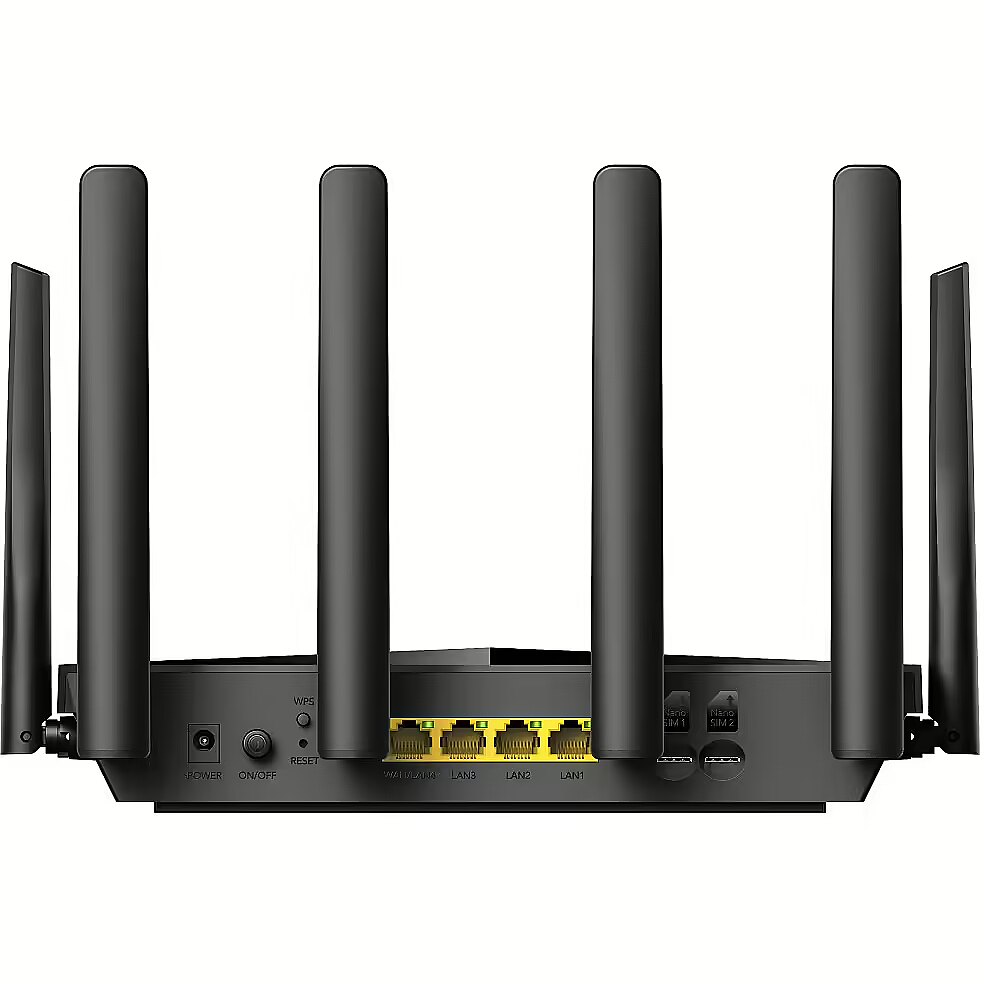

Cudy Router LT700_EU Gigabit AC1200 4G LTE SIM

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 974724 Product code: LT700_EU
Can be ordered 14 units Availability: 14 days after order approval
Warranty: 2 years
103.35 €
Delivery options
  • Delivery to Smartpost 1.99 €: 01.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 01.04.2025
  • Courier delivery 3.99 €: 01.04.2025
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: LTE Router
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device LTE Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 4
More detailed specification
Accessories included - 4G LTE WiFi Router Charger RJ45 ethernet cable Quick Installation Guide
Aero2 support - No
Antenna - Detachable external
Antenna - Fixed external
Antenna - Antenna design - Internal & external
Antenna - Detachable antenna(s) - Yes
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Color - Black
Data transmission - HSPA +DC
Data transmission - LTE
Data transmission - UMTS
Description - LT700 AC1200 4G LTE CAT 6 Router 4G LTE CAT.6 CPE AC1200 Dual Band Wi-Fi Two SIM slots (Nano) 4 x Gigabit Ethernet ports 4 x detachable cellular antenna 2 x fixed WiFi antenna DNS over Cloudare/NextDNS/Google WireGuard/OpenVPN/PPTP/L2TP clients
Design - Built-in display - No
Design - LED indicators - LTE, Power, Status, WAN, WLAN
Design - Product colour - Black
Design - Product type - Tabletop router
Designation - CE+WEEE
dimensionalWeight - 1170
dimension depth - 395 mm
dimension height - 60 mm
Dimensions - 253 x 152.5 x 48.2 mm
dimension weight - 1000 g
dimension width - 250 mm
ean - 6971690792886
EAN - 6971690792886
Eans - 6971690792886
Features - Built-in processor - Yes
Features - Flash memory - 16 MB
Features - Internal memory - 128 MB
Features - Internal memory type - DDR3
Features - Processor cores - 2
Features - Processor frequency - 880 MHz
Features - Processor manufacturer - MediaTek
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000Base-T RJ-45 port (WAN)
I/O ports - 2 x SIM card slot
I/O ports - 3 x 10/100/1000 Mbit/s PoE
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1500 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - WPS push button - Yes
Manufacturer - Cudy
Mobile network - 4G LTE category - 6
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - Dual SIM support - Yes
Mobile network - Mobile network generation - 4G
Mobile network - Short Message Service (SMS) - Yes
Mobile network - SIM card type - NanoSIM
Model - LT700
MPN - LT700
Name - Cudy AC1200 Wi-Fi 4G LTE-Cat6 Gigabit Router
Name - Cudy LT700
name - Router LT700_EU Gigabit AC1200 4G LTE SIM
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 45 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - CPU: Mediatek Dual Core 880MHz 4G Module: Quectel EG120K (Qualcomm) DRAM: 256MB (2Gbit) DDR3 Flash: 16MB (128Mbit) Data transfer rate: Wi-Fi : 2.4GHz (802.11n/g/b, MIMO 300Mbps); 5GHz (802.11ac/an/a, MIMO 867Mbps) LTE FDD: Max 300Mbps(DL)/50Mbps(UL) LTE TDD: Max 226Mbps(DL)/48Mbps(UL) DC-HSPA+: 42Mbps(DL)/11.5Mbps(UL) WCDMA: Max 384Kbps (DL) / Max 384Kbps (UL)
Packaging content - AC adapter included - Yes
Packaging content - Antenna included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 408 mm
Packaging data - Package height - 58 mm
Packaging data - Package width - 238 mm
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - USB port - No
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power source type - AC, DC
Power supply - AC Adapter: Input: 90~260V; Output: 12V, 1.5A DC Input (12V-1.5A) Barrel Plug
producer - Cudy
Producer - Cudy
ProducerCode - LT700
producerCode - LT700_EU
productName - Cudy LT700 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Security -
Security - Firewall - Yes
Security - Firewall security - Mac Filter, IP Filter, Domain Filter
Security - Guest access - Yes
Security - NAT functionality - Port Forwarding, Port Triggering, UPnP, DMZ
Security - Network address translation (NAT) - Yes
Security - Parental control - Yes
Security - Schedule access - Yes
ShortDescription -
SIM card - Nano
sizeX - 390
sizeY - 250
sizeZ - 60
Software -
Special functions - DHCP:Server, Client List, Address Reservation NAT: Port Forwarding, Port Triggering, UPnP, DMZ Firewall: Mac Filter, IP Filter, Domain Filter DDNS:Compatible with 20 more DDNS providers VPN Client:PPTP/L2TP/OpenVPN/WireGuard DNS over TLS: Cloudare/NextDNS/Google Schedule: Schedule Reboot /Wi-Fi Schedule Internet Protocol version 4 or 6 (IPv4/IPv6) Quality of Service (QoS) TTL configuration(Extend/Spoof) Band Selection
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 1800 MHz
UMTS network - 2100 MHz
vendpn - LT700
WAN connection - 3G/4G USB modem compatibility - Yes
WAN connection - DSL WAN - Yes
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
Weight - 1.02
weight - 965
Weight & dimensions - Depth - 252.5 mm
Weight & dimensions - Height - 48.2 mm
Weight & dimensions - Width - 161 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
