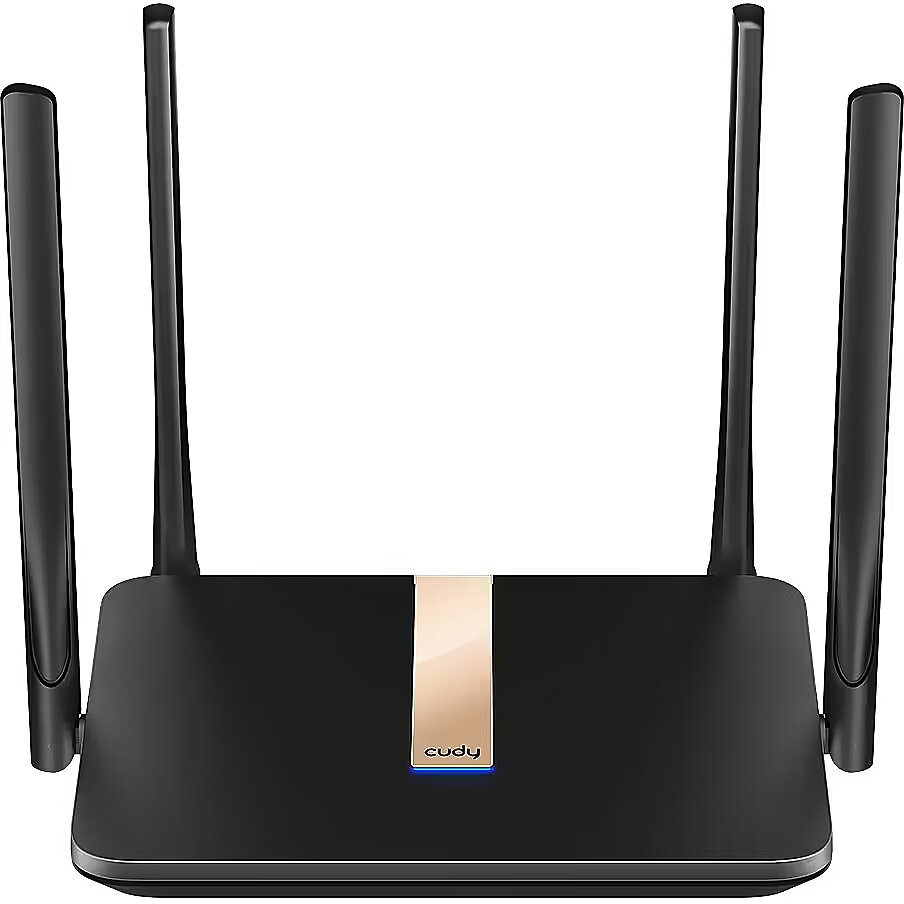

Cudy LT500D

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 946020 Product code: LT500D
Can be ordered 57 units Availability: 14 days after order approval
Warranty: 2 years
53.74 €
Delivery options
  • Delivery to Smartpost 1.99 €: 16.04.2025
  • Delivery to Omniva parcel locker 1.99 €: 16.04.2025
  • Courier delivery 3.99 €: 16.04.2025
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: LTE Router
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device LTE Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 4
More detailed specification
Accessories included - 4G LTE WiFi Router Charger RJ45 ethernet cable Quick Installation Guide
Aero2 support - No
Antenna - Detachable external
Antenna - Fixed external
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Antenna type - 2x2
Antenna gain - 5 dBi
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Color - Black
Data transmission - EDGE
Data transmission - LTE
Data transmission - UMTS
Description - LT500D 4G LTE Router AC1200 Dual Band Wi-Fi LTE speed up to 150/50 Mbps AC1200 Wi-Fi for smoother operation 2 x detachable 4G antenna Many VPN protocols create secure connections Compatible with over 15 DDNS providers DNS via Cloudflare/NextDNS/Google
Design - LED indicators - LAN, Power
Design - Product colour - Black
Design - Product type - Tabletop router
Designation - CE+WEEE
dimensionalWeight - 1122
dimension depth - 60 mm
dimension height - 342 mm
Dimensions -
dimension weight - 758 g
dimension width - 277 mm
ean - 6971690792060
EAN - 6971690792060
Eans - 6971690792060
Features - Built-in processor - Yes
Features - Flash memory - 16 MB
Features - Internal memory - 128 MB
Features - Plug and Play - Yes
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100 Mbit/s WAN
I/O ports - 1 x SIM card slot
I/O ports - 3 x 10/100 Mbit/s
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management features - Reset button - Yes
Management features - Wake-on-LAN ready - Yes
Management features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Management features - WPS push button - Yes
Manufacturer - Cudy
Mobile network - 2G standards - Edge
Mobile network - 2G standards - GSM
Mobile network - 3G standards - WCDMA
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - Dual SIM support - No
Mobile network - Mobile network generation - 4G
Mobile network - SIM card type - NanoSIM
Model - LT500D
MPN - LT500D
Name - Cudy AC1200 Wi-Fi Mesh 4G LTE Cat4 Router
Name - Cudy LT500D
name - Router LT500D Mesh AC1200 4G LTE SIM
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN interface type - Fast Ethernet
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - VPN server - OpenVPN/WireGuard/IPSec/PPTP/L2TP/Zerotier VPN
Network - VPN support - PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zerotier
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - CPU: MTK DRAM/FLASH: 1Gbit (128MB) DDR / 128Mbit (16MB) SPI Flash Data transfer rate: LTE: up to 150Mbps / 50Mbps WiFi: up to 867Mbps (5GHz), 300Mbps (2.4GHz)
Packaging content - AC adapter included - Yes
Packaging content - Cables included - AC
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick installation guide - Yes
Packaging data - Number of products included - 1 pc(s)
Packaging data - Package type - Box
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - USB port - No
Power - Power source type - DC
Power supply -
producer - Cudy
Producer - Cudy
ProducerCode - LT500D
producerCode - LT500D_EU
productName - Cudy LT500D wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 4G Black
productSize - Normal
Protocols - DHCP client - Yes
Protocols - Universal Plug and Play (UPnP) - Yes
Security - WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Security - DMZ support - Yes
Security - Guest access - Yes
Security - Parental control - Yes
Security - Security algorithms - WEP
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
ShortDescription -
SIM card - Nano
sizeX - 340
sizeY - 275
sizeZ - 60
Software -
Special functions - WAN Type: 4G/Dynamic IP/Static IP/PPPoE DHCP: Server, DHCP Client List, Address Reservation Dynamic DNS: Compatible with 15 more DDNS providers NAT: Port Forwarding, Port Triggering, UPnP, DMZ VPN Sever & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier CWMP Protocol: TR069 / TR098 / TR111 / TR181 ACS Server Compatibility: GenieACS, OpenACS Management: Access Control, Local Management, Remote Management, Wake on LAN TTL: Extend/Spoof/Custom DNS: Cloudflare/Google/NextDNS/Custom IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack) SMS: Send/Receive 4G Band Lock
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
System requirements - Browser supported - Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
System requirements - Mac compatibility - Yes
System requirements - Mac operating systems supported - MacOS
System requirements - Windows operating systems supported - Yes
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 2100 MHz
vendpn - LT500D_EU
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
Weight - 0.74
weight - 740
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 867 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 867 Mbit/s
