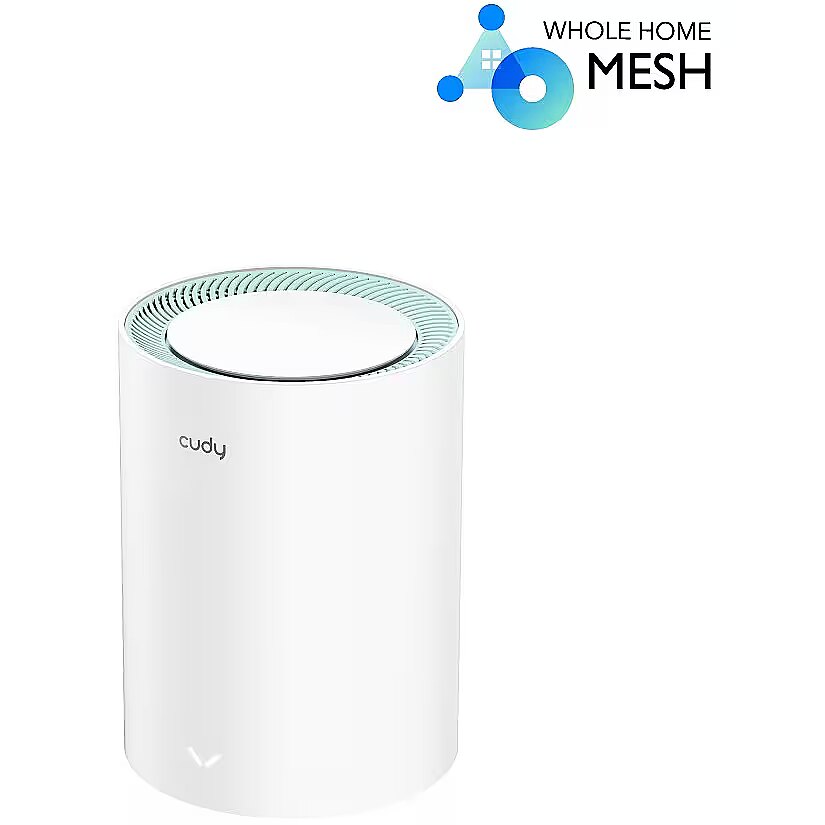

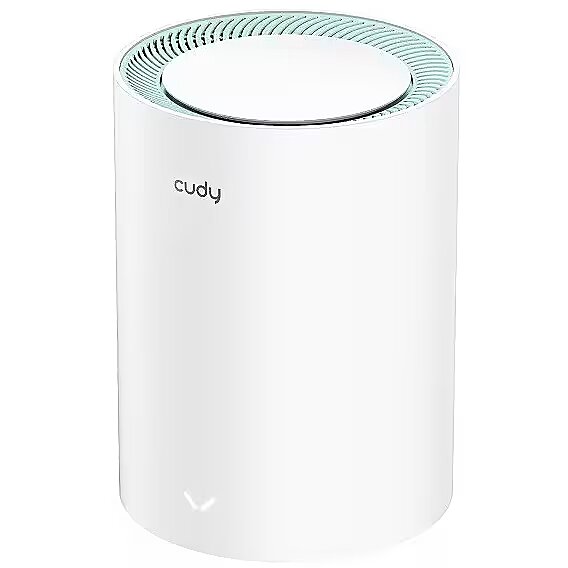

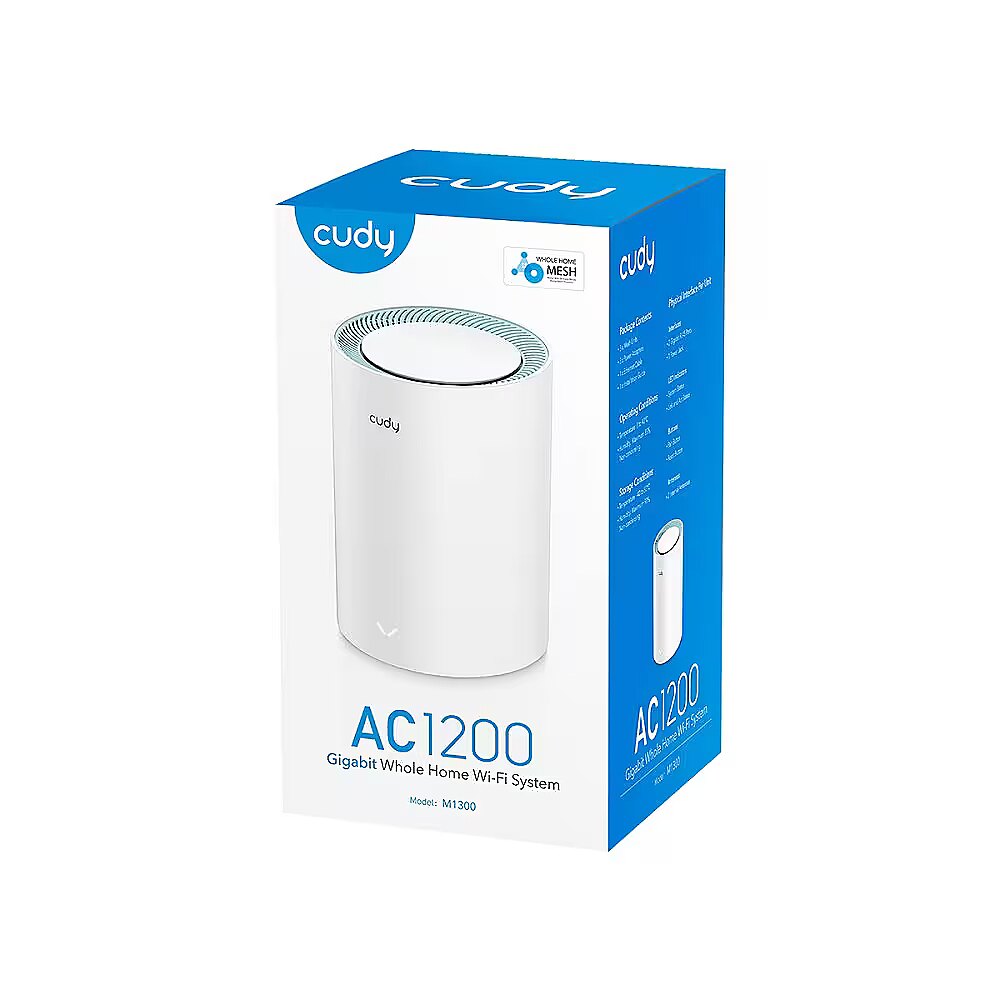

Cudy System WiFi Mesh M1300 (1-Pack) AC1200

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 945971 Product code: M1300(1-Pack)
Can be ordered 22 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
33.63 €
Delivery options
  • Delivery to Smartpost parcel locker 1.99 €: {delivery_2_txt_full}
  • Delivery to Omniva parcel locker 1.99 €: 27.11.2024
  • Courier delivery 3.99 €: 27.11.2024
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: Mesh Router
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device Mesh Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 2
More detailed specification
Accessories included - AC1200 WiFi Mesh Router Charger RJ45 ethernet cable Quick Installation Guide
Antenna - Built-in
Category - Root/Electronics/Networks and communication/Routers
Color - White
Description - M1300 1-pack AC1200 Dual Band Whole Home Wi-Fi Mesh Wi-Fi AC1200 network 867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band Seamless roaming, coverage throughout your home 2 Gigabit Ethernet ports Compatible with 15 additional DDNS providers PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier VPN
dimension depth - 137 mm
dimension height - 244 mm
Dimensions -
dimension weight - 600 g
dimension width - 137 mm
ean - 6971690792800
Eans - 6971690792800
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100/1000 Mbit/s
I/O ports - 1 x 10/100/1000Base-T RJ-45 port (WAN)
Management, monitoring, configuration - WAN Type: Dynamic IP/Static IP/PPPoE DHCP: Server, DHCP Client List, Address Reservation Dynamic DNS: Compatible with 15 more DDNS providers Guest Networ: 2.4GHz guest network x 1, 5GHz guest network x 1 NAT: Port Forwarding, Port Triggering, UPnP, DMZ VPN Sever & Client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier Working Mode: Wi-Fi Router/ Wireless Access Point/Wi-Fi Extender/ WISP CWMP Protocol: TR069 / TR098 / TR111 / TR181 ACS Server Compatibility: GenieACS, OpenACS Management: Access Control, Local Management, Remote Management, Wake on LAN TTL: Extend/Spoof/Custom DNS: Cloudflare/Google/NextDNS/Custom VLAN: Tag VLAN / IPTV IPv6: Relay, Dynamic(SLAAC/DHCPv6), Static (Fixed IP), Passthrough, MAP-E (Dual-stack), DS-Lite (Dual-stack)
Model - M1300 1-pack
Name - Cudy M1300(1-Pack)
name - System WiFi Mesh M1300 (1-Pack) AC1200
Network architecture - GigabitEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Flash: 128Mbit (16MB) DDR: 1Gbit (128MB) Dual core processor Pairing button, reset button Data transmission speed: 867 Mbps (5 GHz), 300 Mbps (2.4 GHz)
Power supply - External power supply: 12V / 1A
producer - Cudy
Producer - Cudy
ProducerCode - M1300(1-Pack)
Security - WEP WPA/WPA2 WPA-PSK/WPA2-PSK
ShortDescription -
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser Cable or DSL modem
Type - xDSL
vendpn - M1300(1-Pack)
